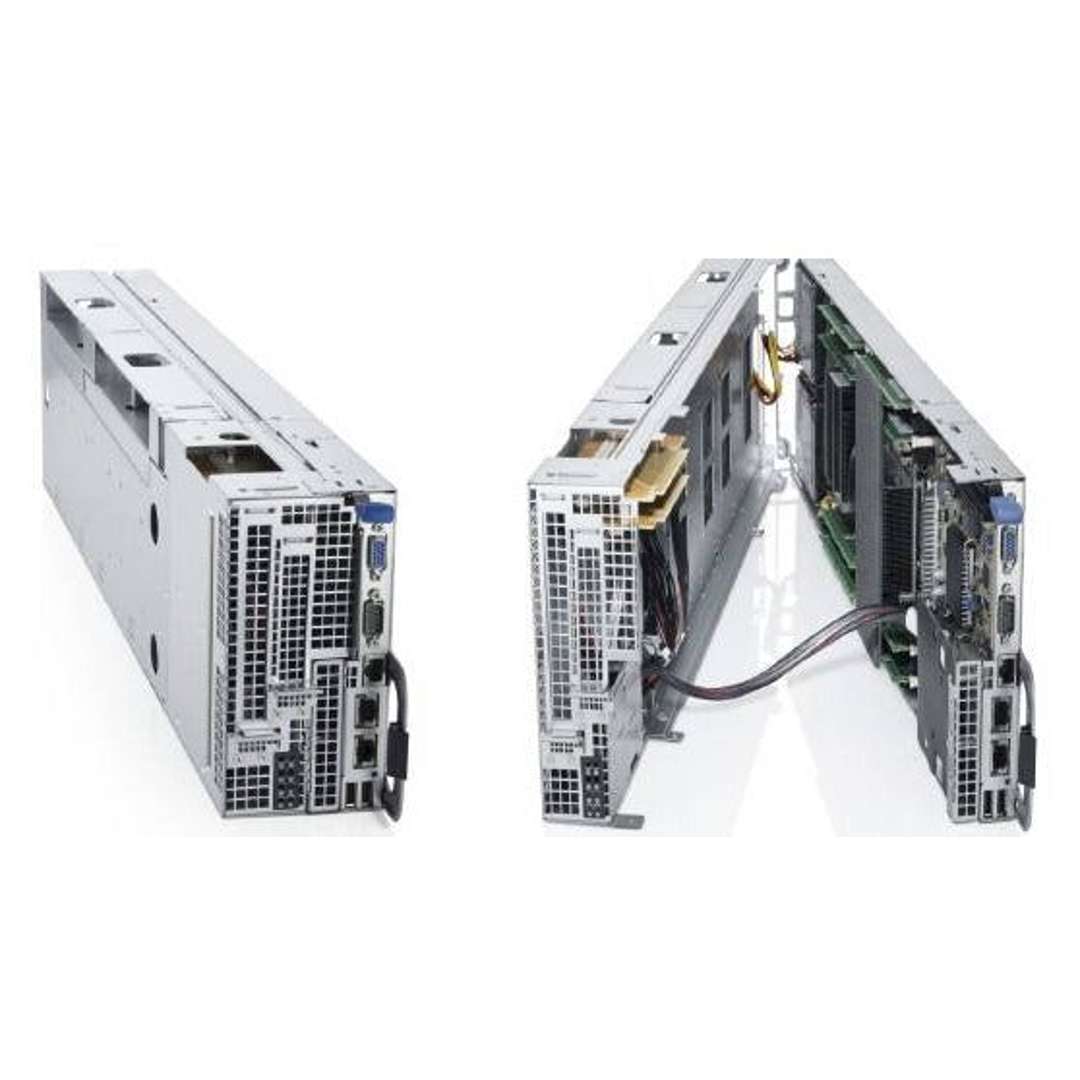

Refurbished Dell PowerEdge C8220X CTO Compute Sled

Dell PowerEdge C8220X 2 SFF + GPU Compute Sled Chassis

SKU: DPE-C8220X-2SFF-GPU-Chassis

Dell PowerEdge C8220X 2 SFF + GPU Compute Sled Chassis

Name: Dell PowerEdge C8220X 2 SFF + GPU Compute Sled Chassis
Brand: Dell
SKU: DPE-C8220X-2SFF-GPU-Chassis
Availability: InStock

Dell

| Chassis

.price-ui--loading { display: block !important; opacity: 1 !important; }

Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor: 2U rack server
Processor: 2 x Intel Xeon E5-2600 or E5-2600v2 | Max: 8 Cores
Memory: 16 DDR3 LV RDIMM, LR RDIMM, or RDIMM Up to 1600Mhz | Max: 256GB
PCIe Slots: 2 | Gen: 3.0
GPU: 2 GPU slots, Must install the Front and Rear GPU Risers

Storage: Max: 12TB
- 2 x GPUs + 2 x 2.5" non-hot-plug rear hard drive
Note: 2 x 2.5” non-hot-plug rear hard drives only supported with GPUs

System Board Options

Each system board supports different items.The correct Interposer board will come with the system you choose.

V1.0 (CN0W6W6G)

CPU: Intel Xeon E5-2600 series processor
Interposer: V1.0
NVIDIA Tesla M2090 GPGPU card
NVIDIA Tesla K20 GPGPU card
Intel Xeon Phi 5110P card

V1.1 (CN0TND55)

CPU: Intel Xeon E5-2600 series processor
Interposer: V1.1
NVIDIA Tesla M2090 GPGPU card
NVIDIA Tesla K20 GPGPU card
Intel Xeon Phi 5110P card

V1.2 (CN09N44V)

CPU: Intel Xeon E5-2600V2 series processor
Interposer: V1.1
NVIDIA Tesla K10 GPGPU card
Intel Xeon Phi 7120P card

Get results up to 10x faster with GPUs1 , delivered with up to 24 cores, 512GB memory, and three PCIe 3.0 expansion slots in a compact double-wide sled designed for the 4U PowerEdge C8000 chassis.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

Feature	PowerEdge C8220X COMPUTE/GPU Sled Technical Specifications

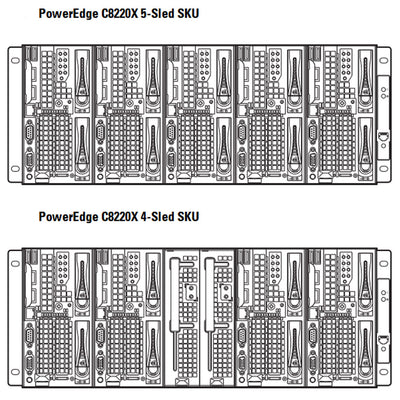

Chassis	4U rack mount chassis fits up to 4 double-wide sleds
Processors	One 2-socket server, 4, 6, or 8 core Intel® Xeon® E5-2600 processor series
Graphics Processing Units (GPUs)	2 GPU slots for up to 1024 cores with 12GB of GDDR5 on-board memory NVIDIA® Tesla™ M2090 GPU Computing Module
Memory	16 DIMM slots for up to 256 GB per node: 4GB/8GB/16GB DDR3, RDDR3, LV RDDR3, LR RDDR3 Supports 1066 MHz, 1333 MHz, and 1600 MHz DDR3 memory L2/L3 cache: 5MB, 10MB, 15MB, or 20MB
Chipset	Intel C600 chipset
Video	Integrated AST2300 with up to 16MB video RAM
Primary Storage	Maximum internal storage: 12TB
Drive Bays and Hard Drives	2 x 2.5” hot-plug hard drives + 8 x 2.5” non-hotplug hard drive options; or 2 x 2.5” non-hot-plug hard drives, e.g. with GPUs 2.5” 6Gb SAS (10K): 300GB, 600GB, 900GB 2.5” 6Gb SAS (15K): 146GB 2.5” NL 6Gb SAS (7.2K): 1TB 2.5” SSD (eMLC): 100GB 2.5” Enterprise SATA (7.2K): 500GB, 1TB	2 x 2.5” hot-plug hard drives + 4 x 3.5” hard drive options 3.5” 6Gb SAS (15K): 300GB, 600GB 3.5” NL 6GB SAS (7.2K): 2TB, 3TB 3.5” Enterprise SATA (7.2K): 500GB, 1TB, 2TB Note: Only 2 x 2.5” non-hot-plug hard drives with GPUs
Connectivity	Intel Ethernet Controller i350 - 2 x 1Gb Ethernet 1 x 100Mb Ethernet dedicated management port
Ports - USB	2 USB ports external (front)
I/O Slots	2 x8 PCIe Gen3 low-profile slots 1 x8 PCIe Gen3 daughter card connector Mellanox® ConnectX-2 dual-port quad data rate (QDR) InfiniBand adaptor (optional) Intel 82599 10Gb Ethernet controller quad-port (optional)
Drive Controller	Intel C600: SATA or SSD drives only LSI® 2008 6Gb SAS mezzanine (optional)
RAID Controller	LSI 9265-8i add-in RAID controller (optional)
Operating Systems	Novell® SUSE® Linux® Enterprise Server 11 SP1 Red Hat® Enterprise Linux 6.0 Windows® Server® 2008 R2 Enterprise x64 SP1 Windows Server 2008 R2 Hyper-V™ SP1 Windows HPC Server® 2008 R2 x64 SP1
Server Management	Embedded BMC with IPMI 2.0 support with 1 x 10/100 Mbps RJ45 connector Intel Node Manager 2.0 compliant
Hypervisors (Optional)	Citrix® XenServer® 5.6 SP2 VMware® ESXi v5.0 Windows Server 2008 Hyper-V
Services (Availability varies by region. Please contact your sales representative for details.)	Data Center Consulting Services Rack Integration (U.S. only, not available in China) Rack Design Verification Configuration Services/CFI Onsite Deployment Online Self Dispatch Basic Support ProSupport for IT	ProSupport for Data Center 4-Hour Support Keep Your Hard Drive Enterprise Wide Contract IT Advisory Service Remote Advisory Service Certified Data Destruction Specialized Onsite Services
Dimensions and Weight	Height: 85.9 mm (3.38 in.) Wide: 171.6 mm (6.76 in.) Depth: 682.5 mm (26.87 in.) Weight (maximum configuration): 8.62 kg (19 lb.)
