SKU: DPE-PERC-11-HBA350i-LP

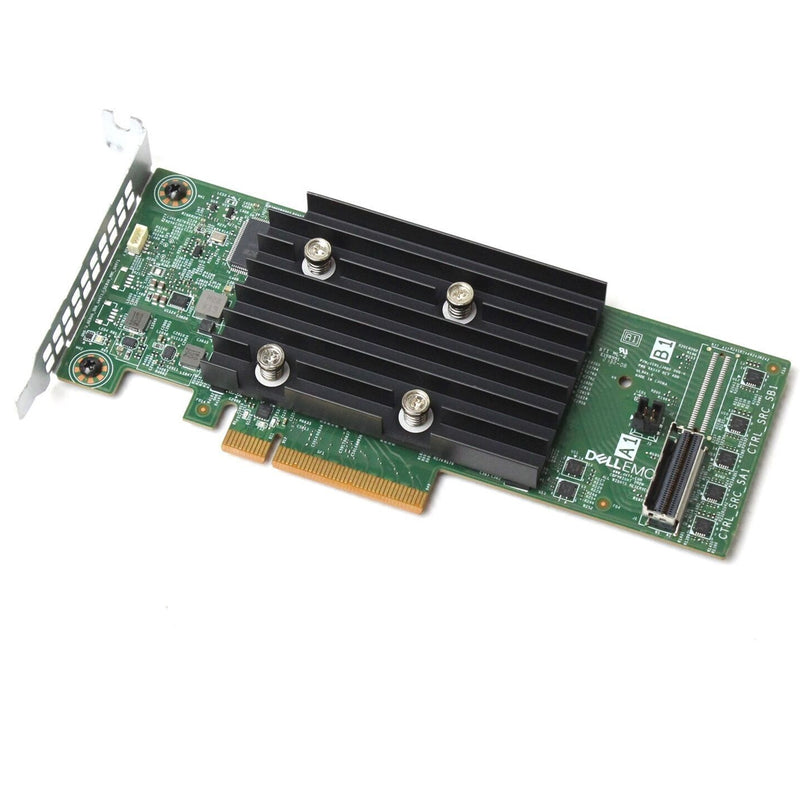

Dell PERC 11 HBA350i SAS 12Gb LP HBA Controller

Dell

| Adapter
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

  • Models: PCIe Host Bus Adapter
  • Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3Gb/s SAS/SATA
  • PCI Support: PCI-e 4.0
  • SAS Connectors: 2x8 Internal
  • Cache Memory: N/A
  • Write Back Cache: N/A
  • RAID Levels: N/A
  • Max Drive Support: 16/controller, 50 with SAS Expander (Platform limit)
  • RAID Support: N/A

Part Number:

  • FH: NFYVN
The Dell HBA350i SAS 12Gb Adapter FH is a high-speed internal host bus adapter designed for enterprise environments requiring reliable SAS/SATA connectivity without RAID overhead. With support for PCI-e 4.0 and dual 2x8 internal connectors, it ensures fast and efficient data transfer.
Capable of managing up to 16 drives directly or up to 50 with a SAS expander, the HBA350i provides flexible, non-RAID storage scalability. It’s ideal for businesses seeking high-performance internal storage infrastructure with maximum throughput and simplified architecture.
Summary of RAID levels
Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
  • RAID 0

    Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.

  • RAID 1

    Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.

  • RAID 5

    Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.

  • RAID 6

    Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.

  • RAID 10

    Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.

  • RAID 50

    Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.

  • RAID 60

    Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.

Compatible With:
  • Dell R440
  • Dell R540
  • Dell R740xd
  • Dell R940xa

(Click to View)

Spec Sheet 4

Model & Form Factors Interface Support PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H755N Front (NVMe Only) Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/per controller Hardware
H755 Adapter FH 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0, 1, 5, 6, 10, 50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 Adapter LP
H755 Front (SAS/SATA Only) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H755 MX 3 Gbps SATA
6 Gbps SATA/SAS
12 Gbps SATA/SAS
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 1x8 Internal 8GB NV DDR4 2666MT/s Flash Backed Cache 0, 1, 5, 6, 10, 50,60 8, Limited by platform N/A
H750 Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA
*SAS/SATA ONLY		 PCIe Gen 4 1x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 8/controller
50 with SAS Expander
*Platform limit		 Hardware RAID
H750 Adapter LP
H355i Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H355i Adapter LP
H355 Front 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
>or 32 Non-RAID		 Hardware
HBA355 Front (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA355i Adapter LP
HBA355e Adapter FH 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 4x4 External N/A N/A N/A 240 N/A
HBA355e Adapter LP
H350 Adapter FH 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 1x8 Internal No Cache No Cache 0,1,10 Up To 32 RAID
or 32 Non-RAID		 Hardware
H350 Adapter LP
H350 Mini Mono 12Gb/s SAS
6Gb/s SATA		 PCIe Gen 4 2x4 Internal N/A N/A 0, 1, 10 Without SAS Expander:
8 drives per controller

With SAS Expander:
Limited by platform offering 		N/A
HBA350i Adapter (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 2x8 Internal N/A N/A N/A 16/controller
50 with SAS Expander
*Platform limit		 N/A
HBA350 MX (internal) 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 1x8 Internal N/A N/A N/A 8
*Platform limit		 N/A
