Module Specs

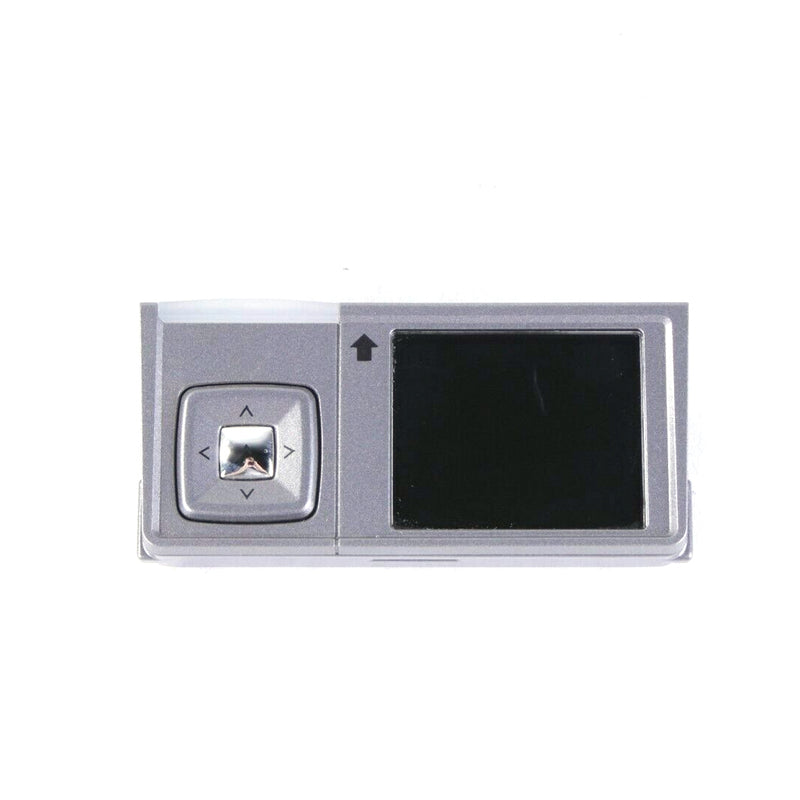

The LCD module provides an initial configuration/deployment wizard, as well as easy access to infrastructure and blade information, and error reporting.
The primary function of the LCD module is to provide real-time information on the health and status of the modules in the enclosure.
LCD module features include:
- A deployment setup wizard that allows you to configure the CMC module’s network settings during initial system set up.
- Menus to configure the iDRAC in each blade.
- Status information screens for each blade.
- Status information screens for the modules installed in the back of the enclosure, including the I/O modules, fans, CMC, iKVM, and power supplies.
- A Network Summary screen listing the IP addresses of all components in the system.
- Real time power consumption statistics, including high and low values, and average power consumption.
- Ambient temperature values.
- AC power information.
- Critical failure alerts and warnings.
Compatible With:
- Dell M1000e
