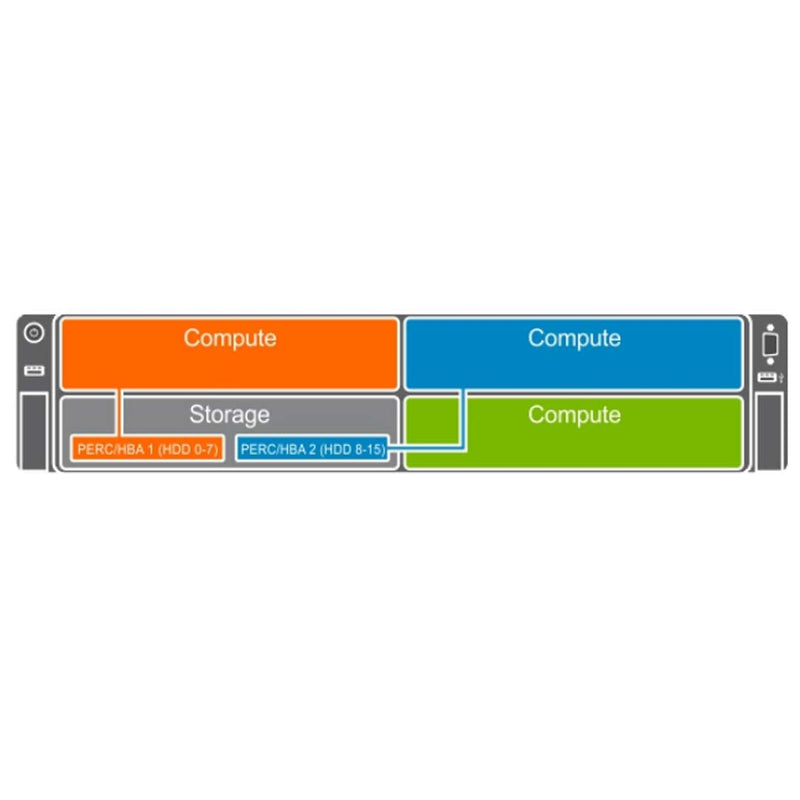

Split the drives 8 and 8 and each group goes to a different Compute Sled.
Compatible With:
- Dell fd332
(Click to View)
Base Standard Capabilities
| Feature | PERC H330 | PERC H730 | PERC H730P | PERC H730P MX | PERC H830 | PERC FD33xD/FD33xS |
|---|---|---|---|---|---|---|
| RAID Levels | 0, 1, 5, 10, 50 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 |
| Enclosures per port | Not applicable | Not applicable | Not applicable | Not applicable | 8 (4 per port) | Not applicable |
| Processor | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3008 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8- port with LSI 3108 chipset | Dell Adapter SAS RAID-on-Chip, 8-port with LSI 3108 chipset |
| Battery Backup Unit | No | Yes | Yes | Yes | Yes | Yes |
| Non-Volatile cache | None | Yes | Yes | Yes | Yes | Yes |
| Cache policy | No | 1 GB DDR3 1333 Mhz cache | 2 GB DDR3 1866 Mhz cache | 2 GB DDR3 1866 Mhz cache | 2 GB DDR3 1866 Mhz cache | 2 GB DDR3 1866 Mhz cache |
| NOTE: H330 does not support caching, which affects performance in RAID 5 and RAID 50 arrays. For performance sensitive solutions, caching is recommended. | ||||||
| Cache function | Write Through and No Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead | Write Back, Write Through, No Read Ahead, and Read Ahead |
| Maximum number of virtual disks | 16 | 64 | 64 | 64 | 240 | 64 |
| Maximum number of virtual disks per disk group | 16 | 16 | 16 | 16 | 16 | 16 |
| Hot swap devices supported | Yes | Yes | Yes | Yes | Yes | Yes |
| Hardware XOR Engine | No | Yes | Yes | Yes | Yes | Yes |
| Online capacity expansion | Yes | Yes | Yes | Yes | Yes | Yes |
| Dedicated and global hot spare | Yes | Yes | Yes | Yes | Yes | Yes |
| Drives Types | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS | 6 Gbps SAS, and 12 Gbps SAS | 3 Gbps SATA, 6 Gbps SATA/SAS, and 12 Gbps SAS |
| PCIe Support | Gen 3 | Gen 3 | Gen 3 | Gen 3 | Gen 3 | Gen 3 |
| Non-RAID or pass through mode | Yes | Yes | Yes | Yes | Yes | Yes |
| Queue Depth | 895 | 928 | 928 | 928 | 928 | 928 |
Spec Sheet 4
| Models | Drive Types | PCI Support | SAS Connectors | Cache Memory | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| H830 Adapter | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 255 | Hardware |
| H730P Adapter FH - X4TTX | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Adapter LP - J14DC | ||||||||
| H730P Adapter No Bracket - C9Y6K | ||||||||
| H730P MX | 12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | - | Hardware |
| H730P Mini Mono | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Mini Blade - 3X31R | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Mini Blade - GD07N | ||||||||
| H730P Mini Blade - YRPP6 | ||||||||
| H730 Adapter FH | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730 Adapter LP | ||||||||
| H730 Adapter No Bracket | ||||||||
| H730 Mini Mono | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730 Mini Blade | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 1x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H330 Adapter FH | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | No Cache | No Cache | 0,1,5,10,50 | 16 RAID, 32 Non-RAID | Hardware |
| H330 Adapter LP | ||||||||
| H330 Mini Mono | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | No Cache | No Cache | 0,1,5,10,50 | 16 RAID, 32 Non-RAID | Hardware |
| H330 Mini Blade | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | No Cache | No Cache | 0,1,5,10,50 | 8 | Hardware |
| S130 Software RAID | 6 Gb/s SATA | N/A | N/A | No Cache | No Cache | 0,1,5,10 | 10 | Software - Windows and Linux |
| 12 Gbps SAS Ext. HBA FH | 12 Gb/s SAS | PCI-e 3.0 | 2x4 External | No Cache | No Cache | No RAID Pass-Thru Only | 255 | No RAID Pass-Thru Only |
| 12 Gbps SAS Ext. HBA LP | ||||||||
| More HBA Gen 9 Controllers | ||||||||
| FD33XD Dual HBA (Split Host) |
FD33XD Dual HBA (Dual Host) |
FD33XD Dual PERC (Split Host) |
FD33XD Dual PERC (Dual Host) |
FD33XS Single HBA (Joined Mode) |
FD33XS Single PERC (Joined Mode) |
HBA330 + 12Gb SAS HBA |
HBA330 MX 12Gb SAS Non-RAID |
|
