Module Specs
- Type: Ethernet Switch Module
- Series: Force10 MXL
- Internal Ports: 32 x 1GbE/10GbE (auto-negotiating)
- Fixed External Ports: 2 x 40GbE QSFP+

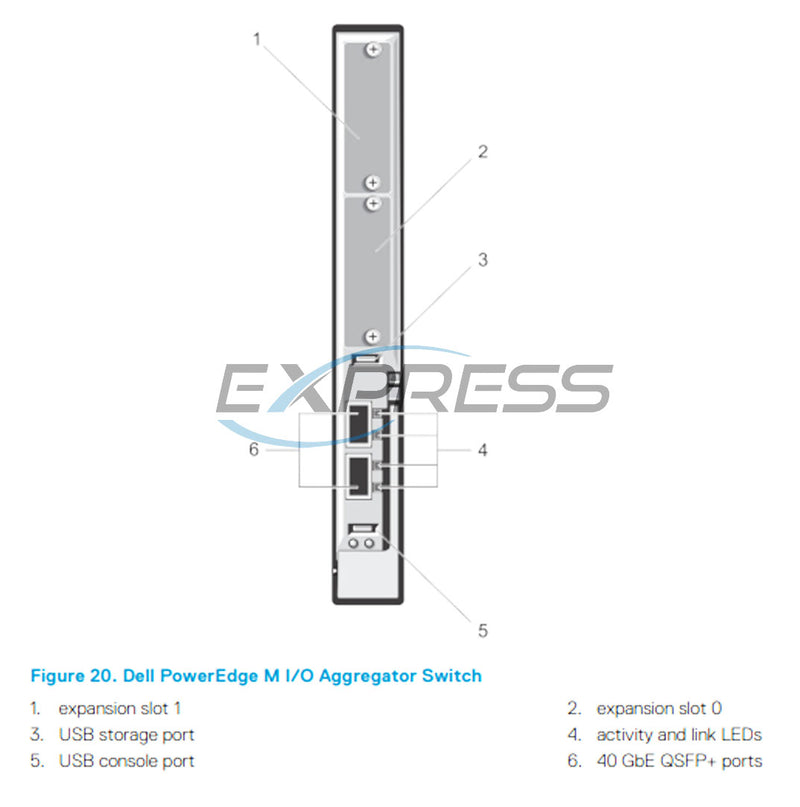

- Expansion Slots: 2 FlexIO Bays
- Expansion Options: 4-port 10GbE SFP+, 4-port 10GBASE-T (RJ-45), 2-port 40GbE QSFP+
- Breakout Support: 40GbE to 4 x 10GbE via breakout cables
- Stacking Bandwidth: 320Gb (up to 6 switches)
- Supported Protocols: iSCSI, FCoE (transit to ToR), PVST+
- Chassis Compatibility: Dell PowerEdge M1000E
Part Number:
- WKCFR

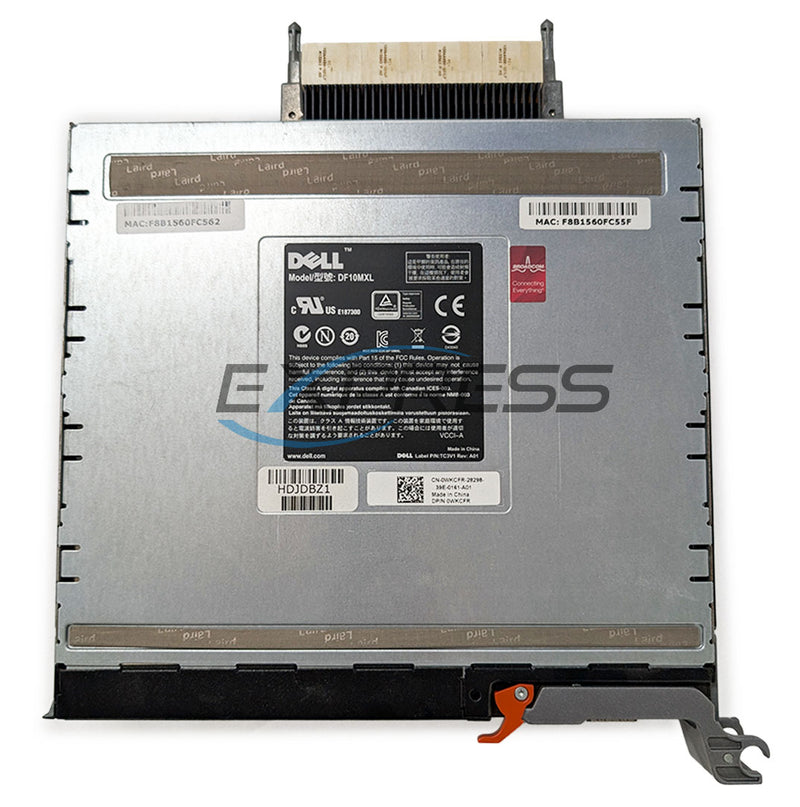

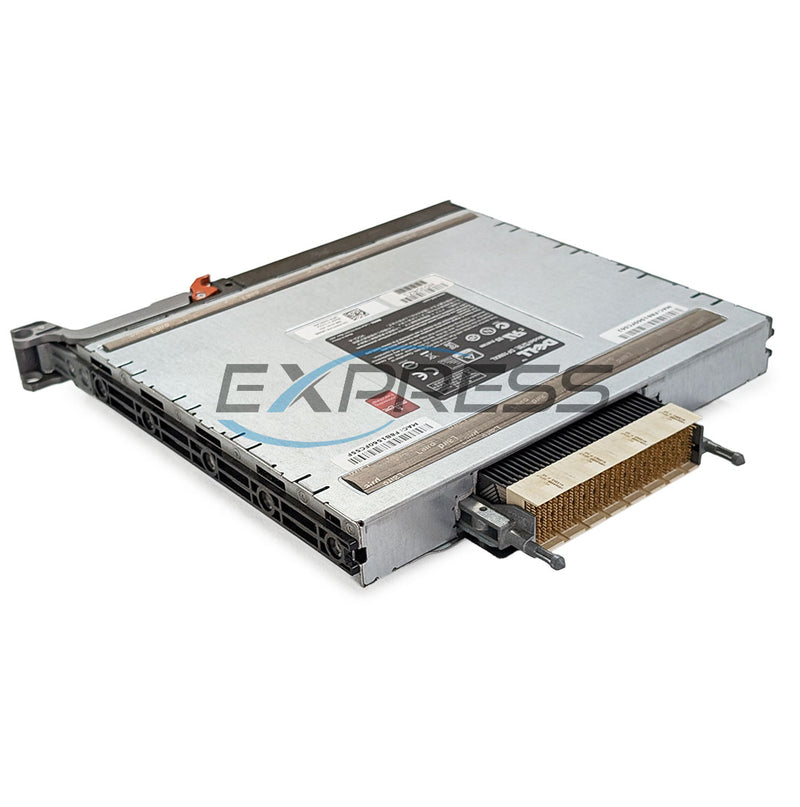

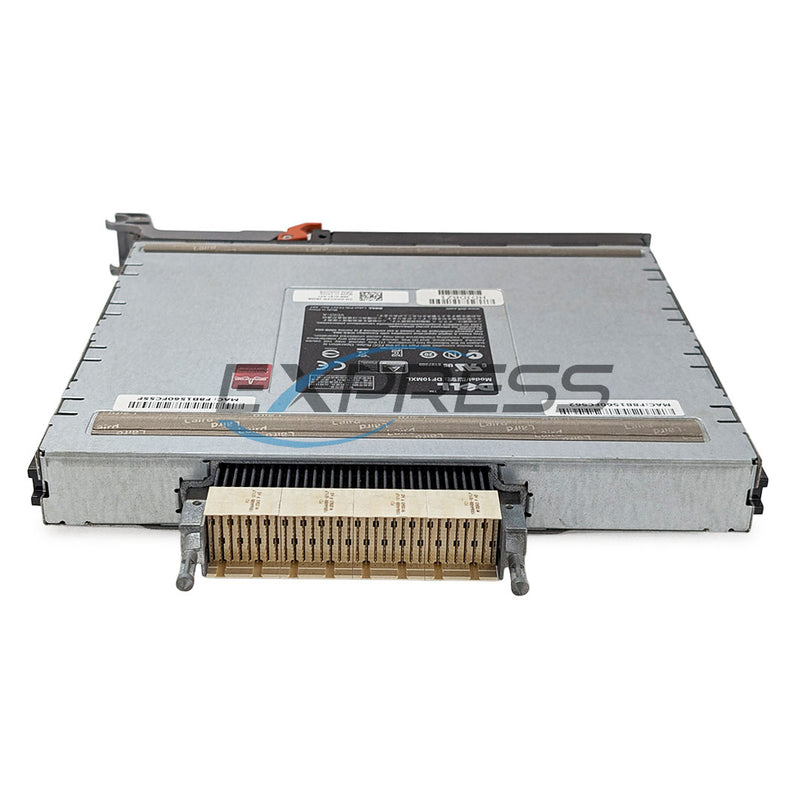

The Dell Force10 MXL 10/40 GbE switch is a converged Ethernet module designed for the PowerEdge M1000E blade chassis. It features 32 internal ports that operate at either 1GbE or 10GbE and two fixed 40GbE QSFP+ uplink ports on the base module, which can also be configured for breakout into 4 x 10GbE.
This switch supports two additional FlexIO expansion modules for enhanced external connectivity, including 10GbE SFP+, 10GBASE-T, or 40GbE QSFP+. With 320Gb stacking across up to six switches, it delivers scalable bandwidth and supports iSCSI, FCoE (transit), and PVST+ protocols for flexible and high-performance data center integration.
Compatible With:
- Dell M1000e
