Adapter Specs
- Type: Blade Network Daughter Card (bNDC)
- Ports: 4 (Internal)
- Plug Type: Proprietary blade server interface
- Max Data Rate: 1GbE
- Protocols: Ethernet
- Form Factor: Blade Network Daughter Card
Part Number:
- V017G

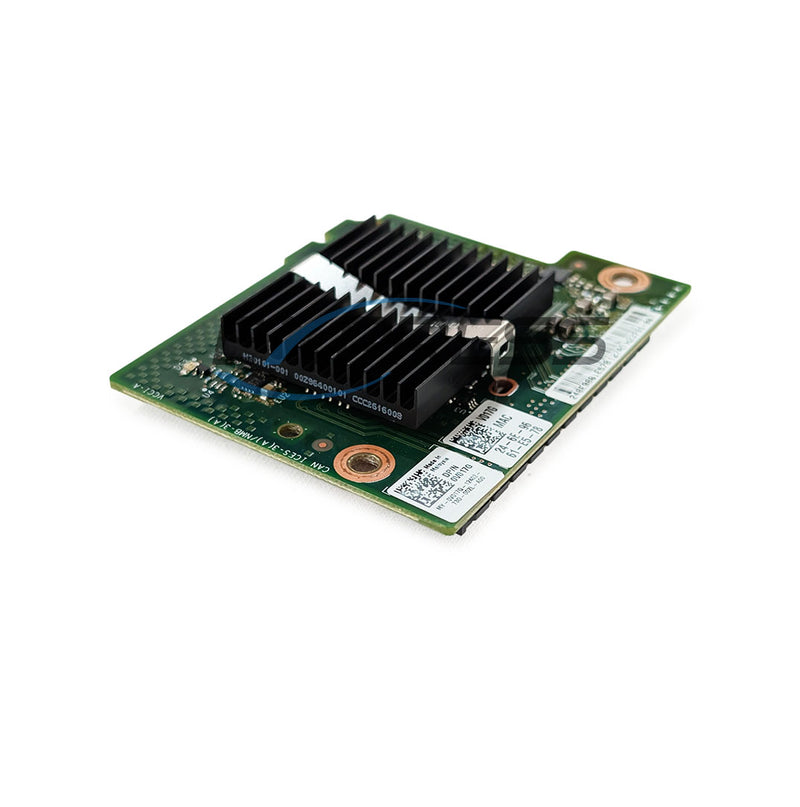

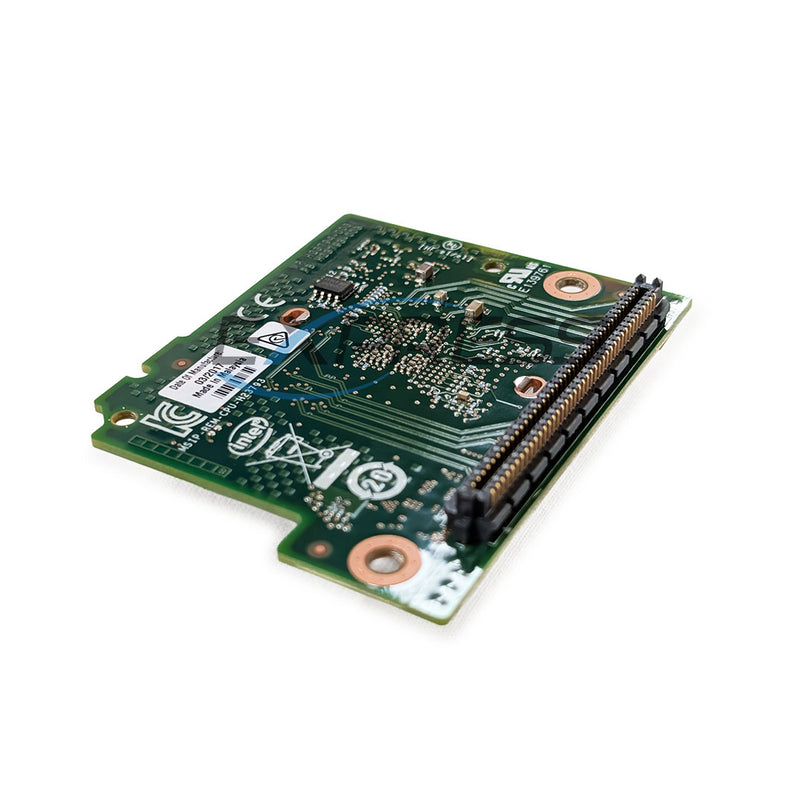

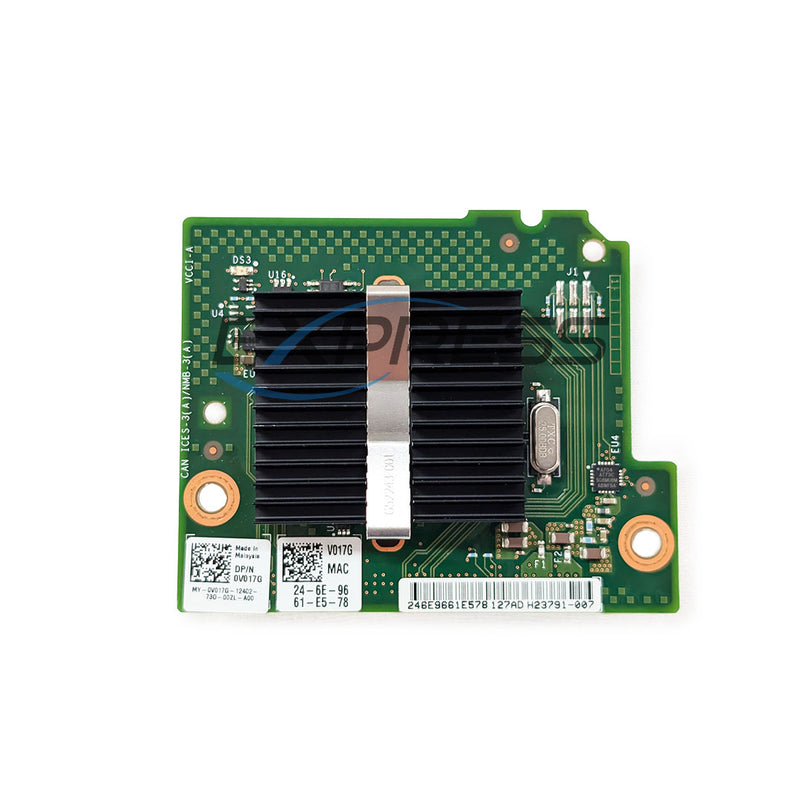

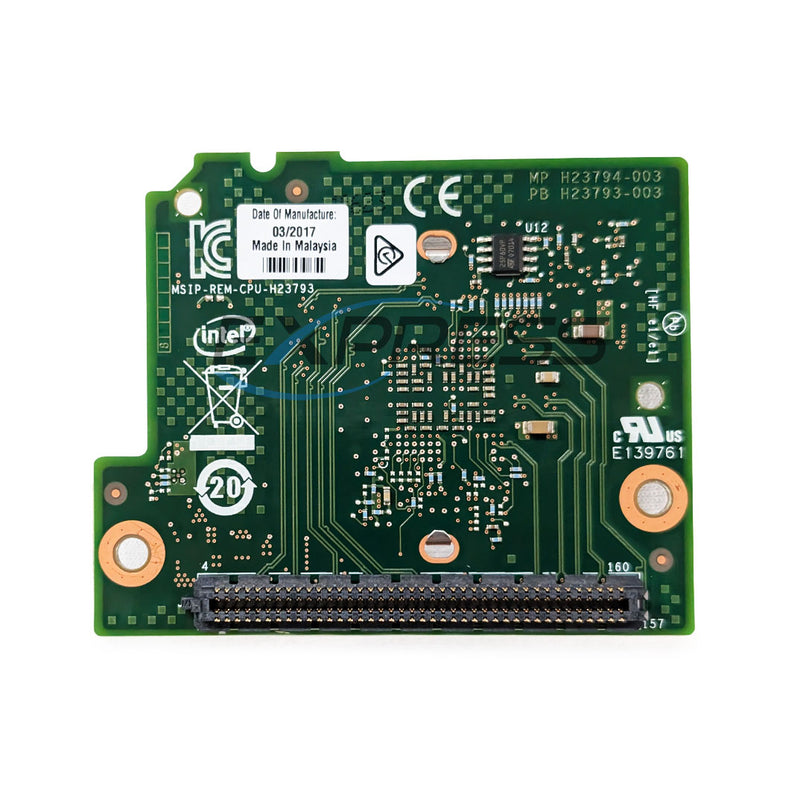

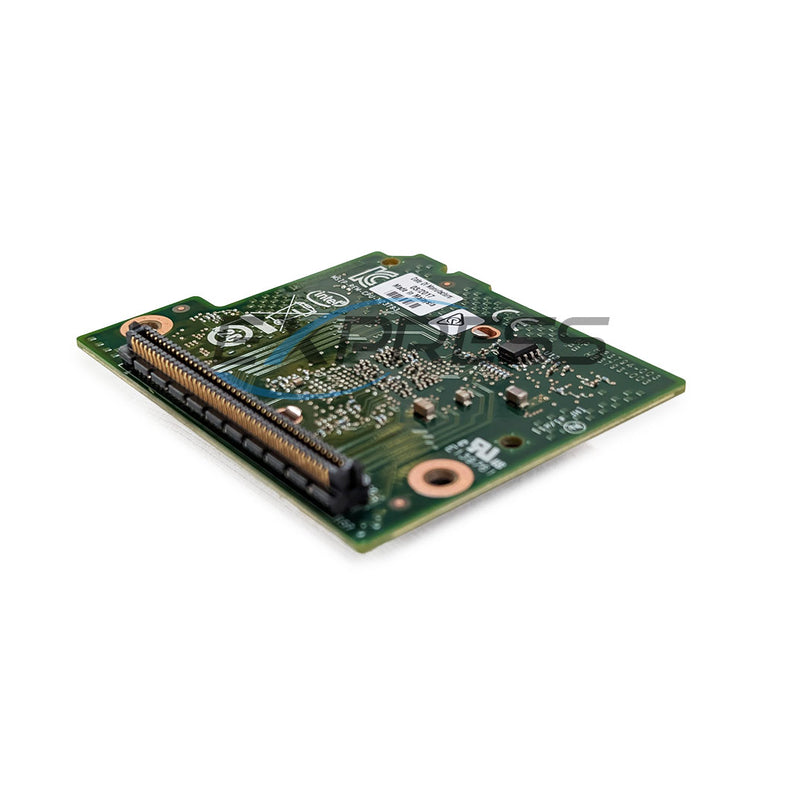

The Dell Intel I350 Quad Port 1GbE KR bNDC Adapter (Part Number: V017G) is a blade Network Daughter Card (bNDC) designed for Dell PowerEdge blade servers. It provides four 1GbE ports using the Intel I350 controller, offering reliable and efficient network connectivity for enterprise environments. The adapter connects via the blade server's internal interface, conserving PCIe slots for other expansion needs.
This bNDC is compatible with Dell PowerEdge models such as FC630, FC640, FC830, M630, and M640. It supports standard Ethernet protocols and is suitable for various networking applications. The adapter's design ensures seamless integration into the server's architecture, maintaining system performance and reliability
What is KR: KR refers to an Ethernet backplane signaling standard defined by IEEE 802.3ap, used for transmitting data over a server's internal midplane instead of through external ports. In the case of the Dell Intel I350 KR bNDC (V017G), the "KR" indicates that all four 1GbE connections are routed internally through the blade server chassis, with no external RJ-45 ports. This design supports high-speed communication while minimizing cabling and conserving space within blade environments.
Compatible With:
- Dell FC630
- Dell FC640
- Dell FC830
- Dell M520
- Dell M630
- Dell M640
- Dell M710hd
- Dell M820
- Dell M830
- Dell vrtx
