R750 Riser Config 2-1
Contact For Pricing
Thanks for the request. We'll get back to you with in 24 hours.
Riser Config Specs
| Config No. | Expansion card risers | PCIe Slots | Controlling Processor | PERC type supported | Rear storage possible | Height | Length | Slot width |
|---|---|---|---|---|---|---|---|---|
| Config2-1. 4x FH and 2x LP |

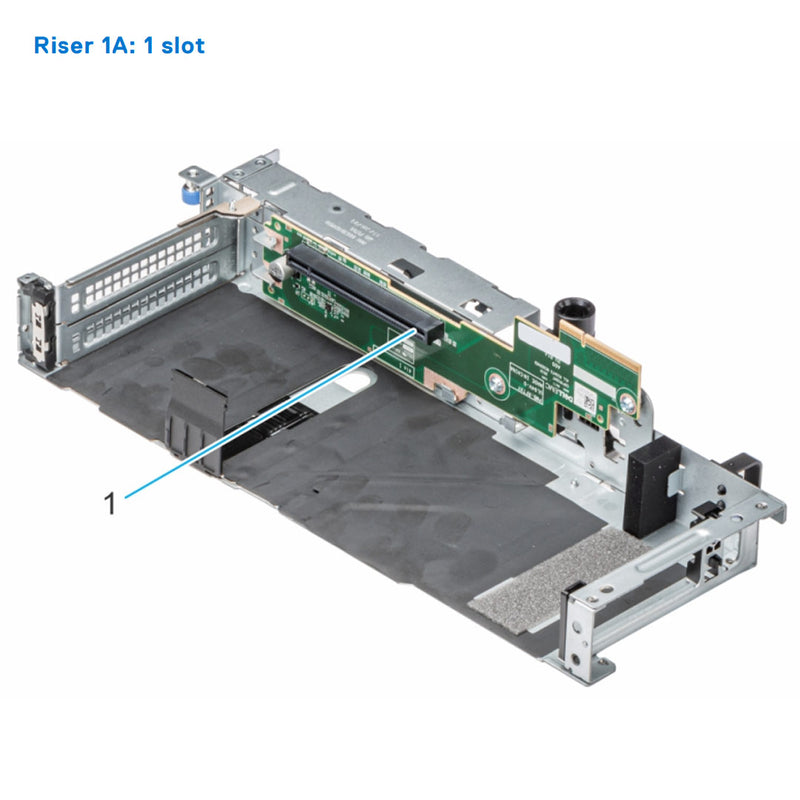

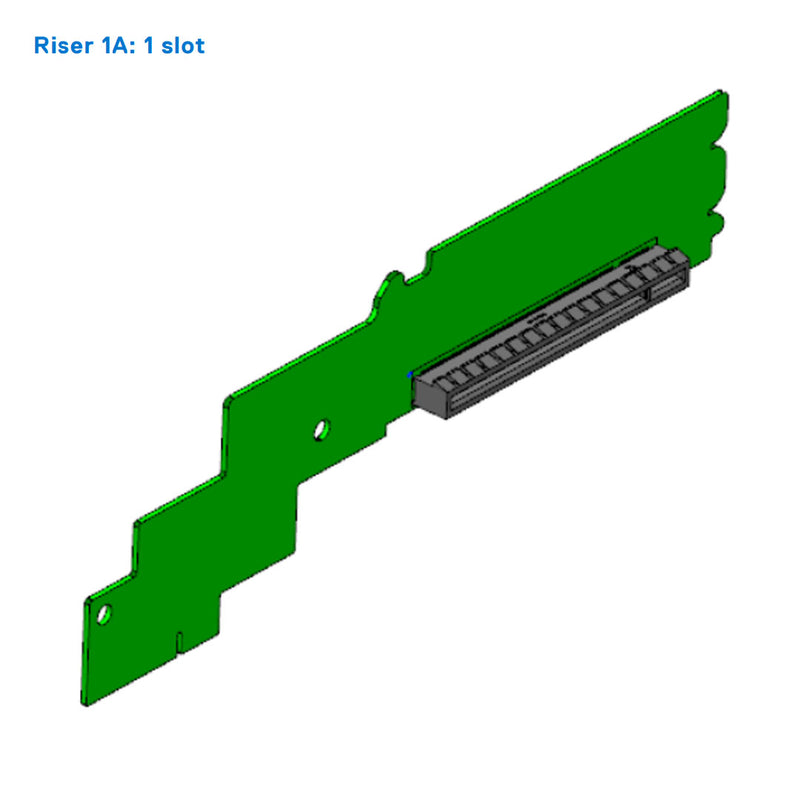

R1a (FL) | 2 | Processor 1 | fPERC / Adapter | No | Full height, double width | Full length | x16 |

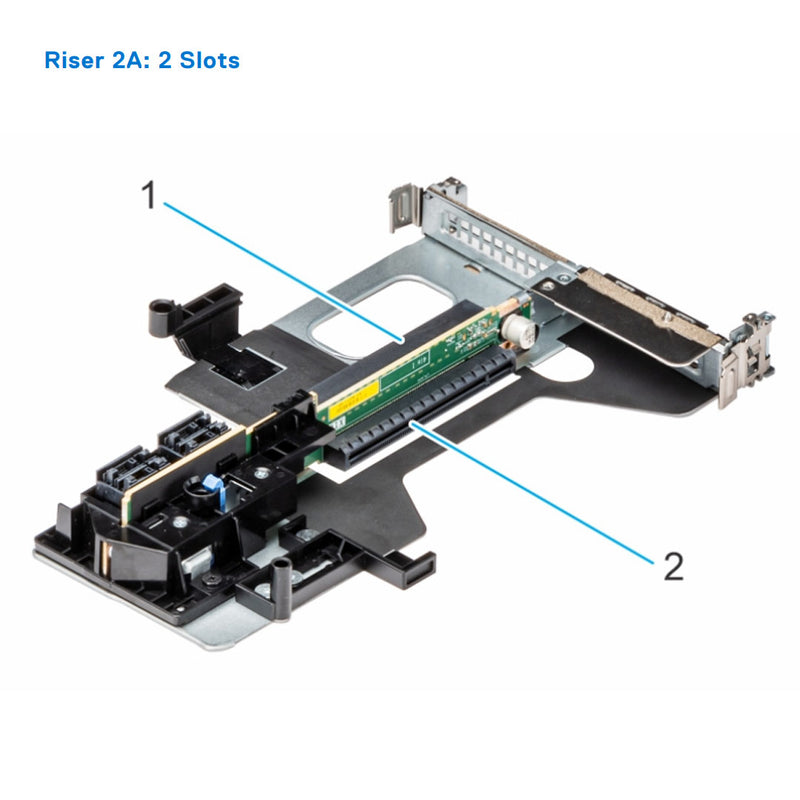

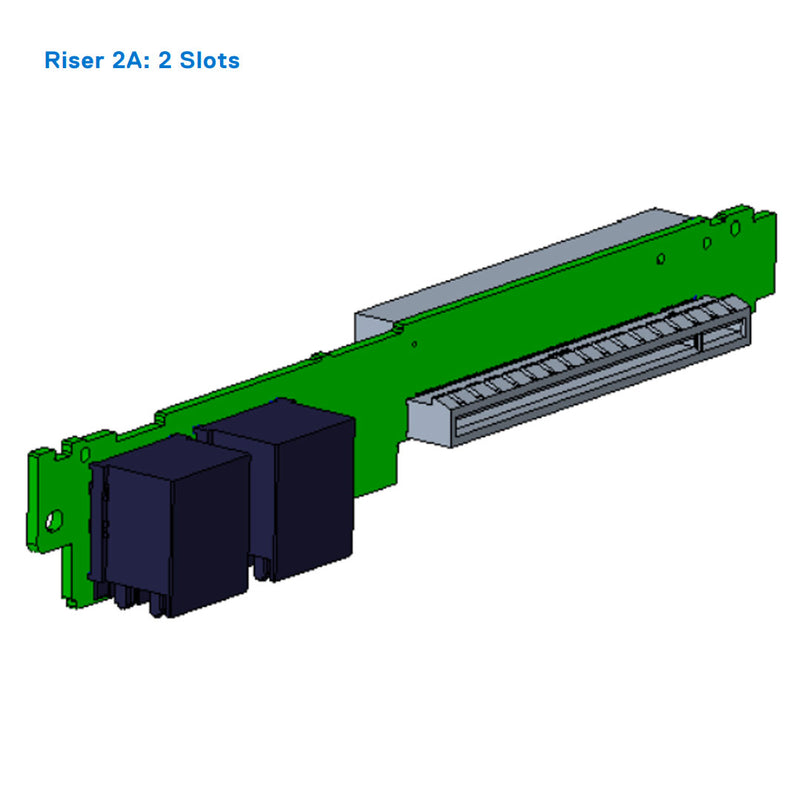

| R2a | 3 and 6 | Processor 1 and 2 | fPERC / Adapter | No | Low profile | Half length | x16 + x16 | |

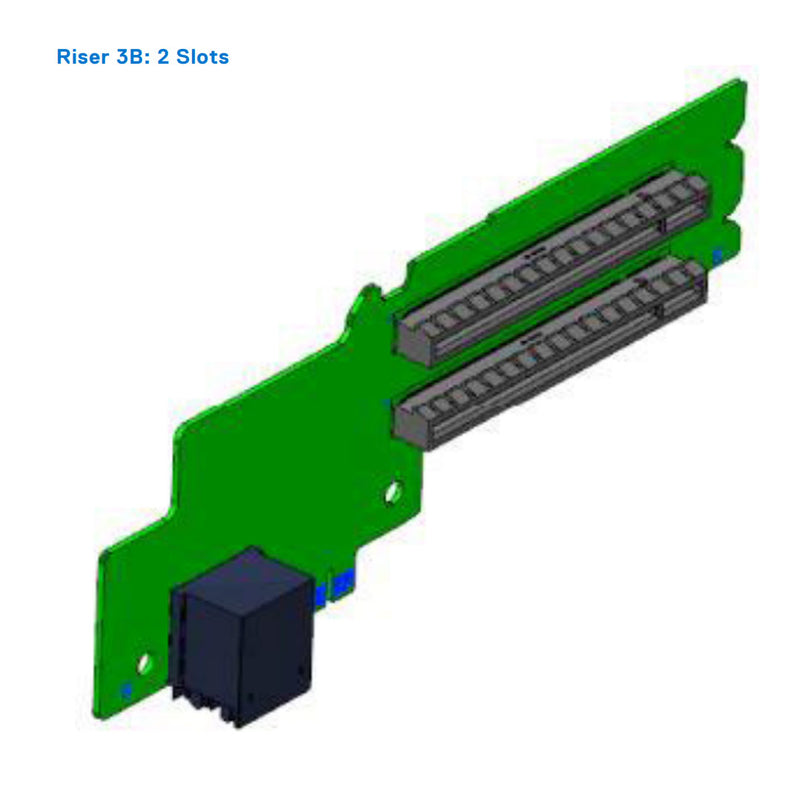

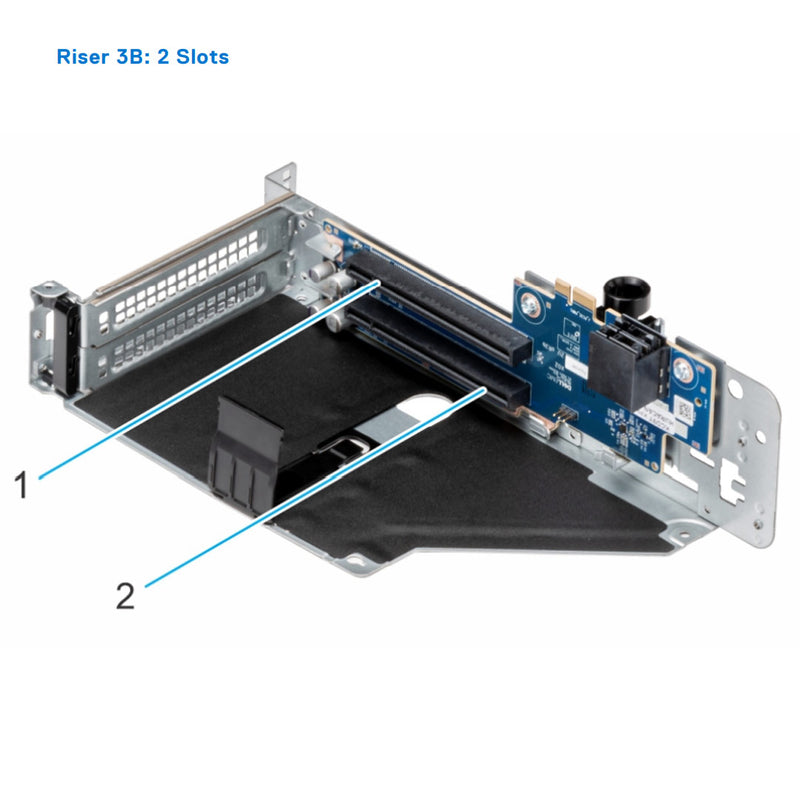

| R3b | 4 and 5 | Processor 2 | fPERC / Adapter | No | Full height | Half length | x8 + x8 | |

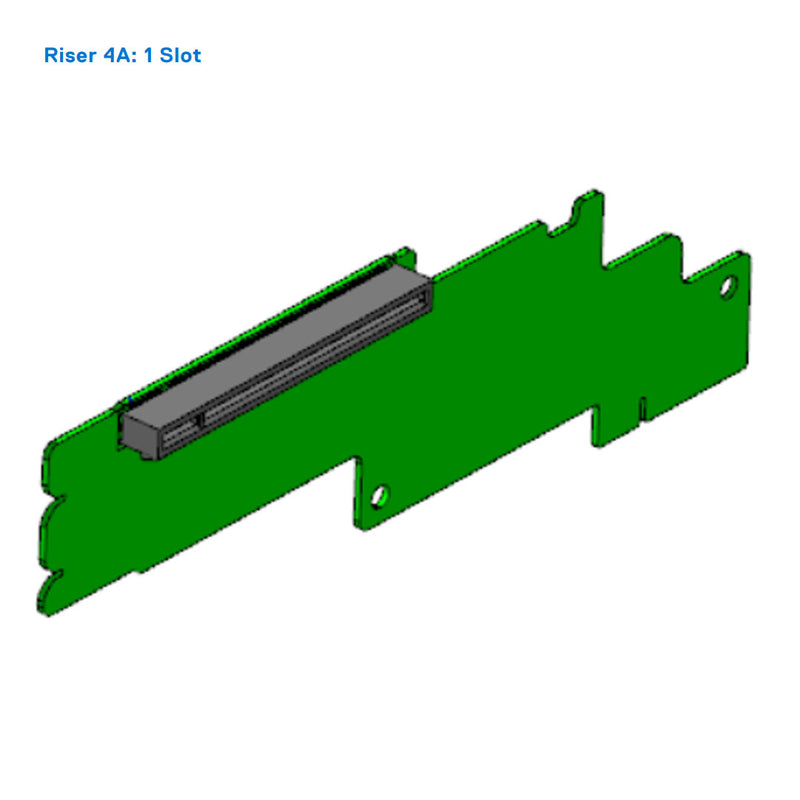

| R4a (FL) | 7 | Processor 2 | fPERC / Adapter | No | Full height, double width | Full length | x16 |
Compatible With:
- Dell R750
