Quick Specs
Stab-in static rails require the inner (chassis) rail members must first be attached to the sides of the system and then inserted into the outer (cabinet) members installed in the rack. For systems that are 2U and larger, it is recommended that two people perform this operation.
Cable management arm (CMA) is a cable management accessory which connects to the rails behind the system. It allows a fully cabled system to be extended out of the rack into a service position.
Strain relief bar (SRB) is a cable management solution, which in most cases, attaches to the back of the rails via the strain relief bar brackets. Cables from the back of the chassis are placed across the top of the SRB and secured by straps.
Square-hole describes a 4-post rack mounting flange type where rails utilize Square holes sized according to EIA-310-D standard for mounting.
Round-hole describes a 4-post rack mounting flange type where rails utilize Unthreaded-Round holes sized according to EIA-310- D standard for mounting.
Threaded-hole describes a 4-post rack mounting flange type where rails utilize Threaded-round holes for mounting. Threaded round holes may require additional hardware for mounting and hardware may vary by thread type. See footnotes in table 2 for specific information on threaded-round hole mounting.
| Rail identifier | Mounting interface | Rail type | Rack types supported | Rail adjustability range (mm) | Rail depth (mm) | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 4-Post | 2-Post | Square | Round | Threaded | without CMA/SRB | with CMA(SRB) | |||||||||||||
| Square | Round | Thread | Flush | Center | Min | Max | Min | Max | Min | Max | |||||||||

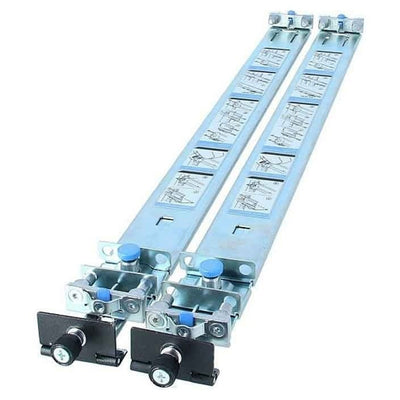

| A5 | ReadyRails | Stab-in Static |
X | X | X | X | X | 496 | 770 | 482 | 763 |
488 | 794 | 506 Q | - | ||||
Q Depth maybe greater based on rail adjustability range | |||||||||||||||||||
- Dell N3024
- Dell N3024ef
- Dell N3024et
- Dell N3024f
- Dell N3024p
- Dell N3048
- Dell N3048ep
- Dell N3048et
- Dell N3048p
- Dell N3132px
- Dell Z9100
