Specs
Quick Specs
Form Factor:
2U rack server
Processor | Max: 56 Cores2x Gen 4 Intel Xeon Scalable
Memory | Max: 8TB32 ECC DDR5 RDIMM 4800Mhz
Storage | Max: 122.88TBFront bays:
Up to 8 x 2.5" NVMe Direct
Rear bays:
Only Supported on the 12 or 24 Bay Chassis
Boot Optimized Server Storage (BOSS-N1) Hot-Swap
Internal USB
S160 (SATA/NVMe SW RAID)
H355i, H755, H755N, H965i, HBA355i, H355e, HBA355e, H965e
2 x 1GE LOM / 25 or 100 GbE x 2 (DPU Must be Installed)
Networking OptionsOCP 3.0 x8 Mezz 3.0
Remote Management:iDRAC9 with Lifecycle Controller
PCIe Slots:Up to 8 x PCIe Gen5 or Gen 4 slots
SNAP Support | Slot 7 SNAPI: 1 x16 Gen5 FH, HL
GPU:Up to 2 x 350 W DW
6 x 75 W SW
Other Versions
- Dell PowerEdge R710
- Dell PowerEdge R720
- Dell PowerEdge R720XD
- Dell PowerEdge R730
- Dell PowerEdge R730XD
- Dell PowerEdge R740
- Dell PowerEdge R740XD
- Dell PowerEdge R740XD2
- Dell PowerEdge R7415
- Dell PowerEdge R7425
- Dell PowerEdge R750
- Dell PowerEdge R750XA
- Dell PowerEdge R750XS
- Dell PowerEdge R7515
- Dell PowerEdge R7525
- Dell PowerEdge R760
- Dell PowerEdge R760XA
- Dell PowerEdge R760XS
- Dell PowerEdge R760XD2
- Dell PowerEdge R7615
- Dell PowerEdge R7625
Ideal for:
- Artificial Intelligence (AI)
- Data Analytics
- Database
- Machine Learning (ML)
- Virtual Desktop Interface (VDI)
The NEW Dell PowerEdge R760 is a 2U, two-socket rack server. Gain the performance you need with this full-featured enterprise server, designed to optimize even the most demanding workloads like Artificial Intelligence and Machine Learning.
The Dell PowerEdge R760 offers powerful performance in a purpose-built, cyber-resilient, mainstream server.

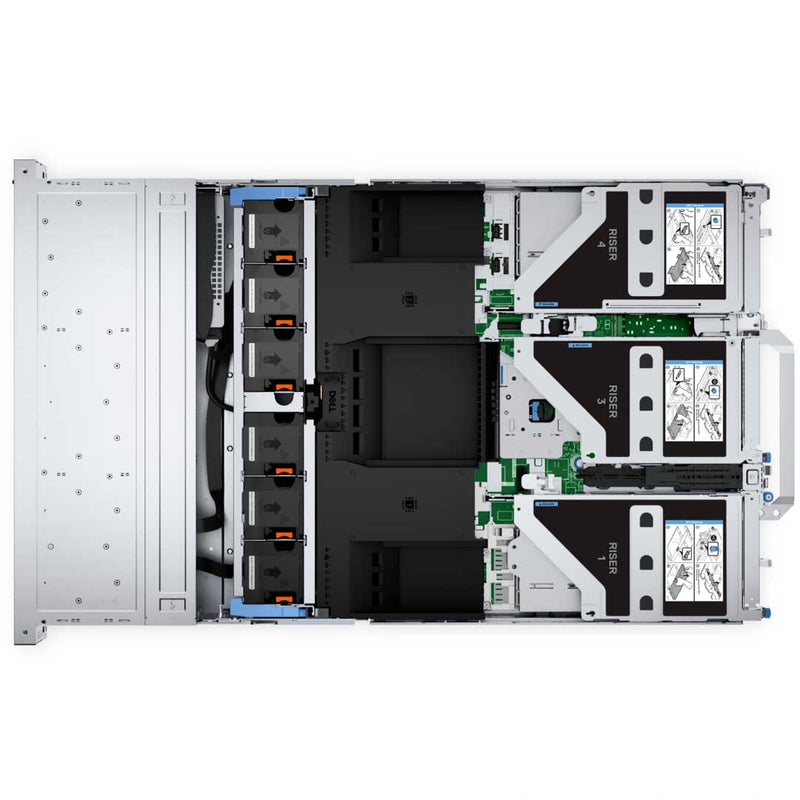

Air-cooled at peak performance- New Smart Flow chassis optimizes airflow to support the highest core count CPUs in an air-cooled environment within the current IT infrastructure.
- Support for up to 16 x 2.5” drives and 2 x 350 watt processors.
Max Performance
- Add up to two Next Generation Intel® Xeon® Scalable processors with up to 56 cores for faster and more accurate processing performance.
- Accelerate in-memory workloads with up to 32 DDR5 RDIMMS up to 4400 MT/sec (2DPC) or 4800 MT/sec for 1DPC (16 DDR5 RDIMMs max).
- Support for GPUs including 2 x double-wide or 6 x single-wide for workloads requiring acceleration.
Gain agility
- Achieve maximum efficiency with multiple chassis designs that are tailored to your desired workloads and business objectives.
- Storage options include up to 12 x 3.5” SAS3/SATA; or up to 24 x 2.5” SAS4/SATA, plus up to 24 x NVMe U.2 Gen4, 16 x NVME E3.S Gen5*.
- Multiple Gen4 and Gen5 riser configurations (up to 8 x PCIe slots) with interchangeable components that seamlessly integrate to address customer needs over time.
Dell PowerEdge R760 Drive Options

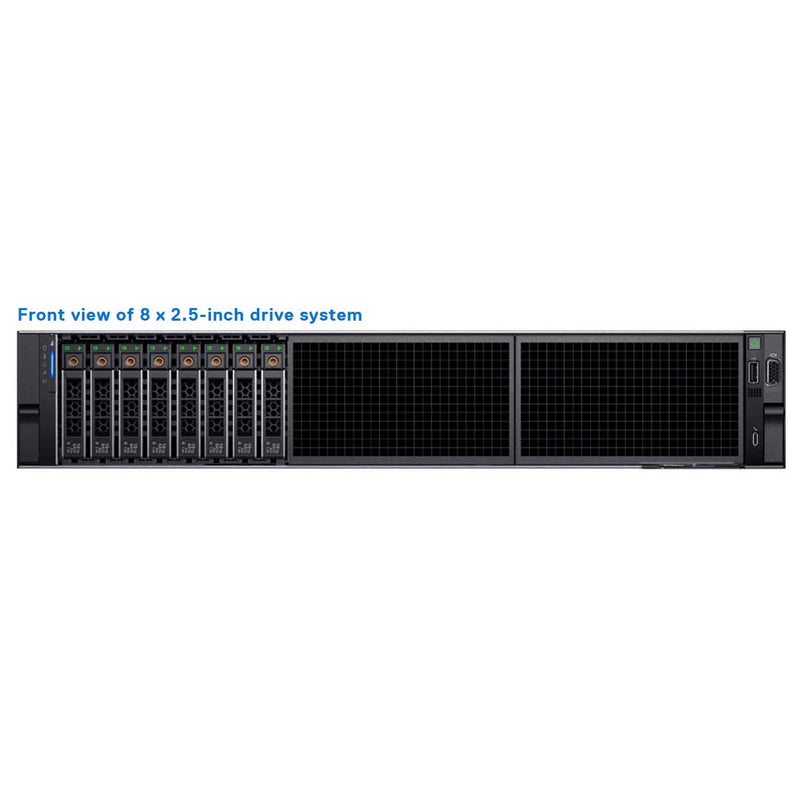

8 SFF Configuration Options
- 8 x 2.5" NVMe RAID
- 8 x 2.5" Universal (SAS/SATA HWRAID + NVMe Direct)
- 16 x 2.5" (8 x SAS4/SATA + 8 x NVMe RAID)
- 16 x 2.5" (8 x NVMe RAID + 8 x SAS4/SATA)
- -----
- 16 x 2.5" (SAS4/SATA) + 8 x 2.5" NVMe Direct
This requires two CTO to be filled out. 16x 2.5" and the 8x 2.5" Universal
Looking for more drive?
There are so many options we had to split them up to make it easier to understand the scale the R760 can perform.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Technical Specifications | |
|---|---|---|
| Processor | Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology | |
| Memory |
| |
| Storage controllers |
| |
| Drive Bays | Front bays:
| |
| Power Supplies |
| |
| Cooling Options |
| |
| Fans |
| |
| Dimensions |
| |
| Form Factor | 2U rack server | |
| Embedded Management |
| |
| Bezel | Optional LCD bezel or security bezel | |
| OpenManage Software |
| |
| Mobility | OpenManage Mobile | |
| OpenManage Integrations |
| |
| Security |
| |
| Embedded NIC | 2 x 1 GbE LOM card (optional) | |
| Network options | 1 x OCP card 3.0 (optional) Note: The system allows either LOM card or an OCP card or both to be installed in the system. | |
| GPU Options | Up to 2 x 350 W DW and 6 x 75 W SW | |
| Ports | Front Ports

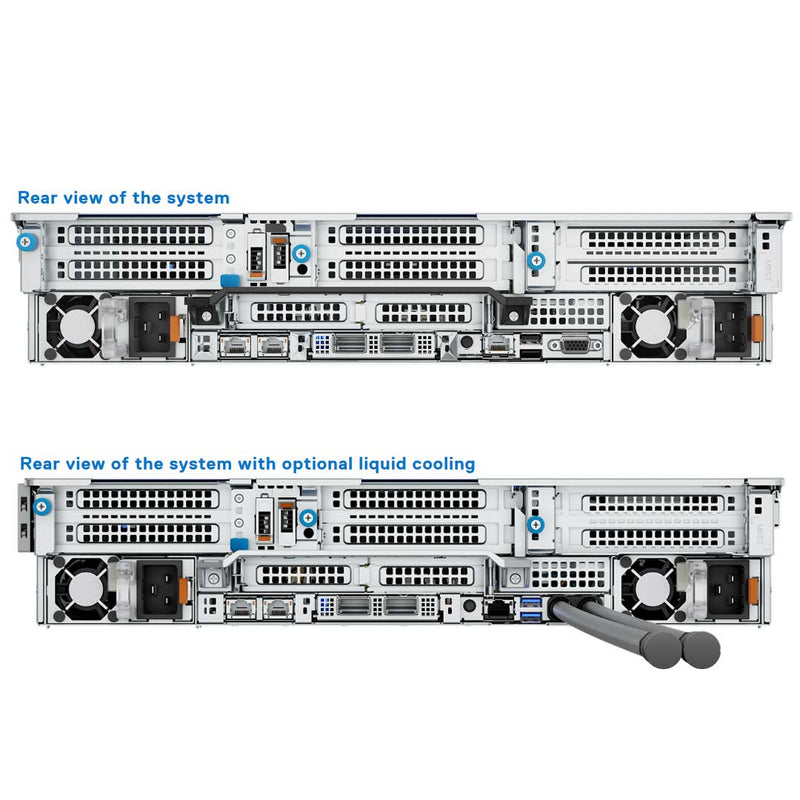

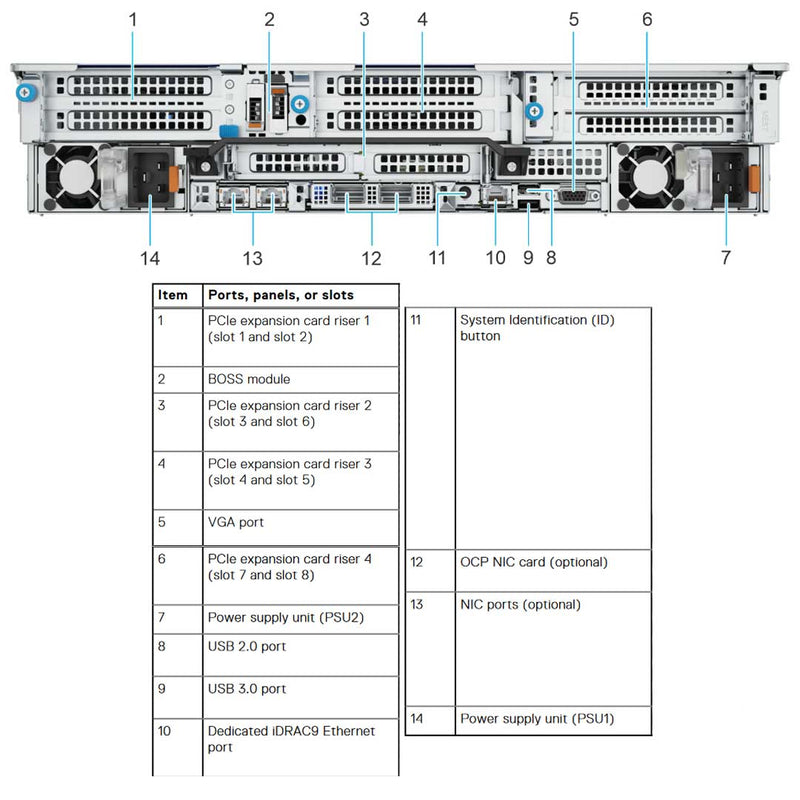

| Rear Ports
|
Internal Ports
| ||
| PCIe | Up to eight PCIe slots:
| |
| Operating System and Hypervisors |
| |
| *Future releases will include additional capacity/form factor. | ||
Spec Sheet 4
| Rack Server | R760 | R660 | R7625 | R6625 | R7615 | R6615 |
|---|---|---|---|---|---|---|
| Key attributes | Provides performance and versatility for demanding applications | Provides performance and versatility for demanding applications | Breakthrough performance | Breakthrough performance | Powerful performance and scalability | Peak performance and excellent TCO |
| Target workloads | Mixed Workload Standardization Database and Analytics Virtual Desktop Infrastructure | High Density Virtualization, Dense Database Analytics, Mixed Workload Standardization | High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization | High Performance Computing (HPC), Virtual Desktop Infrastructure (VDI), Virtualization | Software-Defined Storage (SDS), Virtualization, Data Analytics | Virtualization, Hyper-Converged Infrastructure (HCI), Network Functions Virtualization (NFV) |
| Type of processor | 2 x 4th Generation Intel® Xeon® Scalable processors; up to 56 cores per processor | 2 x AMD EPYC™ 4th Generation 9004 Series Processor, up to 96 cores per processor | 1 x AMD EPYC™ 4th Generation 9004 series processor; up to 96 cores | |||
| Memory (DDR5 DIMM slots & max) | 32 (8 TB) | 24 (1.5 TB*) | 12 (768 GB*) | |||
| Disk drives up to: | 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5” (rear) |
8 x 2.5” 10 x 2.5” 2 x 2.5” (rear) |
8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear) |
4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear) |
8 x 3.5” 12 x 3.5” 8 x 2.5” 16 x 2.5” 24 x 2.5” 2 x 2.5” or 4 x 2.5”(rear) |
4 x 3.5” 8 x 2.5” 10 x 2.5” 2 x 2.5” (rear) |
| NVMe drives up to: | 24 | 10 | 24 | 10 | 24 | 10 |
| Gen5 PCIe slots up to: | 4 | 2 | 4 | 2 | 4 | 2 |
| Gen4 PCIe slots up to: | 8 | 3 | 8 | 3 | 4 | 3 |
| Accelerator support up to: | 2 x 350 W DW or 6 x 75 W SW | 2** x 75 W SW | 2 x 300 W DW or 6 x 75 W SW | 3 x 75 W SW | 3 x 300 W DW or 6 x 75 W SW | 3 x 75 W SW |
| Rack height (U) | 2 | 1 | 2 | 1 | 2 | 1 |
| Integrated security | TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Chassis Intrusion Alert, Secure Boot being standard security, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), Data at Rest Encryption (SEDs with local or external key mgmt) Secured Component Verification (Hardware integrity check) and System Erase on all racks. | TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ, Cryptographically Signed Firmware, Secure Boot, Secure Erase, Silicon Root of Trust, System Lockdown (requires iDRAC9 Enterprise or Datacenter), AMD Secure Memory Encryption (SME) and AMD Secure Encrypted Virtualization (SEV) | ||||
| * Future releases will include additional system capacity for DDR5 memory in R7625, R6625, R7615 and R6615. ** Future releases will include additional GPU slots in R660. |
||||||
