SKU: DPE-R7515-24x2.5-Chassis

Dell PowerEdge R7515 Rack Server Chassis (24x2.5")

Dell CTO

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Base Standard Capabilities

FeatureTechnical Specification
ProcessorOne 2nd or 3rd Generation AMD EPYCTM Processor with up to 64 cores
MemoryDDR4: Up to 16 x DDR4 RDIMM (1TB), LRDIMM (2TB), bandwidth up to 3200 MT/S
Storage controllers
  • HW RAID: PERC 9/10 - HBA330, H330, H730P, H740P, H840, 12G SAS HBA
  • Chipset SATA/SW RAID(S150): Yes
Drive baysFront bays:
  • Up to 8 x3.5” Hot Plug SATA/SAS HDDs
  • Up to 12x 3.5” hot-plug SAS/SATA HDDs

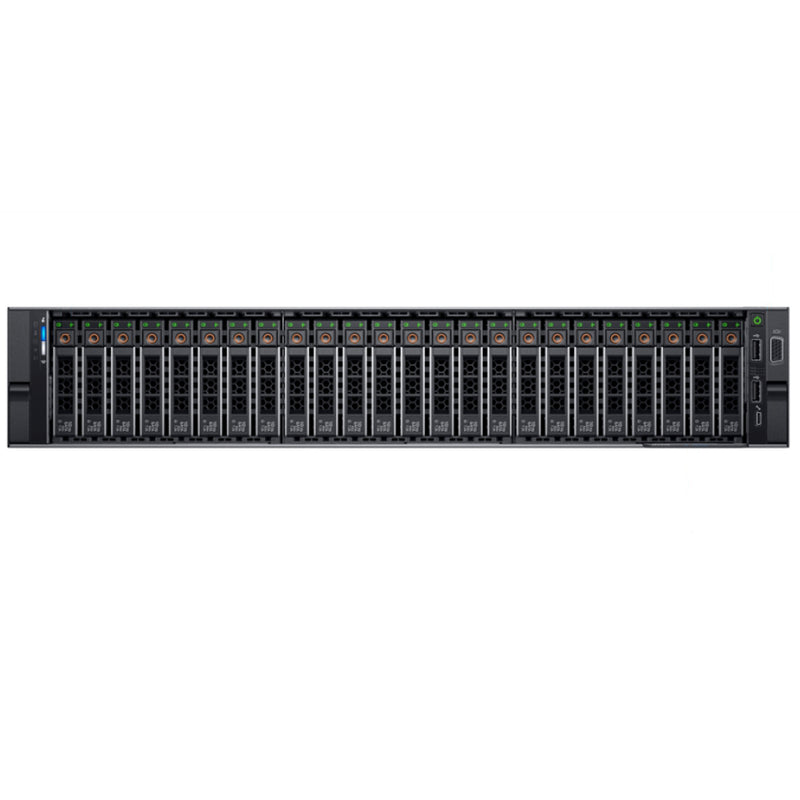

  • Up to 24x 2.5” Hot Plug SATA/SAS/NVMe

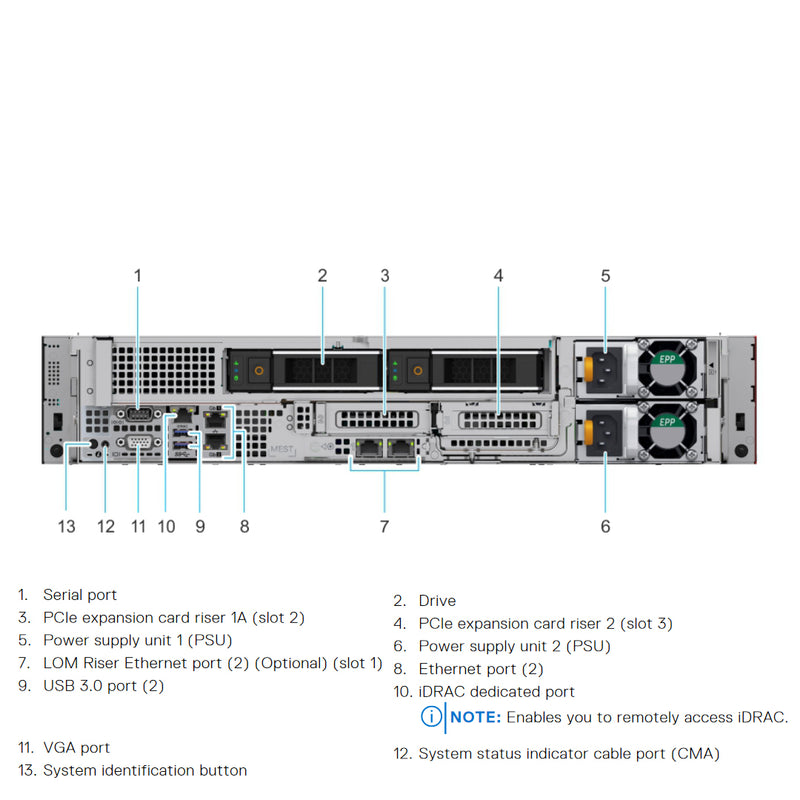

Rear Bays:
  • Up to 2x 3.5” hot-plug SAS/SATA HDDs
  • Internal: 2 x M.2 (BOSS)
Power supplies
  • 800W Platinum
  • 750W Titanium
  • 750W Platinum
  • 1100W Platinum
  • 1600W Platinum
FansStanadard/High Peformance Fan
N+1 Fan redunadancy
DimensionsHeight: 86.8mm (3.42”)
Width: 434.0mm (17.09”)
Depth: 647.1mm (25.48”)
Weight: 27.3 kg (60.19 lb)
Form Factor2U Rack Server
Embedded mgmt
  • iDRAC9
  • iDRAC RESTful API with Redfish
  • iDRAC Direct
  • Quick Sync 2 BLE/wireless module

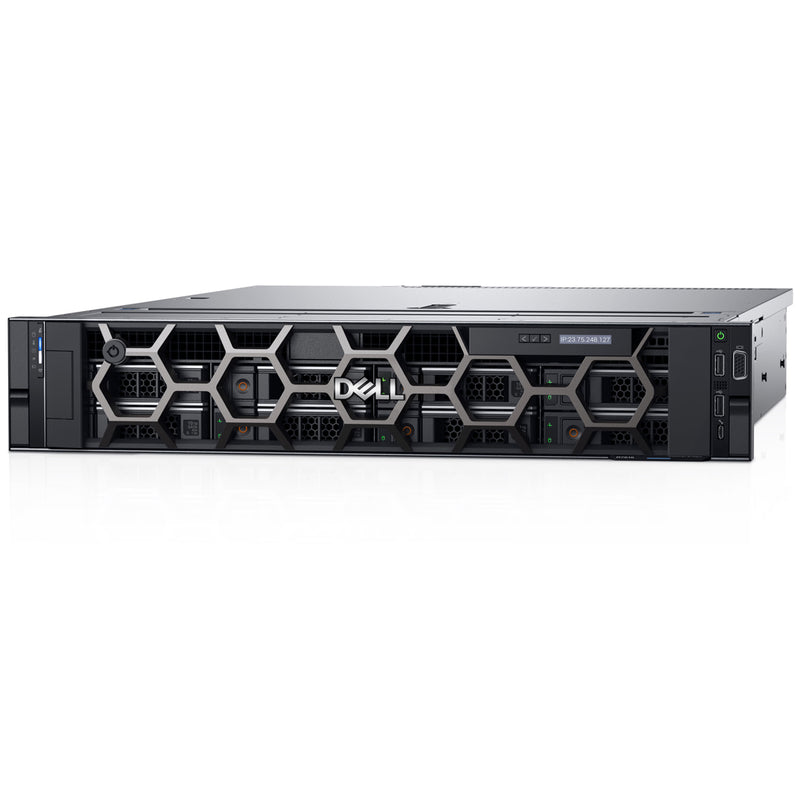

BezelOptional LCD bezel or security bezel
OpenManage™ SoftwareConsoles
  • OpenManage Enterprise
  • OpenManage Enterprise Power Manage
  • OpenManage Mobile
Mobility
  • OpenManage Mobile
Tools
  • Dell EMC RACADM CLI
  • Dell EMC Repository Manager
Integrations & ConnectionsOpenManage Integrations
  • BMC Truesight
  • Microsoft System Center
  • Red Hat Ansible Modules
  • VMware® vCenter™
OpenManage Connections
  • IBM Tivoli Netcool/OMNIbus
  • IBM Tivoli Network Manager IP Edition
  • Micro Focus Operations Manager
  • Nagios Core
  • Nagios XI
Security
  • Cryptographically signed firmware
  • Secure Boot
  • Secure Erase
  • Silicon Root of Trust
  • System Lockdown
  • TPM 1.2/2.0, TCM 2.0 optional
Embedded NIC
Networking Options (NDC)2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28
GPU OptionsUp to 4 Single-Wide GPU(T4);
Up to 1 Full-Height FPGA
PortsFront Ports:
  • 1 x Dedicated iDRAC direct micro-USB
  • 1 x USB 2.0
  • 1 x Video

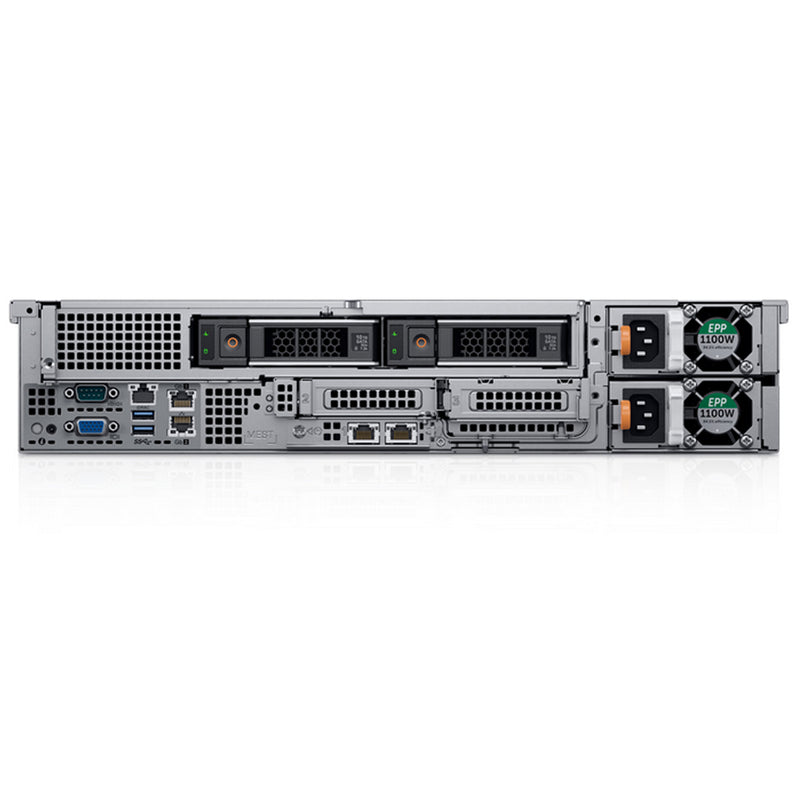

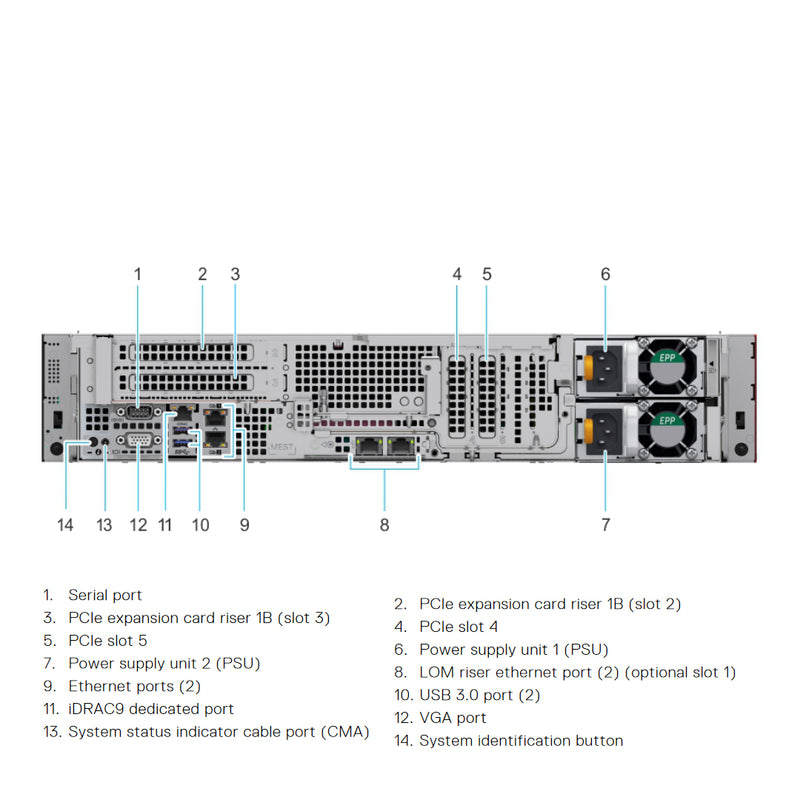

Rear Ports
  • 2 x 1GbE
  • 1 x Dedicated iDRAC network port
  • 1 x Serial (optional)
  • 2 x USB 3.0
  • 1 x Video
PCIeUp to 4:
  • 2 x Gen3 slots 2 x16
  • 2 x Gen4 slots 2 x16
Operating System and Hypervisors
  • Canonical Ubuntu Server LTS
  • Citrix Hypervisor
  • Microsoft Windows Server with Hyper-V
  • SUSE Linux Enterprise Server
  • Red Hat Enterprise Linux
  • VMware ESXi

Spec Sheet 4

Feature PowerEdge R7515 PowerEdge R7415
Processor 2 nd Generation AMD EPYC SP3
3 rd Generation AMD EPYC SP3		 AMD Naples SP3
Memory 16x DDR4 RDIMM, LRDIMM, 3DS 16x DDR4 RDIMM, LRDIMM
Disk Drives 3.5-inch and 2.5-inch:
● 12 G SAS
● 6 G SATA HDD/SSD		 3.5-inch and 2.5-inch:
● 12 G SAS
● 6 G SATA HDD/SSD
Storage Controllers ● Mini PERC: HBA330, H330, H730P, H740P, H840, HBA355e
● Host Bus Adapter: 12 Gbps SAS HBA
● SW RAID: S150		 ● Mini PERC: HBA330, H330, H730P, H740P, H840
● Host Bus Adapter: 12 Gbps SAS HBA
● SW RAID: S140
PCIe SSD Up to 24x PCIe SSD (Gen3) Up to 24x PCIe SSD (Gen3)
PCIe Slots Up to 4:
● 2 Gen3 slot (x16)
● 2 Gen4 slot (x16)-Slot 3/4		 Up to 4:
● 3 Gen3 slot (x16)
● 1 Gen3 slot (x8)
OCP 2.0 OCP Type 1: (Connector A) OCP Type 1: (Connector A)
USB Ports ● Front: 2 x USB 2.0, 1 x iDRAC USB(Micro USB) port
● Rear: 2 x USB 3.0_Gen1 port
● Internal: 1 x USB 3.0 port		 ● Front: 2x USB 2.0, 1x iDRAC USB(Micro USB) port
● Rear: 2x USB 3.0_Gen1 port
● Internal: 1 x USB 3.0 port
Rack Height 2U 2U
Power Supplies ● 495 W AC Platinum
● 1600 W AC Platinum
● 750 W Mix Mode Platinum
● 750 W AC Titanium
● 1100 W Mix Mode Platinum		 ● 495 W AC Platinum
● 1600 W AC Platinum
● 750 W AC Mix Mode Platinum
● 1100 W AC Mix Mode Platinum
System Management ● Lifecycle Controller 3.x
● OpenManage
● Quick Sync2.0
● OMPC3
● Digital License Key
● iDRAC Direct (dedicated micro-USB port)
● Easy Restore 		● Lifecycle Controller 3.x
● OpenManage
● Quick Sync2.0
● OMPC3
● Digital License Key
● iDRAC Direct (dedicated micro-USB port)
● Easy Restore
● vFlash
Internal GPU Up to 4x 75W or 1x 225W None
Availability ● Hot-plug drives
● Hot-plug redundant power supplies
● BOSS
● IDSDM		 ● Hot-plug drives
● Hot-plug redundant power supplies
● BOSS
● IDSDM
