Home / Dell Server Hardware Components / Dell PowerEdge R730xd Rack Server Chassis (24 x 2.5")
SKU: DPE-R730XD-24X2.5

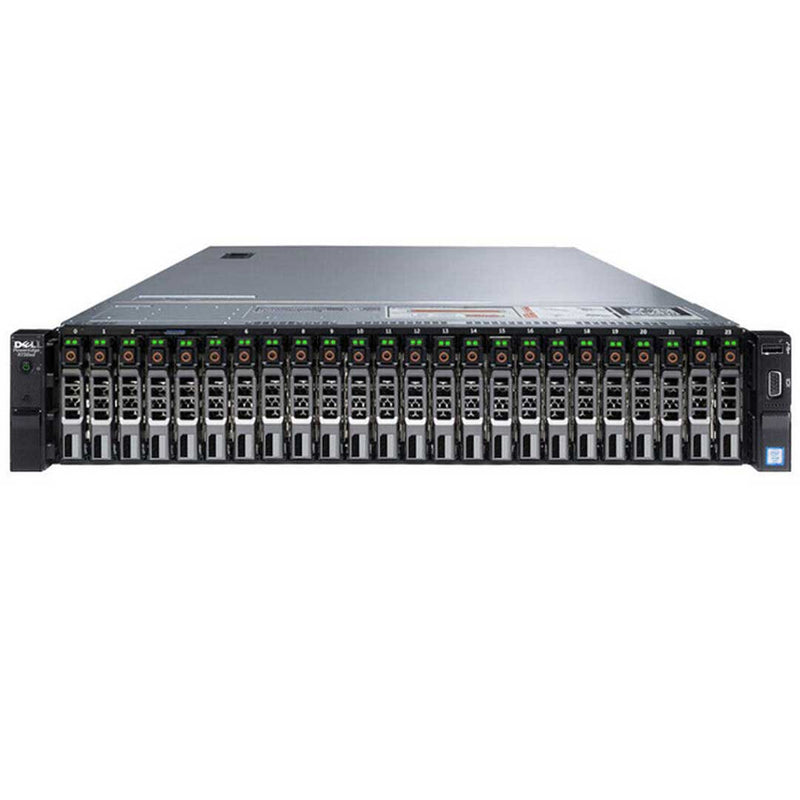

Dell PowerEdge R730xd Rack Server Chassis (24 x 2.5")

Dell CTO

| Chassis
$250.00

Thanks for the request. We'll get back to you with in 24 hours.

CTO Item

This part is strictly for configuring Dell servers. If you have landed on this page and you're looking for a specific part number. Please send us a "Request a Quote" with the part number you need.

Base Standard Capabilities

FeaturePowerEdge R730xd Technical Specification
Form factor2U rack server
ProcessorIntel® Xeon® processor E5-2600 v3 product family
Processor sockets2
Dimensions and weightH: 8.73 cm (3.44 in.) x W: 44.40 cm (17.49 in.) x D: 68.40 cm (26.92 in.)
Cache2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 16, 18
ChipsetIntel C610 series chipset
MemoryUp to 768GB (24 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2133MT/s
I/O slotsUp to 6 x PCIe 3.0 slots plus dedicated RAID card slot
RAID controllersInternal controllers: PERC H330, PERC H730, PERC H730P External HBAs (RAID): PERC H830 External HBAs (non-RAID): 12Gbps SAS HBA
Drive baysInternal hard drive bay and hot-plug backplane:
  • Up to 16 x 3.5” SAS, SATA, nearline SAS, SSD + 2 x 2.5” drives
  • Up to 18 x 1.8” SAS, SATA, nearline SAS, SSD drives + 8 x 3.5” SAS, SATA, nearline SAS, SSD drives, + 2 x 2.5” HDD
  • Up to 26 x 2.5” SAS, SATA, nearline SAS, SSD, PCIe SSD drives
Maximum internal storageSAS, SATA, nearline SAS, SSD, PCIe SSD:
  • Up to 68.5TB with 18 x 1.8” 960GB SATA SSD + 8 x 3.5” 1.8TB SAS HDD
  • Up to 47.5TB with 24 x 2.5” 1.8TB hot-plug SAS HDD + 2 x 2.5” 1.8TB hot-plug SAS HDD
  • Up to 99.6TB with 12 x 3.5 6TB NL SAS HDD or SSD +4 x 3.5 6TB SAS + 2 x 2.5 1.8TB SAS HDD or SSD
Embedded NIC4 x 1GbE, 2x10+2GbE, 4 x 10GbE NDC
Power suppliesTitanium efficiency 750W AC power supply;
1100W DC power supply;
Platinum efficiency 495W, 750W, 1100W AC power supply;
AvailabilityECC memory, hot-plug hard drives, hot-plug redundant cooling, hot-plug redundant power, internal dual SD module, single device data correction (SDDC), spare rank, tool-less chassis, support for high availability clustering and virtualization, proactive systems management alerts, iDRAC8 with Lifecycle Controller
Remote managementiDRAC8 with Lifecycle Controller
iDRAC8 Express (default)
iDRAC8 Enterprise (upgrade)
8GB vFlash media (upgrade)
16GB vFlash media (upgrade)
Systems management
  • IPMI 2.0 compliant
  • Dell OpenManage Essentials
  • Dell OpenManage Mobile
  • Dell OpenManage Power Center
Dell OpenManage Connections:
  • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management
  • Dell OpenManage Plug-in for Oracle® Database Manager
Dell OpenManage Integrations:
  • Dell OpenManage Integration Suite for Microsoft® System Center
  • Dell OpenManage Integration for VMware® vCenter™
Operating systemMicrosoft Windows Server® 2008/2012 SP2, x86/x64 (x64 includes Hyper-V®)
Microsoft Windows Server 2008/2012 R2, x64 (includes Hyper-V)
Microsoft Windows HPC Server 2008
Novell® SUSE® Linux Enterprise Server
Red Hat® Enterprise Linux
Rack supportReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
