SKU: 1FHT5

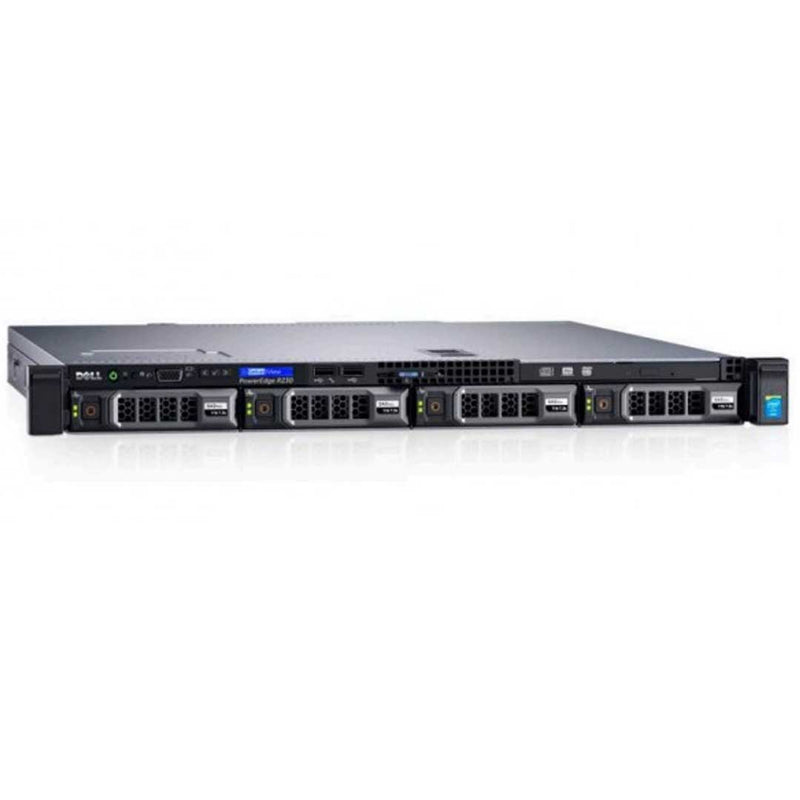

Dell Poweredge R330 Rack Server Chassis (4X3.5") | 1FHT5

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor: 1U rack server
Processor: 1 x E3-1200 v5 or v6 Intel Xeon | Max: N/A
Memory: 4 DDR4 UDIMM 2400Mhz | Max: 64GB
Storage: 4 LFF SAS/SATA (HDD/SSD) | Max: N/A
Rear Storage: None
PCIe Slots: 2 | Gen: 3.0
Remote management : iDRAC8 with Lifecycle Controller
LOM: 2 x 1GbE LOM
RAID controllers: PERC S130, PERC H330, PERC H730, PERC H830

Powerful and versatile 1-socket rack server for small and medium businesses (SMB) and remote office/branch office (ROBO).

The Dell PowerEdge R330 is an exceptional choice for both first-time and replacement servers in small and medium-sized businesses. It is also an affordable and attractive option for large institutions seeking a remote office/branch office (ROBO) server. Compared to its predecessor, the PowerEdge R320, the R330 delivers superior features, including support for DDR4 memory, PERC9 RAID controller, integrated Dell Remote Access Controller 8 (iDRAC8), and an Intel Xeon E3 processor.

Discover greater versatility

Scale your data storage with up to four internal 3.5-inch cabled or hot-plug hard drives or up to eight 2.5-inch hot-plug hard drives. Expand your memory capacity over time with four DIMM slots supporting up to 64GB of DDR4 memory for faster application performance and response times. Adapt to dynamic workload conditions with a virtualization-ready server that supports Microsoft Windows Server with Hyper-V, VMware vSphere ESXi, and Red Hat Enterprise Virtualization.

Deliver powerful performance

Enhance system boot time with up to two optional 1.8-inch SSDs. Accelerate computing speed with enhanced DDR4 memory, which is 50% faster than DDR3 and 12.5% faster than the initial 2133 MT/s implementation of DDR4. Boost your data throughput with two PCIe 3.0 slots, offering 2x data throughput compared to PCIe 2.0. The R330/PERC9 delivers 2x IOPS performance compared to the previous-generation R320/PERC8, enabling you to process more input/output operations per second.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Base Standard Capabilities

FeaturePowerEdge R330 Technical specification
Form factor1U rack server
Dimensions and weightH: 42.8 mm (1.68 in)
W: 482.4 mm (18.99 in) with rack latches; 434.0 mm (17.08 in) without rack latches
D (includes bezel): -677.3 mm (26.66 in) with redundant power supply unit
Weight
4-drive bay chassis: 6.0 kg (13.22 lb) empty, 13.8 kg (30.42lb) maximum configuration
8-drive bay chassis: 6.4 kg (14.1lb) empty, 13.4 kg (29.54lb) maximum configuration
Processor1 processor from the following product families:
• Intel® Xeon® processor E3-1200 v6 product family
• Intel Pentium®
• Intel CoreTM i3
• Intel Celeron®
ChipsetIntel C236
Operating systemMicrosoft® Windows Server® 2016
Microsoft Windows 2012
Microsoft Windows Server 2012 R2, x64
Red Hat® Enterprise Linux®
VMware® vSphere® ESXi®
SUSE® Linux Enterprise Server
MemoryArchitecture: Up to 2400MT/s DDR4 DIMMs
Memory type: UDIMMs
Memory module sockets: 4
Maximum RAM: Up to 64GB
Hypervisor supportMicrosoft Windows Server with Hyper-V®
VMware® vSphere® ESXi®
Red Hat Enterprise Virtualization
Storage• 1.8" SSDs
• 2.5" SATA SSDs
• 2.5" SATA 7.2k
• 2.5" SAS 15k HDDs
• 2.5" nearline SAS 7.2k
• 2.5" SAS 10K HDDs
• 3.5" Enterprise SATA 7.2k HDDs
• 3.5" nearline SAS 7.2k HDDs

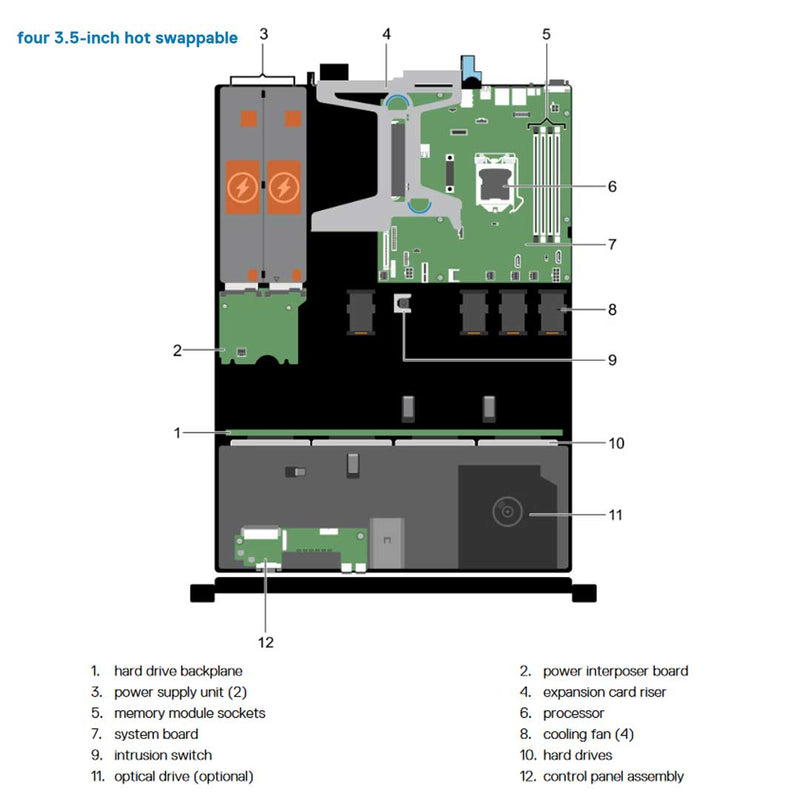

Drive baysUp to 4 x 3.5" cabled HDD plus optional 2 x 1.8” SSD cabled
• Up to 4 x 3.5" hot-swap HDD
• Up to 8 x 2.5" hot-swap HDD
• Up to 4 x 2.5" hot-swap HDD (available via hybrid drive carrier)
Slots2 x PCIe 3.0 slots + 1 slot for internal storage
RAID controllersInternal controllers: PERC S130, PERC H330, PERC H730, PERC H830
Network controller2 x 1GbE
Communications2 x 1GbE LOM
PowerUp to 2 x 350W hot-plug redundant power supplies
ManagementSystems management
  • IPMI 2.0 compliant
  • Dell OpenManage Essentials
  • Dell OpenManage Mobile
  • Dell OpenManage Power Center
Remote management
iDRAC8 with Lifecycle Controller, iDRAC8 Express (default), iDRAC8 Enterprise (upgrade), 8GB vFlash media (upgrade), 16GB vFlash media (upgrade)
Dell OpenManage Connections:
  • HP Operations Manager, IBM Tivoli® Netcool® and CA Network and Systems Management, Dell OpenManage Plug-in for Oracle® Enterprise Manager
Dell OpenManage Integrations:
  • Dell OpenManage Integration Suite for Microsoft System Center, Dell OpenManage Integration for VMware vCenter®

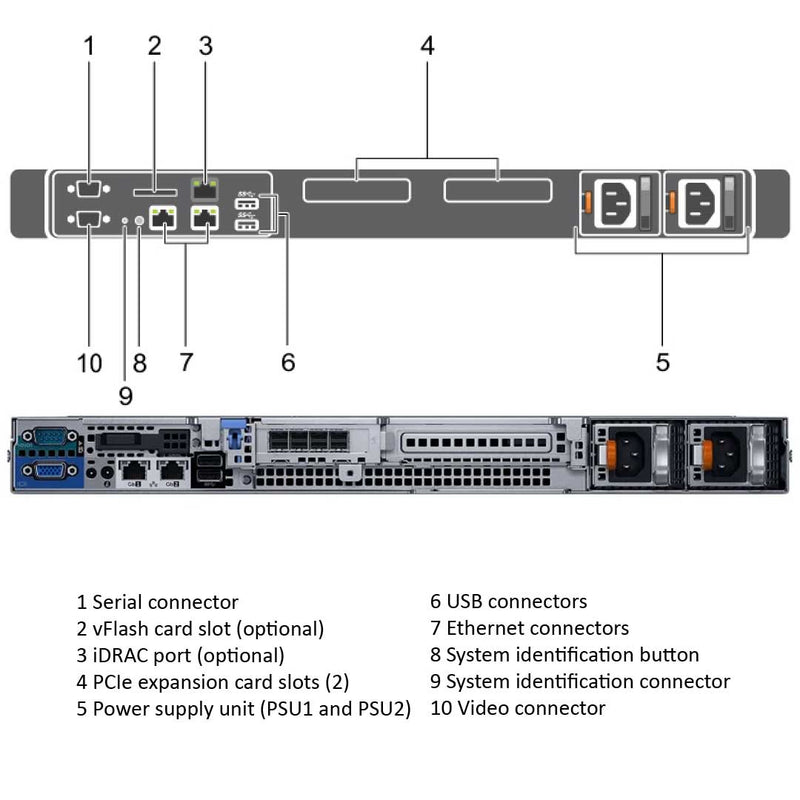

Device access5 total USB:
Rear: 2 x USB 3.0 ports
Front: 2 x USB 2.0 ports
Internal: 1 x USB 3.0 port
Rack supportReadyRails™ II sliding rails for tool-less mounting in 4-post racks with square or unthreaded round holes or tooled mounting in 4-post threaded hole racks, with support for optional tool-less cable management arm.
