Specs
Quick Specs
1U rack server
Processor | Max: 2 - 4 Cores1 Intel Xeon 3400 Processor
Memory | Max: 48GB4 UDIMM or 6 RDIMM DDR3 1333Mhz
Storage | Max: 12TBCabled / Hot-plug | 4 LFF or SFF SAS/SATA (HDD/SSD)
Storage Controllers: S100, S300 *SW RAID)
H200, H700, H800, 6Gbps SAS HBA
2x PCIe 2.0
Remote Management:Optional iDRAC6
This system is very old. If you need any parts or a full server. Please contact us via email, chat, or submit a quote.

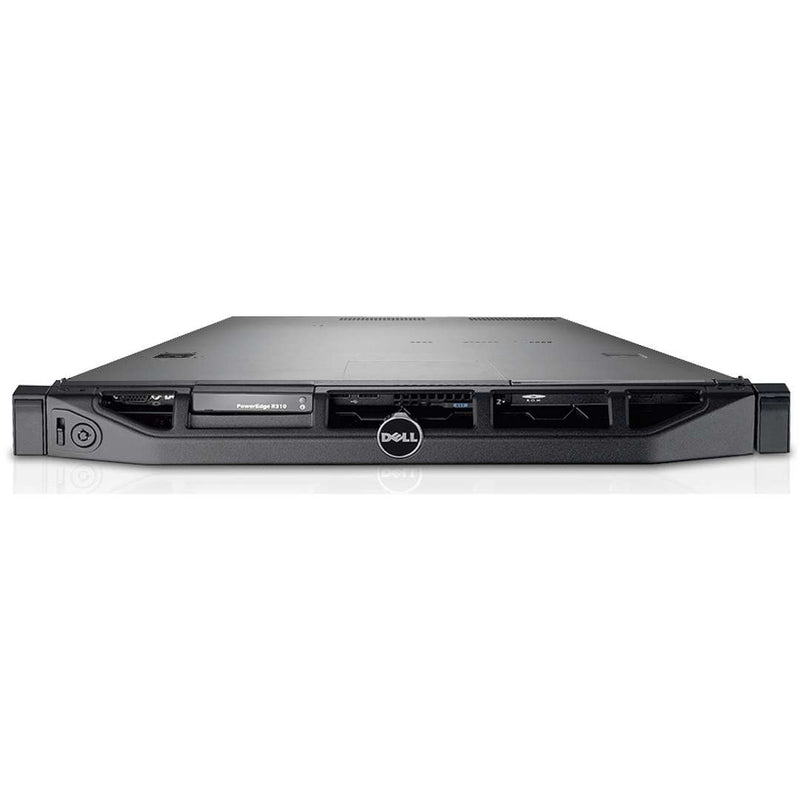

The Dell PowerEdge R310 is a high-performance, 1-socket 1U rack server with flexible computing power, business scalability, simplified management, data protection, and security options.
Dell PowerEdge eleventh-generation servers are designed to meet customer needs by combining purposeful design with excellent reliability, security and commonality. The PowerEdge R310 embodies Dell design principles by delivering core features including energy efficiency and simplified systems management. The result is a compact, efficient server that helps customers of all sizes lower IT-related costs, reduce complexity and free up resources.
The Dell PowerEdge R310 is a high-performance, 1-socket 1U rack server with flexible computing power, business scalability, simplified management, data protection and security options to make it an ideal choice for small to midsize businesses, remote offices and enterprises.
The Dell PowerEdge R310 offers:- Business value: performance, security options, and availability scale to meet a variety of business needs
- Simplified management: optional Dell Lifecycle Controller and optional full Dell OpenManage™ suite designed for improved diagnostics and reduced operational costs
- Flexible technology: energy-efficient, compact server for ease of deployment
Business value
The PowerEdge R310 rack server offers the right balance of performance, enterprise-class options, and business value to meet the needs of small to mid-sized businesses, branch offices and enterprises alike with:
- Price for performance that includes options for full redundancy in power supplies and hot-swap hard drives
- Processor options and memory configurations that are balanced to run typical business applications such as Microsoft Windows Small Business Server, Business Center Essentials, SQL Server Workgroup/Standard, Active Directory, and SharePoint as well as Oracle 11g Standard, VMware and file/print
- Multiple RAID options and up to four 2.5 or 3.5 inch hard drives to help keep your data safe
Easy to manage
The PowerEdge R310 lets you devote more focus to running your business. The optional advanced embedded management engine, Lifecycle Controller, automates common management tasks and enables zero-media, low touch deployment that is efficient, secure and user-friendly.
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Technical specification | ||
|---|---|---|---|
| Form Factor | 1-Socket 1U Rack | ||
| Processors | Intel Xeon processor X3400 series Intel Xeon processors L3400 series Intel Core processor i3-500 series Intel Pentium processor G6950 Intel Celeron processor G1101 | ||
| Processor Sockets | 1 | ||
| Cache | 2, 3, 4 and 8MB | ||
| Chipset | Intel 3420 Chipset | ||
| Memory | Up to 32GB (6 DIMM slots) 1GB/2GB/4GB/8GB 1066 & 1333MHz | ||

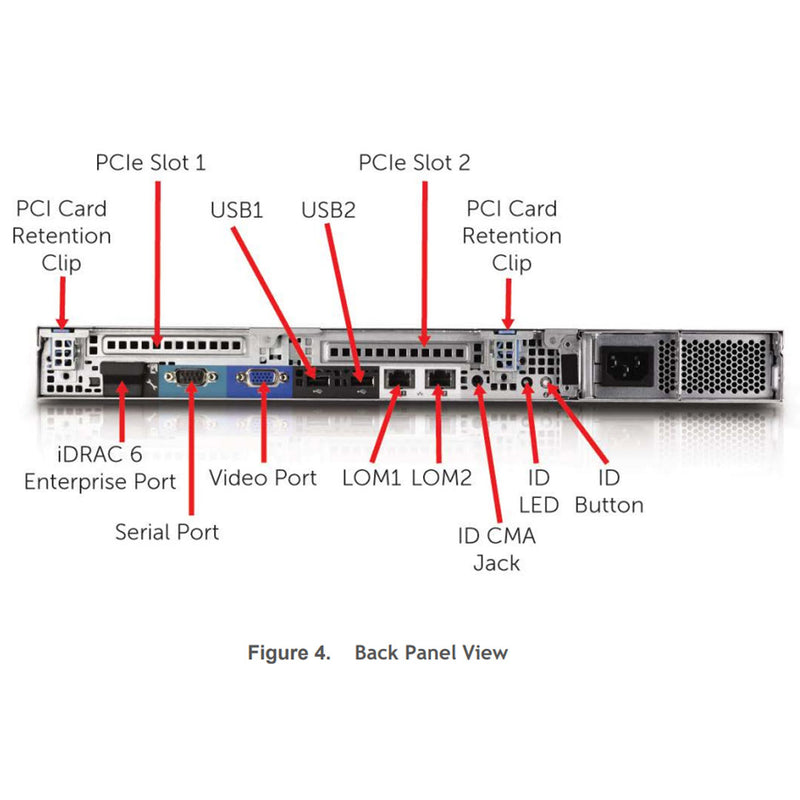

| I/O Slots | 2 PCIe G2 slots: Slot 1: PCIe x16 (x8 routing), Full Height/Half Length Slot 2: PCIe x8 (x8 routing), Full Height /Half Length | ||
| RAID Controller | Internal Controllers: 6Gb/s SAS HBA PERC H200 (6Gb/s) PERC H700 (6Gb/s) with 512MB battery-backed cache; 512MB, 1GB Non-Volatile battery-backed cache SAS 6/iR PERC S100 (software based) PERC S300 (software based) | External Controllers: PERC H800 (6Gb/s) with 512MB of battery-backed cache;512MB, 1GB Non-Volatile battery-backed cache 6Gbs SAS HBA X8 External HBAs (non-RAID): 6Gbps SAS HBA Brocade FC4 and 8 GB HBAs LSI2032 | |

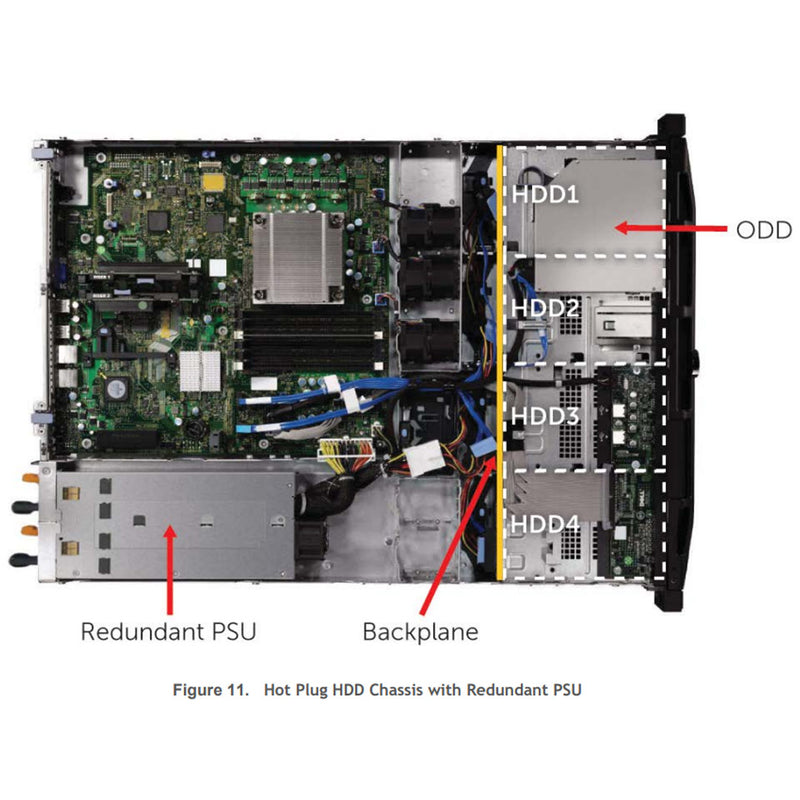

| Drive Bays | Cabled or hot-swap options available: 4 hard drive chassis: 3.5 SAS and SATA or 2.5 SAS and SSD drives | ||
| Maximum Internal | Storage Up to 8TB | ||
| Hard Drives | 3.5 cabled SATA (7.2K RPM): 160GB, 250GB, 500GB, 1000GB, 2000GB 3.5 cabled Near Line SAS (7.2K RPM): 500GB, 1000GB, 2000GB 3.5 hot-swap SAS (15K RPM): 146GB, 300GB, 450GB, 600GB, (10K RPM) 600GB 3.5 hot swap SAS (10K RPM) 600GB 3.5 6Gps SAS (7.2K): 2TB 2.5 hot-swap SAS (10K RPM): 146GB, 300GB 2.5 hot-swap SSD 50GB, 100GB 2.5 (7.2K) Nearline SAS: 1TB | ||
| Communications | Intel Gigabit ET Quad Port Server Adapter Intel Gigabit ET Dual Port Server Adapter Broadcom NetExtreme II 5709 Dual-Port Gb Ethernet TOE Server Adapter Broadcom NetExtreme II 5709 Dual-Port Gb Ethernet TOE/iSCSI Offload Server Adapter Intel PRO/1000 PT Server Adapter Brocade CNA Dual-port adapter Optional Add-In HBAs: Brocade FC4 and 8 GB HBAs | ||
| Power Supply | One non-redundant 350W power supply Two hot-pluggable redundant 400W hot-plug power supplies | ||
| Availability | Hot-plug hard drives, hot-plug redundant power supplies, DDR3 ECC memory, and quad-pack LED or an interactive LCD display screen | ||
| Video | Matrox G200eW w/ 8MB | ||
| Remote Management | Optional iDRAC Express, iDRAC 6 Enterprise | ||
| Systems Management | Full OpenManage Support: BMC, IPMI2.0 compliant Lifecycle Controller enabled via optional: iDRAC6 Express, iDRAC6 Enterprise and vFlash | ||
| Rack Support | ReadyRails sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks); ReadyRails static rails for 2-post and 4-post racks | ||
| Operating Systems | Microsoft Windows Essential Business Server 2008 Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V ) Microsoft Windows Server 2008 R2, x64 (includes Hyper-V v2) Microsoft Windows HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Solaris 10 05/10 (update 10) x86-64 Optional Embedded Hypervisors: Citrix XenServer Enterprise 5.6 x86-64 VMware vSphere 4.1 (including VMware ESX 4.1 or VMware ESXi 4.1) Vizioncore vEssentials Novell PlateSpin Migrate For more information on the specific versions and additions, visit www.dell.com/OSsupport. | ||
| Featured Database Application | Microsoft SQL Server solutions (see Dell.com/SQL) | ||
Spec Sheet 4
| Feature | R210 | R210II | R310 |
|---|---|---|---|
| Processor | Intel® Xeon® processor 3400 series Intel Celeron® G1101 Intel Pentium® G6950 Intel Core™ i3 processor 500 series |
Intel Xeon processor
E3-1200 product family Intel Xeon processor E3-1200 V2 product family Intel Pentium G600 and G800 series Intel Celeron G400 and G500 series |
Intel Xeon processors 3400
series Intel Celeron G1101 Intel Pentium G6950 Intel Core i3 processor 500 series |
| Front Side Bus | Direct Media Interface (DMI) 2.5Gb/s |
Direct Media Interface II (DMI) 5.0Gb/s |
Direct Media Interface (DMI) 2.5Gb/s |
| Sockets | 1 | 1 | 1 |
| Cores | 2 or 4 | 2 or 4 | 2 or 4 |
| L2/L3 Cache | Up to 8MB | Up to 8MB | Up to 8MB |
| Chipset | Intel 3420 | Intel C202 | Intel 3420 |
| DIMMs | 4 DDR3 1066/1333MT/s | 4 DDR3 up to 1600MT/s | 6 DDR3 1066/1333MT/s |
| Min/Max RAM | 1GB/32GB | 1GB/32GB | 1GB/32GB |
| Hard Drive Bays | 2 x 3.5” or 2 x 2.5” |
2 x 3.5” or 4 x 2.5” |
4 x 3.5” or 4 x 2.5” Optional hot-plug |
| Hard Drive Types | SATA SSD, SAS, nearline SAS, SATA | SATA SSD, SAS, nearline SAS, SATA | SATA SSD, SAS, nearline SAS, SATA |
| External Drive Bay | 1 for slim optical disk drive (ODD) | 1 for slim optical disk drive (ODD) | 1 for slim optical disk drive (ODD) |
| Embedded Hard Drive Controller | Chipset-based SATA | Chipset-based SATA, PERC S100 (embedded SW RAID) | Intel 3420, PERC S100 (embedded SW RAID) |
| Optional Storage Controller | Non-RAID: SAS 5/E LSI 2032 (for tape backup unit only) RAID: SAS 6/iR PERC 6/E PERC S100 (software RAID) PERC S300 (software RAID) PERC H200 PERC H800 |
Non-RAID:
6Gb/s SAS HBA RAID: PERC S100 (software RAID) PERC S300 (software RAID) PERC H200 PERC H800 |
Non-RAID:
SAS 5/E LSI 2032 (for tape backup unit only) 6Gb/s SAS HBA RAID: SAS 6/iR PERC 6/E SAS 5/E PERC S300 (software RAID) PERC H200 PERC H700 PERC H800 |
| Availability | ECC memory, quad-pack LED diagnostic, add-in RAID, TPM/CTPM | ECC memory, quad-pack LED diagnostic, add-in RAID, TPM/CTPM | ECC memory, hot-plug hard drives, redundant power supplies, quad-pack LED diagnostic or LCD (with hotplug hard drive chassis), TPM |
| Server Mgt. | BMC, IPMI 2.0 compliant,
full Dell OpenManage™
suite Optional: iDRAC6 Express, iDRAC6 Enterprise, vFlash media |
BMC, IPMI 2.0 compliant,
full Dell OpenManage suite Optional: iDRAC6 Express, iDRAC6 Enterprise, vFlash media |
BMC, IPMI 2.0 compliant,
full Dell OpenManage suite Optional: iDRAC6 Express, iDRAC6 Enterprise, vFlash media |
| I/O Slots | 1 x PCIe x16 | 1 x PCIe x16 | 1 x PCIe x16 (x8 routing) 1 x PCIe x8 (x8 routing) 1 x PCIe x8 (x4 routing) |
| NIC/LOM | 2 x GbE LOM | 2 x GbE LOM | 2 x GbE LOM |
| USB | 2 front, 2 back, 2 internal | 2 front, 2 back, 2 internal | 2 front, 2 back, 2 internal |
| Power Supplies | Non-redundant, 250W (80+ Bronze) autoranging (100V~240V) | Non-redundant, 250W (80+ Bronze) auto-ranging (100V~240V) | Non-redundant, 350W
(80+ Bronze) Optional redundant, 400W (80+ Silver) auto-ranging (100V~240V) |
| Fans | Non-redundant, non-hotpluggable | Non-redundant, non-hotpluggable | Non-redundant, non-hotpluggable |
| Form Factor | 1U Rack | 1U Rack | 1U Rack |
