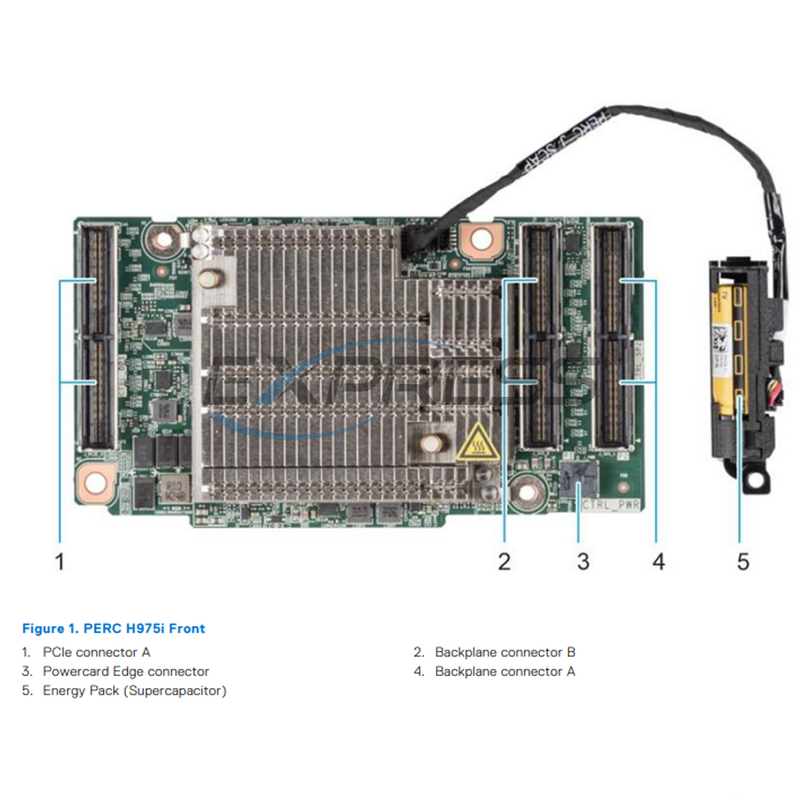

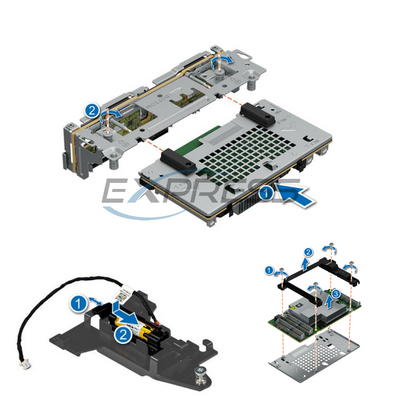

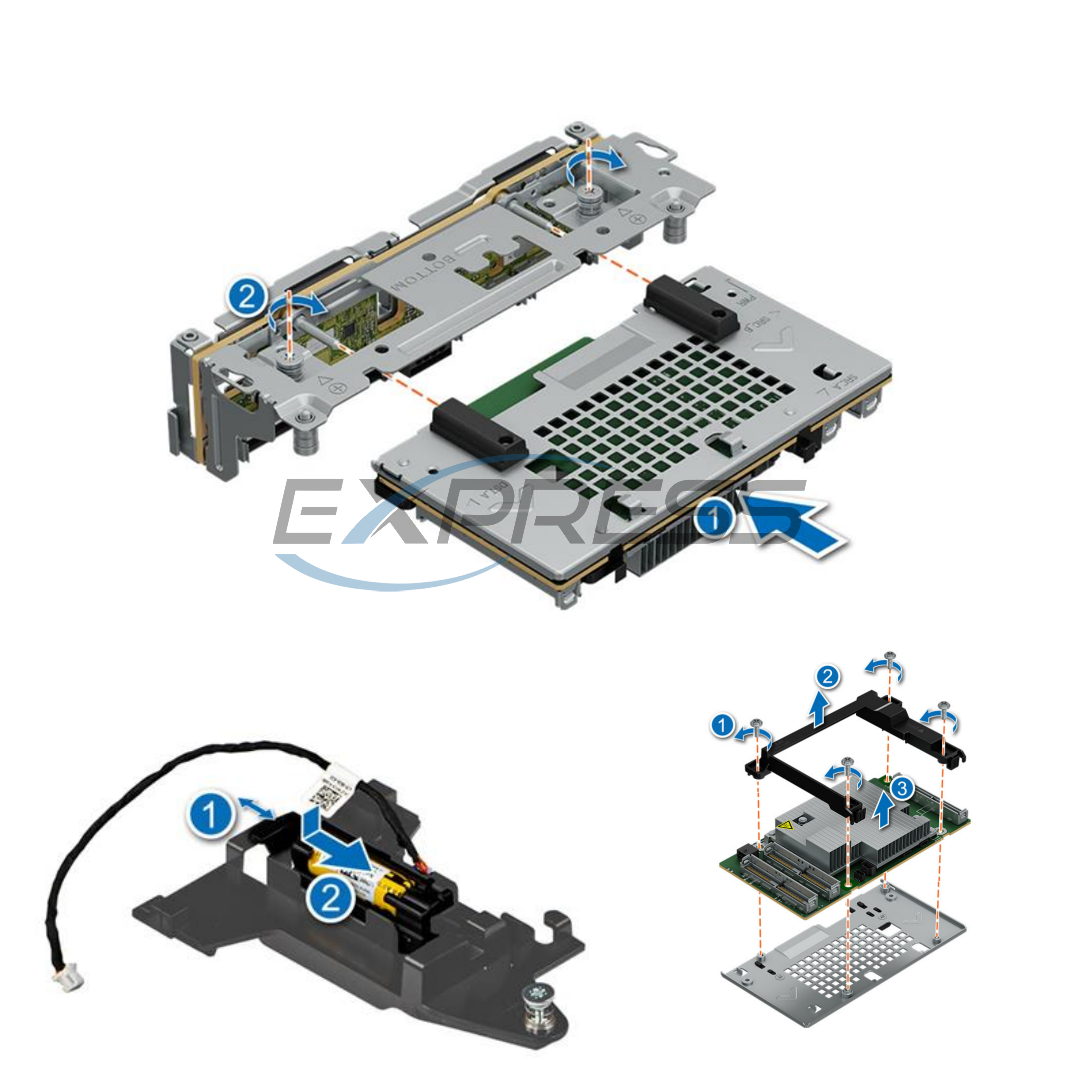

Dell PERC 13 H975i Front RAID Controller
Dell PERC 13 H975i Front RAID Controller
Dell PERC 13 H975i Front RAID Controller
Dell PERC 13 H975i Front RAID Controller

Dell PERC 13 H975i Front RAID Controller

Dell

| Pre-Configured
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

  • RAID Level: 0, 1, 5, 6, 10, 50, and 60
  • Non-RAID: Yes
  • Cache: No
  • PCIe: Gen 5 x16
  • Processor: Broadcom RAID-onchip, SAS5132W chipset
  • Battery Backup: Supercapacitor
  • Max no of VDs in RAID mode: 16/64
  • Max no of disk groups: 32
  • Max no of VDs per disk group: 8
  • Hot-swap devices supported: Yes
  • Drive sector size supported: 512B, 512e, and 4Kn
  • Storage Boot Support: UEFI-only
Supported Drives:
  • Gen3 (8 GT/s) NVMe
  • Gen4 (16 GT/s) NVMe
  • Gen5 (32 GT/s) NVMe
Max SAS/SATA disks:
  • Not supported
Max NVMe drives:
  • 16 drives per controller
Max physical disks:
  • 32 NVMe
Summary of RAID levels

Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:

  • RAID 0 Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
  • RAID 1 Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
  • RAID 5 Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
  • RAID 6 Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
  • RAID 10 Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
  • RAID 50 Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
  • RAID 60 Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
Compatible With:
  • Dell R670
  • Dell R770

(Click to View)

Spec Sheet 4

Features PERC H965i Adapter PERC H965i Front MX H965i PERC H965e Adapter PERC H975i Front
RAID levels 0, 1, 5, 6, 10, 50, and 60
Non-RAID Yes
Side-band Management I2C, PCIe VDM
Local Key Management security Yes
Secure enterprise key manager security Yes
Controller queue depth 8,192
Nonvolatile cache Yes
Host bus type 16-lane, PCIe Gen4 16-lane, PCIe Gen5
Enclosures per port Not applicable 4 Not applicable
Processor Broadcom RAID-on-chip, SAS4116W chipset Broadcom RAID-on-chip, SAS5132W chipset
Energy Pack Power Backup unit Yes-Battery Yes-Supercapacitor
Cache memory 8 GB DDR4 3200 MT/s cache Integrated RAID cache
Cache function Write-back, read-ahead, write-through, always write-back, no read-ahead Write-back, write-through, always write-back, no read-ahead
Max number of complex VDs 64 16
Max number of simple VDs 240 64
Max number of disk groups 64 32
Max number of VDs per disk group 16 8
Max number of hot spare devices 64 8
Hot-swap devices supported Yes
Auto-Configure behavior (Primary and Execute once) Yes
Hardware XOR engine Yes
Online capacity expansion Yes
Dedicated and global hot spare Yes
Supported Drive Types 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS, Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe 22.5 Gbps SAS, 12 Gbps SAS Gen3 (8 GT/s), Gen4 (16 GT/s), and Gen5 (32 GT/s) NVMe
VD strip element size Both 64 KB and 256 KB allowed on a hard drive. Only 64 KB allowed on an SSD. 64 KB
NVMe PCIe support Gen 4 Gen 5
Configuration maximum SAS/SATA hard drives support
  • Without SAS Expander: 16 drives per controller
  • With SAS Expander: Limited by platform offerings
 Limited by platform: 8 drives per controller 240 SAS drives Not supported
Configuration maximum NVMe hard drives support
  • Without PCIe Switch Expander: 8 drives per controller
  • With PCIe Switch Expander: Limited by platform offerings
 Limited by platform: 8 drives per controller Not supported 16 drives per controller
Controller maximum hard drives supported
  • 240 SAS/SATA
  • 24 NVMe
 240 SAS 32 NVMe
Drive sector size supported 512B, 512e, and 4Kn
Storage Boot Support UEFI-only No boot support UEFI-only
