Module Specs
- Type: Fibre Channel IO Module
- Model: MXG610s
- Internal Ports: 16 x 32Gbps auto-negotiating to 16Gbps

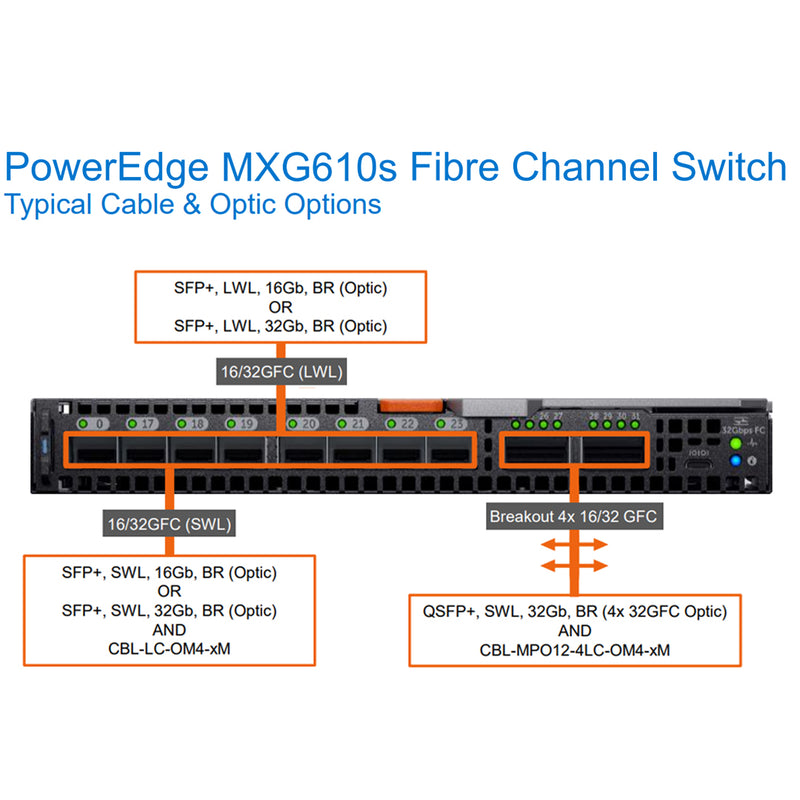

- External Ports: 8 x SFP+ (8/16/32Gbps), 2 x QSFP+ (4x 16/32Gbps)
- Port Types: F_Port, E_Port, M_Port, D_Port, N_Port
- Total Bandwidth: 1024Gbps (Full Fabric), 512Gbps (Access Gateway)
- Latency: ≤ 900ns port-to-port
- Transceivers: Supports 32Gbps & 16Gbps SWL/LWL SFP and SW4 QSFP
- Management: CLI, Web Tools, SNMP, USB Console, Brocade Fabric Vision
- Power Consumption: Max 60W, Typical 57W
- Form Factor: MX7000 I/O Sled
- Dimensions (H x W x D): 1.08" x 8.44" x 9.49"
- Weight: 3.79 lbs (1.72 kg)
- Operating Temp: -5°C to 50°C (23°F to 122°F)
- Compliance: UL, EN, FCC, RoHS
Part Number:
- 92XH2

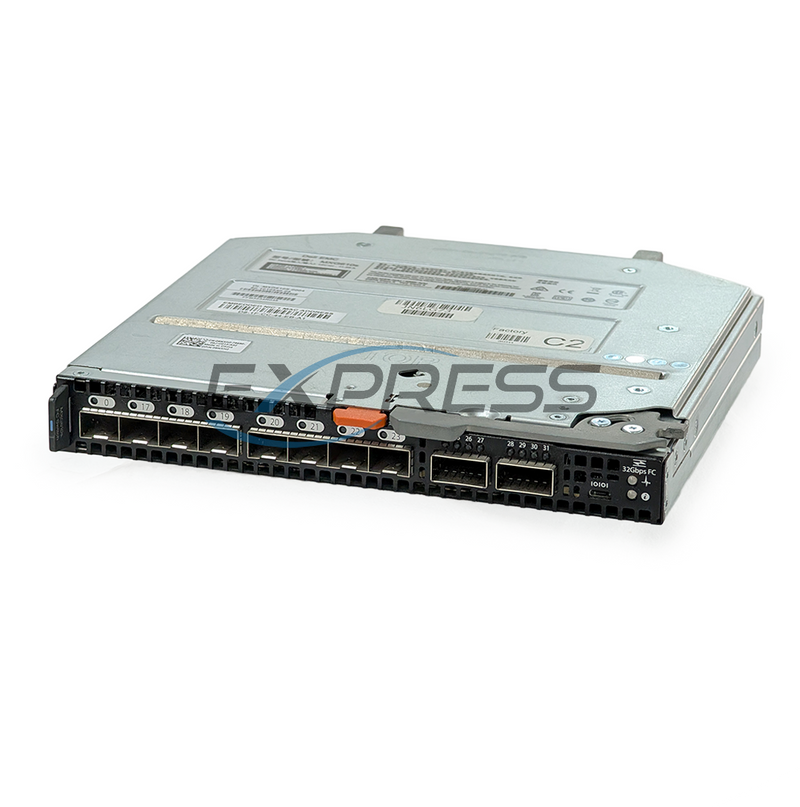

The Dell EMC MXG610s is a 32Gb Fibre Channel IO module purpose-built for the PowerEdge MX7000 platform. It features 16 internal server-facing ports and up to 16 external fabric-facing ports using a combination of SFP+ and QSFP+ interfaces. Designed for high-density VM and flash storage environments, it delivers ultra-low latency and flash-ready bandwidth.
With native support for Brocade Fabric Vision, ISL Trunking, Extended Fabric, and NVMe over Fibre Channel, the MXG610s enables dynamic scalability, simplified management, and robust performance. Available in multiple models, it provides a secure and efficient solution for mission-critical storage network connectivity.
Compatible With:
- Dell Mx7000
