Tech
- Models: Drive Types
- Drive Types: 12 Gb/s SAS
- PCI Support: PCI-e 3.0
- SAS Connectors: 2x4 External
- Cache Memory: No Cache
- Write Back Cache: No Cache
- RAID Levels: No RAID Pass-Thru Only
- Max Drive Support: 255
- RAID Support: No RAID Pass-Thru Only
Part Numbers:
- LP: T93GD
- LP: 1HD39
- FH: 2PHG9

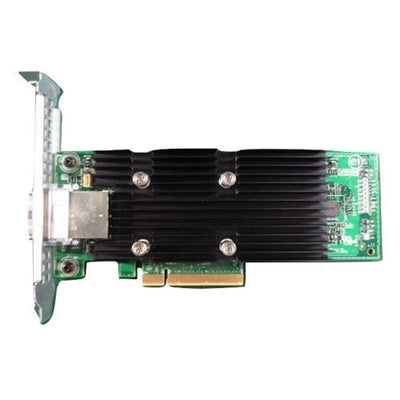

The Dell 12Gb SAS HBA (Non-RAID) External Controller FH provides high-throughput external SAS connectivity without the complexity of RAID management. Utilizing a PCI-e 3.0 interface, it delivers stable and fast data access through dual 2x4 external SAS ports.
Designed for flexible storage environments, this full-height controller supports up to 255 drives in a pass-through configuration. Its no-cache, non-RAID design ensures reliable performance for large external SAS deployments where streamlined scalability is a priority.
The 12Gbps Sas Host Bus Adapter offers exceptional Performance And Advanced Management Functionality That Can Shave Days Off Installing And Managing Adapters. It Is Coupled With Up To 3X Better Iops Performance Per Watt, Which Makes Dell 12Gbps Host Bus Adapters The Clear Choice For The Toughest Virtualized, Cloud And Mission Critical Deployments.
The Card provides the connection needed to add the Storage Array to a compute Server. This will give that Server a 12Gb/s connection to connect the Storage arrays to the Compute Server. This does not get installed into the Storage Array or Storage Enclosure.
- Dell Ml6000
- Dell R210
- Dell R210ii
- Dell R240
- Dell R330
- Dell R340
- Dell R430
- Dell R440
- Dell R510
- Dell R530
- Dell R540
- Dell R610
- Dell R630
- Dell R640
- Dell R650
- Dell R6515
- Dell R6525
- Dell R710
- Dell R730
- Dell R730xd
- Dell R740
- Dell R740xd
- Dell R740xd2
- Dell R7415
- Dell R7425
- Dell R750
- Dell R750xa
- Dell R7515
- Dell R7525
- Dell R810
- Dell R830
- Dell R840
- Dell R930
- Dell R940
- Dell R940xa
- Dell T130
- Dell T140
- Dell T330
- Dell T340
- Dell T350
- Dell T430
- Dell T440
- Dell T550
- Dell T610
- Dell T630
- Dell T640
- Dell T710
- Dell Tl1000
- Dell Tl2000
- Dell Tl4000
- Dell vrtx
(Click to View)
Spec Sheet 4
| Models | Drive Types | PCI Support | SAS Connectors | Cache Memory | Write Back Cache | RAID Levels | Max Drive Support | RAID Support |
|---|---|---|---|---|---|---|---|---|
| H830 Adapter | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 255 | Hardware |
| H730P Adapter FH - X4TTX | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Adapter LP - J14DC | ||||||||
| H730P Adapter No Bracket - C9Y6K | ||||||||
| H730P MX | 12 Gb/s SAS 6 Gb/s SATA/SAS 3 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | - | Hardware |
| H730P Mini Mono | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Mini Blade - 3X31R | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 2 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730P Mini Blade - GD07N | ||||||||
| H730P Mini Blade - YRPP6 | ||||||||
| H730 Adapter FH | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730 Adapter LP | ||||||||
| H730 Adapter No Bracket | ||||||||
| H730 Mini Mono | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H730 Mini Blade | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 1x4 External | 1 GB NV | Flash Backed Cache | 0,1,5,6,10,50,60 | 32 | Hardware |
| H330 Adapter FH | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | No Cache | No Cache | 0,1,5,10,50 | 16 RAID, 32 Non-RAID | Hardware |
| H330 Adapter LP | ||||||||
| H330 Mini Mono | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | No Cache | No Cache | 0,1,5,10,50 | 16 RAID, 32 Non-RAID | Hardware |
| H330 Mini Blade | 12 Gb/s SAS 6 Gb/s SATA |
PCI-e 3.0 | 2x4 External | No Cache | No Cache | 0,1,5,10,50 | 8 | Hardware |
| S130 Software RAID | 6 Gb/s SATA | N/A | N/A | No Cache | No Cache | 0,1,5,10 | 10 | Software - Windows and Linux |
| 12 Gbps SAS Ext. HBA FH | 12 Gb/s SAS | PCI-e 3.0 | 2x4 External | No Cache | No Cache | No RAID Pass-Thru Only | 255 | No RAID Pass-Thru Only |
| 12 Gbps SAS Ext. HBA LP | ||||||||
| More HBA Gen 9 Controllers | ||||||||
| FD33XD Dual HBA (Split Host) |
FD33XD Dual HBA (Dual Host) |
FD33XD Dual PERC (Split Host) |
FD33XD Dual PERC (Dual Host) |
FD33XS Single HBA (Joined Mode) |
FD33XS Single PERC (Joined Mode) |
HBA330 + 12Gb SAS HBA |
HBA330 MX 12Gb SAS Non-RAID |
|
