Riser Specs
- Type: PCIe Riser and Flex Bay Kit

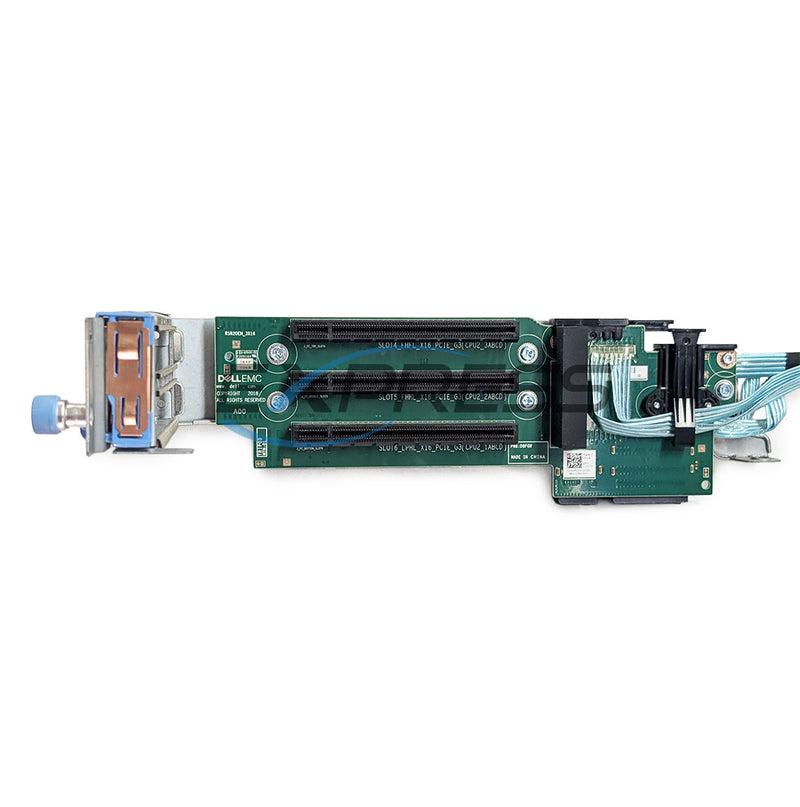

- Included Risers: Riser 2 (3 x PCIe 3.0 x16), Riser 3 (Flex Bay)
- Slot 4: FHFL – PCIe 3.0 x16
- Slot 5: FHHL – PCIe 3.0 x16
- Slot 6: LPHL – PCIe 3.0 x16
- Flex Bay Capacity: 2 x SFF Drives
- Required CPU: CPU 2 (for Riser 2 functionality)
- Included Cables: Power Cable (0V87NX), Signal Cable (0M2CV4)
- Flex Backplane: Included (Part Number 0YM8V6)
- Compatible System: Dell PowerEdge R740XD
Part Numbers:
- Riser 2 Assembly (00WMYM)
- Riser Cards (0GP1TH) (0PRKHJ) (0P3VH8)
- Rear Flex Backplane: 0YM8V6
- Power Cable: 0V87NX
- Signal Cable: 0M2CV4

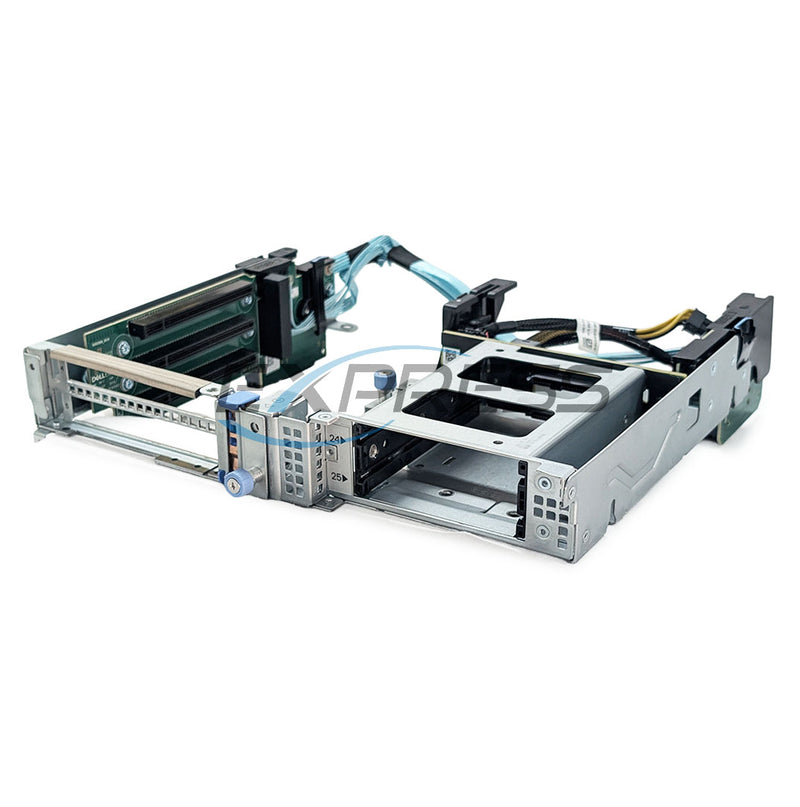

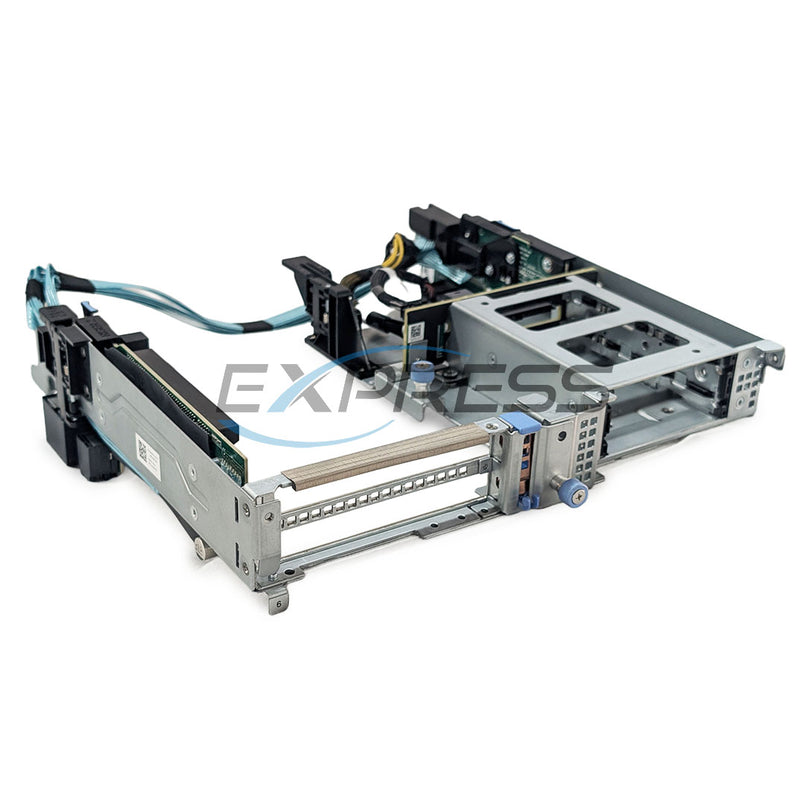

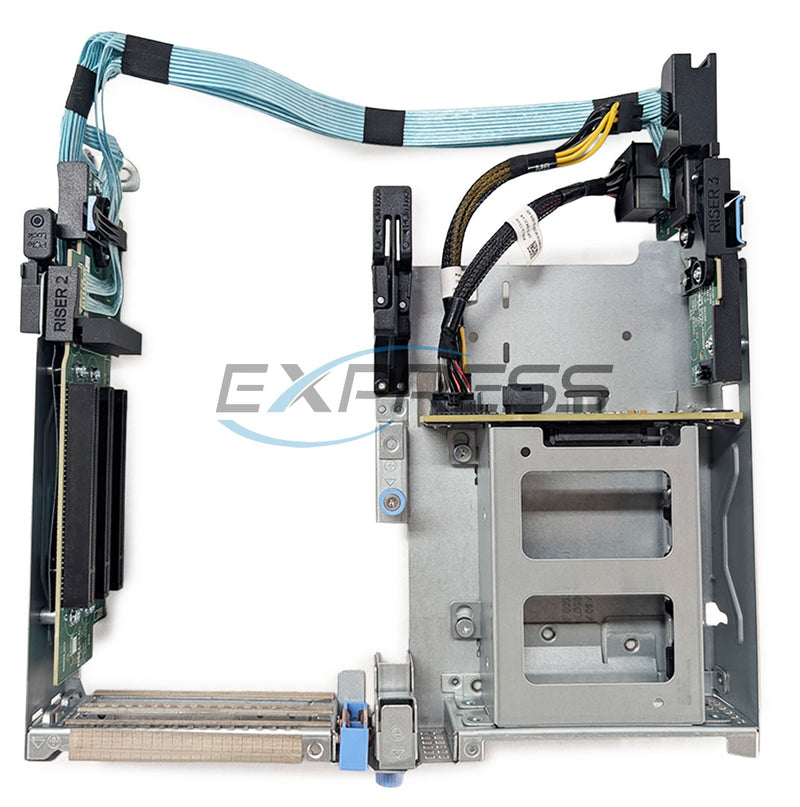

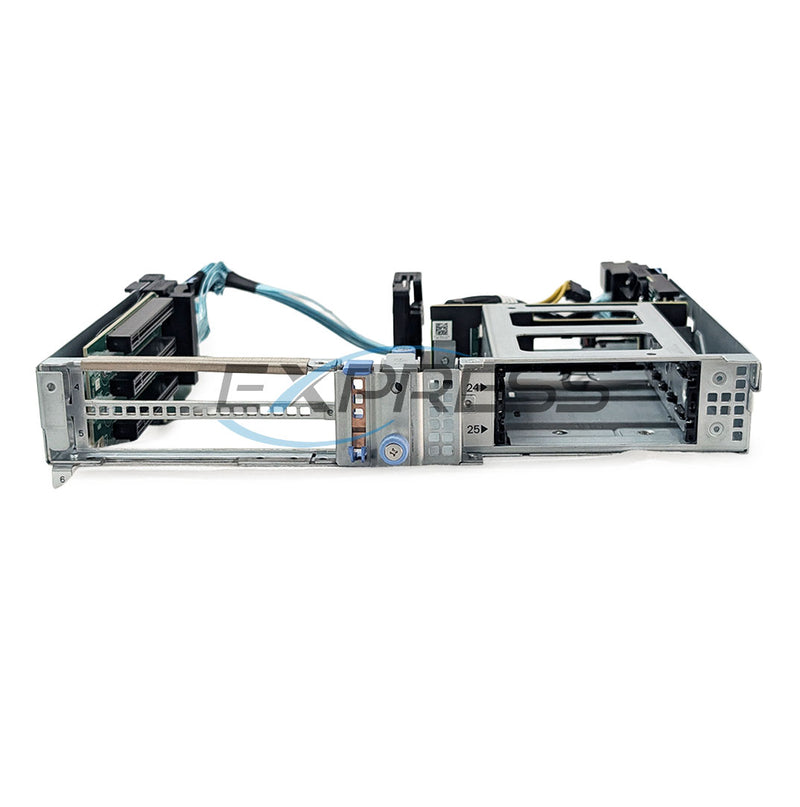

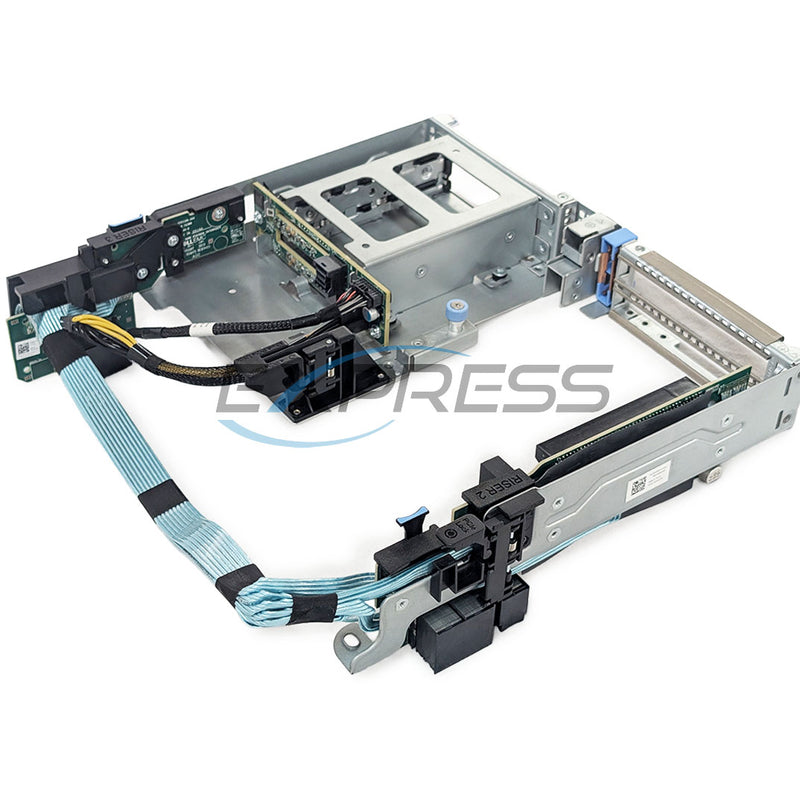

This Dell PowerEdge R740XD Riser 2 and Riser 3 Flex Bay Kit delivers a high-performance expansion solution with three full PCIe 3.0 x16 slots and an integrated 2-bay SFF rear flex backplane. The riser supports FHFL, FHHL, and LPHL card formats for maximum flexibility.

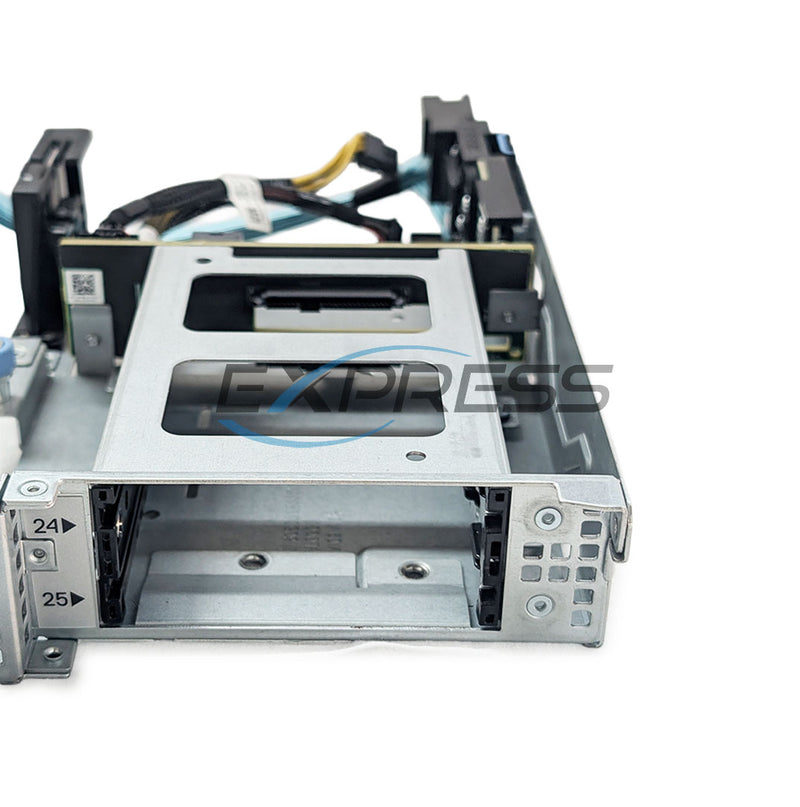

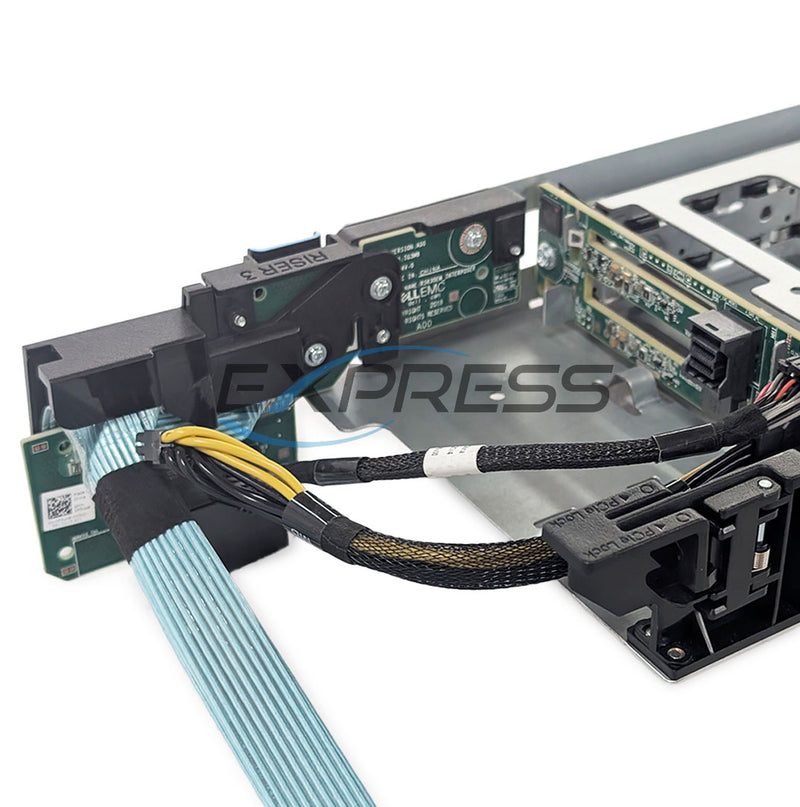

Riser 2 requires CPU 2 to be installed and is ideal for dense compute and I/O-heavy environments. Riser 3 includes the 0YM8V6 backplane and both power and signal cables, enabling seamless addition of rear SFF drives in the R740XD chassis.
Compatible With:
- Dell R740xd
