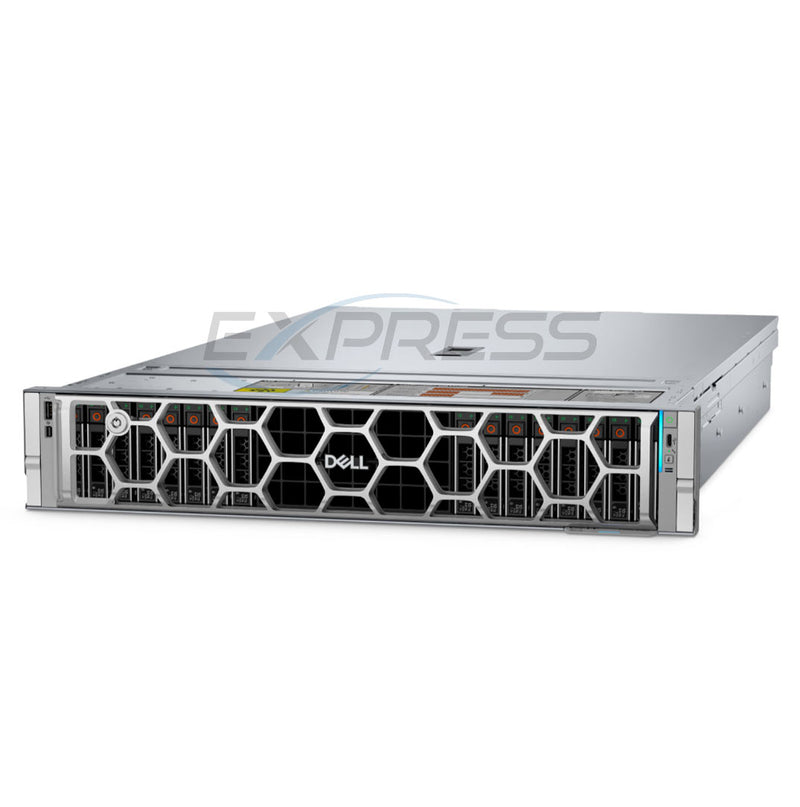

2U rack server
Processor | Max: 128 Cores per CPU2x Intel Xeon 6 6900P-series (P-cores)
Memory | Max: 3TB24 DDR5 RDIMM slots (12 per CPU), up to 6400 MT/s
Supports registered ECC DDR5 DIMMs only
8 or 16 x 2.5" NVMe Gen5
32 x EDSFF E3.S NVMe Gen5
No-backplane option
PERC 13 H975i front (NVMe)
Boot Options:BOSS-N1 DC-MHS (rear)
Networking Options (NOC):Up to 2x OCP 3.0 (up to 200GbE)
1GbE dedicated BMC port
iDRAC10
PCIe Slots:Up to 5x Gen5 x16
(Click to View)
- Large-Scale Virtualization
- Mission-Critical Databases
- Analytics & AI

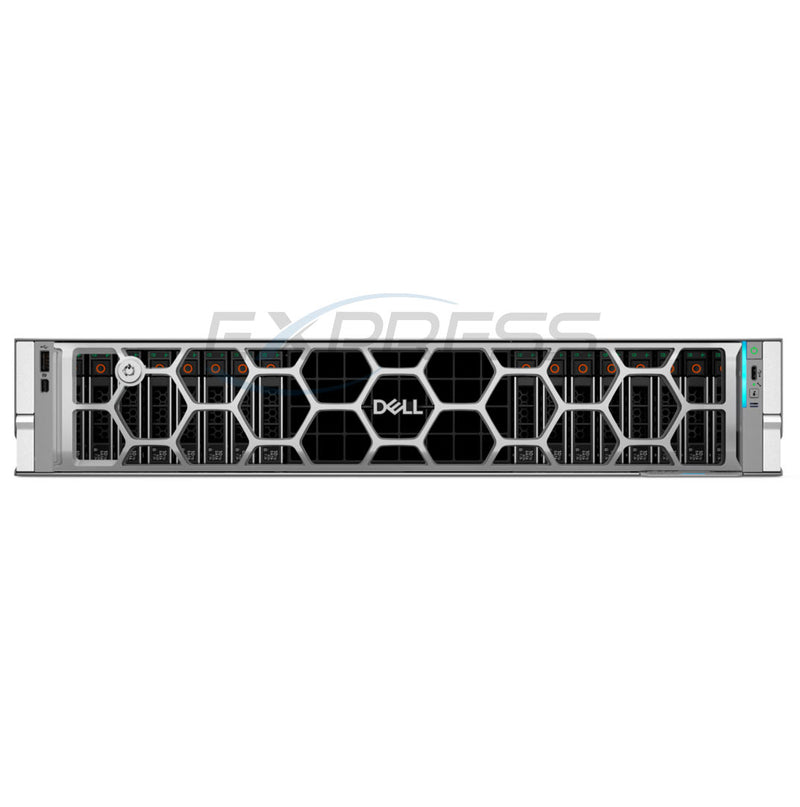

The Dell PowerEdge R770AP is a 2U, dual-socket rack server built for Intel Xeon 6 6900P-series processors with up to 128 performance cores each. With 12 DDR5 DIMMs per socket (up to 3TB at 6400 MT/s), up to 16 x 2.5" or 32 x E3.S NVMe Gen5 front drives, up to five PCIe Gen5 x16 slots and dual OCP 3.0 networking, it consolidates demanding enterprise workloads such as virtualization, databases, analytics and AI at scale.
No Backplane

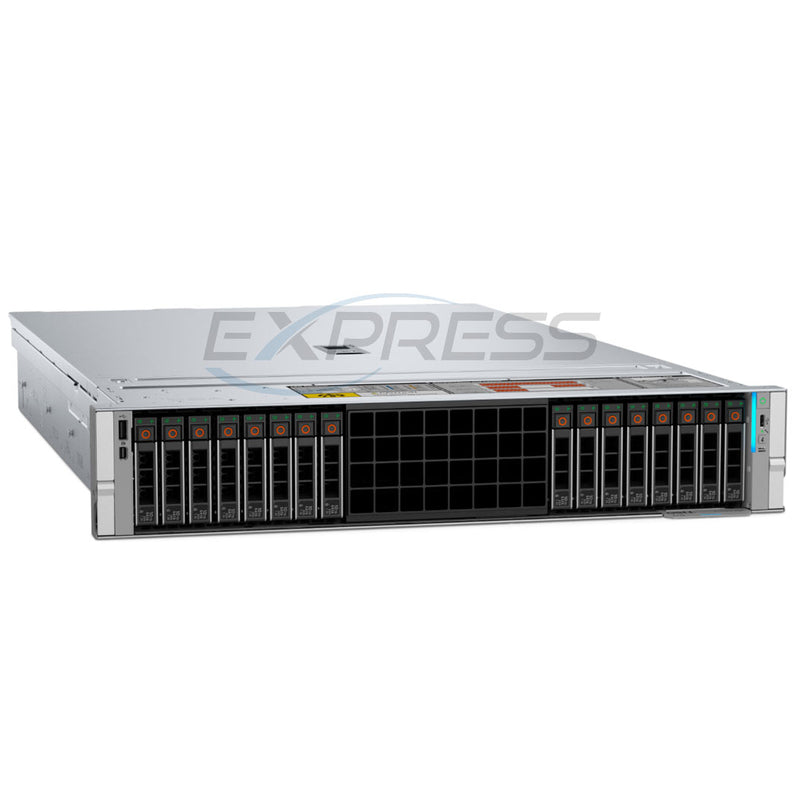

8 x 2.5" NVMe
16 x 2.5" NVMe (x4)
32 x E3.S NVMeⓘ Drives NVMe only: no SAS/SATA and no rear drives. Max weight: 24.74 kg (54.54 lb) with 8 x 2.5", 27.34 kg (60.27 lb) with 16 x 2.5", 29.30 kg (64.59 lb) with 32 x E3.S.
Up to two Intel Xeon 6 6900P-series processors with up to 128 P-cores each.
- Intel Xeon 6952P | 96 Cores | 2.1 GHz | 400 W
- Intel Xeon 6960P | 72 Cores | 2.7 GHz | 500 W
- Intel Xeon 6972P | 96 Cores | 2.4 GHz | 500 W
- Intel Xeon 6978P | 120 Cores | 2.1 GHz | 500 W
- Intel Xeon 6980P | 128 Cores | 2.0 GHz | 500 W
- Socket BR1A (LGA 7529), 24 GT/s UPI. Mixing processors is not supported.
HPR Gold Fan
HPR Platinum Fan| Processor | TDP | Fan (all storage configurations) |
|---|---|---|
| 6952P | 400 W | HPR Gold fan |
| 6960P / 6972P / 6978P / 6980P | 500 W | HPR Platinum fan |
ⓘ Fans Air cooled with up to six hot-swap fans and a regular air shroud.
| DIMM type | Rank | Capacity | Rated speed | Maximum system capacity |
|---|---|---|---|---|
| RDIMM | 2R | 32 GB | 6400 MT/s (1DPC) | 768 GB |
| 64 GB | 1.5 TB | |||
| 96 GB | 2.3 TB | |||
| 128 GB | 3 TB |
ⓘ Memory 12 DDR5 DIMM slots per processor, 1.1 V. RDIMM only; maximum speed depends on the CPU SKU and DIMM population.
- Interface: PCIe Gen5 x16 (32 GT/s); supports Gen5, Gen4 and Gen3 NVMe
- Cache: 192 MB on-chip, flash-backed write-back cache
- RAID levels: 0, 1, 5, 6, 10, 50, 60 (hardware RAID)
- Drives supported: up to 16 NVMe SSDs; SAS not supported
- DC-MHS front PERC (fPERC), mounted at the front with the backplane; does not use a PCIe slot
- Only internal controller supported; no external controllers
ⓘ PERC H975i front: PCIe Gen5 x16, 192 MB cache, RAID 0/1/5/6/10/50/60, up to 16 NVMe SSDs. No external controllers or software RAID.
BOSS-N1 DC-MHS
BOSS-N1 DC-MHS Carrier
960GB M.2 NVMe SSDⓘ BOSS BOSS-N1 DC-MHS mounts at the rear of the R770AP: hardware RAID 1 across two M.2 NVMe SSDs.
- Form factor: OCP 3.0 SFF (small form factor); OCP 2.0 not supported
- Interface: PCIe Gen5, x8 or x16 width
- Location: slot 10 (rear, x16, Processor 0) and slot 4 (Processor 1; x16 with riser R3e, x8 with riser R3g)
- Only the OCP in slot 10 supports iDRAC shared NIC (shared LOM)
- Features: NC-SI, SNAPI, WoL; 15 W to 80 W per card
- 1GbE x4, 10GbE x2, 10GbE x4, 25GbE x2, 25GbE x4, 100GbE x2, 200GbE x2
- Port types: BASE-T, SFP28, QSFP56, QSFP112
- Vendors: Broadcom, NVIDIA and Intel
- 25GbE and faster rear cards require DAC or 85°C active optics
ⓘ OCP Up to two OCP 3.0 NICs (slot 4 x8/x16 and slot 10 x16, PCIe Gen5) from 1GbE to 200GbE, plus a 1GbE dedicated BMC port. Only the OCP in slot 10 supports iDRAC shared NIC.

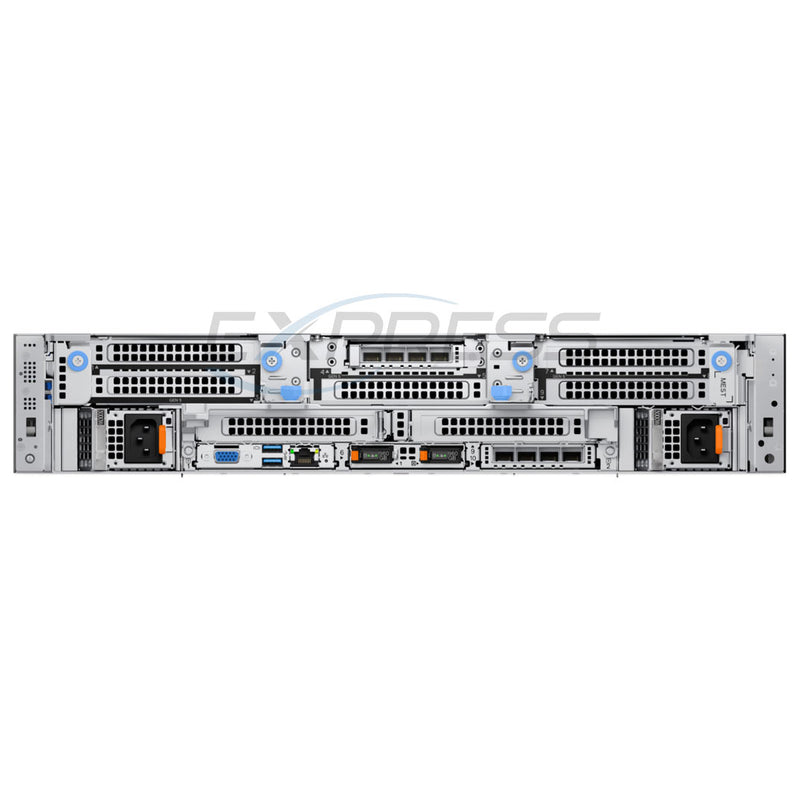

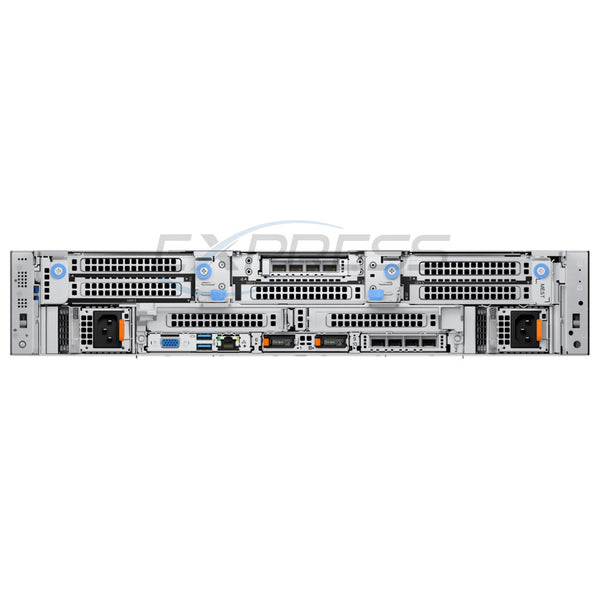

Riser (R1b)
Riser (R2a)
Riser (R2b)
Riser (R3g)
Riser (R3e)
Riser (R4a)
Riser (R4b)
Riser (R5b)| Config No. | Riser configuration | PCIe slots | Processors |
|---|---|---|---|
| RC 0: | R1b + R2b + R3e + R4b + R5b | 2, 3, 4 (OCP), 7, 9 (Gen5 x16) | 2 |
| RC 1: | R1b + R2a + R3g + R4a + R5b | 2, 3, 4, 5, 7, 9 (Gen5 x16) | 2 |
- iDRAC10 with 1GbE dedicated BMC Ethernet port
- iDRAC Direct via front USB Type-C
- iDRAC RESTful API with Redfish, RACADM CLI, iDRAC Service Module
- TPM 2.0 FIPS, Secure Boot, Silicon Root of Trust
- System Lockdown, Secure Erase, SEDs
- Chassis Intrusion Detection
| Form factor | Output | Power cord |
|---|---|---|
| Redundant 60 mm | 1500 W Titanium mixed mode | C13 |
| 1800 W Titanium mixed mode | C15 | |
| Redundant 73.5 mm | 2400 W Titanium mixed mode | C19 |
| 3200 W Titanium mixed mode | C19 | |
| 3200 W Titanium 277 Vac & HVDC | APP/Saf-D-Grid |
ⓘ PSU Two redundant hot-swap Titanium PSUs.
- Width: 482.0mm (19.0")
- Depth: 802.40mm (31.59") with bezel
- Depth: 801.51mm (31.56") without bezel
- Height: 86.8mm (3.42")
- 8 x 2.5" NVMe (max) 24.74 kg (54.54 lbs)
- 16 x 2.5" NVMe (max) 27.34 kg (60.27 lbs)
- 32 x E3.S (max) 29.30 kg (64.59 lbs)
