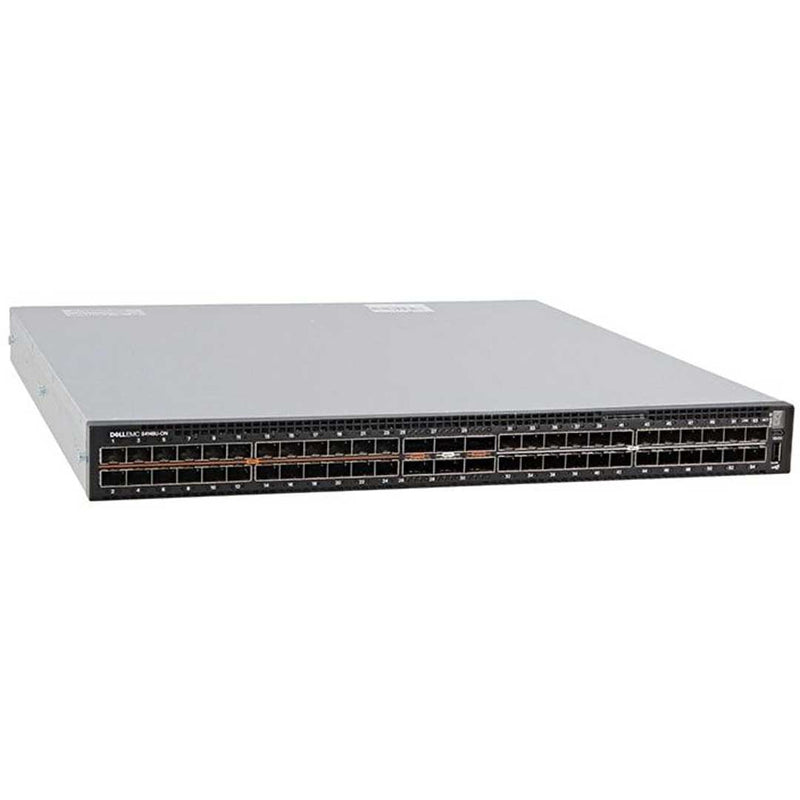

Dell EMC PowerSwitch S4148U-ON 48-Port 460W (ONIE) Switch

Dell EMC PowerSwitch S4148U-ON 48-Port 460W (ONIE) Switch

Vendor: Dell

Category: 1u, dell, dell-series-s4148u-on, plug-type-qsfp28, plug-type-sfp-plus, ports-48-port, protocol-ethernet, protocol-fibre-channel, speed-100gb, speed-10gb, speed-40gb, wattage-460w

-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.

-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

Switch Specs

The Dell EMC PowerSwitch S4148U-ON Switch is a versatile and high-performance network switch that provides reliable and efficient connectivity:

S4148U-ON Configurations:

24 x 10G + 24 x FC8 + 4 x 100G
24 x 10G + 24 x FC16 + 4 x 100G All FC16 are oversubscribed
24 x 10G + 12 x FC16 + 4 x 100G All FC16 linerate
24 x 10G + 40 x FC8 + 2 x 40G
24 x 10G + 40 x FC16 24 out of 40 FC16 are oversubscribed
24 x 10G + 28 x FC16 All FC16 linerate
24 x 10G + 12 x FC16 + 16 x FC32 All FC32 are oversubscribed
48 x 10G + 4 X 100G
48 x 10G + 6 x 40G
48 x 10G + 8 x 50G
48 x 10G + 16 x 25G
72 x 10G

Switch Specs

Open Network Install Environment (ONIE)
24 fixed unified Fibre channel or Ethernet SFP+ optical ports
24 fixed Ethernet SFP+ optical ports
2 fixed Ethernet QSFP+ optical ports
4 fixed unified Fibre channel or Ethernet QSFP28 optical ports
460W Max Power Consumption
300W Typical Operating Power

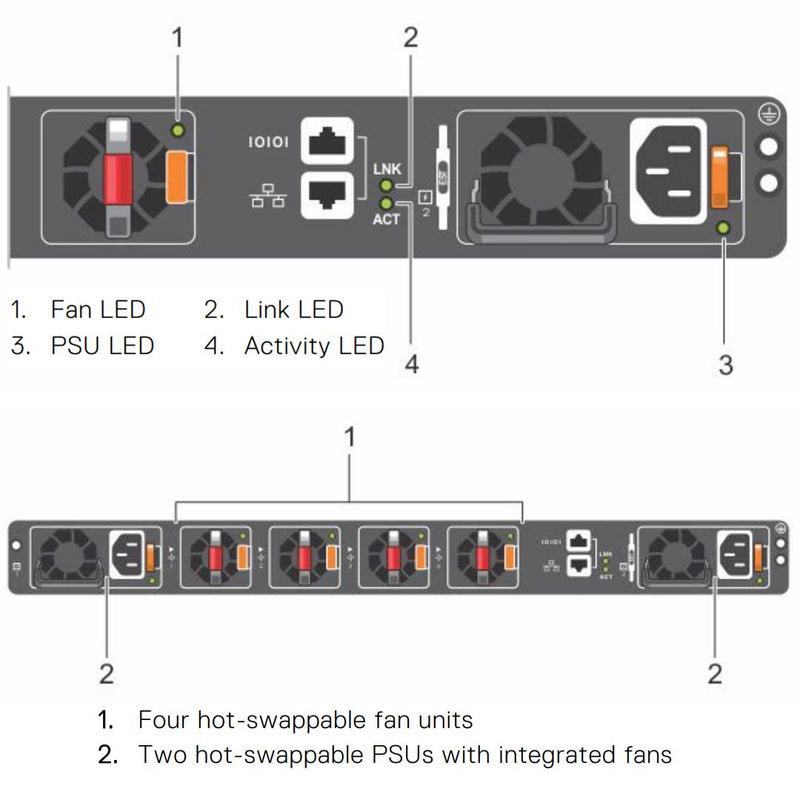

4 Hot-Swappable Fans

S4148U-ON AC or DC Normal airflow

4 Hot-Swappable Fans with airflow from the I/O side to the PSU side—normal
AC power supply with airflow from the I/O side to the PSU side—normal
DC power supply with airflow from the I/O side to the PSU side—normal

S4148U-ON AC or DC Reverse airflow

4 Hot-Swappable Fan with airflow from the PSU side to the I/O side—reverse
AC power supply with airflow from the PSU side to the I/O side—reverse
DC power supply with airflow from the PSU side to the I/O side—reverse

Key Features with Dell EMC SmartFabric OS10

Consistent DevOps framework across compute, storage and networking elements
Standard networking features, interfaces and scripting functions for legacy network operations integration
Standards-based switching hardware abstraction via Switch Abstraction Interface (SAI)
Pervasive, unrestricted developer environment via Control Plane Services (CPS)
OS10 Enterprise Edition software enables Dell Technologies layer 2 and 3 switching and routing protocols with integrated IP services, quality of service, manageability and automation features
OS10 supports Precision Time Protocol (PTP, IEEE 1588v2) to synchronize clocks on network devices.
Leverage common open source tools and best practices (data models, commit rollbacks)
Increase VM Mobility region by stretching L2 VLAN within or across two DCs with unique VLT capabilities
Scalable L2 and L3 Ethernet Switching with QoS, ACL and a full complement of standards based IPv4 and IPv6 features including OSPF, BGP and PBR
Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV Enhanced mirroring capabilities including local mirroring, Remote Port Mirroring (RPM), and Encapsulated Remote Port Mirroring (ERPM)
Converged network support for Data Center Bridging, with priority flow control (802.1Qbb), ETS (802.1Qaz), DCBx and iSCSI TLV

Product Specs for Dell S4148U-ON-noOS-DC-Normal

Switch Capabilities

	S4112F-ON	S4112T-ON	S4128F-ON	S4128T-ON	S4148F-ON	S4148FE	S4148T-ON	S4148U
Ports	12xSFP+ 3xQSFP28	12x10GbT 3xQSFP28	28xSFP+ 2xQSFP28	28x10GbT 2x QSFP28	48xSFP+ 2xQSFP+ 4xQSFP28	48xSFP+ 2xQSFP+ 4xQSFP28	48x10GbT 2xQSFP+ 4xQSFP28	48xSFP+ 2xQSFP+ 4xQSFP28
Unified port	N/A	N/A	N/A	N/A	N/A	N/A	N/A	Support
Max 10GbE density	24 (12 SFP+ and 12 via QSFP28 breakout)	24 (12 10GbT and 12 via QSFP28 breakout)	36 (28 SFP+ and 8 via QSFP28 breakout)	36 (28 10GbT and 8 via QSFP28 breakout)	72 (48 SFP+ and 24 via QSFP28 breakout)	72 (48 SFP+ and 24 via QSFP28 breakout)	72 (48 10GbT and 24 via QSFP28 breakout)	72 (48 SFP+ and 24 via QSFP28 breakout)
Max 25GbE density	12 via QSFP28 breakout	12 via QSFP28 breakout	8 via QSFP28 breakout	8 via QSFP28 breakout	16 via QSFP28 breakout	16 via QSFP28 breakout	16 via QSFP28 breakout	16 via QSFP28 breakout
Max 40GbE density	3	3	2	2	6	6	6	6
Max 50GbE density	6	6	4	4	8	8	8	8
Max 100GbE density	3	3	2	2	4	4	4	4
Max FC 8G/16G ports (oversubscribed)	0	0	0	0	0	0	0	40
Max FC 16G line rate	0	0	0	0	0	0	0	28
Max FC 32G ports (oversubscribed)	0	0	0	0	0	0	0	16
Max FC 32G line rate	0	0	0	0	0	0	0	8
Switching capacity	840Gbps	840Gbps	960Gbps	960Gbps	1.76Tbps	1.76Tbps	1.76Tbps	1.76Tbps
Throughput	630Mpps	630Mpps	720Mpps	720Mpps	1320Mpps	1320Mpps	1320Mpps	1320Mpps
LRM optics support	No	No	No	No	No	Yes	No	No
1588v2 PTP timing	No	No	No	No	Yes	Yes	Yes	Yes
Max power consumption	180W	200W	260W	300W	370W	400W	440W	460W
Typical operating power	90W	120W	160W	250W	200W	240W	320W	300W
Number of fan trays	Fixed	Fixed	4	4	4	4	4	4
Fans per fan tray	3	3	1	1	1	1	2	2
Weight	8.30lbs	8.45lbs	19.66 lbs (8.92 kg)	20.67 lbs (9.38 kg)	20.15 lbs (9.14 kg)	20.85 lbs (9.46 kg)	22.37 lbs (10.15 kg)	20.52 lbs (9.31 kg)
Max thermal output	614 BTU/h	682 BTU/h	886 BTU/h	1,023 BTU/h	1261 BTU/h	1,364 BTU/h	1,500 BTU/h	1,568 BTU/h
