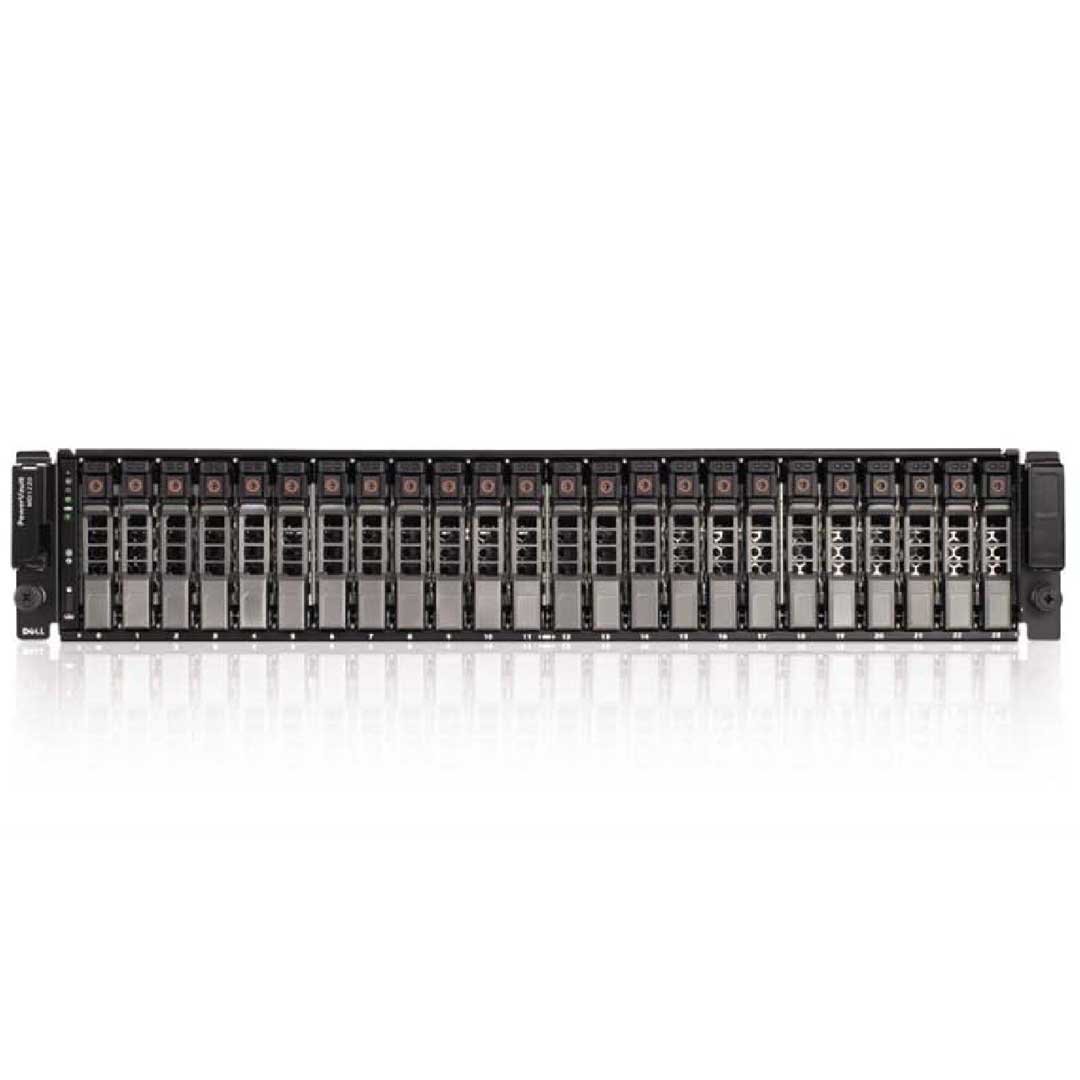

Dell PowerVault MD3220i 24x2.5" ISCSI Storage Array CTO
Configure for Pricing
Quick Specs
Form Factor:
2U rack server
Storage | Max: 12024 SFF SAS/NL-SAS (HDD/SSD)
Mix and match drives:Supported
Controllers:Supports up to (2) Controllers
Cache Per Controller:2GB

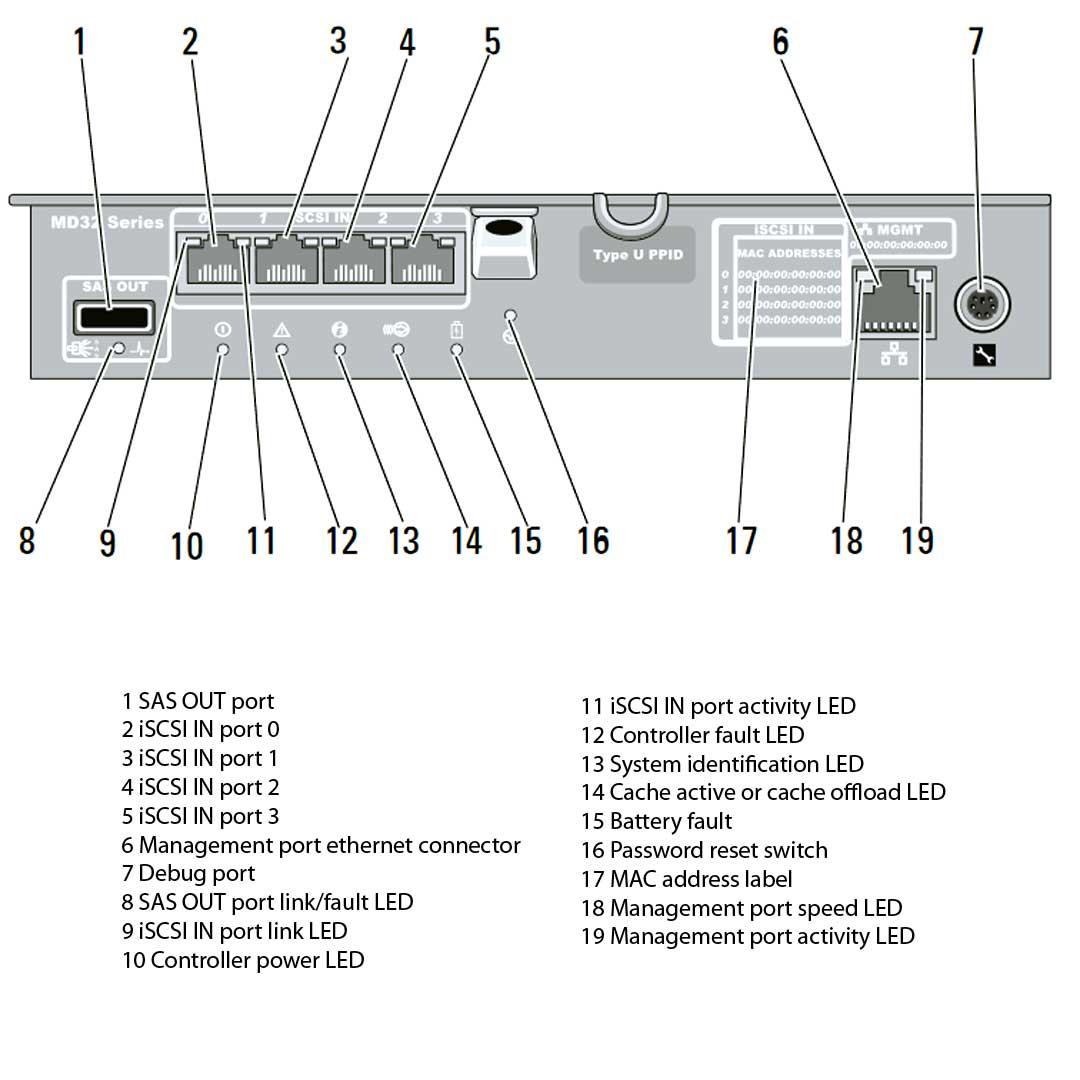

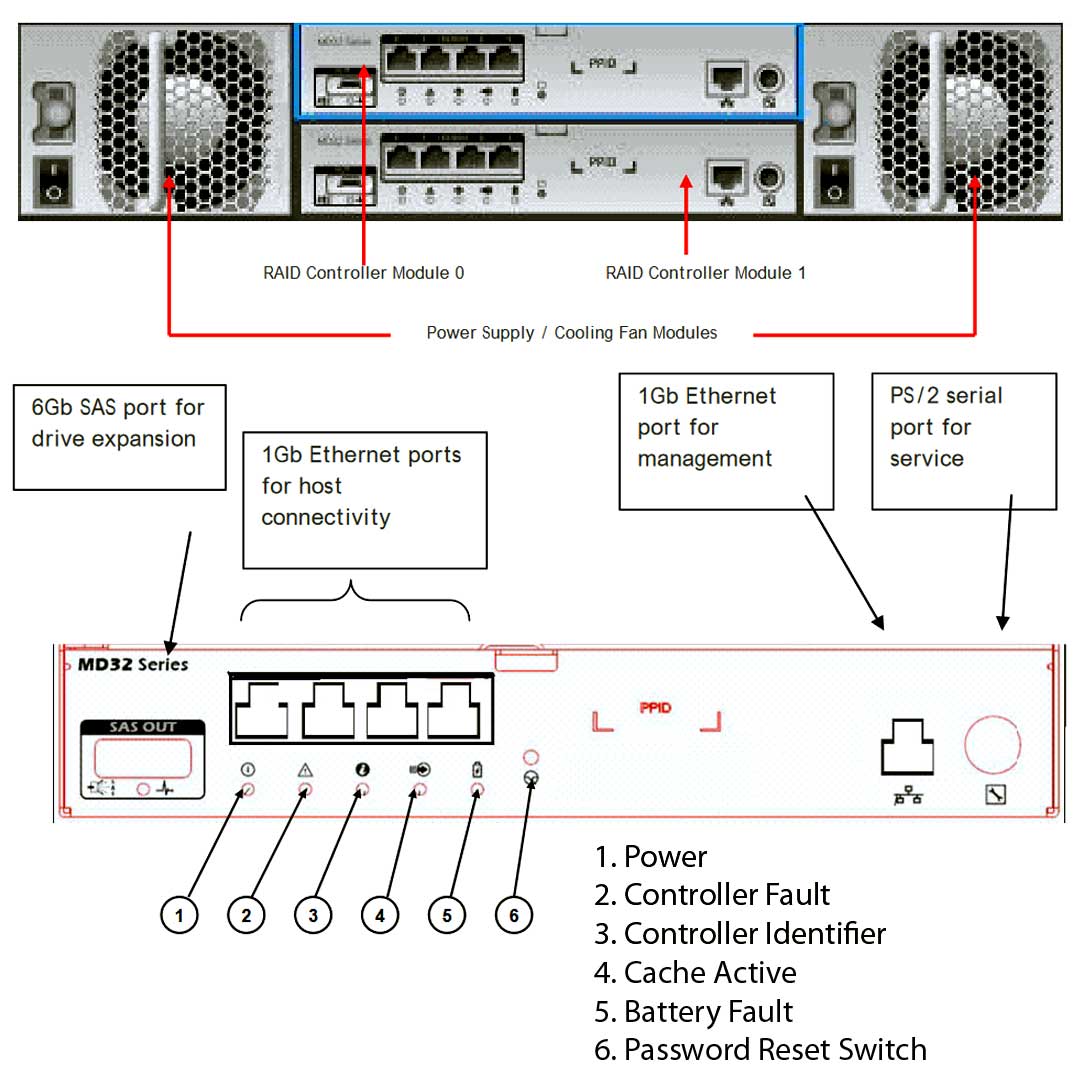

Ports Per Controller:- Four RJ-45 1Gb iSCSI Ethernet Host Connectivity
- One x4 6Gb SAS Expansion Connectivity
(8088 mini connector) - One RJ-45 1Gb Ethernet Remote Management
- One PS/2 Serial Service Management
Host Connectivity:
Single Controller Models
Single Controller Models
Supports up to 4 servers directly connected or up to 32 servers when configured with an Ethernet switch
Dual Controller ModelsSupports up to 8 servers directly connected or up to 32 servers when configured with Ethernet switches
Expansion Storage:With an optional Premium Feature Key to scale up to 192 total drives using MD1200 and/or MD1220 expansion enclosures
Other Storage Arrays in the MD Series (JBOD)
MD3200 Series
Data Speeds1Gb iSCSI
6Gb SAS
Server Options
MD3060e
MD3200 12 Bay SAS
MD3200i 12 Drive iSCSI
MD3220 24 Drives SAS
MD3220i 24 Drives iSCSI
MD3400 Series
Speeds12Gb SAS
10GBase-T iSCSI
16Gb FC
Server OptionsMD3400 12 Drives
MD3420 24 Drives
MD3460 60 Drives
MD3600 Series
Speeds10GBase-T iSCSI
8Gb FC
Server Options
MD3600i 12 Drives iSCSI
MD3600f 12 Drives Fibre
MD3620i 24 Drives iSCSI
MD3620f 24 Drives Fibre
MD3660i 60 Drives iSCSI
MD3660f 60 Drives Fibre
MD3800 Series
Speeds10GBase-T iSCSI + 12Gb SAS
16 FC + 12Gb SAS
Server Options
MD3800i 12 Drives iSCSI
MD3800f 12 Drives Fibre
MD3820i 24 Drives iSCSI
MD3820f 24 Drives Fibre
MD3860i 60 Drives iSCSI
MD3860f 60 Drives Fibre
The PowerVault™ MD3200i/MD3220i series is a next generation iSCSI SAN solution that is ideal for entry-level storage consolidation in virtualized environments that require high availability. PowerVault MD3220i arrays are designed for environments that need higher capacity solutions while PowerVault MD3220i arrays are ideal for deployments that require increased density and higher performance. It is important to note that the older 3Gb SAS JBODS (MD1000 and MD1120) cannot be used as expansion enclosures on the MD3200i or the MD3220i.
General configuration rules for MD3200i series of arrays.
- Up to 8 direct attached servers with single I/O paths to a dual controller storage array
- Up to 4 direct attached servers with redundant I/O paths to a dual controller storage array
- Up to 32 physical hosts can be supported on a single storage system (includes both single and dual controller models)
- Up to 120 total drives consisting of SSD, SAS and/or near-line SAS drives per storage system
- SSD drives are limited to a single shelf (12 drives for a MD3200i or 24 drives for a MD3220i)
- MD1200 and/or MD1220 storage enclosures can be add to a MD3200i or MD3220i storage array for expansion up to 120 total hard drives
- Up to 30 hard disk drives per disk group in a RAID 5 & RAID 6
- Up to 120 hard disk drives per disk group in a RAID1/10
- RAID level configurations 0, 1, 5, 10 or 6.
- Disk groups with different RAID levels can coexist in a single storage system.
- Disk groups are comprised of either SSD or SAS drives. A given disk group cannot have both SSD and SAS drives.
- Up to 256 virtual disks (LUNs) per storage array
- Each virtual disk can support 8 snapshots, with a maximum of 128 snapshots per storage array.
Implement your network storage solution for less with MD3220i series arrays using cost-effective, well-understood 1Gb Ethernet technology. Along with significant savings in hardware, IP SANs can also lower training costs. Ethernet is a familiar technology, so there’s usually no learning curve. Now you can effectively consolidate storage to support the value of your virtual environment. MD3220i storage arrays are fully qualified for use in virtualized application environments with VMware® ESX and Microsoft® Hyper-V™ software.
Mix and Match Drives:
MD3220i arrays hold up to twenty-four (24) 2.5-inch drives. Both the MD1200 enclosure (twelve 3.5” hard drives) and the MD1220 enclosure (twenty-four 2.5” drives) can be added behind MD3220i series arrays, enabling you to mix 3.5” and 2.5” drives in the same array. This flexibility enables data tiering to optimize system performance.
Consolidation = efficiency
Reduce the effort required to store and manage your data. MD3220i series arrays can support up to 32 physical servers when connected to one or more 1Gb Ethernet switches. Storage capacity, up to a base of 120 hard disk drives, can be expanded by attaching a PowerVault MD1200 and/or MD1220 expansion enclosure.
Deployment scalability and flexibility
Scale up. Mix and match drive types to create your optimum tiered data environment. Scale Easily: Up to 32 servers can be connected to a single MD3220i storage system. Storage capacity can be expanded up to a total of 120 hard drives. Scaling capacity is as simple as plugging in additional PowerVault MD1200 and/or PowerVault MD1220 enclosures.
