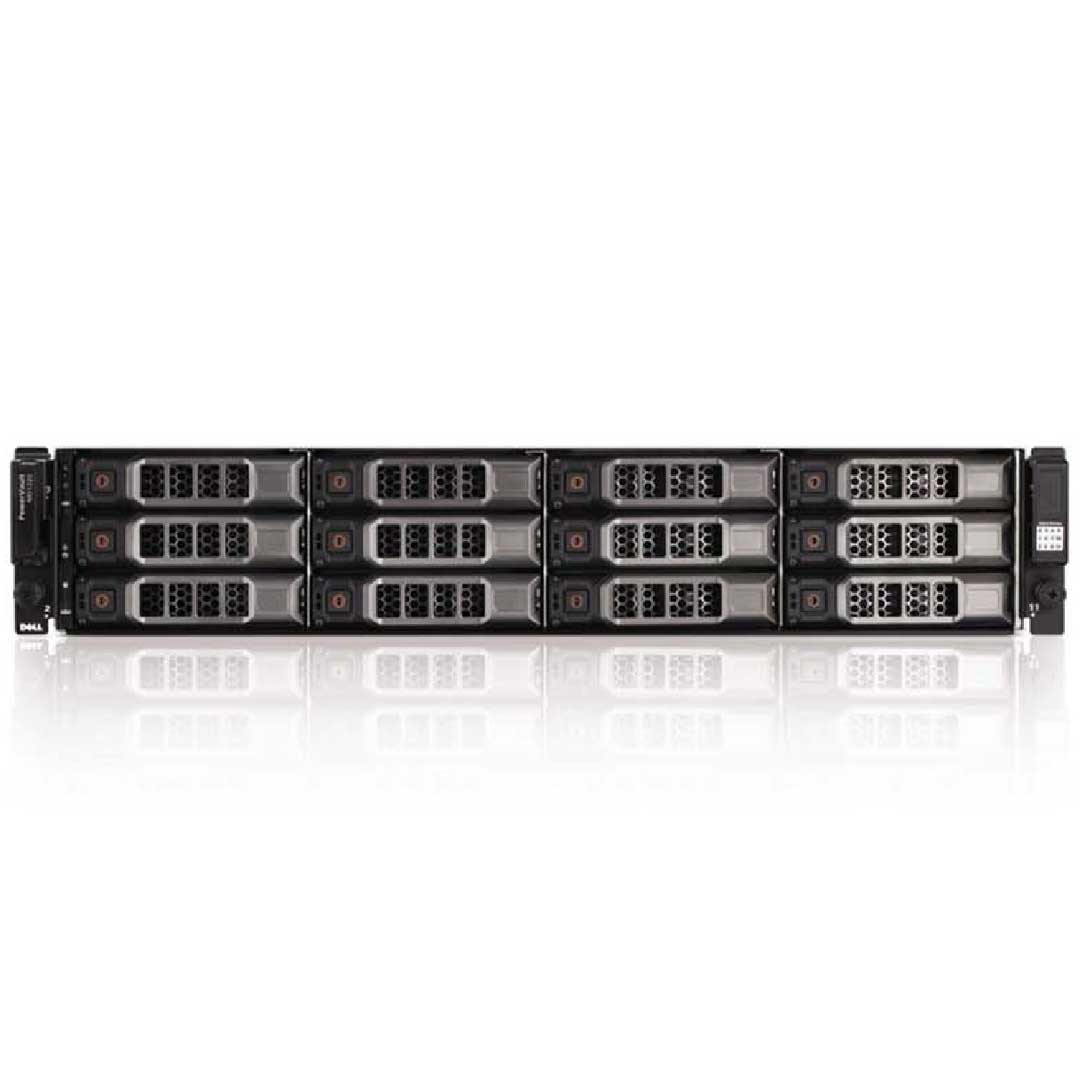

Dell PowerVault MD3200 12x3.5" 6Gb SAS SAN Storage Array CTO

Name: Dell PowerVault MD3200 12x3.5" 6Gb SAS SAN Storage Array CTO
Brand: Dell
SKU: DPV-MD3200-CTO
Availability: OutOfStock

Dell

| CTO Servers |

DPV-MD3200-CTO

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

READ ME

Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
“Quote” items can be added to your cart and sent to us via the cart page
Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Dell PowerVault MD3200 (12 x 3.5") Chassis Quote

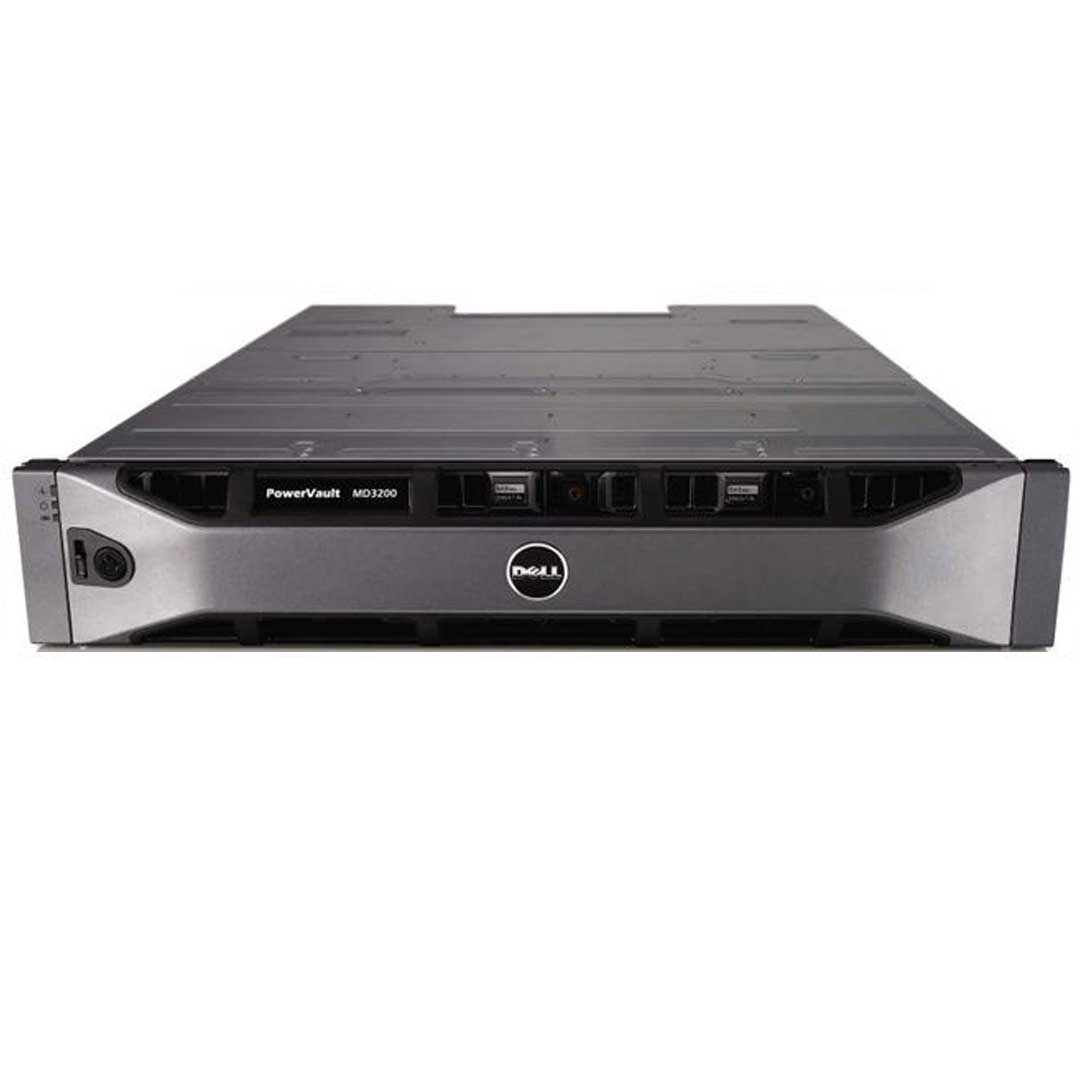

Bezel (Optional)

Dell PowerVault MD3200 2U Bezel | Quote

Controller

Supports up to (2) Controllers

Drive 3.5" SAS HDD (Optional)

Supports up to (12) 3.5" Drives

Dell Enterprise Class 3.5" 300GB 15K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 450GB 15K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 500GB 7.2K NL-SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 600GB 15K SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 1TB 7.2K NL-SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 2TB 7.2K NL-SAS 6Gbps HDD Quote Dell Enterprise Class 3.5" 3TB 7.2K NL-SAS 6Gbps HDD $45.00

Drive 2.5" SAS SSD (Optional)

Supports up to (12) 3.5" Drives
All 2.5" Drives will be installed in a 3.5" HD Carrier.

Dell Enterprise Class 2.5" 146GB SAS 6Gbps SSD $40.00 Dell Enterprise Class 2.5" 200GB SAS 6Gbps SSD Quote Dell Enterprise Class 2.5" 400GB SAS 6Gbps SSD Quote Dell Enterprise Class 2.5" 800GB SAS 3Gbps SSD Quote Dell Enterprise Class 2.5" 800GB SAS 6Gbps SSD $95.00 Dell Enterprise Class 2.5" 1.6TB SAS 12Gbps SSD $315.00 Dell Enterprise Class 2.5" 1.92TB SAS 12Gbps SSD $285.00 Dell Enterprise Class 2.5" 3.84TB SAS 12Gbps SSD $455.00

Cables (Optional)

Dell 1M (3.3ft) 6Gb miniSAS to miniSAS (SFF-8088 to SFF-8088) Data Cable Quote Dell 3M (9.8ft) 6Gb miniSAS to miniSAS (SFF-8088 to SFF-8088) Data Cable Quote Dell miniSAS to miniSAS (SFF-8088 to SFF-8088) 5M (16.4ft) 6Gbps Data Cable Quote

Rail Kit (Optional)

Dell PowerVault 2U Rail Kit $295.00

Power Supplies

Must have (2) PSU.

Dell PowerVault 600W 100-240V AC Power Supply Unit (PSU) Quote

ECS Warranty

ECS-1-Year - ECS 1-Year NBD Parts Replacement Warranty *Included as Standard for USA Customers* $1.00 ECS-2-Year - ECS 2-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-3-Year - ECS 3-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-4-Year - ECS 4-Year NBD Parts Replacement Warranty (Ask for Quote) Quote ECS-5-Year - ECS 5-Year NBD Parts Replacement Warranty (Ask for Quote) Quote

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

2U rack server

Storage | Max: 120 Drives

12 LFF SAS (HDD/SSD)

Mix and match drives:

Supported

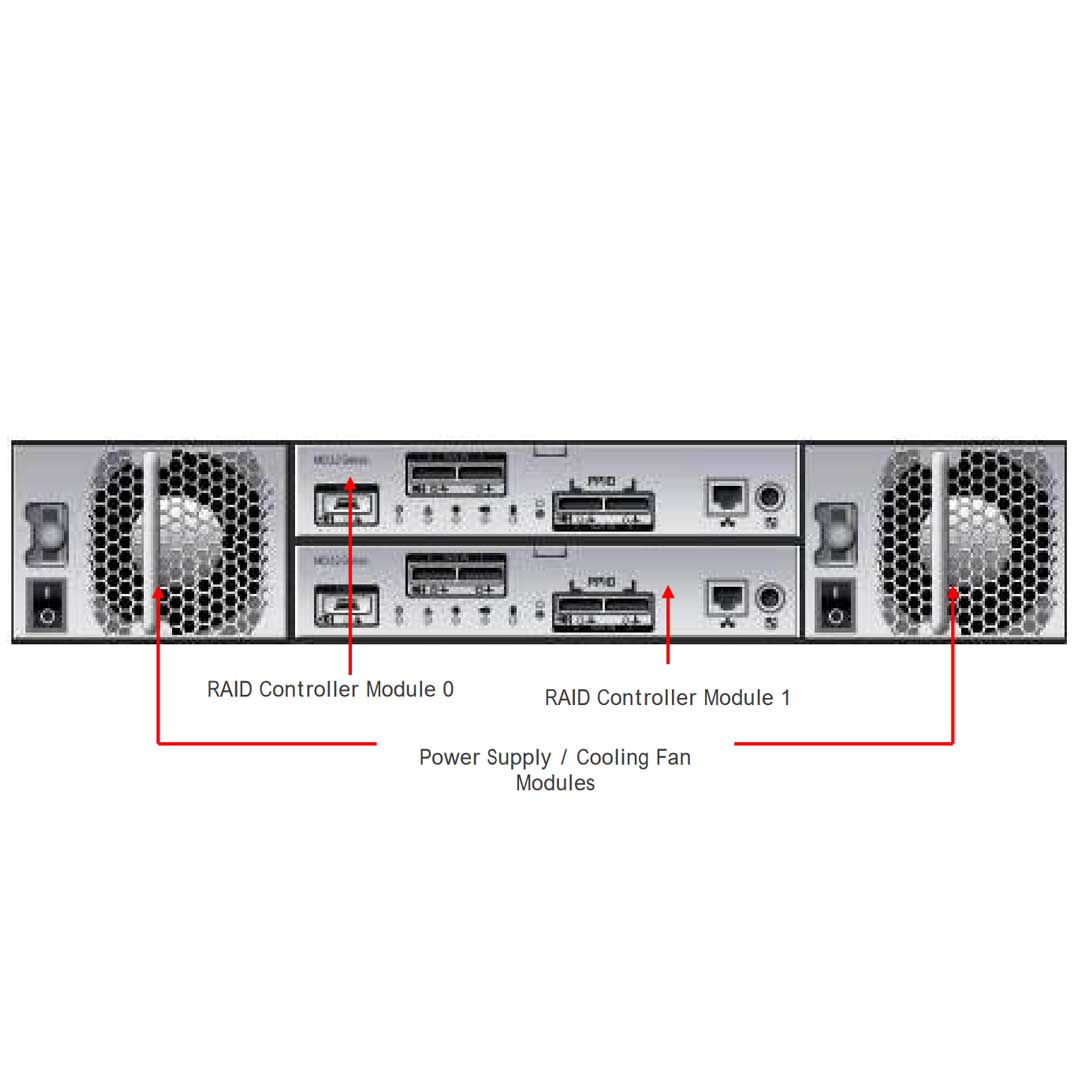

Controllers:

Supports up to 2

Cache Per Controller:

2GB or 4GB

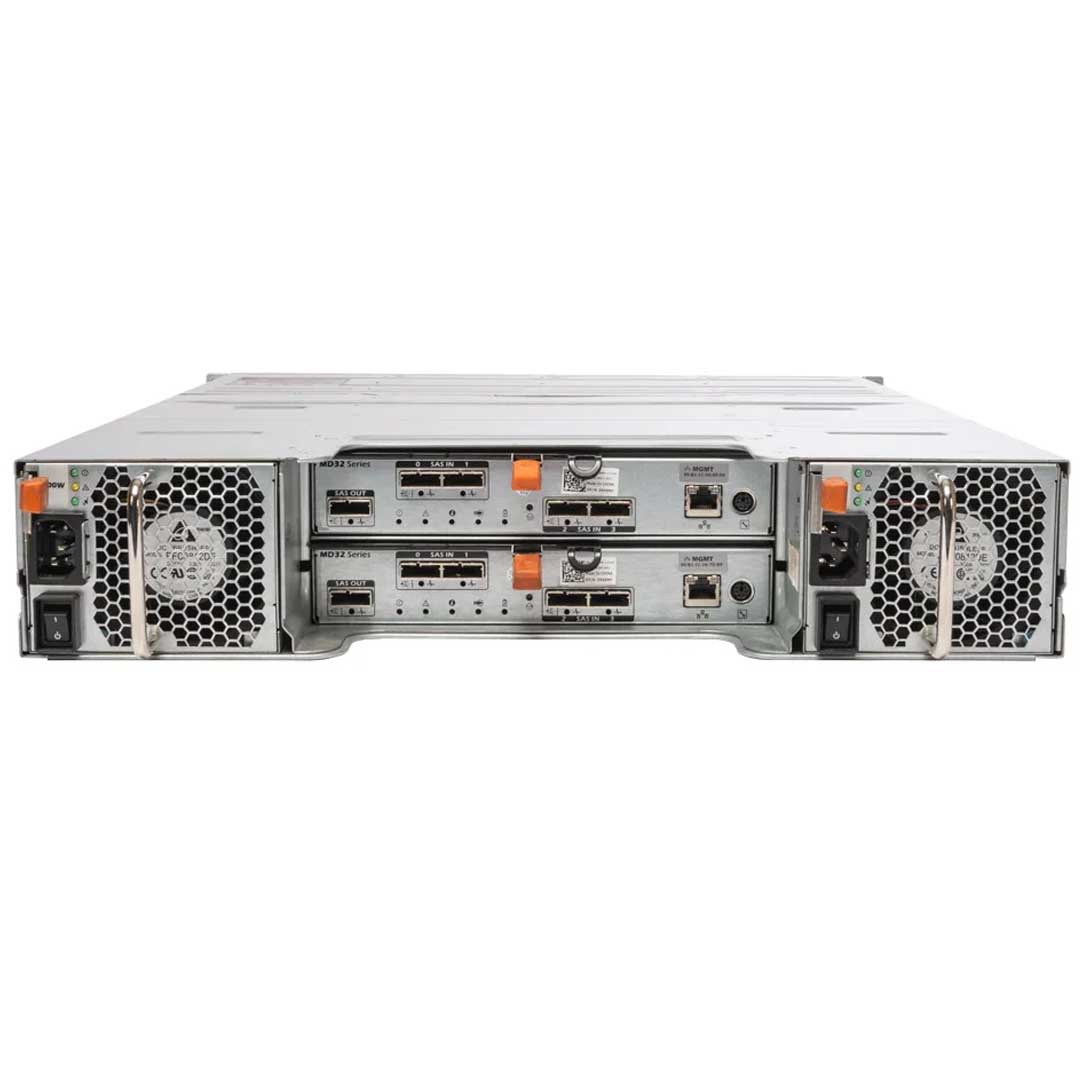

Ports Per Controller:

one-fourth x4 6Gb SAS Host Connectivity
One x4 6Gb SAS Expansion Connectivity
One RJ-45 1Gb Ethernet Remote Management
One PS/2 Serial Service Management

Host Connectivity:

Requires the use of the 6Gb SAS HBA.

Single Controller Models:

Supports up to 4 servers directly connected

Dual Controller Models:

Supports up to 8 servers directly connected in a non-HA configuration or 4 servers in a HA configuration

Expansion Storage:

Scale up to 120 (180 disks with premium feature kit) total drives using MD1200 and/or MD1220 expansion enclosures

Other Storage Arrays in the MD Series (JBOD)

MD3200 Series

Data Speeds

1Gb iSCSI

6Gb SAS

Server Options

MD3060e

MD3200 12 Bay SAS

MD3200i 12 Drive iSCSI

MD3220 24 Drives SAS

MD3220i 24 Drives iSCSI

MD3400 Series

Speeds

12Gb SAS

10GBase-T iSCSI

16Gb FC

Server Options

MD3400 12 Drives

MD3420 24 Drives

MD3460 60 Drives

MD3600 Series

Speeds

10GBase-T iSCSI

8Gb FC

Server Options

MD3600i 12 Drives iSCSI

MD3600f 12 Drives Fibre

MD3620i 24 Drives iSCSI

MD3620f 24 Drives Fibre

MD3660i 60 Drives iSCSI

MD3660f 60 Drives Fibre

MD3800 Series

Speeds

10GBase-T iSCSI + 12Gb SAS

16 FC + 12Gb SAS

Server Options

MD3800i 12 Drives iSCSI

MD3800f 12 Drives Fibre

MD3820i 24 Drives iSCSI

MD3820f 24 Drives Fibre

MD3860i 60 Drives iSCSI

MD3860f 60 Drives Fibre

The Dell™ PowerVault™ MD3200/MD3220 series of storage arrays is a high-performance 6Gb shared storage solution providing high availability data access. As the next generation of our directly connected shared Serial Attached SCSI (SAS) arrays, this series offers exceptional flexibility and scalability and is ideal for consolidating up to one-fourth servers in clustered or virtualized environments. The PowerVault MD3200 array is well-suited for deployments where cost per GB is a key requirement. The PowerVault MD3220 array is an optimal solution when cost/performance (IOPS) is a primary consideration

Connecting the MD3200 and MD3220 to servers requires the use of the 6Gb SAS HBA. The SAS 5/E HBA will not work with the MD3200 series of arrays.

General configuration rules for MD3200 series of arrays.

Up to 8 direct attached servers with single I/O paths to a dual controller storage array
Up to 4 direct attached servers with redundant I/O paths to a dual controller storage array
Up to 32 physical hosts can be supported on a single storage system (includes both single and dual controller models)
Up to 120 total drives consisting of SSD, SAS and/or near-line SAS drives per storage system
SSD drives are limited to a single shelf (12 drives for a MD3200 or 24 drives for a MD3220)
MD1200 and/or MD1220 storage enclosures can be add to a MD3200 or MD3220 storage array for expansion up to 120 total hard drives

Up to 30 hard disk drives per disk group in a RAID 5 & RAID 6
Up to 120 hard disk drives per disk group in a RAID1/10
RAID level configurations 0, 1, 5, 10 or 6.
Disk groups with different RAID levels can coexist in a single storage system.
Disk groups are comprised of either SSD or SAS drives. A given disk group cannot have both SSD and SAS drives.
Up to 256 virtual disks (LUNs) per storage array
Each virtual disk can support 8 snapshots, with a maximum of 128 snapshots per storage array.

A dedicated, high availability shared storage solution

The Dell PowerVault MD3200 series of arrays raises the bar for scalability and flexibility in the entry-level storage space. You can connect up to one-fourth high-availability servers or eight non-redundant servers for balanced performance in mixed virtualized workloads. MD3200 series arrays are ideal for Microsoft® Hyper-V™ and VMware® ESX virtual environments.
