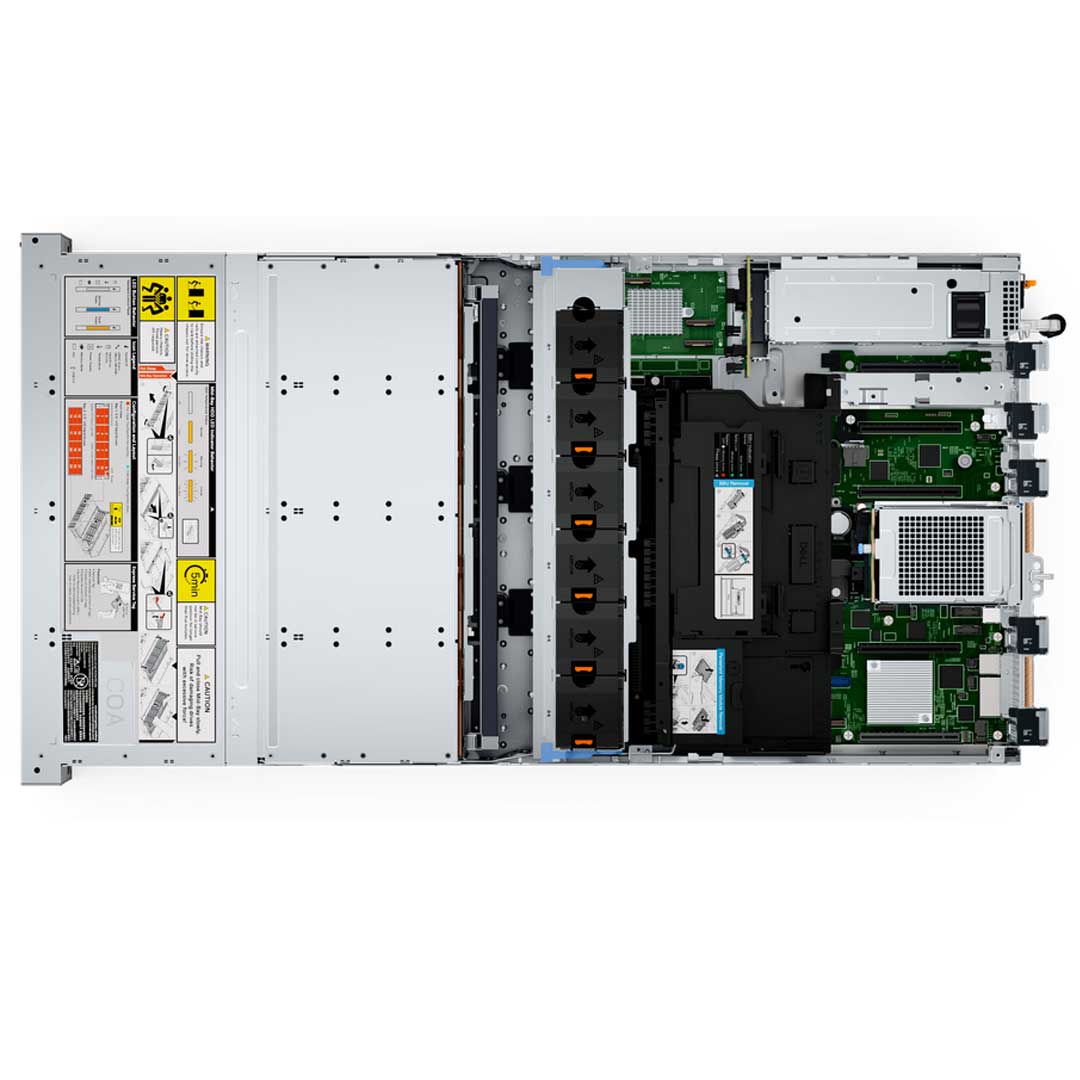

Dell PowerEdge R760XD2 Rack Server | Configurable

Dell

| CTO Servers



READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Select Processor

Supports up to 2 Processors.

Intel Xeon 4th Gen

Intel Xeon 5th Gen

Rear Drives

The 2.5" and EDSFF Risers have two options. One Rise sits of the side and another option is to mount the rear drives in the center of the system.

Bezel

Memory (Optional)

Supports up to 16 DDR5 DIMMS on a two socket configuration.

Storage Devices (Optional)

To support more thatn 16 SAS drives you will need to install the SAS Expander along with the H755 or HBA355i.
For more details please read the manual below.

Riser Options (Optional)

If you install anyone of these Rear Drives you will be losing PCIe slots. But you expand the LP to add two FH/FL PCIe slots by installing the Riser.
Please click each rear drive or riser to view more details about each.

LFF SAS Drives (Optional)

Supports up to 12 drive in the front tray and 12 drive in the mid tray.
If Rear LFF Drive Cage is installed, that takes up to 4 LFF drives.

LFF SATA Drives (Optional)

Supports up to 12 drive in the front tray and 12 drive in the mid tray.
If Rear LFF Drive Cage is installed, that takes up to 4 LFF drives.

SFF SAS Drives (Optional)

2.5" Drives will be placed in a 3.5" Carrier when installed in the front two drive bays.

SFF SATA Drives (Optional)

2.5" Drives will be placed in a 3.5" Carrier when installed in the front two drive bays.

NVMe Drives (Optional)

2.5" Drives will be placed in a 3.5" Carrier when installed in the front two drive bays.

EDSFF E3.S Drives (Optional)

Can only be installed in the Rear Drive EDSFF Cage.
Max 4 Drives supported.
You Must Install the REAR EDSFF Drive Cage

OCP NIC (Optional)

The system allows either LOM card or an OCP card or both to be installed in the system.

GPU (Optional)

Up to 2 x 75 W SW , 1 x 75 W SW + 1 x 150 W SW or 1 x180 W DW
You can not mix GPUs in this system.

TPM (Optional)

iDRAC9 (Optional)

Default iDRAC9 Express

Power Supply Units

Supports up to 2 PSU

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs
Form Factor:

2U rack server

Processor | Max: 56 Cores

2x Gen 4 or 5th Gen Intel Xeon Scalable

Memory | Max: 1TB

16 ECC DDR5 RDIMM 4800Mhz

Storage | Max: 264TB

Front bays:
Up to 12x 3.5" SAS/SATA Max: 264 TB
Mid bays:
Up to 12x 3.5" SAS/SATA Max: 264 TB
Rear bays:
Up to 4x 3.5" SAS/SATA Max: 88 TB
Up to 4x 2.5" NVMe with 3.5" carrier Max: 30.72 TB
Up to 2x 2.5" NVMe Max: 15.36 TB
Up to 4x E3.S NVMe Max: 30.72 TB

Boot Options

Boot Optimized Server Storage (BOSS-N1) Hot-Swap
USB

RAID Controller: (Adapter PERC)

S160 (SATA/NVMe SW RAID)
H355, H755, H965i, H355i, HBA355e, H965e

LOM

2 x 1GbE LOM card with BCM5720 LAN controller

Networking Options | Max Speed: 4x 100GbE Ports

OCP 3.0 x8 Mezz 3.0

Remote Management:

iDRAC9 with Lifecycle Controller

PCIe Slots:

Up to 5 PCIe slots
Slot 1: 1 x16 Gen4 Low profile, Half length
Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length

  • or 1 x16 Gen4 Full height, Full length
  • or 1 x16 Gen4 Full height, Half length

Slot 3: 1 x16 Gen4 Low profile, Half length

  • or 1 x16 Gen4 Full height, Full length
  • or 1 x16 Gen4 Full height, Half length

Slot 4: 1 x16 Gen4 Low profile, Half length
Slot 5: 1 x16 Gen4 Low profile, Half length
Note: Slot 5 is dedicated for internal PERC card

GPU:

Up to 2 x 75 W SW,
1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW

Other Versions

(Click to View)

Ideal for:
  • Video Analytics
  • Video Streaming



Configuration Rules and limitations

Before we start, let me show you some odd rules that will change the way you configure the server.

  • Single CPU support is there only for No Riser Configruations
  • In a "No riser" Configuration. The System cannot support the same type of 2.5" drive in front and rear storage (4 x 2.5") when using 2.5" in a 3.5" Carrier.
  • Rear Storage has a Drive Capacity limit of 7.68TB
  • The PERC H965e is restricted to slot 3 in configuration 2
  • GPUs are supported in Configuration 3 Only
  • Non-populated DIMMs must have a blank in Configuration 3.
  • For more details about these rules and limitations, please read the manual below.
Drive Configuration Options:
Chassis Options:
  • (2) 12x 3.5" (12 + 12)
  • (2) 12x 3.5" with rear 4x 3.5" SAS/SATA
  • (2) 12x 3.5" with rear 2x U.2 NVMe
  • (2) 12x 3.5" with rear 4x E3.S NVMe
  • The Dell SAS Expander Card for the R760XD2 supports the Storage controllers H755 and the HBA355i. The SAS Expander along with those Storage controllers allows the system to support up to 50 SAS Drives at up to 12 Gb/s.
Image of the SAS Expander to support over 16 Drives on a single RAID.

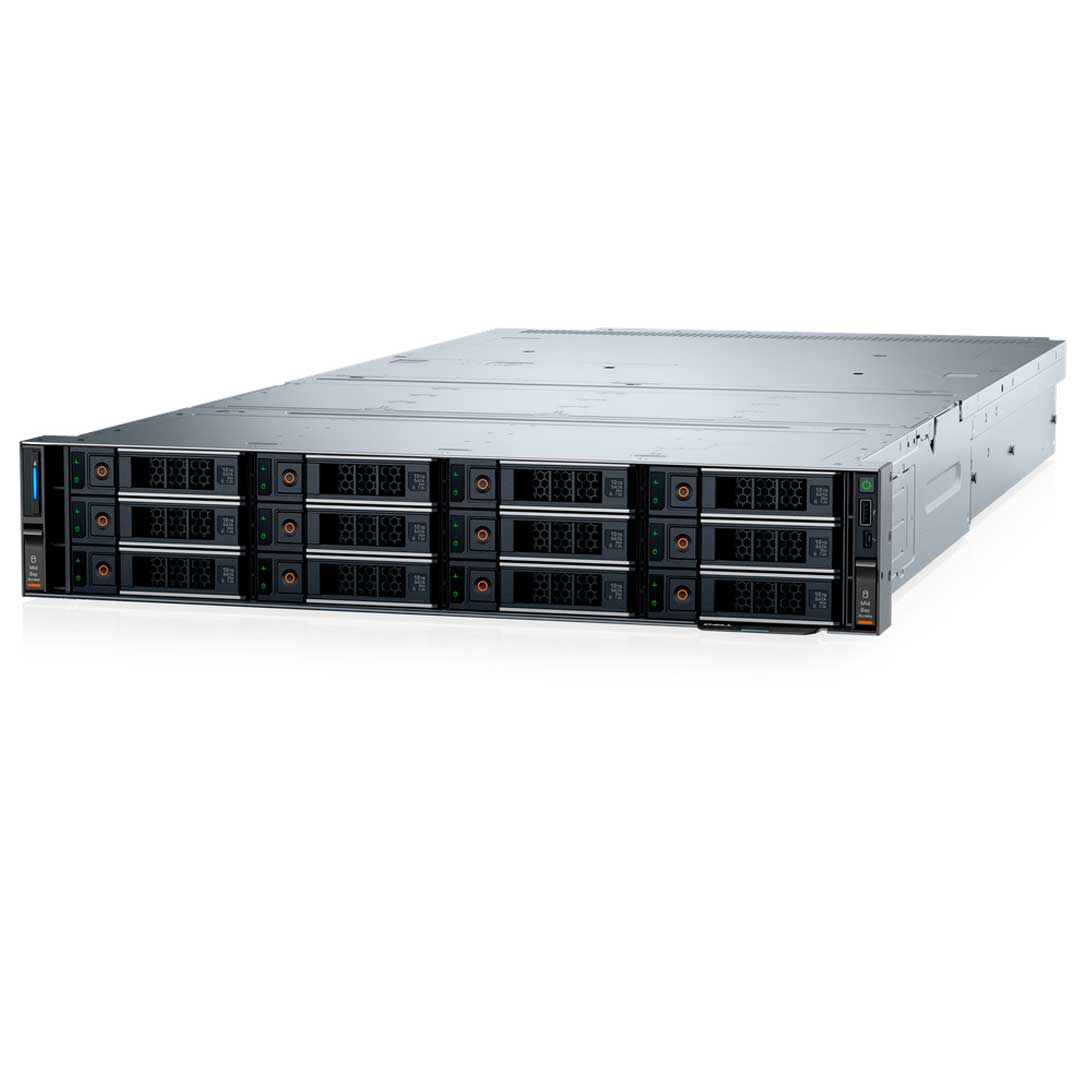

Image of the R760cd2 Front Bay Front Bay
Drive Options

12x 3.5" SAS/SATA

Supported Drives

SAS 12Gb/s 7.2K 2TB - 22TB
SATA 6Gb/s 7.2K 2TB - 22TB

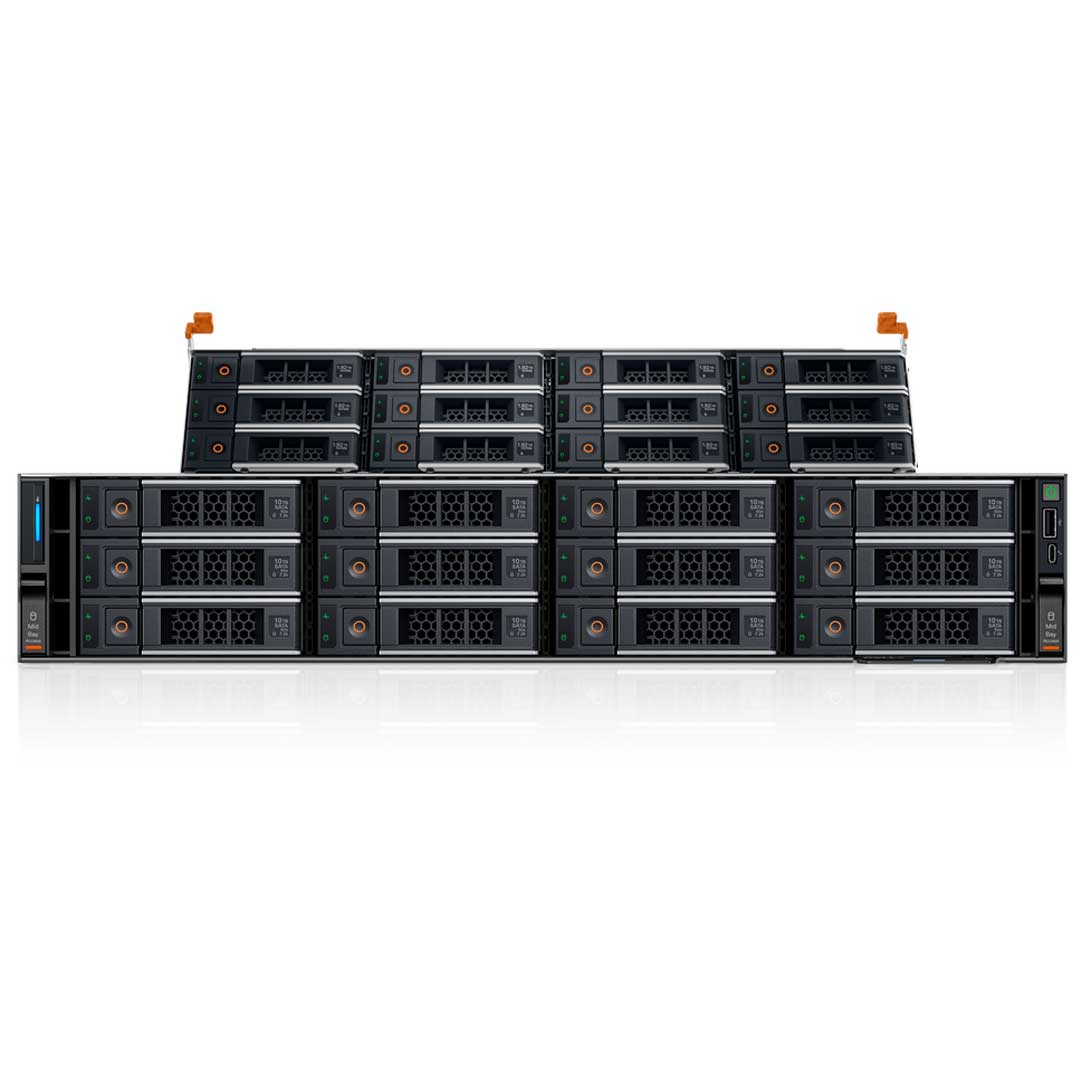

Image of the R760cd2 Mid Bay Mid Bay
Drive Options

12x 3.5" SAS/SATA

Supported Drives

SAS 12Gb/s 7.2K 2TB - 22TB
SATA 6Gb/s 7.2K 2TB - 22TB

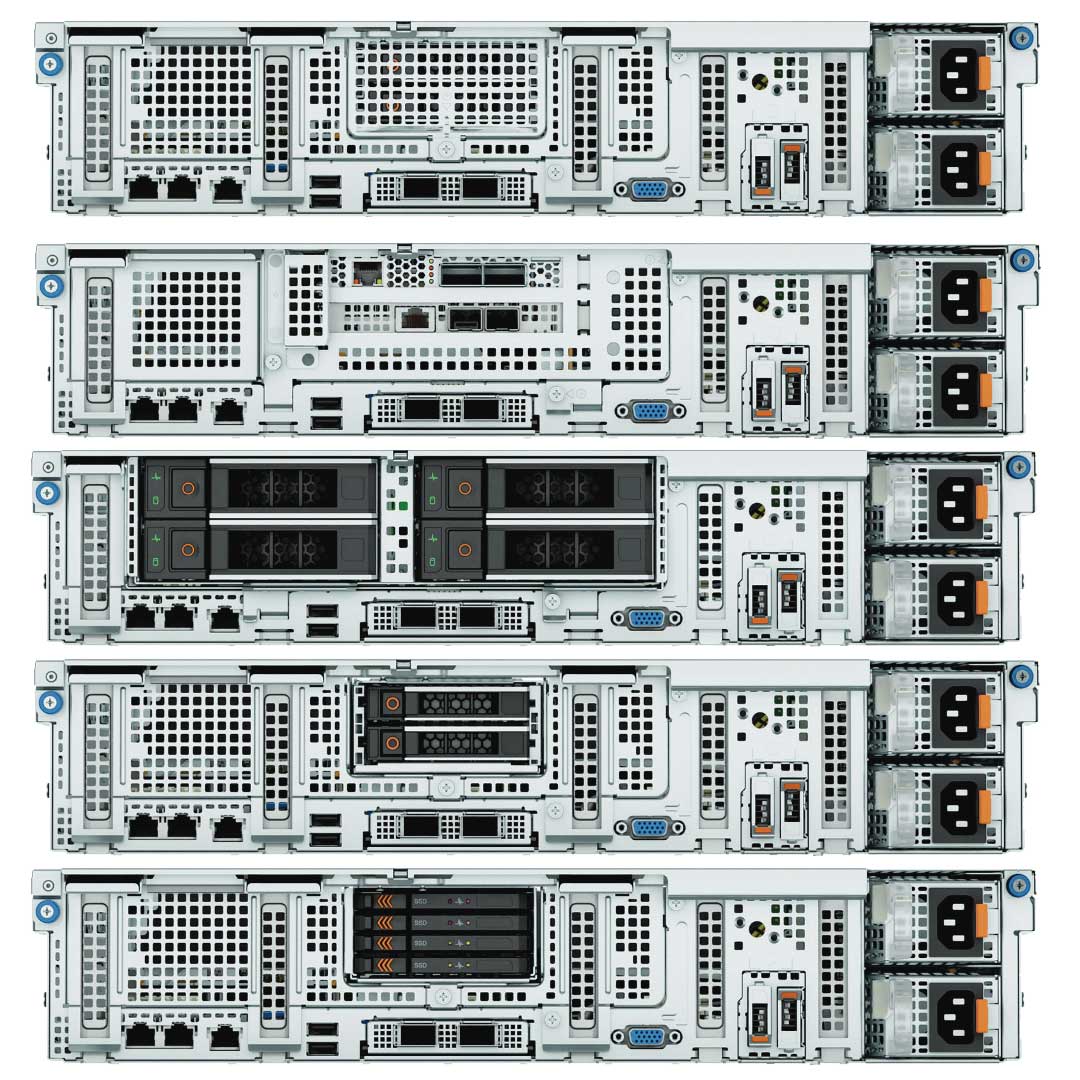

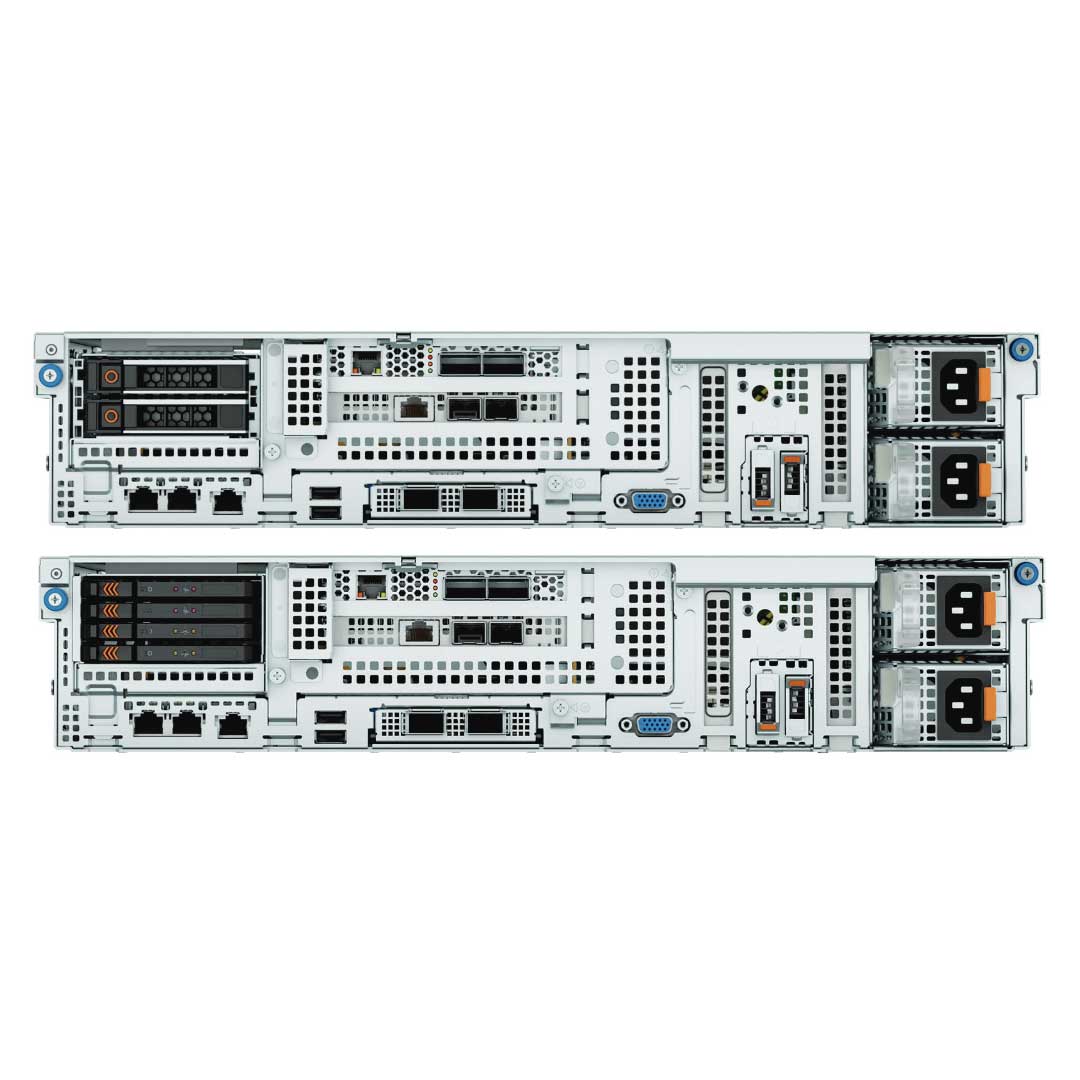

Image of the R760cd2 Back Bay Back Bay
Drive Options

Up to 4x 3.5" SAS/SATA
Up to 4x 2.5" Drives with 3.5" carrier
Up to 2x 2.5" NVMe
Up to 4x E3.S NVMe

Supported Drives

SAS 12Gb/s 10K & 24Gb/s SSD
SATA 6Gb/s SSD
NVMe Gen 4 SSD

Processor, Heatsink & Fans
Image of the Processors supported in in the R760xd2 Rack Server Processor

The following lists the features and functions that are in the upcoming 4th Generation Intel® Xeon Scalable Processor offering:

  • Faster UPI with up to four Intel Ultra Path Interconnect (Intel UPI) at up to 16 GT/s, increasing multi-socket bandwidth.
  • More, faster I/O with PCI Express 5 and up to 80 lanes (per socket)
  • Enhanced Memory Performance with DDR5 support and memory speed up to 4800 MT/s in one DIMM per channel (1DPC) and 4400 MT/s in two DIMM per channel (2DPC)
  • New built-in accelerators for data analytics, networking, storage, crypto, and data compression
Image of the 6 STD Fan in the R760xd2 Rack ServerHeatsink & Fans

This server is limited to lower-power CPU options, which is why it uses only the Standard 2U heat sink — no high-performance variant is offered. Fan configuration follows the same rule, with a single standard option covering all builds.

Fan configuration on the PowerEdge R760xd2 rack server is fixed at 6x Standard hot-swap fans, with no alternate options offered. Ambient temperature limits vary by build, so check the "Thermal Restrictions Matrix" in the manual below for specifics.

Memory Options

A dual-CPU build opens up 16 DDR5 DIMM slots on this server, topping out at 1TB of RDIMM capacity with speeds reaching 4800 MT/s. Only registered ECC DDR5 DIMMs are compatible.

Rated DIMM Speed (MT/s) DIMM Type DIMM Capacity (GB) Ranks per DIMM Data Width DIMM Volts
4800 RDIMM 16 1 8 1.1
4800 RDIMM 32 2 8 1.1
4800 RDIMM 64 2 4 1.1
GPU / Expansion Slot Options

Five low-profile PCIe slots sit on the system board of the Dell PowerEdge R760xd2, with slot 5 — positioned nearest the PSU — reserved for a PERC card. A single riser, available in full-length or half-length variants, mounts in the center of the chassis above the OCP card, adding either two half-length or two full-length slots. Installing this riser enables support for either 1x double-wide GPU or 2x single-wide GPUs.

Installing a rear drive cage reduces available PCIe capacity — for instance, adding the 4x 3.5" rear drive cage leaves just 3 accessible PCIe slots, one of which is the dedicated PERC slot (slot 5). See the image above or the manual below for further details.

Image of the Riser for the R760xd2 Rack Server

GPU Options

Up to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW

GPU and FPGA cards on this system call for a 2U L-type heat sink and GPU shroud. With the riser installed, the system can accommodate up to 3 GPUs total — a double-wide GPU in the riser plus a single-wide GPU in each of slots 1 and 4. This represents just one possible GPU layout; additional configurations are covered in the manuals below.

Networking Adapters LOM/OCP

Networking on the Dell PowerEdge R760xd2 comes down to 2 options, each with its own dedicated slot that stays independent of PCIe allocation. That's a real advantage given how rear drive installation can shrink available PCIe slots from 5 down to 2.

LOM/OCP 3.0

Network expansion on the R760xd2 comes via an optional 2x 1GbE LOM slot or an optional OCP 3.0 x8 slot. The OCP option delivers 4 ports capable of reaching up to 100Gb/s combined (4x 25Gb/s each).

Image of a OCP 3.0 Network card being installed in the R760xd2 Rack Server
Storage Controllers Options
Storage Controllers

Among Dell's RAID controller lineup is the Adapter PERC solution, which installs a base RAID hardware controller in PCIe slot 5 — a slot reserved exclusively for the PERC or HBA.

Note: PERC interposer cable has to be installed as PCIe Slot 5 to install adapter PERC on the system.

SAS Expander

Scaling past 16 drives on a single controller requires the SAS Expander, which mounts in its own dedicated slot on the system board near the power supplies. See the Controller Specs below for further detail.

Image of the R760xd2 with an PERC being installed.
Performance Level Controller and Description
Software NA (No SW RAID)
Internal H355, H755, H965i
External H965e,
SAS Host Bust Adapters (HBA) HBA355i, HBA355e

Storage Controller Specs

Model & Form Factors Interface Support PCI Support SAS Connection Cache Memory Size Write Back Cache RAID Levels Max Drive Support RAID Support
PowerEdge Server-Storage Controllers (PERC) Series 12
H965i Adapter 24Gb/s SAS
6Gb/s SAS/SATA
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 16 ports/lanes - 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16 Hardware
H965e Adapter 24Gb/s SAS
6Gb/s SAS/SATA
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 16 ports/lanes - 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16 Hardware
PowerEdge Server-Storage Controllers (PERC & SAS HBA) Series 11
H755 Adapter 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA
Gen3 (8 GT/s) NVMe
Gen4 (16 GT/s) NVMe		 PCIe Gen 4 16 ports- 2x8 Internal 8GB NV Flash Backed Cache 0,1,5,6,10,50,60 16 Per Controller / 50 with SAS Expander Hardware
HBA355i Adapter 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 16 ports- 2x8 Internal N/A N/A N/A 16 Per Controller / 50 with SAS Expander N/A
HBA355e Adapter 12Gb/s SAS
6Gb/s SAS/SATA
3Gb/s SAS/SATA		 PCIe Gen 4 16 ports- 4x4 external N/A N/A N/A 240 N/A
H355 Adapter 12Gb/s SAS
6Gb/s SAS/SATA		 PCIe Gen 4 16 ports- 2x8 Internal No Cache No Cache 0,1, 10 Up to 32 RAID,
or 32 Non- RAID		 Hardware
Power, Dimensions & Weight
Power

Supports up to 2 Hot-Swap Redundant PSUs.

  • 1800 W Titanium 200—240 VAC or 240 HVDC
  • 1400 W Platinum 100—240 VAC or 240 HVDC
  • 1100 W Titanium 100—240 VAC or 240 HVDC
  • 1100W LVDC –48 — –60 VDC
  • 700 W Titanium 200—240 VAC or 240 HVDC
Dimensions & Weight:

Width: 481.6 mm (18.96 inches)
Height: 86.8 mm (3.41 inches)
Length: 837 mm (32.95 inches)
Weight:
-- 46.3 kg (102.07 pounds) A server with fully populated drives
-- 23.72 kg (52.29 pounds) A server without drives and PSU installed

Current Configuration

(List below serves as quick links to each section)

Select Chassis

Select Processor

Rear Drives

Bezel

Memory

Storage Devices

Riser Options

LFF SAS Drives

LFF SATA Drives

SFF SAS Drives

SFF SATA Drives

NVMe Drives

EDSFF E3.S Drives

OCP NIC

GPU

TPM

iDRAC9

Power Supply Units

ECS Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Base Standard Capabilities

FeatureTechnical Specifications
ProcessorUp to two 4th Generation Intel Xeon Scalable processors, with up to 32 cores per processor and optional Intel® QuickAssist Technology
Memory• 16 DDR5 DIMM slots, supports RDIMM 1 TB max, speeds up to 4800 MT/s
• Supports registered ECC DDR5 DIMMs only
Storage controllers• Internal Controllers (RAID): PERC H755, PERC H965i, PERC H355
• Internal Controllers (non-RAID): HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSD drives (hot swappable), or USB
• External HBAs (non-RAID): HBA355e
• External Controllers (RAID): H965e
Drive BaysFront bays:
• Up to 12 x 3.5-inch SAS/SATA max 264 TB
Mid bays:
• Up to 12 x 3.5-inch SAS/SATA max 264 TB
Rear bays:
• Up to 4 x 3.5-inch SAS/SATA max 88 TB
• Up to 4 x 2.5-inch NVMe with 3.5-inch carrier max 30.72 TB
• Up to 2 x 2.5-inch NVMe max 15.36 TB
• 4 x E3.S NVMe max 30.72 TB
Power Supplies• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
• 1100W LVDC –48 — –60 VDC, hot swap redundant
• 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Cooling OptionsAir cooling
Fans• Up to 6 Standard (STD) fans, hot swappable
Dimensions• Height — 86.8 mm (3.41 inches)
• Width — 481.6 mm (18.96 inches)
• Depth — 837 mm (32.95 inches)
Form Factor2U rack server
Embedded Management• iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
BezelN/A
OpenManage Software• OpenManage Enterprise
• OpenManage Power Manager plugin
• OpenManage Service plugin
• OpenManage Update Manager plugin
• CloudIQ for PowerEdge plug in
• OpenManage Enterprise Integration for VMware vCenter
• OpenManage Integration for Microsoft System Center
• OpenManage Integration with Windows Admin Center
MobilityOpenManage Mobile
Tools• iDRAC RESTful API with Redfish
• IPMI
• RACADM CLI
• Dell System Update
• Enterprise Catalogs
• Dell Repository Manager
OpenManage Integrations• BMC Truesight
• Microsoft System Center
• OpenManage Integration with ServiceNow
• Red Hat Ansible Modules
• Terraform Providers
• VMware vCenter and vRealize Operations Manager
Security• Cryptographically signed firmware
• Data at Rest Encryption (SEDs with local or external key mgmt)
• Secure Boot
• Secure Erase
• Secured Component Verification (Hardware integrity check)
• Silicon Root of Trust
• System Lockdown (requires iDRAC9 Enterprise or Datacenter)
• TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ
Embedded NIC2 x 1 GbE LOM
Network options1 x OCP card 3.0 (optional)
GPU OptionsUp to 2 x 75 W SW, 1 x 75 W SW + 1 x 150 W SW or 1 x 180 W DW
PortsFront Ports
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0		Rear Ports
• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x VGA
Internal Ports
• 1 x USB 3.0 (optional)
PCIeUp to five PCIe slots:
• Slot 1: 1 x16 Gen4 Low profile, Half length
• Slot 2: 1 x8 (x16 connector) Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
• Slot 3: 1 x16 Gen4 Low profile, Half length or 1 x16 Gen4 Full height, Full length or 1 x16 Gen4 Full height, Half length
• Slot 4: 1 x16 Gen4 Low profile, Half length
• Slot 5: 1 x16 Gen4 Low profile, Half length
Note: Slot 5 is dedicated for internal PERC card
Operating System and Hypervisors• Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi

Spec Sheet 4

Features PowerEdge R760xd2 PowerEdge R740xd2
Processors Up to two 4th Generation Intel® Xeon® Scalable processors with up to 32 cores per processor. Support for up to 2 x 185W processors Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 22 cores per processor. Support for up to 2 x 140W processors
CPU interconnect Intel® Ultra Path Interconnect (UPI) @ 16 GT/s Intel® Ultra Path Interconnect (UPI) @ 10.4 GT/s
Memory Up to 16 x DDR5 RDIMMs DIMM Speed: Up to 4800 MT/s Up to 16 x DDR4 RDIMMs DIMM Speed: Up to 3200 MT/s
Storage Controllers PERC 12: H965i PERC H740P or HBA330
PERC 11: HBA355i, H755, H355
External PERC: HBA355e, H965e
Drive Bays Front: Up to 12 x 3.5 inch SAS/SATA
Middle: Up to 12 x 3.5 inch SAS/SATA
Rear: Up to 4 x 3.5 inch Universal or Up to 2 x 2.5 inch U.2 NVMe or 4 x E3.S NVMe		 Front: Up to 24 x 3.5 inch SAS/SATA
Rear: Up to 2 x 3.5 inch SAS/SATA 3.5 inch or SSD
Power Supplies 15G/16G 60mm PSUs 48Vdc/1100W, 700W, 1100W, 1400W, 1800W 750W, 1100W
Cooling Options Air cooled Air cooled
Fans Up to 6 STD fans Up to 6 HPR fans
Dimension H x W x D: 2U x 481.6 mm x 837 mm H x W x D: 2U x 482 mm x 810.26 mm
Form Factor 2U 2U
Embedded Management iDRAC9 Enterprise, Datacenter license options; OpenManage Enterprise and Plugins iDRAC9 Enterprise, Datacenter license options; OpenManage Enterprise and Plugins
OpenManage Software ● OpenManage Enterprise
● OpenManage Power Manager plugin
● OpenManage Service plugin
● OpenManage Update Manager plugin
● CloudIQ for PowerEdge plug in
● OpenManage Enterprise Integration for VMware vCenter
● OpenManage Integration for Microsoft System Center
● OpenManage Integration with Windows Admin Center		 ● OpenManage Enterprise
● OpenManage Power Center
● OpenManage Mobile
Mobility OpenManage Mobile OpenManage Mobile
Integrations and Connections OpenManage Integrations
● BMC Truesight
● Microsoft System Center
● OpenManage Integration with ServiceNow
● Red Hat Ansible Modules
● Terraform Providers
● VMware vCenter and vRealize Operations Manager		 Integrations:
● Microsoft® System Center
● VMware® vCenter™
● BMC Truesight
● Red Hat Ansible Modules		 Connections:
● Nagios Core & Nagios XI
● Micro Focus Operations Manager i (OMi)
● IBM Tivoli Netcool/ OMNIbus
● IBM Tivoli® Network Manager IP Edition
Security ● Cryptographically signed firmware
● Data at Rest Encryption (SEDs with local or external key mgmt)
● Secure Boot
● Secured Component Verification (Hardware integrity check)
● Secure Erase
● Silicon Root of Trust
● System Lockdown (requires iDRAC9 Enterprise or Datacenter)
● TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ		 ● TPM 1.2/2.0, TCM 2.0 optional
● Cryptographically signed firmware
● Silicon Root of Trust
● Secure Boot
● System Lockdown (requires iDRAC Enterprise or Datacenter)
Embedded NIC 2 x 1 GbE LOM 2 x 1 GbE LOM
Networking Options OCP 3.0 x8 (Optional) OCP (Optional)
GPU Options Up to 2 x 75 W SW , 1 x 75 W SW + 1 x 150 W SW or 1 x180 W DW None
Ports Front:1 x USB 2.0, 1x iDRAC Direct (Micro-USB)
Rear: 1 x VGA, 1 x USB2.0 + 1 x USB3.0
Internal : USB3.0 ( Optional )		 Front: 2 x USB 2.0, 1 managed (micro USB) + front VGA Rear: 1 x Gen2 + 1 x Gen3 USB Optional Internal USB
PCIe Up to 5 x PCIe Slots Gen4 (mix of LP, HL, FL, DW) Up to 2 x PCIe Slots Gen3
Operating System and Hypervisors ● Canonical Ubuntu Server LTS
● Microsoft Windows Server with Hyper-V
● Red Hat Enterprise Linux
● SUSE Linux Enterprise Server
● VMware ESXi		 ● Canonical® Ubuntu® LTS
● Citrix® Hypervisor
● Microsoft® Windows Server® LTSC with Hyper-V
● Oracle® Linux
● Red Hat® Enterprise Linux
● SUSE® Linux Enterprise Server
● VMware® ESXi

You may also like
