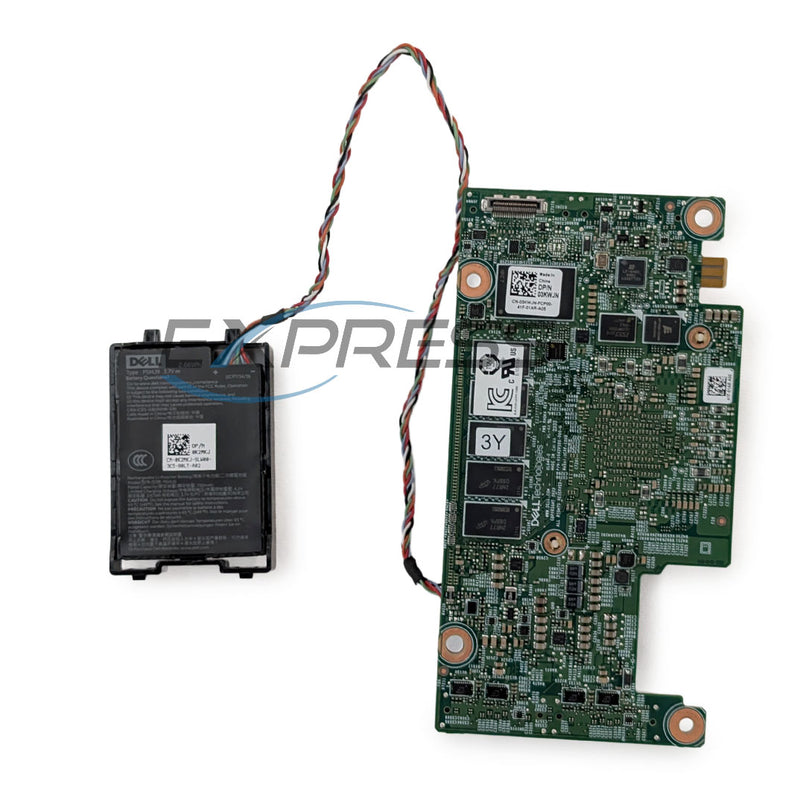

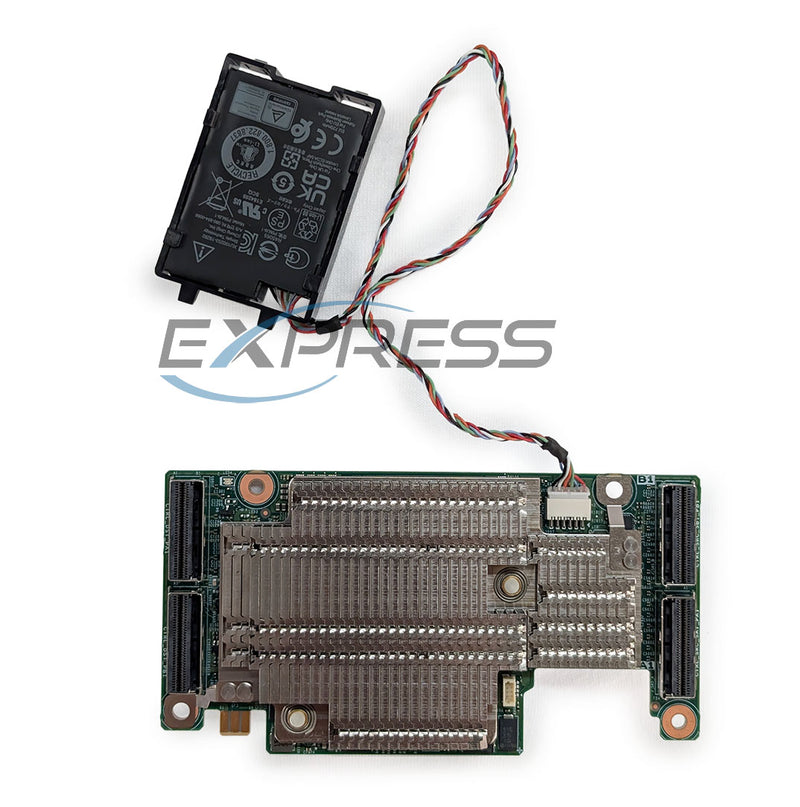

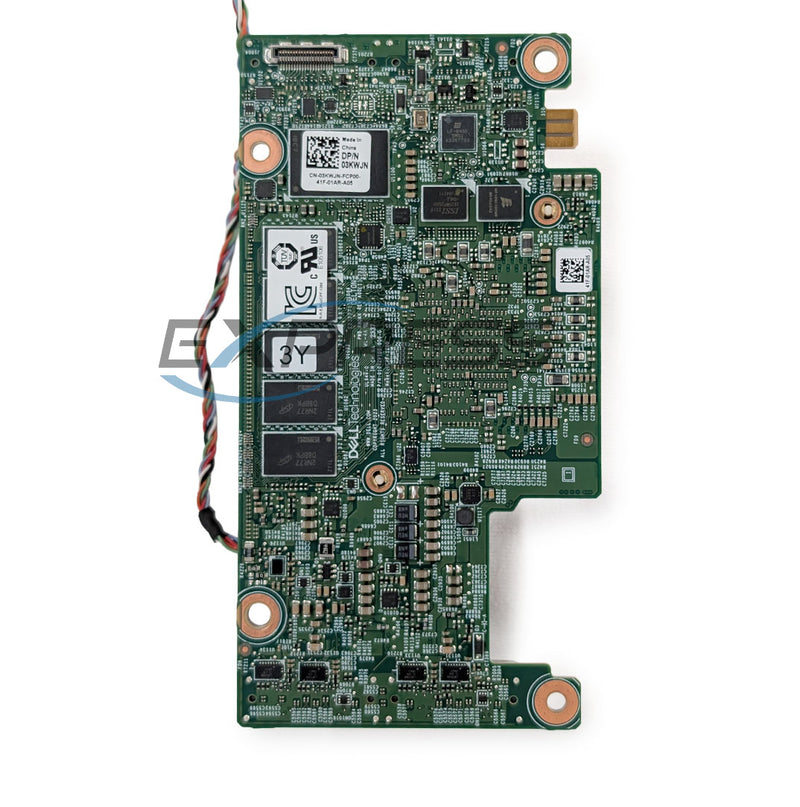

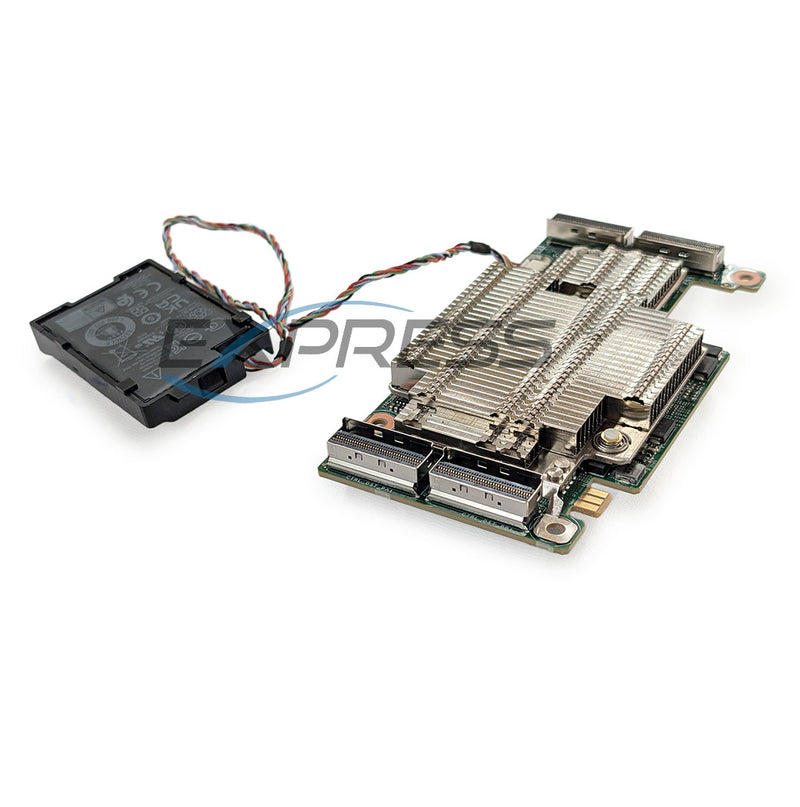

Specs

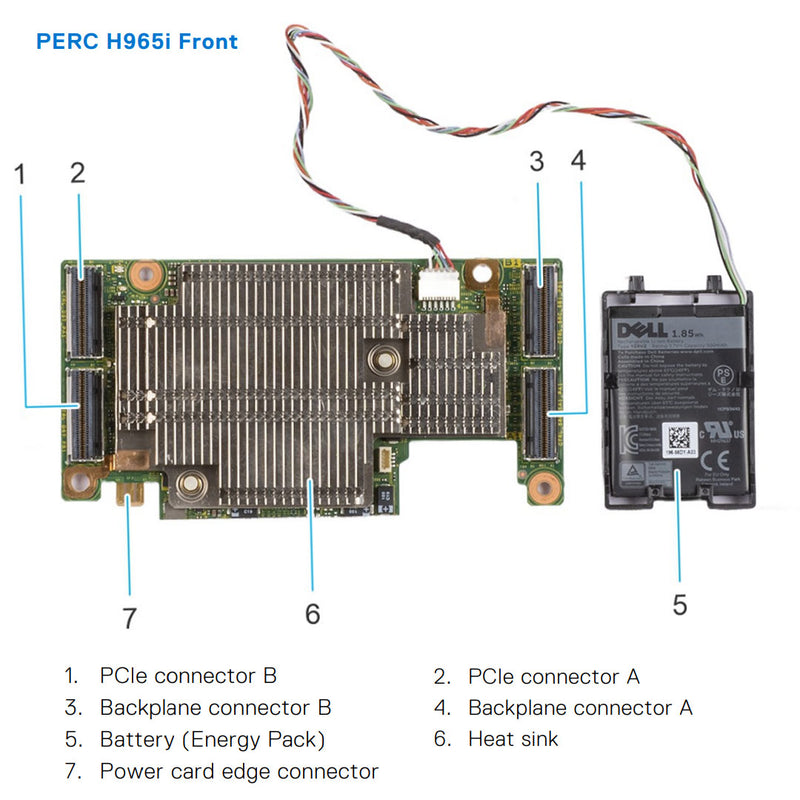

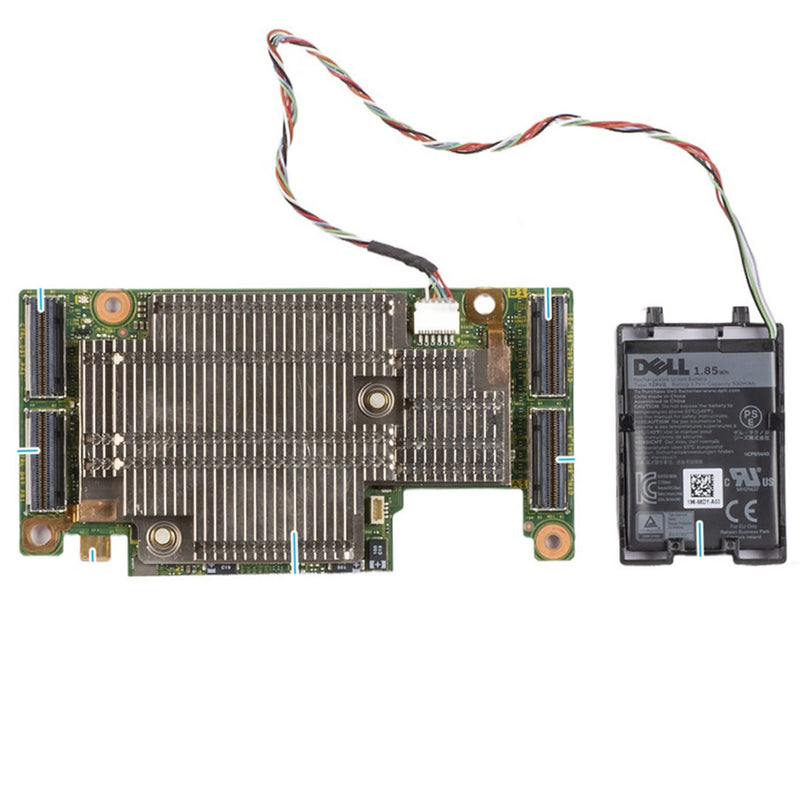

This kit includes
Quick Specs
Not applicable
Cache:8 GB DDR4 3200MT/s
RAID Level:0, 1, 5, 6, 10, 50, 60
Non-RAID:Yes
PCIe:Gen 4
Processor:Broadcom RAID-onchip, SAS4116W chipset

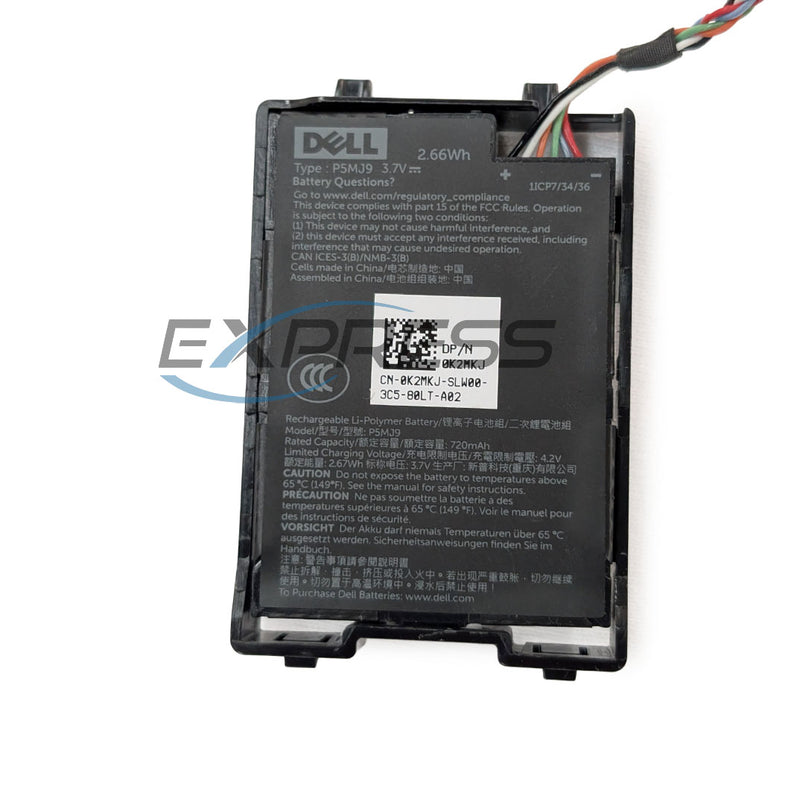

Battery Backup:Yes
Max no of VDs in RAID mode:240
Max no of disk groups:64
Max no of VDs per disk group:16
Hot-swap devices supported:Yes
Drive sector size supported:512B, 512e, and 4Kn
Storage Boot Support:UEFI-only
- 6 Gbps SATA
- 22.5, 12, & 6 Gbps SAS
- NVMe Gen3 (8 GT/s) and Gen4 (16 GT/s)
- 16 drives per controller
- w/ SAS Expander: Limited by platform offerings
- 8 drives per controller
- w/ PCIe Switch Expander: Limited by platform offerings
- 240 SAS/SATA
- 24 NVMe
Part Number:
- G1RWV
Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
-
RAID 0
Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
-
RAID 1
Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
-
RAID 5
Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
-
RAID 6
Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
-
RAID 10
Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
-
RAID 50
Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
-
RAID 60
Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
- Dell R770
(Click to View)
Spec Sheet 4
| Feature | PERC H965i Adapter | PERC H965i Front | PERC H965i MX | PERC H965e Adapter |
|---|---|---|---|---|
| RAID levels | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 | 0, 1, 5, 6, 10, 50, 60 |
| Non–RAID | Yes | Yes | Yes | Yes |
| Enclosures per port | Not applicable | Not applicable | Not applicable | 4 |
| Processor | Broadcom RAID-on-chip, SAS4116W chipset | Broadcom RAID-on-chip, SAS4116W chipset | Broadcom RAID-on-chip, SAS4116W chipset | Broadcom RAID-on-chip, SAS4116W chipset |
| Battery (Energy Pack) backup unit | Yes | Yes | Yes | Yes |
| Local Key Management security | Yes | Yes | Yes | Yes |
| Secure enterprise key manager security | Yes | Yes | No | Yes |
| Controller queue depth | 8,192 | 8,192 | 8,192 | 8,192 |
| Non-volatile cache | Yes | Yes | Yes | Yes |
| Cache memory | 8 GB DDR4 3200 MT/s cache | 8 GB DDR4 3200 MT/s cache | 8 GB DDR4 3200 MT/s cache | 8 GB DDR4 3200 MT/s cache |
| Cache function | Write-back, write-through, always write-back, no read-ahead | Write-back, write-through, always write-back, no read-ahead | Write-back, write-through, always write-back, no read-ahead | Write-back, write-through, always write-back, no read-ahead |
| Max no of VDs in RAID mode | 240 | 240 | 240 | 240 |
| Max no of disk groups | 64 | 64 | 64 | 64 |
| Max no of VDs per disk group | 16 | 16 | 16 | 16 |
| Hot-swap devices supported | Yes | Yes | Yes | Yes |
| Auto-Configure behavior (Primary and Execute once) | Yes | Yes | Yes | Yes |
| Hardware XOR engine | Yes | Yes | Yes | Yes |
| Online capacity expansion | Yes | Yes | Yes | Yes |
| Dedicated and global hot-spare | Yes | Yes | Yes | Yes |
| Supported Drive Types | 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe | 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe | 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe | 22.5 Gbps SAS, 12 Gbps SAS |
| VD strip element size | 64 KB, 256 KB | 64 KB, 256 KB | 64 KB, 256 KB | 64 KB, 256 KB |
| PCIe support | Gen 4 | Gen 4 | Gen 4 | Gen 4 |
| Configuration maximum SAS/SATA physical disks support |
|
|
Limited by platform: 8 drives per controller | 240 SAS drives |
| Configuration maximum NVMe physical drives support |
|
|
Limited by platform: 8 drives per controller | Not supported |
| Controller maximum physical disks supported |
|
|
|
240 SAS |
| Drive sector size supported | 512B, 512e, and 4Kn | 512B, 512e, and 4Kn | 512B, 512e, and 4Kn | 512B, 512e, and 4Kn |
| Storage Boot Support | UEFI-only | UEFI-only | UEFI-only | No boot support |
