Module Specs

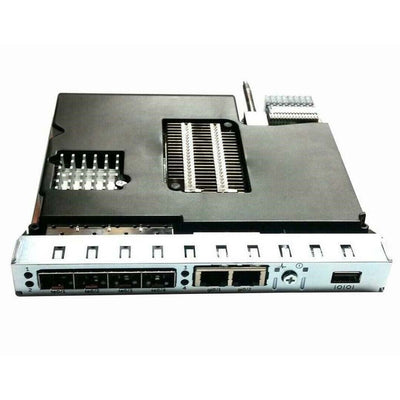

Dell VRTX R1-2210 8-PT I/O Module 10Gb Switch. This switch is for the VRTX so the nodes / sleds / blades can be accessed.
The VTRX 10GbE Switch Module, model R1-2210, is a layer 2 switch that supports speeds up to 10 Gbps. Both the switch GUI and CLI provide access for configuring the switch. The OOB management IP must be on a different IP subnet than those defined on all other switch interfaces (port, VLAN). Blade servers are connected to internal (te 1/1 – te 4/4) ports. The internal ports communicate together allowing for east-west traffic. The external ports allow for north-south communication to any upstream devices on the network as if the ports were typical switching/bridging device. Key features of the R1-2210 include the following internal (server-to-server) and external connections:
- Internal 10Gb SFP+ ports: 16
- External 10Gb SFP+ ports: 4
- External 1Gb RJ45 ports: 2
