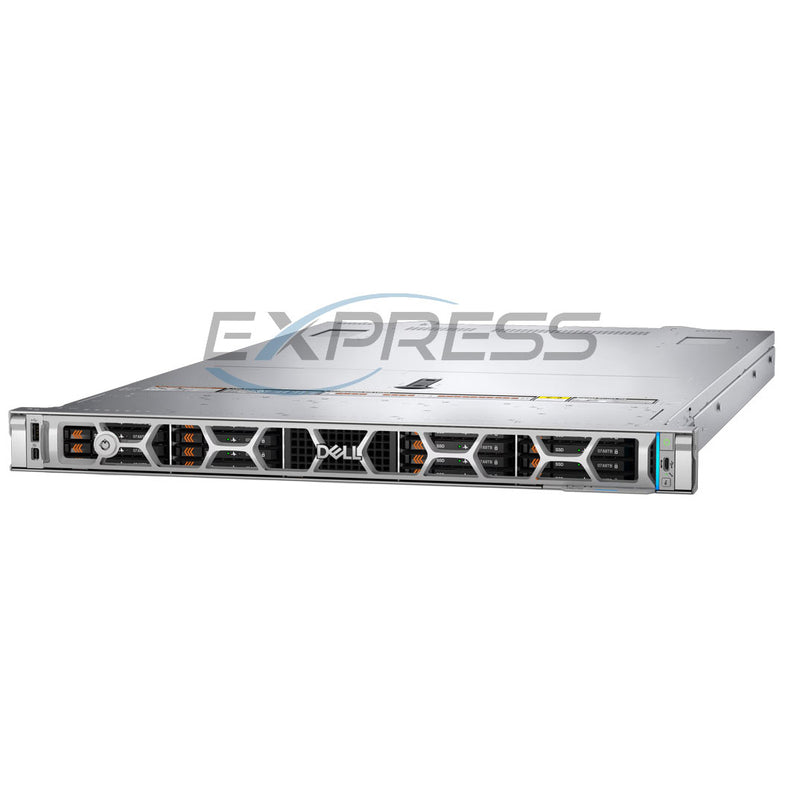

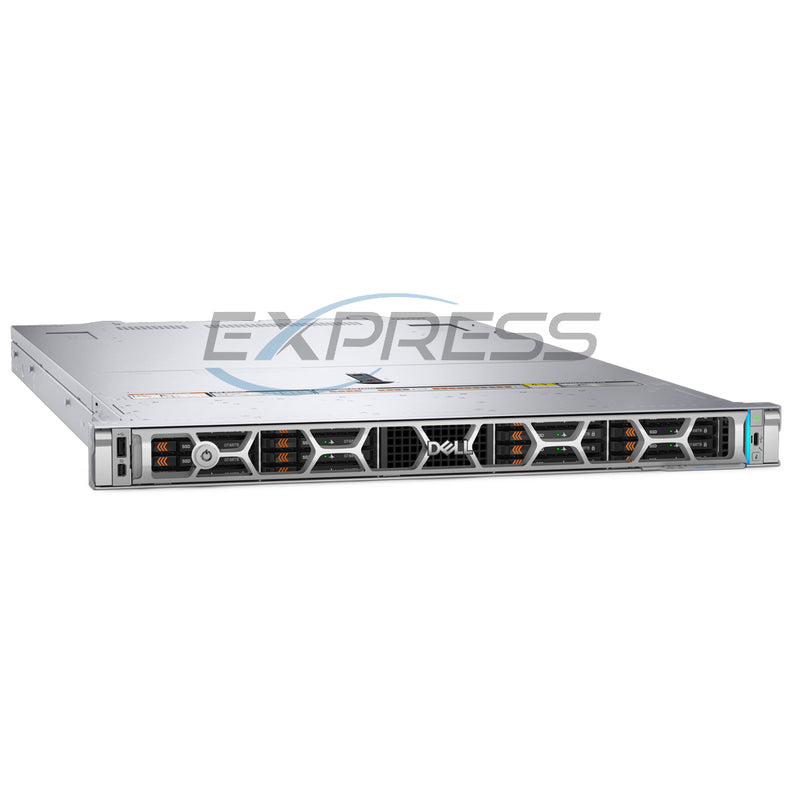

Dell PowerEdge R6715 Rack Server | Configurable

Dell

| CTO Servers



READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Cooling Options (Optional)

Memory (Optional)

LFF SATA (Optional)

LFF SAS (Optional)

SFF SATA (Optional)

SFF SAS (Optional)

SFF U.2 NVMe G4 (Optional)

EDSFF E3.S G5 (Optional)

Boot Options (Optional)

Storage Controllers (Optional)

GPU Options (Optional)

Up to 3 x 75W SW

Open Compute Program (OCP) 3.0 (Optional)

DPU Options (Optional)

Riser 2q and Riser 4b supports DPU cards

Riser Configurations (Optional)

Riser 2q and Riser 4b supports DPU cards

Power Supply Units (Optional)

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

Form Factor:

1U rack server

Processor | Max: 160 Cores

1x AMD EPYC 9005 Series 5th Generation

Memory | Max: 6TB

24 ECC DDR5 RDIMM 5200Mhz
Supports registered ECC DDR5 DIMMs only

Cooling

Air cooling, Direct Liquid Cooling (DLC)
Up to four sets (dual fan module) hot plug fans

Storage | Max:

4x 3.5" (SAS/SATA)
8x 2.5" (SAS/SATA/NVMe) Uni
10x 2.5" (SAS/SATA)
10x 2.5" with 4 x Universal
16x EDSFF E3.S NVMe (G5)
20x EDSFF E3.S + Rear 2 x EDSFF E3.S

Rear Drives | Max: 245.76TB

Up to 2 x EDSFF E3.S (20x EDSFF E3.S)

Storage Controller:

H365i, H965i, H975i,
HBA465e

Boot Options:

BOSS-N1 DC-MHS

Networking Options (NOC):

2 x OCP card 3.0 (optional) up to 400GbE

  • Slot 2: 1 x16 Gen5 OCP 3.0
  • Slot 5: 1 x16 Gen5 OCP 3.0
Remote Management:

iDRAC10

PCIe Slots:

Up to three PCIe slots (x16 connector)

  • Slot 1 1 x16 Gen5 Full Height or Low Profile
  • Slot 2: 1 x16 Gen5 Low Profile or 1 x16 OCP3.0
  • Slot 4: 1 x16 Gen5 Full Height or Low profile
GPU:

Up to 3 x 75W SW

DPU Options:

NVIDIA BlueField-3 2x200 GbE B3220
NVIDIA BlueField-3 1x400 GbE B3140H *

Other Versions

(Click to View)

Ideal for:

  • Data Analytics
  • Virtualization

The PowerEdge R6715 server is a single-socket optimized solution designed to deliver high performance, flexibility, and efficiency for a variety of applications. It is powered by 5th generation AMD EPYC™ processors and offers cutting-edge features that dynamically scale to push the upper limits of application performance.

Next level compute in your data center:

Our partnership with AMD allows us to provide customer with a powerful 1U server that can handle a variety of multi-core workloads.

  • The 5th generation AMD EPYC™ processor in the PowerEdge R6715 can deliver up to two-times better performance compared to previous generations.
  • With dual OCP and DDR5 memory support, effciently address I/O and richer storage needs in a single-socket design.
New configuration options for targeted workloads

The PowerEdge R6715 offers great flexibility with multiple configuration options to suit diverse customer needs.

  • With support for up to 3 PCIe slots in a compact 1U form factor, it can easily adapt to different workload requirements.
  • An ideal choice for businesses looking for a versatile server that can grow with their evolving needs.
Cyber Resilient Architecture for Zero Trust IT environment & operations

The Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor
Authentication (MFA) and role-based access controls safeguard trusted operations.

Cooling Options
Dell PowerEdge R6715 C-Type Heatsink C-Type
Dell PowerEdge R6715 DLC HeatsinkDirect Liquid Cooling
Dell PowerEdge R6715 Standard (STD) fans Standard fans
Dell PowerEdge R6715 High-Performance (Silver) FanHPR Silver Fan
Memory Options

The Dell PowerEdge R6715 holds up to 24x DDR5 DIMMs

DIMM type Rank Capacity DIMM voltage and speed Operating Speed
1 DIMM per channel (DPC) 2 DIMM per channel (DPC)
RDIMM 1R 16 GB DDR5 (1.1 V), 6400 MT/s 5200 MT/s 4400 MT/s
2R 32 GB DDR5 (1.1 V), 6400 MT/s 5200 MT/s 4400 MT/s
64 GB DDR5 (1.1 V), 6400 MT/s 5200 MT/s 4400 MT/s
96 GB DDR5 (1.1 V), 6400 MT/s 5200 MT/s 4400 MT/s
128 GB DDR5 (1.1 V), 6400 MT/s 5200 MT/s 4400 MT/s
8R 256 GB DDR5 (1.1 V), 6400 MT/s 5200 MT/s 4400 MT/s
Storage Controllers (Internal)
Dell PowerEdge R770 Front H965i DC-MHS H965i
  • RAID: 0, 1, 5, 6, 10, 50, and 60
  • Non–RAID: Yes
  • Host bus type: PCIe 4.0 x16
  • Processor: Broadcom RAID-on-chip, SAS4116W chipset
  • Power Backup unit: Battery
  • Cache memory: 8 GB DDR4 3200 MT/s cache
  • Cache function: Write-back, read-ahead, write-through, always write-back, no read-ahead
  • Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
  • maximum SAS/SATA: w/o SAS Expander: 16 drives per controller
    With SAS Expander: 240 SAS/SATA
  • maximum NVMe: w/o PCIe Switch Expander: 8 drives per controller
    With PCIe Switch Expander: 24 NVMe
Dell PowerEdge R770 Dual Front H975i DC-MHS H975i
  • Per Controller
  • RAID: 0, 1, 5, 6, 10, 50, and 60
  • Non–RAID: Yes
  • Host bus type: PCIe 5.0 x16
  • Processor: Broadcom RAID-on-chip, SAS5132W chipset
  • Power Backup unit: Supercapacitor
  • Cache memory: Integrated RAID cache
  • Cache function: Write-back, write-through, always write-back, no read-ahead
  • Supported Drive Types: Gen3 (8 GT/s), Gen4 (16 GT/s), and Gen5 (32 GT/s) NVMe
  • maximum SAS/SATA: Not supported
  • maximum NVMe: 32 drives
Dell PowerEdge R770 Front H365i DC-MHS H365i
  • RAID: 0, 1, and 10
  • Non–RAID: Yes
  • Host bus type: PCIe 4.0 x8 @ 16Gbps
  • Processor: Broadcom RAID-on-chip, SAS4016 chipset
  • Power Backup unit: No
  • Cache memory: No
  • Cache function: Write-through
  • Supported Drive Types: 22.5 Gbps SAS, 12 Gbps SAS, and 6 Gbps SATA/SAS. Gen3 (8 GT/s) and Gen4 (16 GT/s) NVMe
  • Maximum SAS/SATA: w/o SAS Expander: 16 drives
    w/ SAS Expander: Depends on your PowerEdge server model.
  • Maximum NVMe: w/o PCIe Switch Expander: 8/16 drives
    w/ PCIe Switch Expander: 32 drives
Riser Configurations

Riser 2q and Riser 4b supports DPU cards

R2r RiserR2r
R2k Riser R2k
R2q Riser R2q
R2s Riser R2s
R4a Riser R4a
R4b Riser R4b
Config No. Riser configuration No. of Processors PERC type supported Rear storage possible
RC 2 R2r 1 Front PERC No
RC 3 R2q+R4b 1 Front PERC No
RC 4 R2r+R4a 1 Front PERC No
RC 5 R2k+R4a 1 Front PERC No
RC 6 R2s+R4a 1 Front PERC Yes

Riser 2q and Riser 4b supports DPU cards

Open Compute Project (OCP 3.0) PCIe 5.0 x8/x16
Dell PowerEdge R6715 OCP 3.0 Options

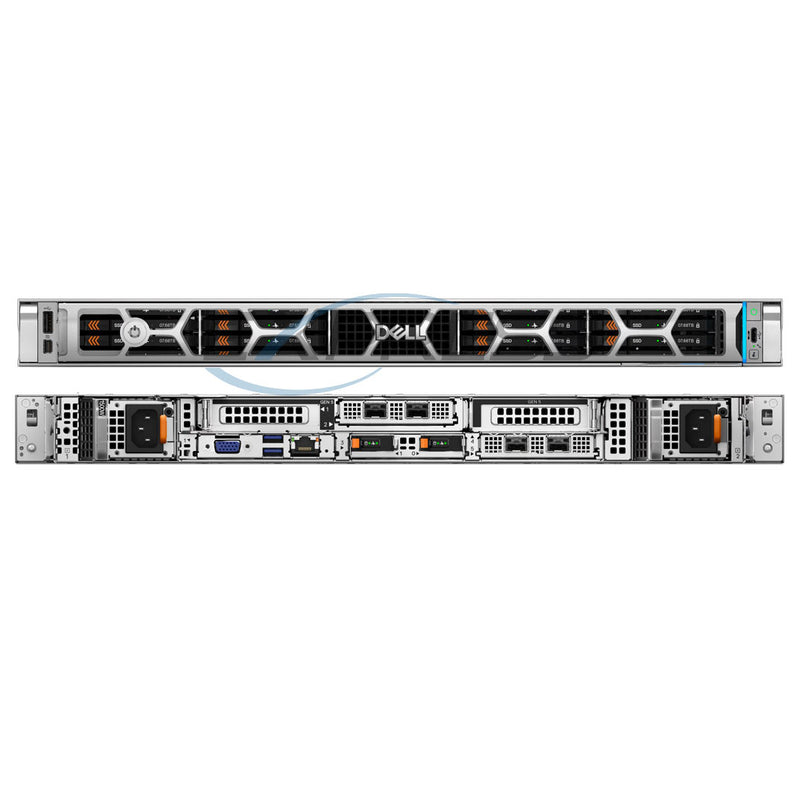

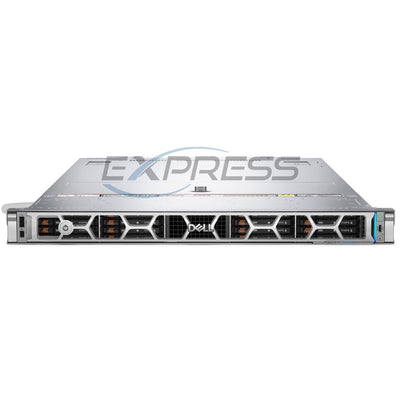

Front I/O
  • 1 x USB 2.0 Type-C port (HOST/BMC Direct)
  • 1 x USB 2.0 Type-A port (optional LCP KVM)
  • 1 x Mini-DisplayPort (optional LCP KVM)
Internal I/O
  • 1 x USB 3.1 Type-A
Rear I/O
  • 1 x Dedicated BMC 1Gb Ethernet port
  • 2 x USB 3.1 Type A port
  • 1 x VGA
Network options
  • 2 x OCP card 3.0 (optional)
  • OCP Speeds: 1GbE, 10GbE, 25GbE,100GbE and 400GbE
  • Slot 2: 1 x16 Gen5 OCP 3.0
  • Slot 5: 1 x16 Gen5 OCP 3.0



Boot Options
Dell PowerEdge R6715 BOSS-N1 DC-MHS BOSS-N1 DC-MHS
Dell PowerEdge R6715 USB BOOT Internal USB Boot
Supported GPU / DPU
Dell NVIDIA L4 Tensor Core GPU 72W 24GB GPU L4 24GB GPU
NVIDIA BlueField-3 2x200 GbE B3220 NVIDIA BlueField-3 2x200 GbE B3220
NVIDIA BlueField-3 1x400 GbE B3140H NVIDIA BlueField-3 1x 400GbE B3140H
What is a DPU?

A Data Processing Unit (DPU) is a specialized processor designed to handle data movement, networking, storage, and security tasks in servers and data centers. It functions as a programmable SmartNIC with its own Arm CPU cores, hardware accelerators, and high-speed networking capabilities. DPUs offload heavy infrastructure workloads from the main CPU, freeing it up for application-level work. They are commonly used in modern cloud and AI environments to improve efficiency and performance at scale. Popular examples include NVIDIA’s BlueField series of DPUs.

Why is a DPU different from a GPU?

A DPU is different from a GPU because it is optimized for moving, securing, and processing data in transit (networking & storage), whereas a GPU is built for performing massive parallel mathematical computations such as AI training and graphics rendering.

Key Differences Between DPU and GPU

  • Purpose: DPU handles data movement, networking, encryption, and storage offloading;
  • Workload: DPU excels at infrastructure tasks (packets, security, telemetry);
  • Location & Role: DPU sits on the data path as a SmartNIC;
  • Efficiency Goal: DPU improves overall server efficiency by freeing CPU cycles;
  • Purpose: GPU focuses on heavy parallel math and compute workloads.
  • Workload: GPU excels at AI/ML training, simulations, and rendering.
  • Location & Role: GPU acts as a compute accelerator.
  • Efficiency Goal: GPU increases raw computational power.
Power Supply Units (PSU)
Form factor Output Power cord
60 mm 800 W mixed mode C13
1100 W mixed mode C13
1400 W -48 VDC LOTES APOWA048
1500 W mixed mode C13
1500 W mixed mode 277V APP2006G1/2006G3
1800 W mixed mode C13
Dimensions & Weight
Dimensions
  • Width: 482.0 mm (18.97")
  • Length: 786.14 mm (30.95") with bezel
  • Height: 42.8 mm (1.68")
Weight
  • 4 x 3.5-inch SAS/SATA drives 19.41 kg (42.79 pounds)
  • 8 x 2.5-inch Universal SSDs 19.96 kg (44.00 pounds)
  • 8 x U.2 SSDs 20.78 kg ( 45.81 pounds)
  • 10 x 2.5-inch SAS/SATA drives 21.19 kg ( 46.71 pounds)
  • 10 x 2.5-inch with 4 x Universal drives 21.09 kg ( 46.49 pounds)
  • 16 x EDSFF E3.S Gen5 NVMe drives 21.09 kg (46.49 pounds)
  • 20 x EDSFF E3.S Gen5 NVMe + rear 2 x EDSFF E3.S Gen5 NVMe drives 20.25 kg ( 46.64 pounds)
