Dell EMC Unity 650F All Flash

Dell

| Server
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Condition: Refurbished ✓ Pulled from working servers & Tested. ✓ 1-year Parts Warranty.

Warranty | Return Policy

Quick Specs
Form Factor: 2U
Max Drives (Dell Unity OE 4.1 and later): 5/1000
Max Drives (Dell Unity OE 4.0 only): N/A
Max. raw capacity (PB): 16PB
Drives Supported: SAS, and Flash
Max DAE 2U 25x2.5": 39
Max DAE 3U 80x2.5": 12
RAID Options: 1/0, 5, 6
Max Memory: 256GB
Supported Back-End I/O modules: Four-port 12-Gb/s SAS
Max. SAS I/O ports per SP: 6 (2 embedded and 4 I/O mini HD SAS ports)
I/O Supported: Support for File, Block (FC, iSCSI & FCoE) and Unified

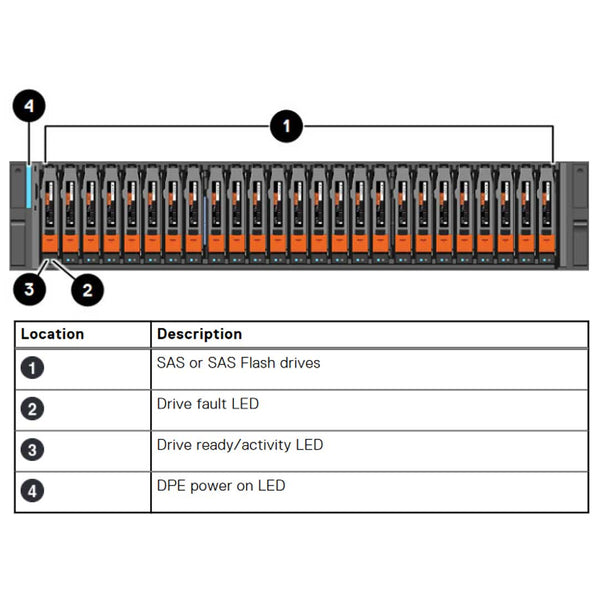

25-drive DPE:

3.4 inches high x 17.5 inches wide x 24.17 inches deep (8.64 cm x 44.45 cm x 61.39 cm) 44 lb (20 kg)

Disk Array Enclosure (DAE)

The Dell EMC Unity 650F supports all two types of DAE’s. When calculating the number of drives make sure to count the DPE drives as well in the total.

  • 2U 25-drive DAE with 2.5” drives
  • 3U 80-drive DAE with 2.5” drives

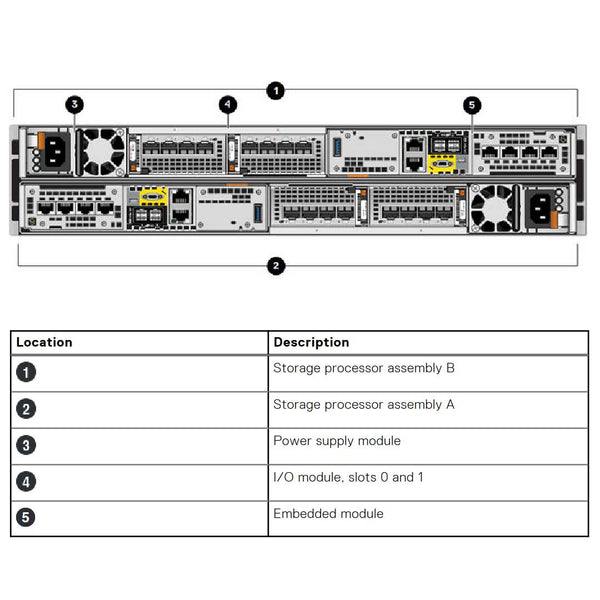

The all-flash Models support only 1 Drive Carrier type, the 25x2.5”. Each Dell Unity 650F has 2 Storage Processors (SP’s) in the rear with 2 CNA ports and 2 Module slots that can hold up to 6 different modules.

Please Note: The Dell EMC Unity hybrid models are the only ones to support FAST and FAST VP technology which helps with tiered storage and accessibility to high-frequency data.

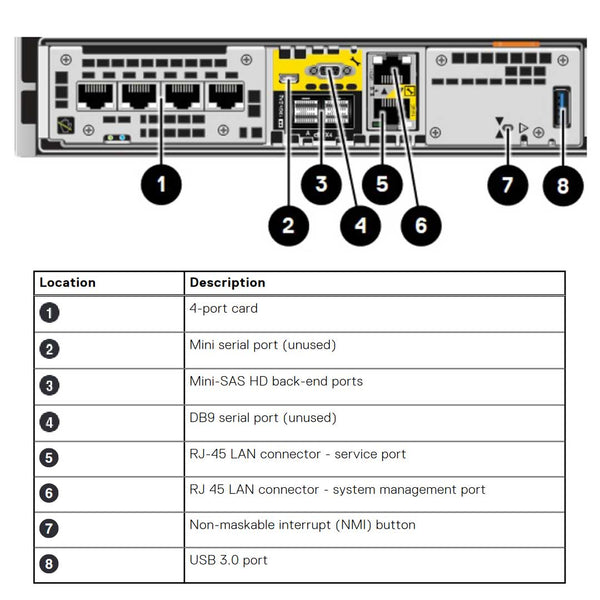

Storage Processor (SP):

The Dell EMC Unity 650F has 2 Storage Processors.
Each SP comes with:

  • Intel Xeon E5-2680 14-Core 2.4 GHz processor.
  • 4 64GB DDR4 DIMM for a total of 256GB of memory
  • 2 embedded CNA ports (4 configurations possible)
  • 2 10GbaseT ports
  • 2 mini-HD SAS ports
  • 2 PCI 3.0, x8 lane I/O module slots (6 Modules supported)
CNA Ports:

Each SP contains two integrated CNA ports (labeled 4 and 5). These ports are PCI Express 3.0 x4 adapters that provide interfaces that can be configured as Ethernet, or Fibre Channel, but once set to a protocol, cannot be changed. If CNA ports are set to Ethernet, you can use 1Gb/s, 10Gb/s SFPs, Twin-AX for File (IP), or iSCSI Block access. If the ports are set to Fibre Channel, then you can use SFPs supporting 4, 8, 16 Gb/s FC multi-mode, or single-mode SFPs supporting 16Gb/s only.

Note: The four CNA ports cannot be configured independently; they must all be configured with the same network protocol.
I/O Modules:

Each SP has two slots that can support 6 different options.

  • Four-port 12-Gb/s SAS I/O module
  • Four-port 16-Gb/s Fibre Channel I/O module
  • Four-port 10-Gb/s optical I/O module
  • Four-port 10GBASE-T I/O module
  • Four-port 1GBASE-T I/O module
  • Two-port 10Gb/s optical I/O module
Note: When adding new I/O modules, always install I/O modules in pairs—one module in SP A and one module in SP B. Both SPs must have the same type of I/O modules in the same slots. Please read the manual below for more details to each module listed above.
Standby Power Supply

25 DPE

  • AC 100 to 240 VAC ± 10%, single phase, 47 to 63 Hz
  • DC Line Voltage -39 to -72 V DC (Nominal -48V or -60V power systems)
