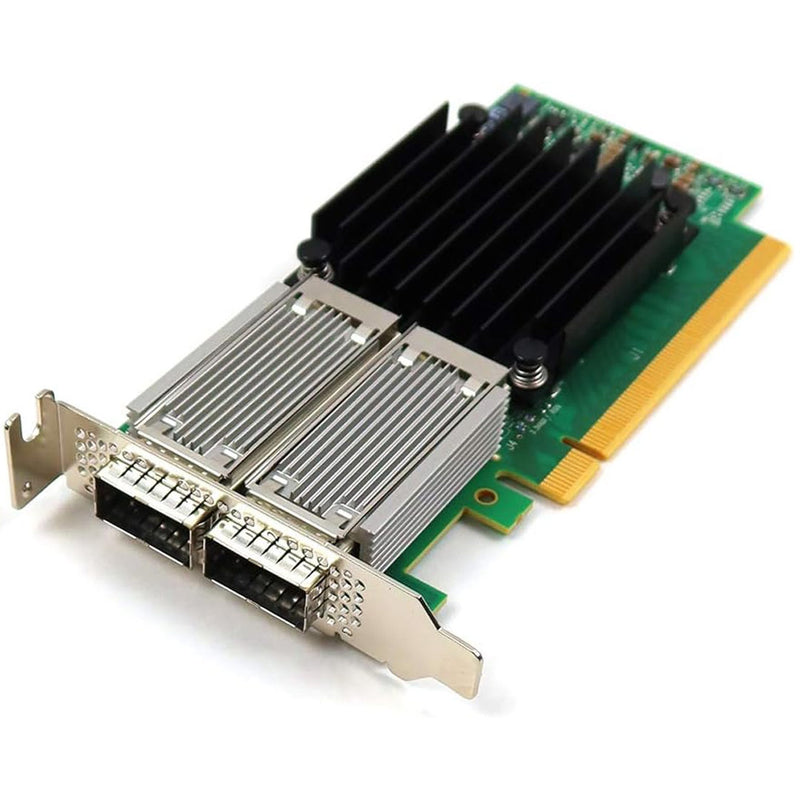

Adapter Specs
- Port Type: Dual Port QSFP28
- Data Transfer Speed: 40/56GbE
- Protocol: Ethernet
- PCIe: 3.0x16
| Physical |
Size: 2.71 in. x 5.6 in. (68.90mm x 142.24 mm) – low profile |
||||
|
Connector: Dual QSFP28 (copper and optical) |
|||||
| Protocol Support |
Ethernet: 56GBASE-R4, 50GBASE-R2, 50GBASE-R4, 40GBASE-CR4, 40GBASE-KR4, 40GBASE-SR4, 40GBASE-LR4, 40GBASE-ER4, 40GBASE-R2, 25GBASE-R, 20GBASE-KR2, 1000BASE-CX, 1000BASEKX, 10GBASE-SR, 10GBASE-LR,10GBASE-ER, 10GBASE-CX4, 10GBASE-CR, 10GBASE-KR, SGMII |
||||
|
Data Rate: 1/10/25/40/56 Gb/s– Ethernet |
|||||
|
PCI Express Gen3: SERDES @ 8.0GT/s, 8 lanes (2.0 and 1.1 compatible) |
|||||
| Power and Airflow |
Voltage: 12V, 3.3V |
||||
| Power | Cable Type | ||||
|
Typical Power(a) |
Passive Cables |
9.9W |
|||
|
Maximum Power |
Passive Cables |
12.5W |
|||
|
1.5W Active Cables |
15.8W |
||||
|
2.5W Active Cables |
18.0W |
||||
|
Maximum power available through QSFP28 port: 3.5W |
|||||
|
Airflow (LFM) |
Heatsink to Port | Port to Heatsink | |||
|
Passive Cables |
Active 1.5W Cables |
Passive Cables |
Active 1.5W Cables |
||
|
400LFM |
500LFM |
400LFM |
400LFM |
||
| Environmental | Temperature |
Operational |
0°C to 55°C |
||
|
Non-operational |
-40°C to 70°C(b) |
||||
| Humidity |
Operational |
10% to 85% relative humidity |
|||
|
Non-operational |
10% to 90% relative humidity |
||||
| Altitude (Operational) |
3050m |
||||
| Regulatory |
Safety |
CB / cTUVus / CE |
|||
|
EMC |
CE / FCC / VCCI / ICES / RCM |
||||
|
RoHS |
RoHS compliant |
||||
- Dell C6300
- Dell C6320
- Dell C6420
- Dell C6520
- Dell C6525
