Home / Dell Adapters / Dell PERC 8 H310 SAS/SATA FH RAID Controller | 3P0R3
SKU: 3P0R3

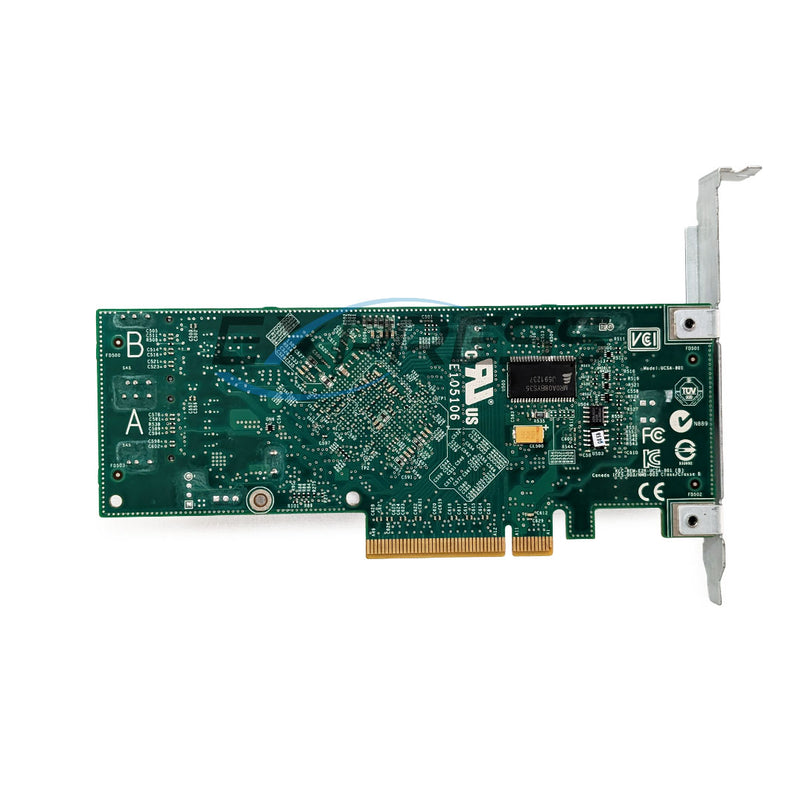

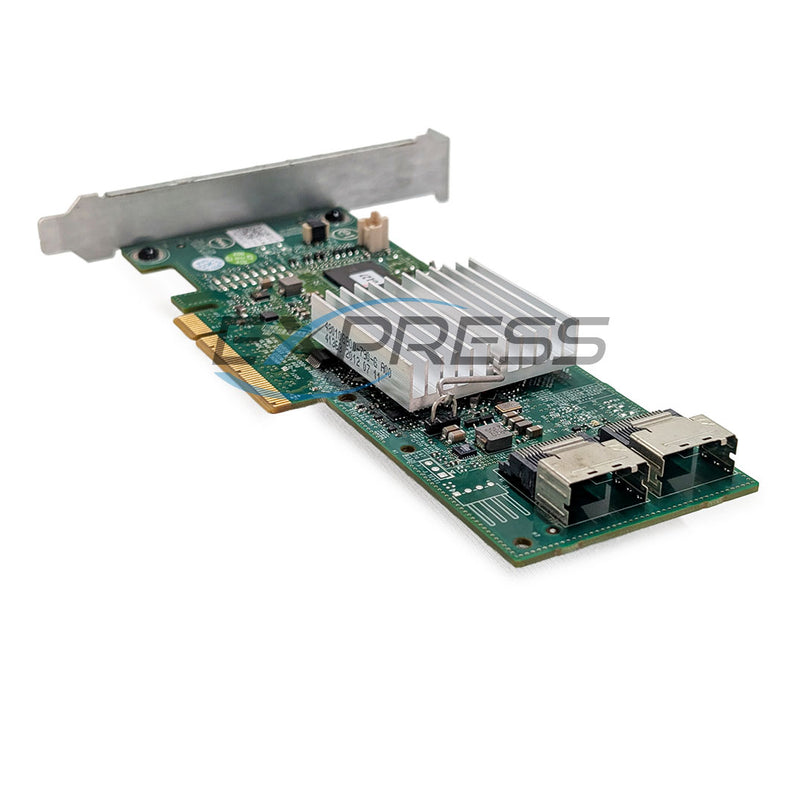

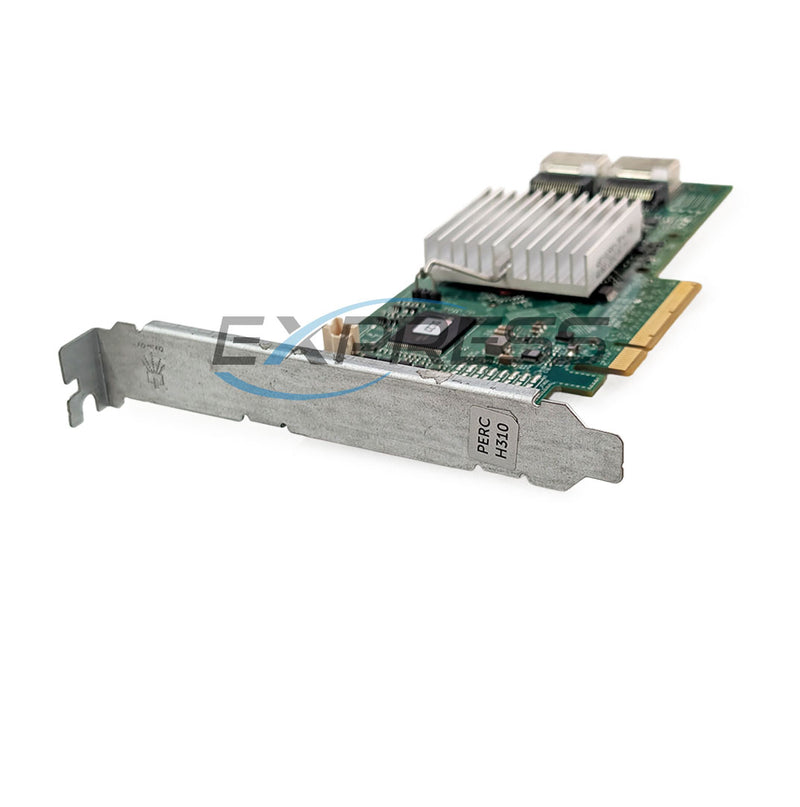

Dell PERC 8 H310 SAS/SATA FH RAID Controller | 3P0R3

Dell

| Adapter
$49.95
Adapter Specs
  • Type: RAID Controller
  • Drive Types: 6Gb/s SAS / SATA
  • Interface: PCI Express 2.0
  • Ports: 2 x Mini-SAS (Internal)
  • Cache Memory: N/A
  • Write Back Cache: N/A
  • RAID Levels: 0, 1, 5, 10, 50
  • Max Drive Support: 16 RAID / 32 Non-RAID
  • RAID Support: Hardware
  • Mini SAS Cable: F4DPW

Part Number:

  • 3P0R3

The Dell PERC H310 RAID Controller (3P0R3) is a full-height, hardware RAID card designed for SAS/SATA environments, supporting up to 16 RAID or 32 non-RAID drives. With dual internal Mini-SAS ports and PCIe 2.0 interface, it ensures fast, reliable storage connectivity for enterprise workloads.

Supporting RAID 0, 1, 5, 10, and 50, this controller is ideal for balancing performance with redundancy. Though it lacks cache and write-back capabilities, it offers stable hardware RAID for small to mid-size data environments. Compatible Mini-SAS cable: F4DPW.

Summary of RAID levels

Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:

  • RAID 0: Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.
  • RAID 1: Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.
  • RAID 5: Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.
  • RAID 6: Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.
  • RAID 10: Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.
  • RAID 50: Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.
  • RAID 60: Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.
Compatible With:
  • Dell R820

(Click to View)

Spec Sheet 4

Models Drive Types PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H810 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 192 Hardware
H710P Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710P Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710P Mini Blade 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 4 Hardware
H710 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710 Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710 Mini Blade 6 Gb/s SAS PCI-e 2.0 1x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 4 Hardware
H310 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal - - 0,1,5,10,50 16, Non-RAID 32 Hardware
H310 Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal - - 0,1,5,10,50 16, Non-RAID 32 Hardware
H310 Mini Blade 6 Gb/s SAS PCI-e 2.0 1x4 Internal - - 0,1,5,10,50 4 Hardware
S110 3 Gb/s SATA PCI-e 2.0 - - - 0,1,5,10 4 Software - Windows Only
