Home / Dell Adapters / Dell PERC 10 H745 SAS 12Gb LP RAID Controller | 26H8T
SKU: 26H8T

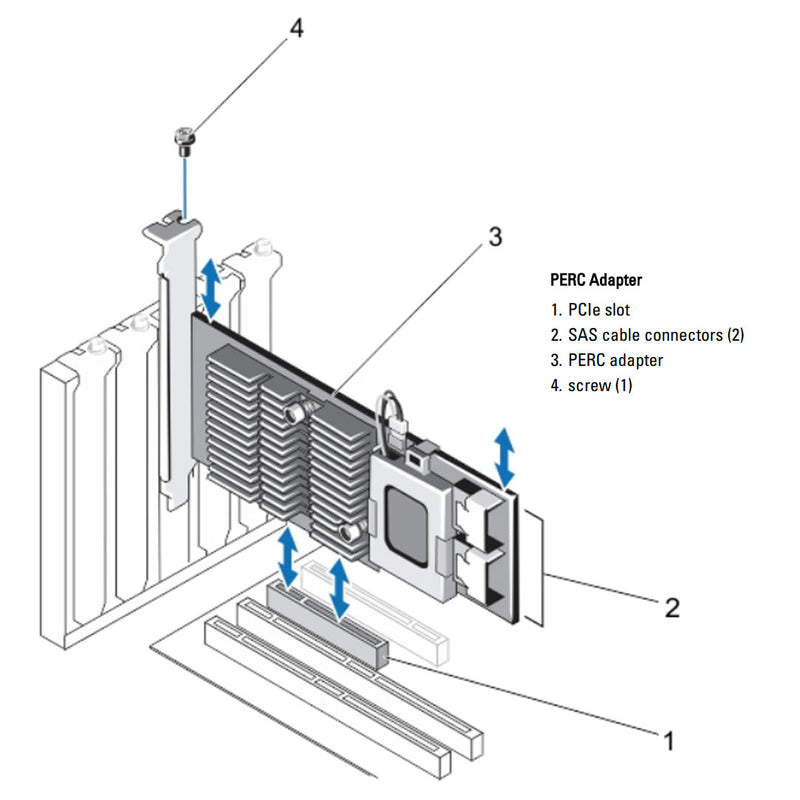

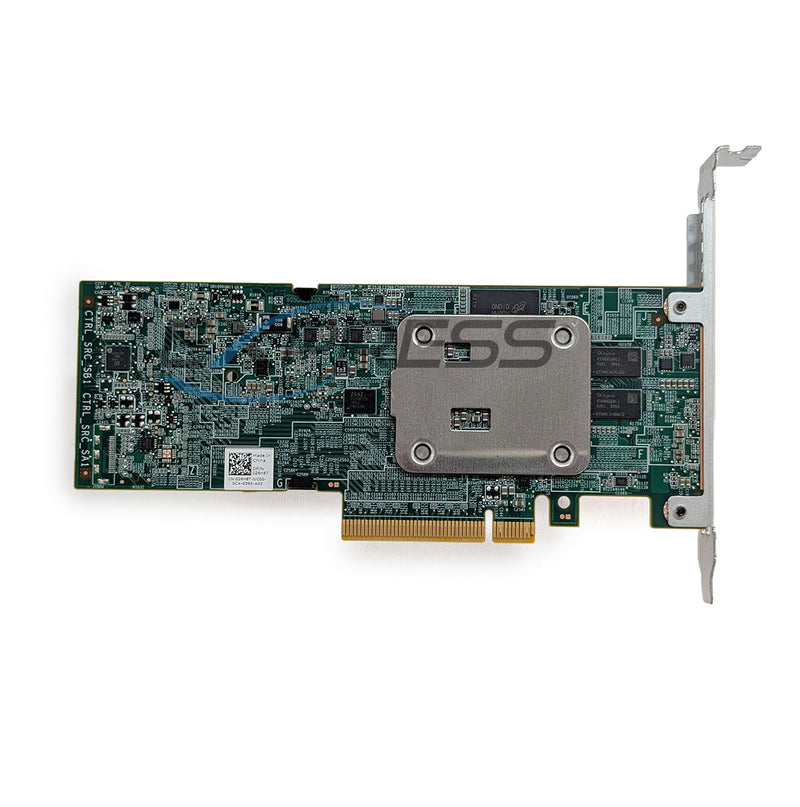

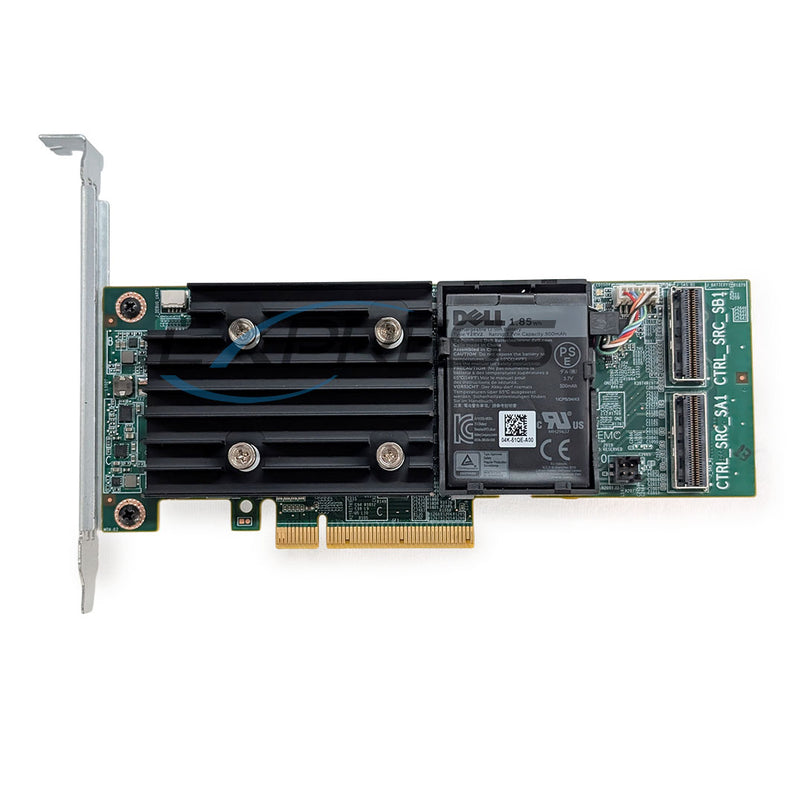

Dell PERC 10 H745 SAS 12Gb LP RAID Controller | 26H8T

Dell

| Adapter
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

  • Models: Drive Types
  • Drive Types: 12 Gb/s SAS, 6 Gb/s SAS/SATA, 3 Gb/s SAS/SATA
  • PCI Support: PCI-e 3.0
  • SAS Connectors: 2x8 External
  • Cache Memory: 4 GB NV
  • Write Back Cache: Flash Backed Cache
  • RAID Levels: 0, 1, 5, 6, 10, 50, 60
  • Max Drive Support: 240
  • RAID Support: Hardware

Part Number:

  • LP: 26H8T
  • fPERC: TFKHK
  • fPERC: JT47Y
The Dell PERC 10 H745 SAS 12Gb RAID Controller LP delivers outstanding storage performance for demanding server environments. Supporting 12Gb/s SAS and a full range of SAS/SATA drive speeds, it connects through dual 2x8 external ports and runs on a PCI-e 3.0 interface for efficient, high-speed data handling.
Featuring 4 GB of NV cache with flash-backed protection, the H745 supports RAID levels 0, 1, 5, 6, 10, 50, and 60. With capacity for up to 240 drives, it provides flexible, high-reliability RAID management for enterprise storage deployments requiring maximum scalability and data security.
Summary of RAID levels
Summary of RAID levels Following is a list of the RAID levels supported by the PERC 12 series of cards:
  • RAID 0

    Uses disk striping to provide high data throughput, especially for large files in an environment that requires no data redundancy.

  • RAID 1

    Uses disk mirroring so that data written to one physical disk is simultaneously written to another physical disk. RAID 1 is good for small databases or other applications that require small capacity and complete data redundancy.

  • RAID 5

    Uses disk striping and parity data across all physical disks (distributed parity) to provide high data throughput and data redundancy, especially for small random access.

  • RAID 6

    Is an extension of RAID 5 and uses an additional parity block. RAID 6 uses block-level striping with two parity blocks distributed across all member disks. RAID 6 provides protection against double disk failures, and failures while a single disk is rebuilding. If you are using only one array, deploying RAID 6 is more effective than deploying a hot spare disk.

  • RAID 10

    Is a combination of RAID 0 and RAID 1, uses disk striping across mirrored disks. It provides high data throughput and complete data redundancy.

  • RAID 50

    Is a combination of RAID 0 and RAID 5 where a RAID 0 array is striped across RAID 5 elements. RAID 50 requires at least six disks.

  • RAID 60

    Is a combination of RAID 0 and RAID 6 where a RAID 0 array is striped across RAID 6 elements. RAID 60 requires at least eight disks.

Compatible With:
  • Dell C6520
  • Dell C6525
  • Dell R450
  • Dell R550
  • Dell R650
  • Dell R650xs
  • Dell R6525
  • Dell R750
  • Dell R750xa
  • Dell R750xs
  • Dell R7525

(Click to View)

Spec Sheet 4

Models Drive Types PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H840 Adapter FH 12 Gb/s SAS
6 Gb/s SATA		 PCIe 3.1 2x4 External 8 GB NV Flash Backed Cache 0,1,5,6,10,50,60 255 Hardware
H840 Adapter LP
H745P MX Adapter 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 Modular Enclosure 8 GB NV Flash Backed Cache 0,1,5,6,10,50,60 - Hardware
H740P FH 12 Gb/s SAS
6 Gb/s SATA		 PCIe 3.1 2x4 External 8 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H740P LP
H740P Mini Mono 12 Gb/s SAS
6 Gb/s SATA		 PCIe 3.1 2x4 External 8 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
S150 Software RAID 6 Gb/s SATA/NVMe PCIe N/A No Cache No Cache 0,1,5,10 30* Software RAID Windows and Linux
S140 Software RAID 6 Gb/s SATA/NVMe N/A N/A No Cache No Cache 0,1,5,10 16* Software RAID Windows and Linux
12 Gbps SAS Ext. HBA 12 Gb/s SAS PCIe 3.0 2x4 External No Cache No Cache No RAID Pass-Thru Only 255 No RAID Pass-Thru Only
H745 Adapter 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 2x8 Internal 4 GB NV Flash Backed Cache 0,1,5,6,10,50,60 240 Hardware
H745 Front 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 2x8 Internal 4 GB NV Flash Backed Cache 0,1,5,6,10,50,60 240 Hardware
H345 FH 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 2x8 Internal No Cache No Cache 0,1,10 63 Hardware
H345 LP
H345 Front 12 Gb/s SAS
6 Gb/s SATA/SAS
3 Gb/s SATA		 PCIe 3 2x8 Internal No Cache No Cache 0,1,10 63 Hardware
*The S150 controller supports up to 8 SATA disks (HDD and SSD) depending on system backplane configuration, supports up to 30 NVMe PCIe SSDs.
*The S140 controller supports up to 16 physical disks (SATA + NVMe) depending on system backplane configuration except the PowerEdge R840 and PowerEdge R940xa supports up to 30 (SATA + NVMe).
