Home / Dell Adapters / Dell VRTX Shared PERC 8 (SPERC8-e) External Multi Server RAID Controller | 0HX53
SKU: 0HX53

Dell VRTX Shared PERC 8 (SPERC8-e) External Multi Server RAID Controller | 0HX53

Dell

| Adapter
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Adapter Specs

  • Type: Shared External PCIe RAID Controller
  • Interface: PCIe 2.0 x8
  • Drive Type Support: 6 Gb/s SAS
  • SAS Connectors: 2x external mini-SAS (SFF-8088), up to 2 JBOD enclosures
  • Cache: 1GB NV Flash-Backed Write Cache
  • RAID Levels: 0, 1, 5, 6, 10, 50, 60
  • Server Support: Up to 2 Servers
  • RAID Support: Hardware RAID
  • Ideal: Shared Clustered Environments

Part Number:

  • 0HX53

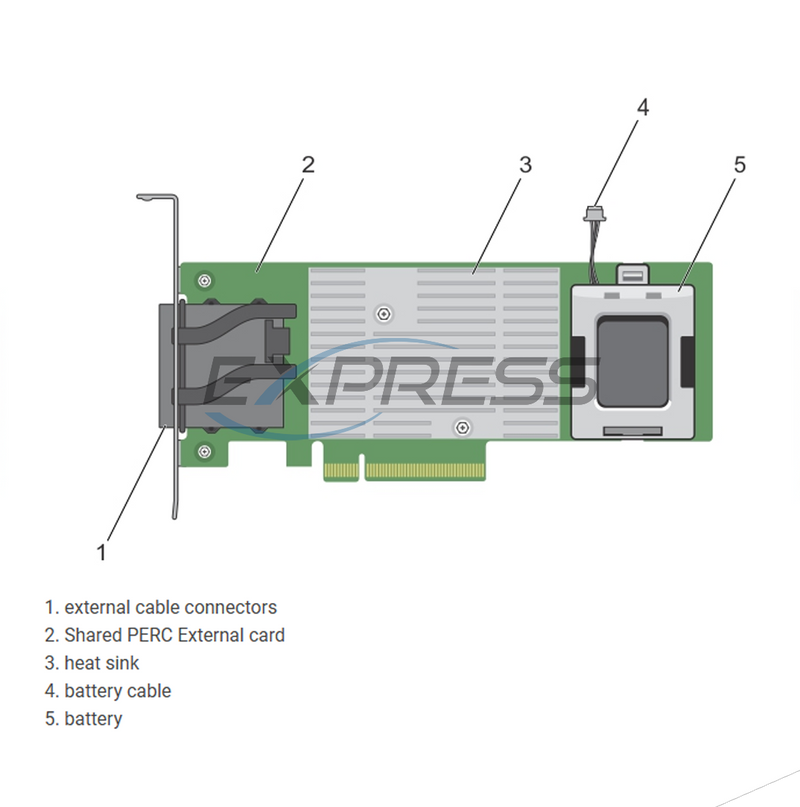

(Shared PERC 8 External) The shared PERC 8 External card extends storage capacity by allowing server modules to access up to two external JBODs. The Shared PERC 8 External cards are connected through PCIe slots 5 and 6 on the VRTX system. Shared PERC 8 External card will support MD1200 or MD1220 JBOD.

H810 (PERC H810) is a more general-purpose external RAID card for standalone PowerEdge servers. It's not designed for sharing across multiple nodes; it's for one server handling its own big storage needs.

Shared PERC 8

  • Primary Use Shared storage in VRTX chassis (multi-server access)
  • Ports/Connectivity 2x external mini-SAS (SFF-8088), up to 2 JBOD enclosures
  • Cache 1GB DDR3 NV RAM with BBU
  • RAID Levels 0, 1, 5, 6, 10, 50, 60
  • Interface PCIe 2.0 x8, 6Gb/s SAS
  • Unique Features SR-IOV for 4 virtual functions; controller failover in dual setup; managed via Chassis Management Controller (CMC) only—no BIOS boot from shared storage
  • Management CMC web/CLI; no OpenManage or BIOS utility
  • Firmware/Drivers Same drivers as H810, but VRTX-specific firmware

H810

  • Primary Use Dedicated external RAID for single PowerEdge server
  • Ports/Connectivity 2x external mini-SAS (SFF-8088), up to 32 SAS/SATA drives
  • Cache 1GB DDR3 with BBU
  • RAID Levels 0, 1, 5, 6, 10, 50, 60
  • Interface PCIe 2.0 x8, 6Gb/s SAS
  • Unique Features Standard BIOS/UEFI config; virtual disk migration between H810s; supports booting from RAID
  • Management Full Dell OpenManage, BIOS config utility
  • Firmware/Drivers Standard PERC firmware
Compatible With:
  • Dell vrtx

(Click to View)

Spec Sheet 4

Models Drive Types PCI Support SAS Connectors Cache Memory Write Back Cache RAID Levels Max Drive Support RAID Support
H810 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 External 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 192 Hardware
H710P Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710P Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710P Mini Blade 6 Gb/s SAS PCI-e 2.0 2x4 Internal 1 GB NV Flash Backed Cache 0,1,5,6,10,50,60 4 Hardware
H710 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710 Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 32 Hardware
H710 Mini Blade 6 Gb/s SAS PCI-e 2.0 1x4 Internal 512 MB NV Flash Backed Cache 0,1,5,6,10,50,60 4 Hardware
H310 Adapter 6 Gb/s SAS PCI-e 2.0 2x4 Internal - - 0,1,5,10,50 16, Non-RAID 32 Hardware
H310 Mini Mono 6 Gb/s SAS PCI-e 2.0 2x4 Internal - - 0,1,5,10,50 16, Non-RAID 32 Hardware
H310 Mini Blade 6 Gb/s SAS PCI-e 2.0 1x4 Internal - - 0,1,5,10,50 4 Hardware
S110 3 Gb/s SATA PCI-e 2.0 - - - 0,1,5,10 4 Software - Windows Only
