Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
What's New for DL380 Gen10
- Supports 3rd Generation Intel® Xeon® Scalable Processors.
- Support for PCIe Gen4, resulting in improved bandwidth and throughput.
- Support for industry-standard OCP 3.0 Network Adapters.
- Support for Trimodal (NVMe/SAS/SATA) HPE Smart Array controllers.

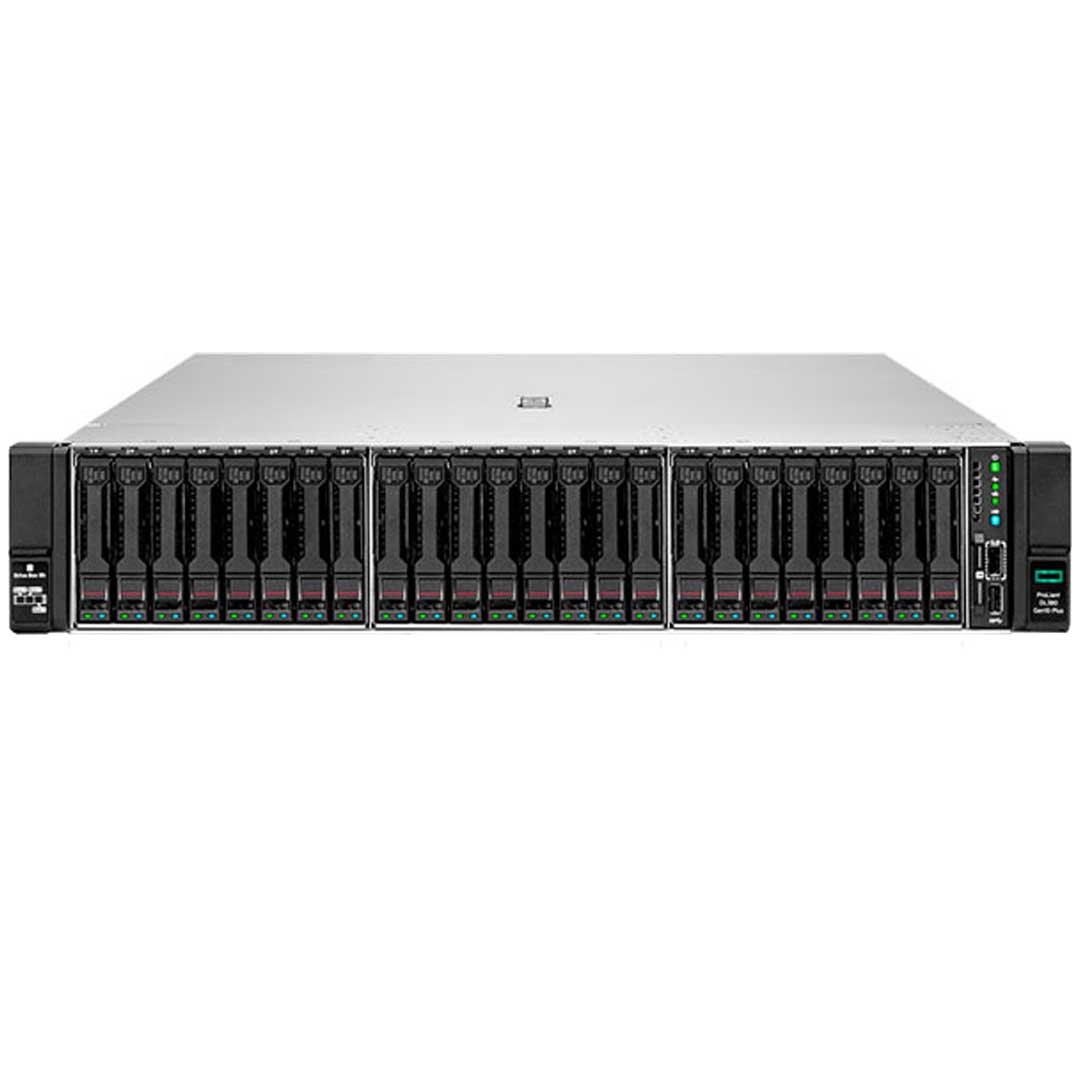

The HPE ProLiant DL380 Gen10 Plus server is adaptable for diverse workloads and environments, providing you with the right balance of expandability and scalability. Designed for supreme versatility and resiliency, this 2U/2P platform is capable for deployment in multiple environments, built on 3rd Generation Intel® Xeon® Scalable Processors, and backed by a comprehensive warranty. Equipped with PCIe Gen4 capabilities, the HPE ProLiant DL380 Gen10 Plus server offers improved data transfer rates and higher networking speeds.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
- Data Analytics
- Point-of-Sale (POS)
- Retail Servers
- Virtualization
Looking to Customize?
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Technical specifications | HPE ProLiant DL380 Gen10 Plus server |
|---|---|
| Processor name | 3rd Generation Intel® Xeon® Scalable Processors |
| Processor family | 3rd Generation Intel® Xeon® Scalable Processors |
| Processor core available | 16 to 40 core, depending on processor |
| Processor speed | 3.1 GHz maximum, depending on processor |
| Power supply type | Dual hot-plug redundant 1+1 HPE Flexible Slot Power Supplies (2.6”) |
| Expansion slots | 8, for detailed descriptions refer to the QuickSpecs |
| Maximum memory | 8.1 TB - RDIMM (4 TB per processor), 11.2 TB - LRDIMM and Intel® Optane™ (5.6 TB per processor with 8x LRDIMM and 8x 512 GB Intel Optane) |
| Memory, standard | 16 GB (1 x 16 GB) RDIMM |
| Memory slots | 32 DIMM slots |
| Memory type | HPE DDR4 SmartMemory |
| Persistent memory type | Intel® Optane™ Persistent Memory for HPE |
| Persistent memory media capacity | 128 GB - 512 GB |
| Memory protection features | RAS – Advanced ECC, online spare, mirroring, combined channel (lockstep) functionality, and HPE Fast Fault Tolerant Memory (ADDDC) Intel Optane Persistent Memory |
| Included hard drives | None ship standard, SFF and LFF drives supported |
| Optical drive type | Optional DVD-ROM Optional via Universal Media Bay External support only |
| System fan features | Hot-plug redundant fans, standard |
| Network controller | Intel I350 1GbE 4 port Base-T OCP3 adapter or Broadcom 57416 10GbE 2 port Base-T adapter and/or optional network adapters depending on model |
| Storage controller | HPE SR932i-p and/or HPE SR416i-a and/or HPE MR216i-a and/or HPE MR416i-a and/or HPE MR216i-p and/or HPE MR416i-p and/or HPE Smart Array P816i-a SR and/or HPE Smart Array E208i-a SR and/or HPE Smart Array P408i-a SR and/or HPE Smart Array E208i-p SR and/or HPE Smart Array E208e-p SR and/or HPE Smart Array P408e-p SR and/or HPE Smart Array P408i-p SR |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional requires licenses) |
| Drive supported | 8 or 12 LFF SAS/SATA/SSD 8, 10, 16, 18 or 24 SFF SAS/SATA/SSD, 2 M.2 SATA SSD standard on primary riser, depending on configuration, 8 SFF mid-tray optional, 6 SFF rear drive optional or 4 LFF mid tray optional, 3 LFF rear-drive optional and 2 SFF or 2 Dual UFF rear-drive optional, 20 SFF NVMe optional, NVMe support via Express Bay will limit maximum drive capacity, depending on model |
