Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Comes with:
- Processors - 1 x Intel® Xeon® E5-2603v4
- Memory - 8GB (1x8GB Registered DIMMs STND, 2400 MHz)
- Network Controller - HPE Embedded Dual Port 361i Adapter Network Interface
- Storage Controller - HPE Dynamic Smart Array B140i
- Hard Drive - None ship standard
- Internal Storage - 4 LFF HDD Bays (Non Hot Plug)
- Optical Drive Bay - 1; (Optional: DVD-ROM, DVD-RW)
- Optical Drive - None
- PCIe Slots - 3 PCIe 3.0 slots
- Power Supply - (1) HPE 550W FIO Power Supply
- Fans - 3 hot swap fans, non-redundant
- Management - iLO Management (standard), Intelligent Provisioning (standard), iLO Essentials (optional), iLO Scale-out (optional only for DL), iLO Advanced (optional)
- Energy Start - N/A
- Form Factor - Rack (1U), HPE Easy Install Rails
Looking to Customize?
Not seeing the exact specs you need?
Start your build today with Express Computer Systems!
Start Customizing Today!
Spec Sheet 4

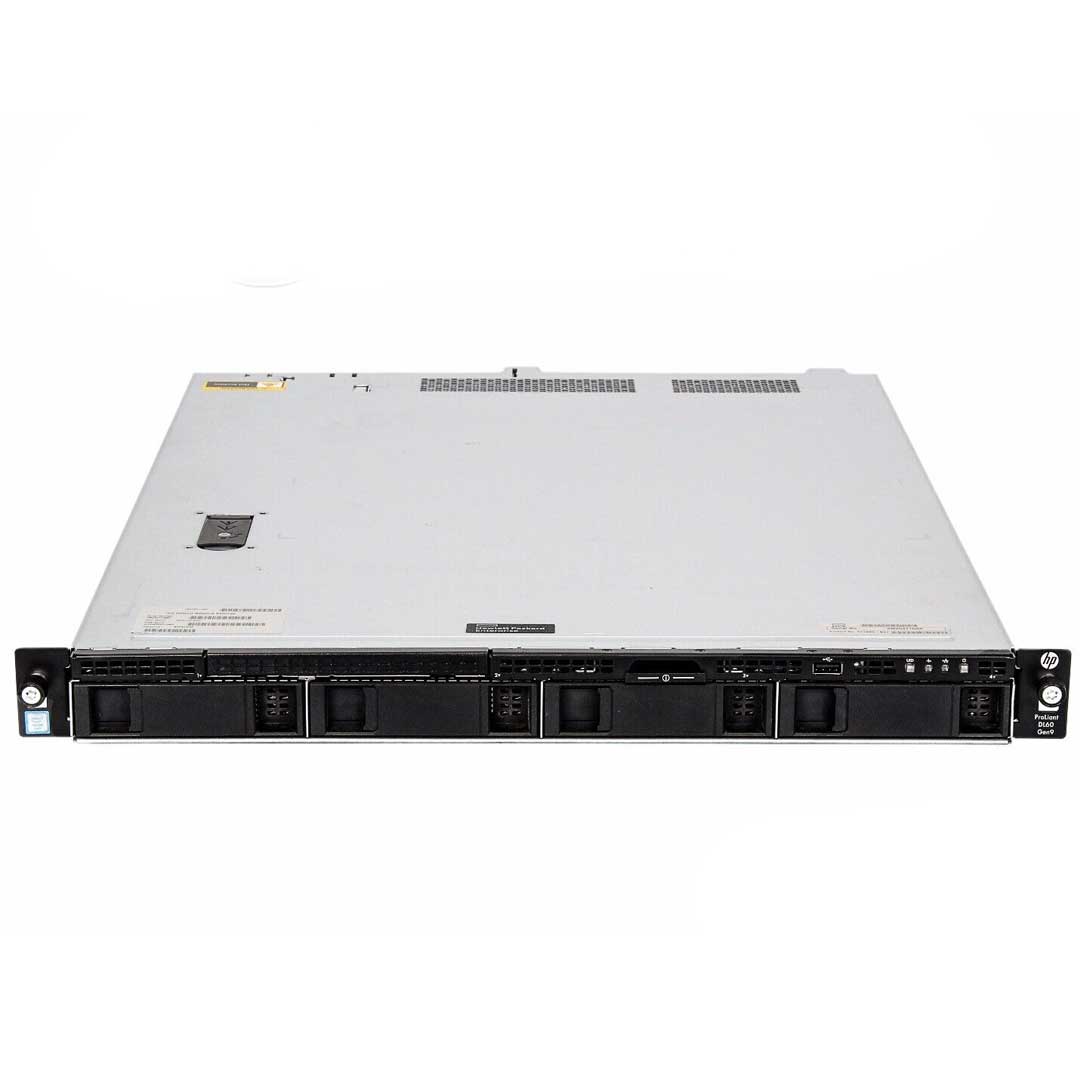

| Technical specifications | HPE ProLiant DL60 Gen9 Server |
|---|---|
| Compute | Up to two Intel Xeon E5-2600 v3/v4 Series; 4/6/8/10/12/14 cores PCIe 3.0; up to three available slots |
| Memory | HPE SmartMemory (8) DDR4; up to 2400 MHz (256 GB max) |
| Storage | HPE Dynamic Smart Array B140i, optional HPE Smart Array Controllers, and HPE Smart host bus adapters via PCIe stand-up cards |
| HPE SmartDrives | 4 LFF max, HDD/SSD, M.2 enabled |
| Networking | 2 x 1GbE embedded Ethernet adapter with optional FlexibleLOM slot on riser |
| VGA/serial/USB ports/SD | One rear VGA, three USB 3.0, one USB 2.0, one internal microSD, Dual microSD optional |
| System ROM | UEFI and Legacy BIOS |
| Converged management | HPE OneView with HPE iLO Advanced |
| Support management | HPE Insight Online with enhanced mobile application |
| Embedded management | HPE iLO 4, HPE Intelligent Provisioning, HPE Smart Update Manager (SUM), HPE RESTful Interface Tool, and HPE Scripting Tools for Microsoft® Windows Server® PowerShell |
| Power and cooling | Up to 92 percent efficient (Gold), 550 W multi-output, 900 W RPS |
| Industry compliance | ASHRAE A3* |
| Form factor/chassis depth | Rack (1U) 23.9” (LFF) |
| Serviceability–Easy Install rails | Standard |
