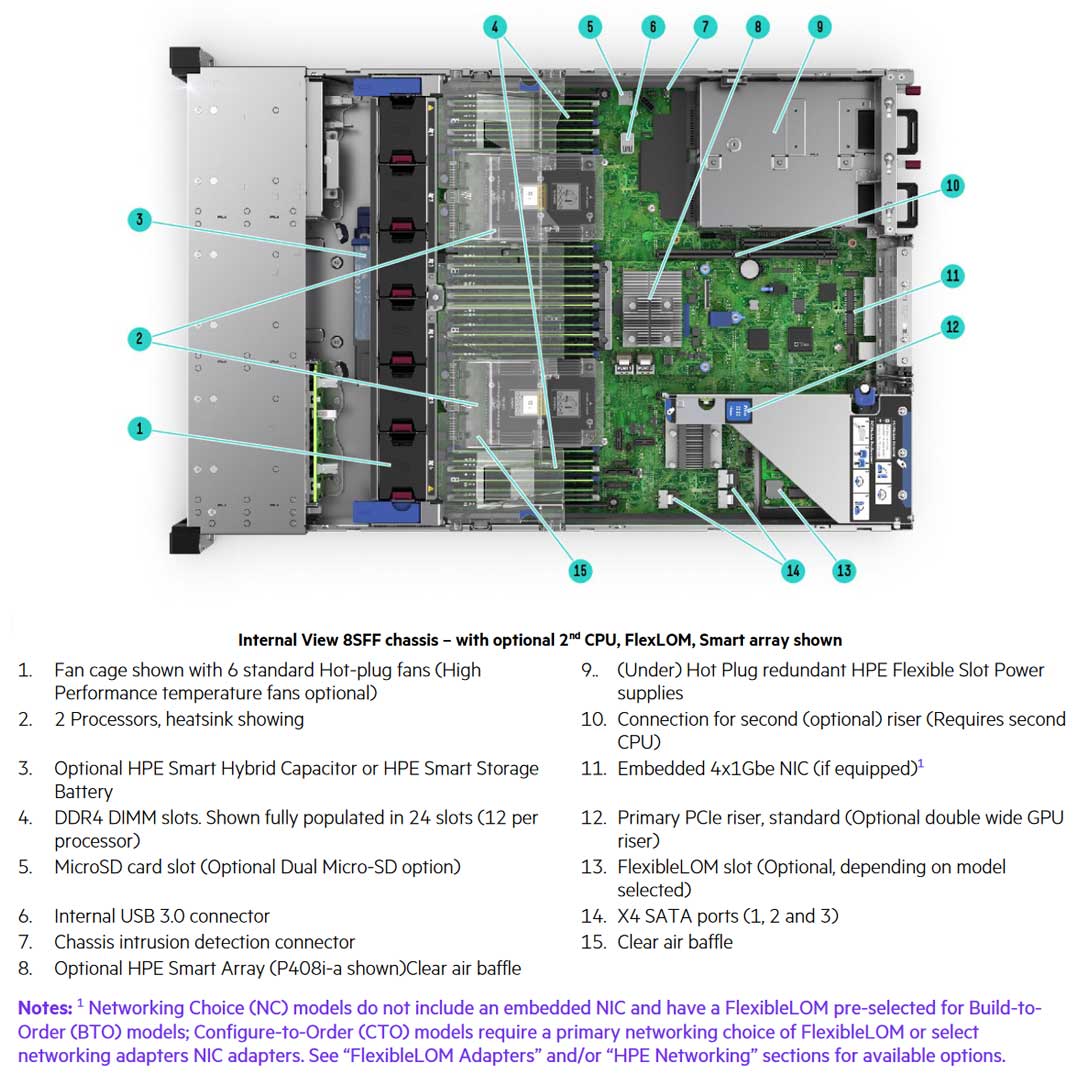

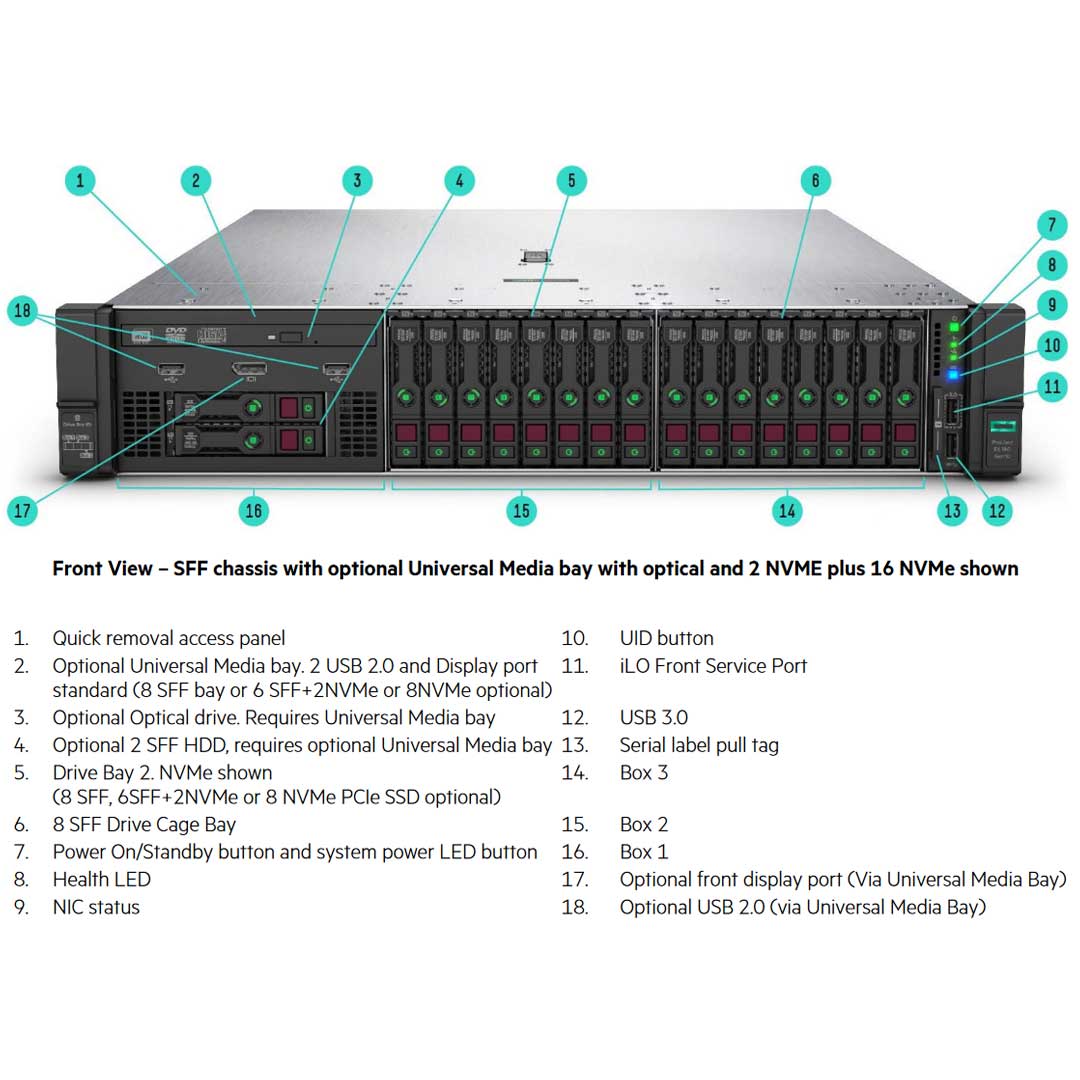

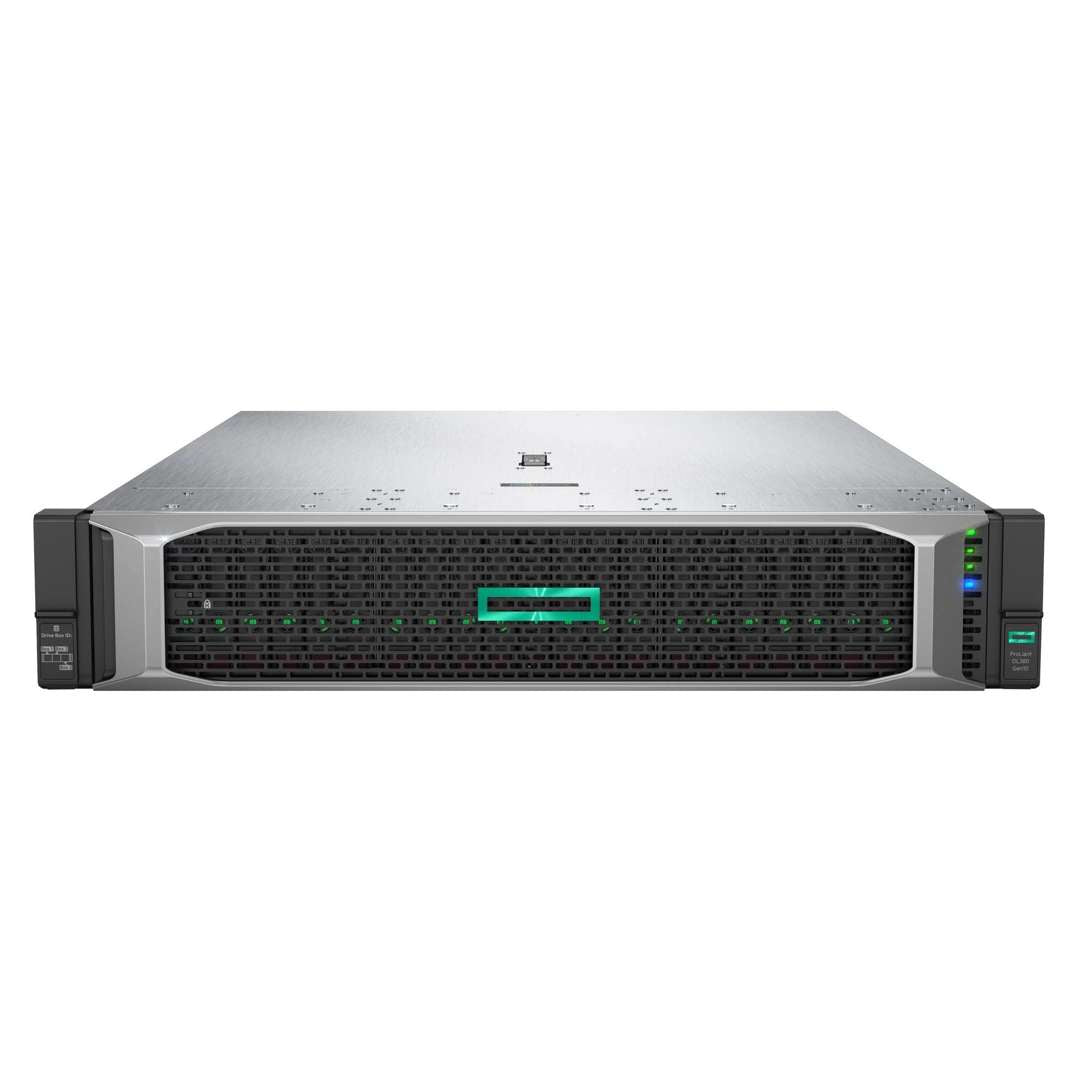

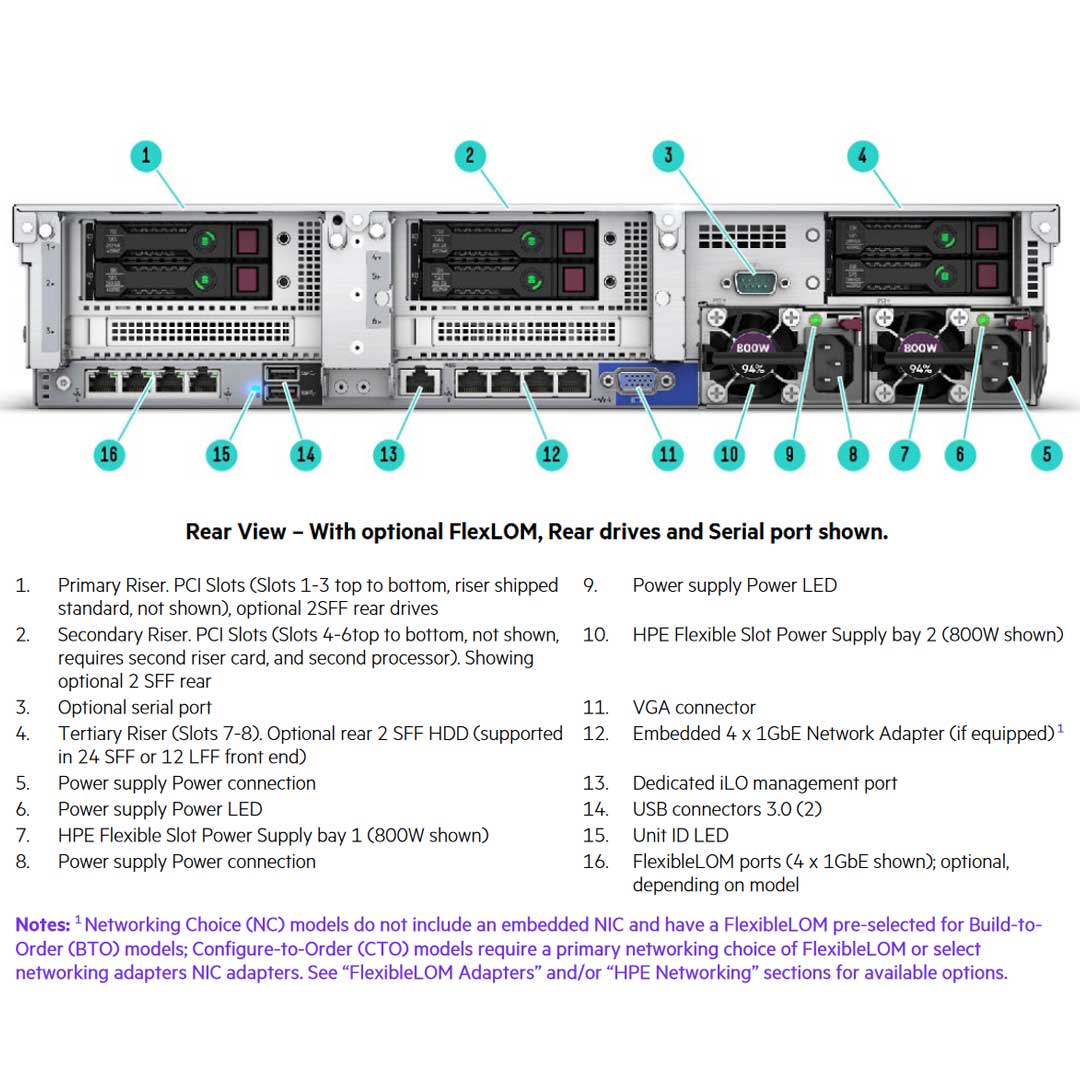

HP 826564-B21 ProLiant DL380 Gen10 server with one Intel Xeon Bronze 3106 processor, 1x 16 GB dual rank memory, eight small form factor drive bays, four standard fans, one 500W Platinum power supply, and a 1 Year NBD ECS Parts Replacement Warranty. Rail kit and cable management arm available upon request.
Included Parts List
| Type | Quantity | Title |
| Chassis | 1 | HPE ProLiant DL380 Gen10 8SFF Server Chassis |
| Processor | 1 | Intel Xeon-Bronze 3106 (1.7GHz/8-core/85W) Processor |
| Memory | 1 | HPE 16GB (1x16GB) 2RX4 DDR4-2133 CAS-15-15-15 Registered Memory |
| PSU | 1 | HPE 500W Flex Slot Platinum Hot Plug Low Halogen Power Supply |
Specifications for 826564-B21
Processor Core Available 8, per processor
Processor Cache Installed L3
Memory Type HPE DDR4 Smart Memory with optional Intel Optane Persistent Memory for HPE
NVDIMM Type HPE NVDIMM-N *Only available on 1st Generation Intel® Xeon® Scalable Processors
NVDIMM Rank Single rank
NVDIMM Capacity 16 GB
Network Controller 1 Integrated 4 x Gigabit Ethernet
Remote Management Software HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) (standard) HPE iLO Advanced, and HPE OneView Advanced (optional, requires licenses)
System Fan Features 4 single-rotor, standard fans included
Power Supply Type 1 HPE 500W Flex Slot Universal Hot Plug Low Halogen
Expansion Slots 8, for detailed descriptions reference the QuickSpecs
Storage Controller 1 HPE Smart Array S100i
Processor Name Intel® Xeon® Scalable 3106
Processor Number 1
Processor Speed 1.7 GHz
Standard Memory 16 GB (1x 16GB) RDIMM
Hard Drive Number (included) None ship standard, 8 SFF drives supported
Optical Drive Type Optional
Security Optional locking Bezel Kit, Intrusion Detection Kit, and HPE TPM 2.0
Form Factor 2U
Weight (imperial) 32.6 lb
Weight (metric) 14.76 kg
Product Dimensions (imperial) 17.54 x 28.75 x 3.44 in
Product Dimensions (metric) 44.55 x 73.03 x 8.74 cm
