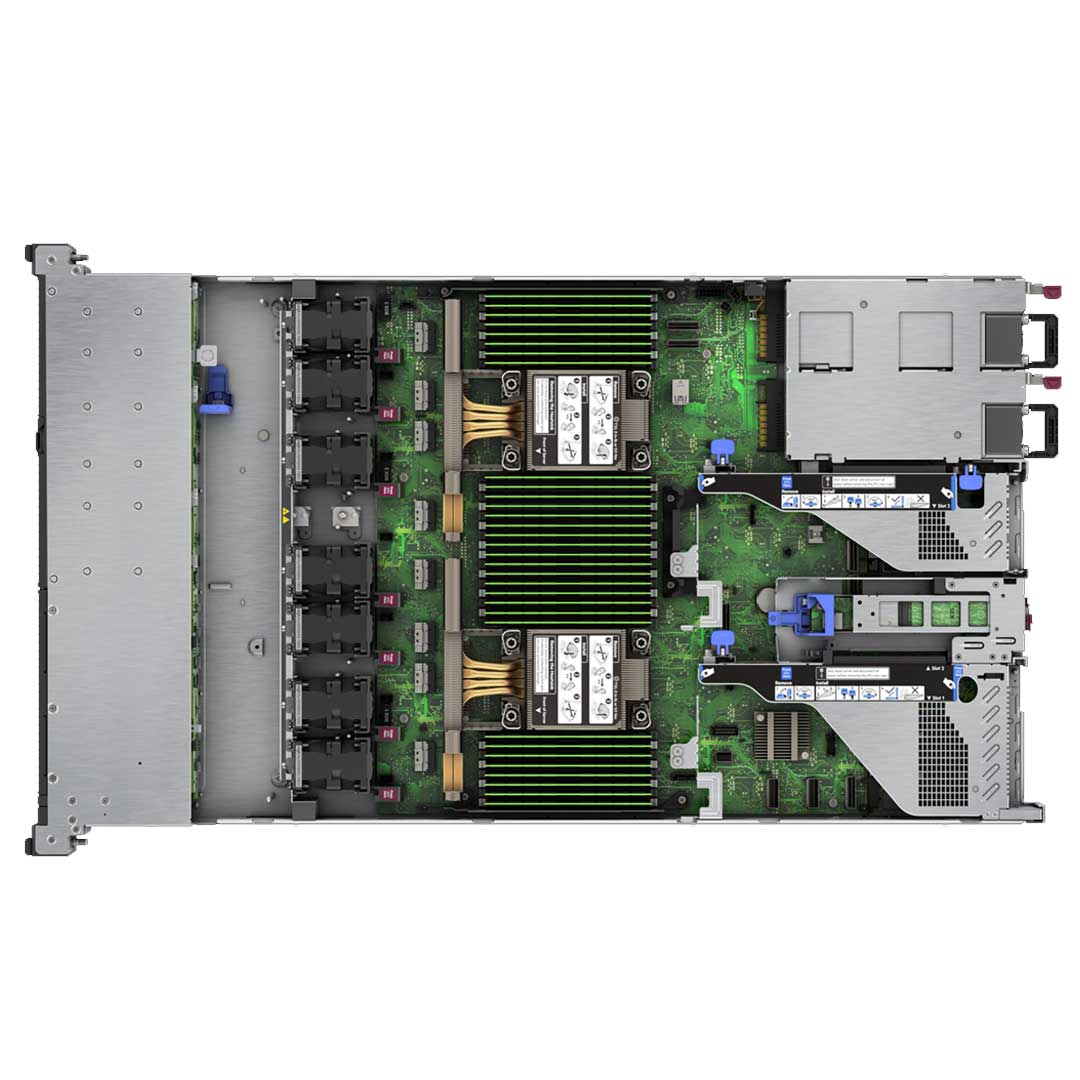

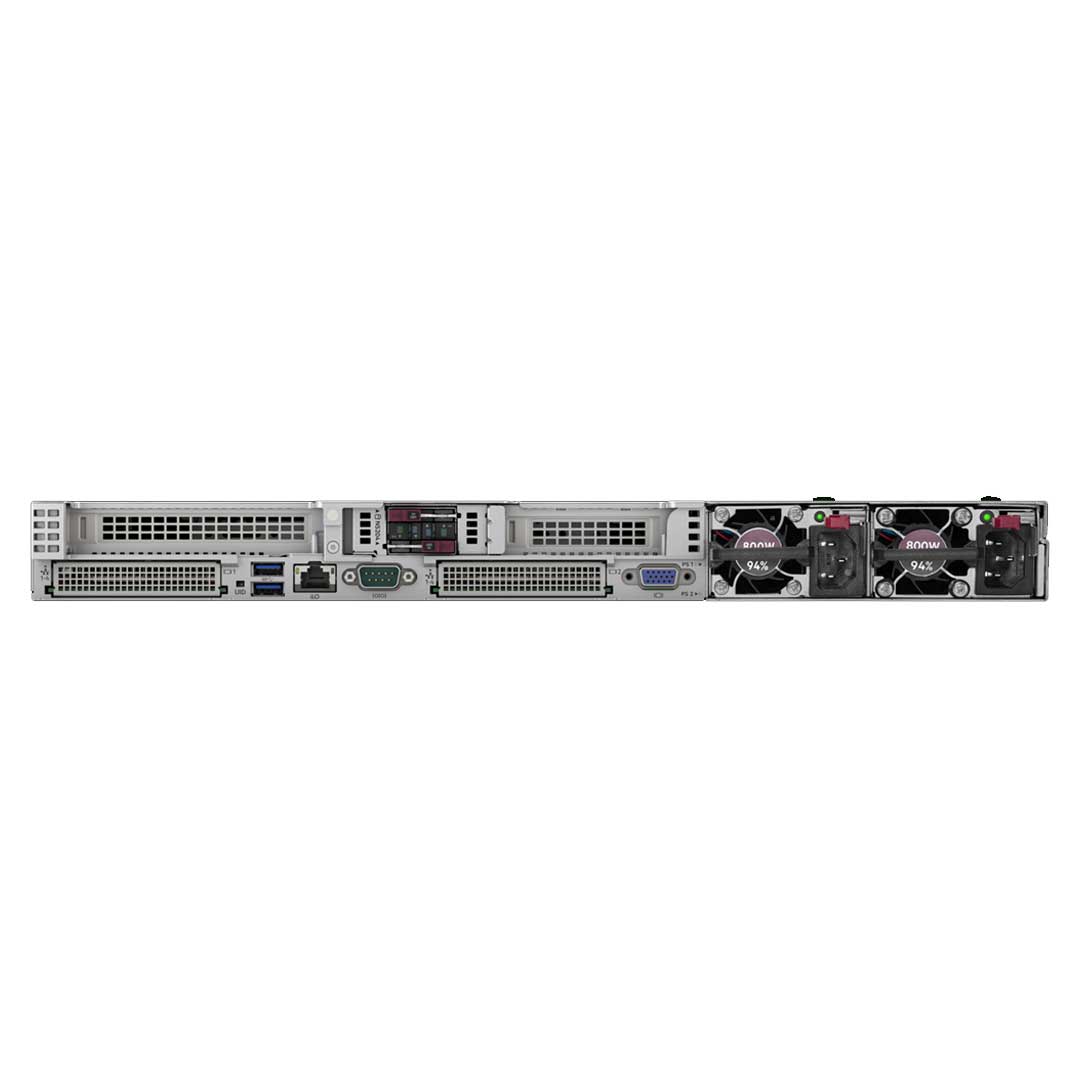

HPE ProLiant DL360 8SFF Rack Server (G11) CTO
Configure for Pricing
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
What’s New
- New 4th Generation Intel® Xeon® Scalable Processors (Extreme Core Count die/ XCC die; Medium Core Count/ MCC; High Bandwidth Memory/ HBM)
- New PCIe 5.0 support
- New HPE DDR5 SmartMemeory – Registered (RDIMM), 4800MT/s
- New HPE Gen11 Storage Controllers
- New HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device
- New HPE iLO6 support
- New Intel® Virtual RAID on CPU (Intel® VROC) Premium & Standard FIO Software for HPE
- New DL360 Gen11 20EDSFF NC CTO Server
- New DL360 Gen11 Pre-Configured Models
- New HPE NVMe EDSFF E3.s 1T SSD
- New HPE Self-encrypting Drives
- HPE ProLiant DL360 Gen11 Direct Liquid Cooling solution
- HPE 1800W-2200W Flex Slot Titanium Hot Plug Power Supply Kit
- Read the manual below for more new features.
Ideal for:
- Cloud Servers
- Corporate IT
- Database
- Data Analytics
- Retail Servers
The HPE ProLiant DL360 Gen11 server is a rack-optimized 1U dense solution that delivers exceptional compute performance, upgraded high-speed data transfer rate, and memory depth with 2P compute capability. Powered by 4th Gen Intel® Xeon® Scalable processors with up to 60 cores, increased memory bandwidth, up to 8 TB of memory, and high-speed PCIe Gen5 I/O, the HPE ProLiant DL360 Gen11 server is a perfect rack-optimized, 1U 2P, dense solution for general-purpose virtualization workloads that require increased compute density with built-in security and flexibility.
The silicon root of trust anchors the server firmware to an HPE-exclusive ASIC, creating an immutable fingerprint for the Secure Intel Processor that must be matched exactly before the server will boot. The HPE ProLiant DL360 Gen11 server is an excellent choice for EDA, CAD, and VDI.
Need help with the configuration? Contact us today!
Supported Chassis Options
Since this Server is so large and has so many configurations, we have broken it up by chassis to make this information a little easier for you to digest.

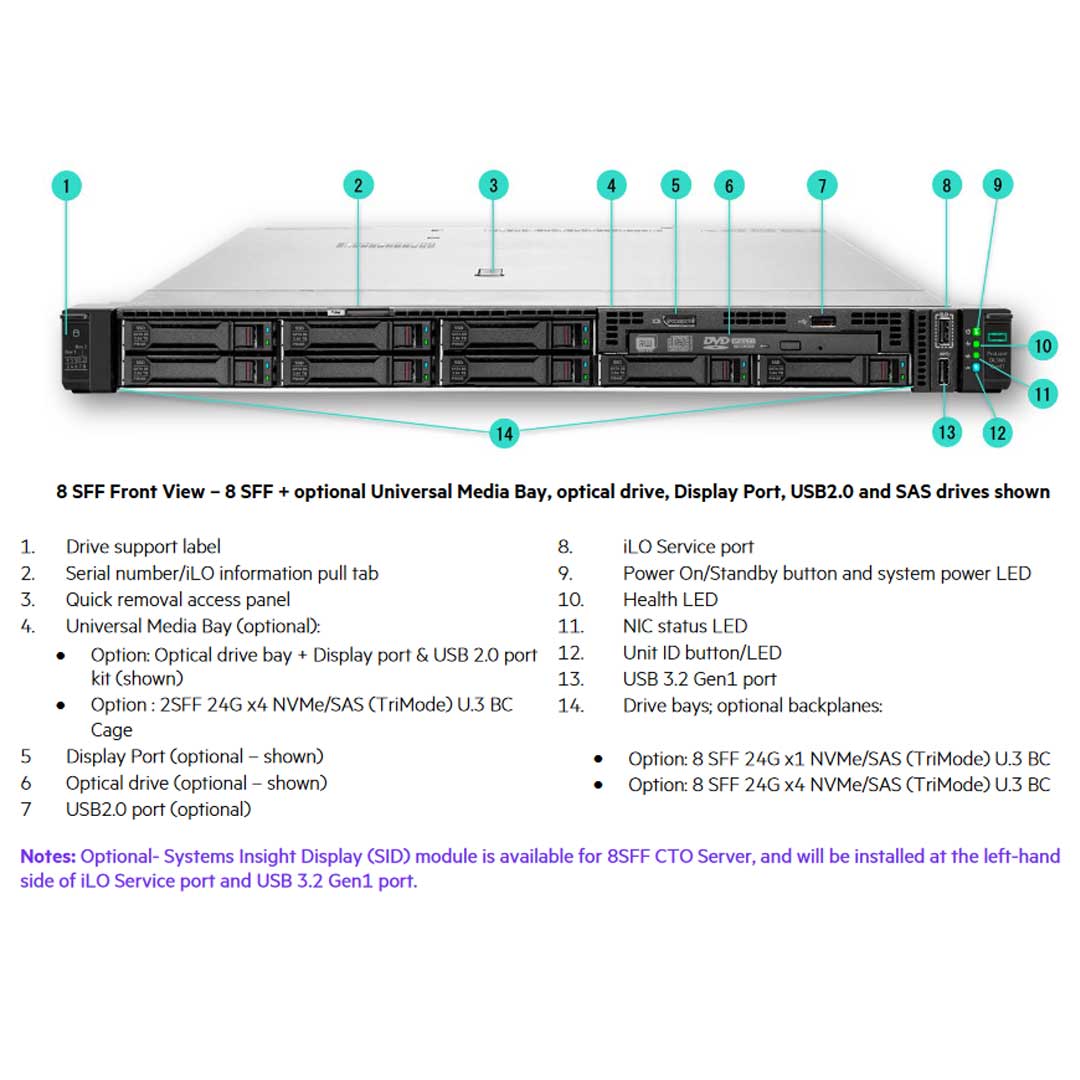

4 LFF

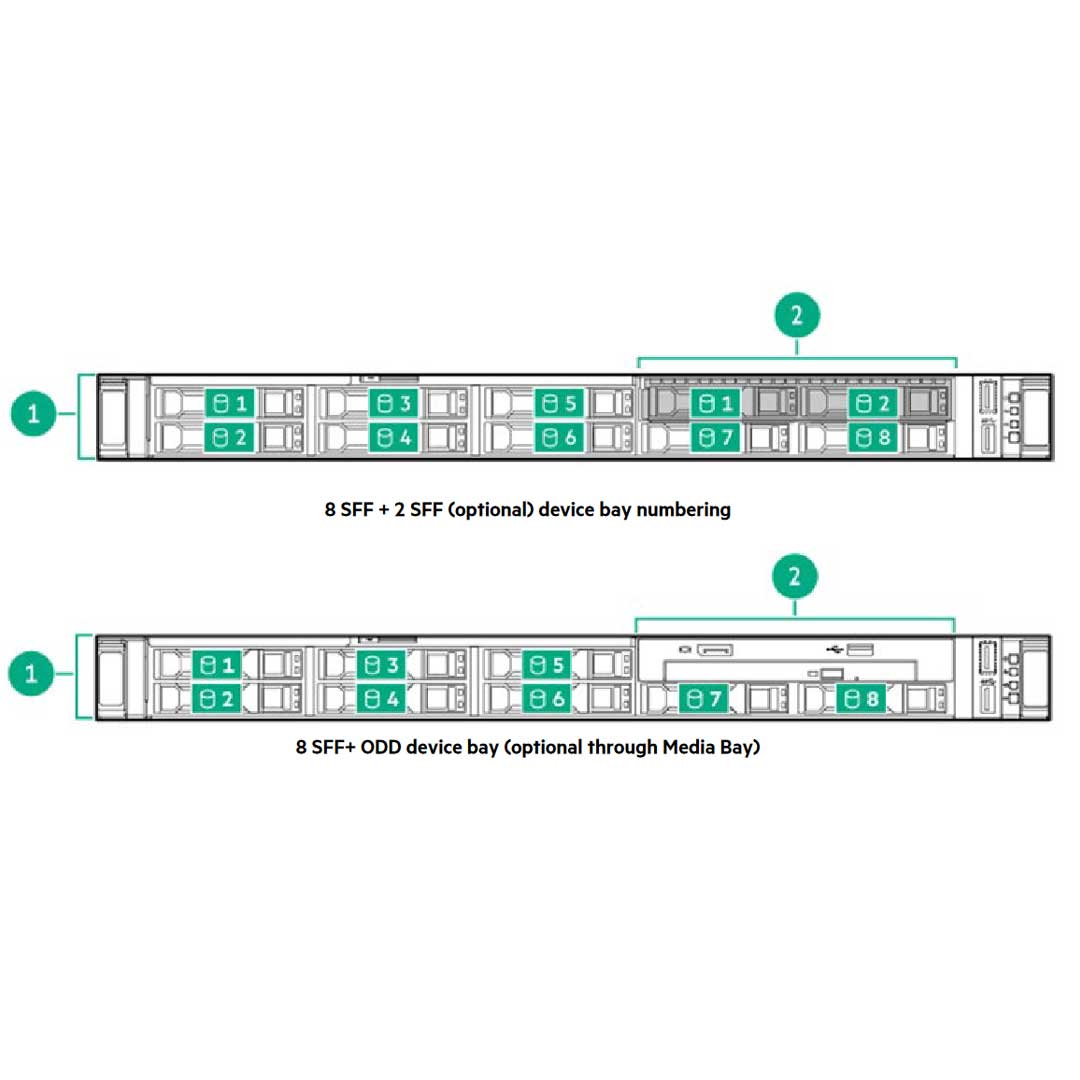

8 SFF
8+2 SFF
20x E3.S EDSFF- 8SFF x1 U.3 Tri-Mode Backplane Kit
- 8SFF x4 U.3 Tri-Mode Backplane Kit
- Optional 2SFF x4 U.3 BC Tri-Mode Enablement Kit
- Optional Display Port/USB/Optical Drive Blank Kit
Processor
The DL360 Gen11 supports the 4 th Gen Intel Xeon Processor with up to 80 cores. CTO server will populate necessary fan kits per system thermal requirements and processor models, minimum of 5 standard fans. Dual processor configurations require 7 fans, either standard or high-performance.
Some Processors can only be installed in a single socket configuration.
- Gold 6421N Processor
- Gold 6414U Processor
- Gold 5411N Processor
| Processor Suffix | Description | Offering |
|---|---|---|
| H | DB and Analytics | Highest core counts. Database and Analytics usages benefit from DSA and IAA accelerators. |
| M | Media Transcode | Optimized around AVX frequencies to deliver better performance/watt around Media, AI, and HPC workloads. |
| N | Network/5G/Edge (Hight TPT/Low latency) | Designed for NFV and networking workloads, such as: L3 forwarding, 5G UPF, OVS DPDK, VPP FIB router, VPP IPsec, web server/NGINX, vEPC, vBNG, and vCMTS. |
| S | Storage and HCI | Optimized for Storage UMA use cases with increased UPI Bandwidth for vs Mainline SKUs. |
| P | Cloud - IaaS | Designed for cloud IaaS environments to deliver higher frequencies at constrained TDPs. |
| Q | Liquid Cooling | Liquid cooled processors with higher frequency and performance at same TDP. |
| U | One Socket Optimized | Optimized for targeted platforms adequately served by the cores, memory bandwidth and IO capacity. Available from a single processor configuration. |
| V | Cloud- SaaS | Optimized for orchestration efficiency that delivers higher core counts and VMs per rack. |
| Y | Speed Select1 | Intel® SST-Performance Profile (PP) increases base frequency when fewer cores are enabled. Allows greater flexibility, deployment options and platform longevity. |
Heatsink & Fans
This DL360 Gen11 Rack Server has many fans and heat sink options based of the TDP of the processor. Below is a table showing you the TDP and which Heatsink / Fan system will be supported.
Closed-loop Liquid Cooling (P48906-B21)
Supports one or two processors go beyond 271W TDP, as a factory installation kit only. Customer self-repair or self-field upgrade is not allowed. If Closed-loop Liquid Cooling HeatSink Fan FIO Bundle Kit is selected, then any Fans (Standard Fan Kit or High Performance Fan Kit) cannot be selected.
Direct Liquid Cooling
DLC CPM from external NS204i-u (P62026-B21)
DLC CPM from PCIe Slot (P62029-B21)
Direct Liquid Cooling Heatsink Fan FIO Bundle Kit
supports two processors go beyond 271W TDP, with enhanced thermal condition
Cooling Option selection in 8+2 SFF and 4LFF CTO Servers
| CPU TDP (Watts) | 125W – 185W | 186W – 270W |#1 | 271W – 350W |#1 | 350W (LC CPU) | ||
|---|---|---|---|---|---|---|
| CPU QTY | 1 | 2 | 2 | 2 | 2 | 2 |
| Heatsink | Standard (P48904-B21) | High Performance (P48905-B21) | Closed-loop LC Heatsink and Fan FIO Bundle Kit 3 (P48906-B21) | Direct Liquid Cooling (DLC) Heatsink and High-Performance Fan (P48908-B21) FIO solution | ||
| Fans | Standard Fan (P48907-B21) | Standard Fan (P48907-B21) & | High Performance (P48908-B21) | |||
| 2 CPU Standard Fan (P54697-B21) | ||||||
| Max DIMM | 32x128GB | 32x128 GB or 16x256GB | 16x256GB | |||
| Networking | 10/25GbE PCIe adapter or OCP | |||||
| Max Drive | 4LFF SAS or 8+2 NVMe | 8SFF CTO Svr with 0 backplane & 0 drive, 25C | 4LFF SAS or 10NVMe | |||
| No support for 4LFF CTO Server | ||||||
| Internal OS Boot | Available for internal NS204i-u | |||||
| External OS Boot |#6 | Available | 30C (4LFF SAS); 30C (8NVMe); | 25C | Available | ||
| No support, 23C (10 NVMe) | ||||||
| Alternatives | Direct Liquid Cooling (DLC) Heatsink and High-Performance Fan FIO solution, for all processors in 2P Configuration. Support up to 32x256GB DIMM, Internal / external NS204i-u, 10x NVMe | |||||
| DIMM blanks | Required, embedded, and shipped as default in all CTO Servers | |||||
Rules, Requirements, and Limitations
Required for all DLC in order to function: HPE Rack, Rack Manifold, CDU, Primary Hose Kit, and Secondary Hose Kit
DLC Module from NS204i-u Cage (P62026-B21)
Both the following are NOT supported.
- HPE DL360 Gen11 NS204i-u Rear Cbl Kit
- Secondary FH Riser
DLC Module from PCIe slot (P62029-B21)
One of the Secondary Risers MUST be installed and the PCIe slot# 3 cannot be used.
Options listed below would require a Performance Fan kit or Direct Liquid Cooling bundle kit to be implemented.
- CPU TDP (as above table shows)
- 256GB DIMM
- NIC and InfiniBand adapters and OCP cards that go beyond 100GbE/200GbE
- NVMe storage (even Qty 1)
- With GPU
- With hot-plug (external) OS Boot Device NS204i-u
Fan Units
Supports Smart Cooling Modules for highest thermal design points (TDPs)
The DL360 Gen11 will support up to 7 fans with fan redundancy built in. One fan rotor failure will place server in degraded mode but fully functional. Two fan rotor failures could provide warning and imminent server shutdown.
Standard Fan Kit (P48907-B21)Dual rotor hot plug Standard Fan kit (includes 5 fans) for processors below 185W TDP.
2P standard Fan Kit (P54697-B21)Dual rotor hot plug 2P Standard Fan Kit (includes 2 fans) for second processor.
Performance Fan Kit (P48908-B21)Dual rotor hot plug High Performance Fan Kit available (includes 7 fans), for one or two processors from 186W to 270W TDP. Or one processor with 300W TDP.
Memory
This DL360 Gen 11 can hold up to a total of 8TB of DDR5 memory on 32 DIMMs in a 2-socket configuration. 16 DIMMs per processor.
All DIMMs in a Processor socket must have the same number of ranks (unless explicitly specified otherwise). x8 DIMMs and x4 DIMMs cannot be mixed in the same channel or same Processor socket.
Rules & Limitations
- All empty DIMM slots must have a HPE DDR4 DIMM Blank Kit (P07818-B21) installed.
- Max capacity (RDIMM) 8.0 TB 32 x 256 GB RDIMM @ 4800 MT/s
- Mixing of DIMM (UDIMM, RDIMM, and LRDIMM) not supported.
- Mixing vendor is allowed for RDIMMs, but it is not allowed for 3DS RDIMMS
- If a 350W CPU is selected with Closed Loop Liquid cooling, then 256GB DIMM cannot be selected.
- If 256GB of Memory is selected, and without DLC Module. Then a high-speed Networking/ InfiniBand card (PCIe and OCP) that is 100G or more cannot be selected.
- If 256GB Memory is selected, will be limited using 7x performance fan or Closed Loop Liquid Cooling fan (not allow standard fan)
RAID Controller
Choice of Intel® VROC Software RAID or HPE ProLiant Gen11 MR and SR PCIe or OCP plug-in Controller. If any of these controllers are selected, then "HPE 96W Smart Stg Li-ion Batt 145mm Kit (P01366-B21 )" or "HPE Smart Hybrid Capacitor w/ 145mm Cbl (P02377-B21 )" must be selected. Vice versa. Now if any of these Storage Batteries get selected. They also need the HPE ProLiant DL360 Gen11 Storage Controller Enablement Cable Kit (P48918-B21).
Software RAID Controller (VROC) SATA
- RAID Support- 0/1/5/10.
- Intel® VROC SATA is off by default and must be enabled.
For 8SFF CTO Model
If MR408i-o is the only controller selected, then 8SFF cable kit cannot be selected for 8SFF x4 drive cages.
For 8SFF x4 U.3 drive cage selection with 2SFF Drive cageIf MR416i-p/ MR216i-p and MR416i-o/ MR216i-o/ MR408i-o are selected, then both "HPE DL360 Gen11 8SFF PCIe Cbl Ki/ P48909-B21 or HPE DL360 Gen11 OROC TM Cbl Kit/ P52416-B21" and "HPE DL360 Gen11 2SFF TM Cbl Kit/ P48910-B21" must be selected.
Requires 8 SFF cables (P48909-B21 HPE ProLiant DL360 Gen11 8SFF PCIe Controller Cable Kit) for Tri-Mode PCIe standup controllers.
Prioritization list for Primary controller selection in HPE ProLiant DL360 Gen11 8SFF NC CTO Server (P52499-B21) is as follows:
- HPE SR932i-p Gen11 24G Controller Kit
- HPE MR416i-o Gen11 12G Controller Kit
- HPE MR416i-p Gen11 12G Controller Kit
- HPE MR408i-o Gen11 SPDM Storage Cntlr
- HPE MR216i-o Gen11 12G Controller Kit
- HPE MR216i-p Gen11 12G Controller Kit
- Intel® VROC
- Direct Attach
There are a lot of rules with RAID in the PDF Manual. I recommend you reading the manual to understand all the requirements and limitations of RAID in this system.
- 1 OROC card is selected, by default connected from 8SFF backplane to OCP Slot1.
- 2 OROC cards are selected, by default the 8SFF controller cable is connected to OCP Slot1 (the comparably higher-end OROC card to be selected by default) and the 2SFF backplane is connected to OCP Slot2 (comparably less high-end one) with 2FF controller cable.
- If "HPE FIO No Smart Storage Battery (P06141-B21 )" is selected, then SR932/ MR416/ MR408 controller must be selected.
- If RAID is selected and both SAS AND SATA drives are configured, then only the SAS drives will be used in the RAID set. (SAS drives must be the same part number; SATA drives can vary in part numbers).
- If RAID is being selected in a configuration with Intel® VROC and an internal controller, then Customer Defined RAID Setting (389692-B21) must be selected.
| Maximum Storage | ||
|---|---|---|
| Storage | Capacity | Configuration |
| Hot Plug SFF SAS HDD | 24.0 TB | 8+2 x 2.4 TB (with optional 2 SFF cage on UMB) |
| Hot Plug SFF SATA HDD | 20.0 TB | 8+2 x 2.0 TB (with optional 2 SFF cage on UMB) |
| Hot Plug SFF SAS SSD | 15.3 TB | 8+2 x 15.36 TB (with optional 2 SFF cage on UMB) |
| Hot Plug SFF SATA SSD | 76.8 TB | 8+2 x 7.68 TB (with optional 2 SFF cage on UMB) |
| Hot Plug SFF U.3 NVMe PCIe SSD | 153.6 TB | 8+2 x 15.36 TB (with optional 2 SFF cage on UMB) |
| Hot Plug LFF SAS HDD | 80.0 TB | 4 x 20 TB |
| Hot Plug LFF SATA HDD | 80.0 TB | 4 x 20 TB |
| Hot Plug LFF SAS SSD | 30.72 TB | 4 x 7.68 TB |
| Hot Plug LFF SATA SSD | 3.84 TB | 4 x 960 GB |
| M.2 NVMe SSD | 960 GB | 2 x 480 GB (shipped with optional HPE NS204i-u Gen11 NVMe Hot Plug Boot Optimized Storage Device ): Available with external or internal version |
| EDSFF MVMe SSD | 307.2TB | 20 x 15.36 TB |

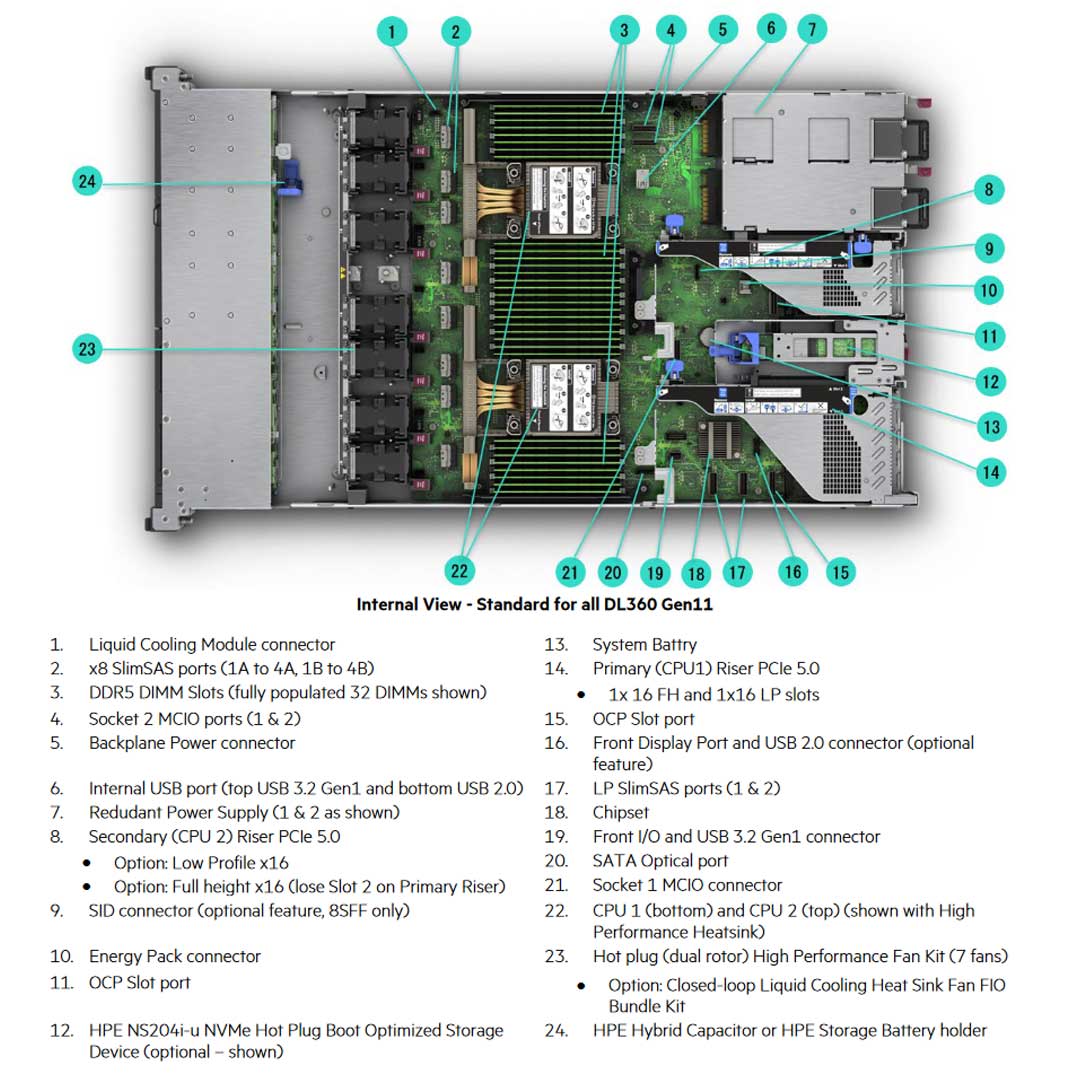

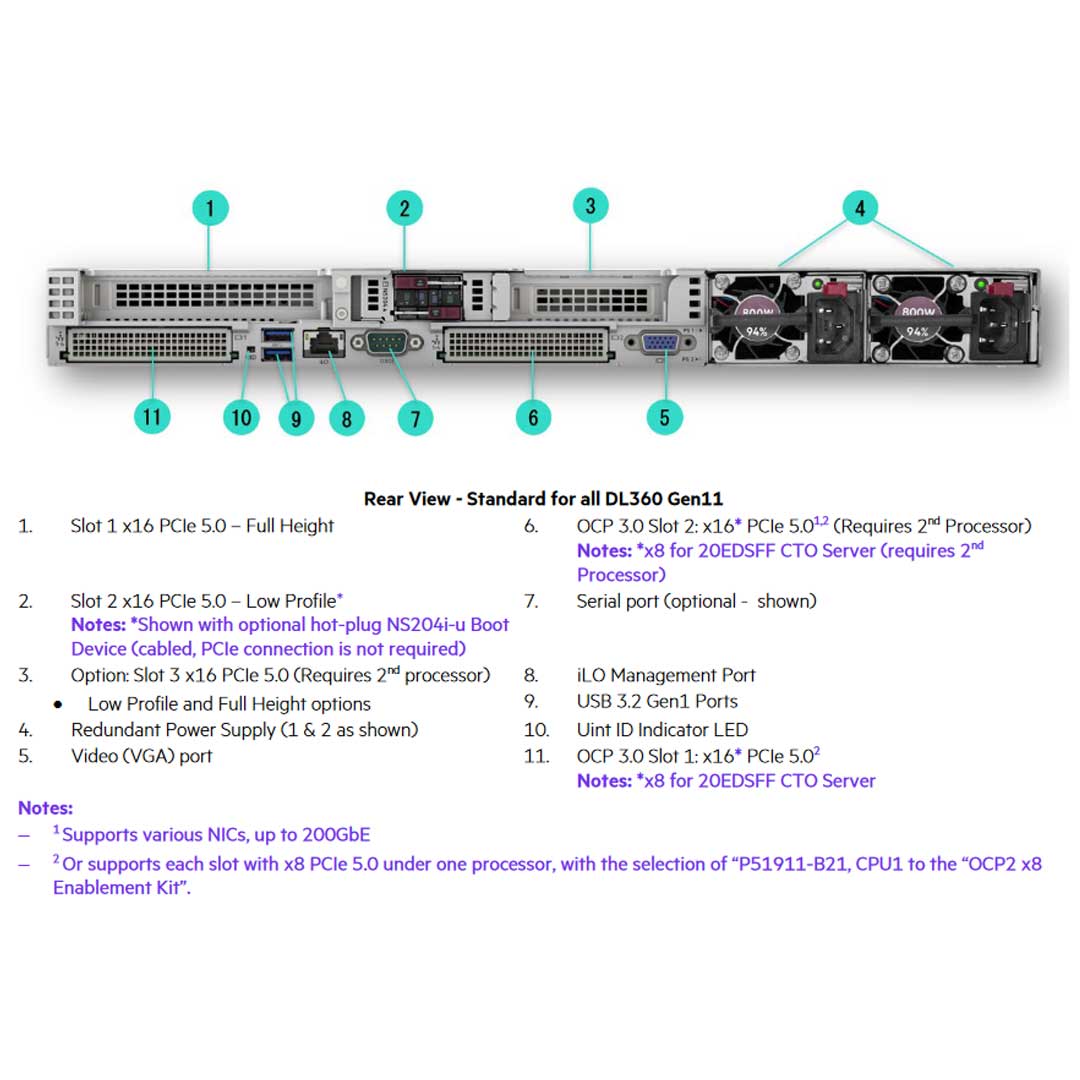

Expansion Slots
Primary Riser
The system can hold up to 3 PCIe 5.0 slots on two risers. The first riser is a default butterfly riser that comes with the chassis. The default riser is controlled by the first CPU and has two PCIe 5.0 x16 slots. Slot 1 is a full-height while slot 2 is a half-height slot.
Secondary Riser
The second riser has two options to choose from. One option is the FH Riser makes Slot 2 on Riser 1 not available while the LP Riser does make slot 2 available. With the second option, you are able to get all 3 PCIe 5.0 slots integrated.
If you install the NS204i-u Rear Cable Kit (P54702-B21), then slot 2 of riser 1 will not be available since this is where that card can be installed. You do have another option of installing this Ns204i-u internally (P48920-B21). This OS Boot device includes 2x 480GB M.2 NVMe SSDs, with preconfigured hardware RAID1.
| Riser Information | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Part Number | Description | Riser Position | Slot Bus Width (Gen5 Lanes) |
GPU Support | NVMe Direct Connect | M.2 Connect | ||||
| Prim. | Sec. | #1 | #2 | #3 | Connectors | Max SSDs | ||||
| (default in chassis) | HPE DL360 Gen11 x16/x16 Primary Riser | D | N/A | x16 | x16 | N/A | Y | N/A | N/A | N/A |
| P48901-B21 | HPE ProLiant DL360 Gen11 x16 Full Height Riser Kit |#1 | N/A | O | N/A | N/A |#1 | x16 | Y | N/A | N/A | N/A |
| P48903-B21 | HPE ProLiant DL360 Gen11 x16 LP Riser Kit | N/A | O | N/A | N/A | x16 | Y |#2 | N/A | N/A | N/A |
| 1 #1 | If secondary FH riser is selected, then maximum 2 quantity of PCIe FH cards can be selected, as primary PCIe Slot 2 cannot be used. #2 | GPU max 75W |
||||||||||
| PCIe Expansion Slots | |||||
|---|---|---|---|---|---|
| Primary Riser (default in chassis) | |||||
| Expansion Slots # | Technology | Bus Width | Connector Width | Processor | Slot Form Factor |
| 1 | PCIe 5.0 | x16 | x16 | CPU 1 | Full-height, up to 9.5” length (or half-length card) |
| 2 | PCIe 5.0 | x16 | x16 | CPU 1 | Half-height (Low-profile), up to 9.5” length (or half length card) |
| Secondary Riser | |||||
| 3 | PCIe 5.0 | x16 | x16 | CPU 2 | Full-height, up to 9.5” length (or half-length card). Slot 2 will be not available. |
| Half-height (Low-profile), up to 9.5” length (or up half length card). Slot 2 is available. | |||||
GPU
Supports up to 2 single wide (SW) GPUs to accelerate graphic intense workloads. Mixing of different Graphics Option is not allowed. Requires high performance fans.
- R9H23C | NVIDIA A2 16GB PCIe Non-CEC Accelerator for HPE
- S0K89C | NVIDIA L4 24GB PCIe Accelerator for HPE
For GPU selection, pls refer to the support matrix in GPU section
- In 8SFF CTO Model, if the Graphics Option is selected with the Processor that is more than 270W, then Maximum of 8 NVMe/ SAS/ SATAdrives can be selected.
- In EDSFF CTO Model, if the Graphics Option is selected with Processor Wattage is more than 270W, then DLC Module & Performance Fan Kit must be selected
- If x16 LP Riser kit (P48903-B21) is installed. The MAX Wattage GPU is 75W.
- If PCIe Standup Tri-Mode Controller adapter is ordered, can only be slotted in PCIe Slot 1 or Slot2. HHHL (LP) GPGPU card should be slotted in PCIe Slot 3.
- If GPU is selected, standard heatsink & stanrd fan kits are not supported. Requires high performance fans.
- If GPU is selected for best performance across common workloads, HPE recommends system main memory at least twice the memory of all GPU
Integrated Lights-Out 6 (iLO 6)
Software that enables you to securely configure, monitor, and update your HPE ProLiant Gen11 servers seamlessly, from anywhere.
Embedded in Hewlett Packard Enterprise servers, HPE Integrated Lights-Out 6 (iLO 6) is an exclusive core intelligence that monitors server status, providing the means for reporting, ongoing management, service alerting, and local or remote management to quickly identify and resolve issues.
Power
HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less installation into HPE ProLiant Gen11 Performance Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.
Mixing of 2 different power supplies is NOT supported.
HPE 500W Platinum PSU Limitations
- 4LFF CTO model only
- Processors with a TDP of 125W or less are supported.
- Only 1 Processor is supported.
- Max 2 networking/InfiniBand cards can be selected and they cant be x16 cards
- Max 8 DIMMs can be selected
HPE 1600W -48VDC PSU Requirements
Either option below must be selected and the quantity must match. These cannot be selected together
- "HPE 1600W DC PSU Power Cable Kit (P22173-B21)"
- "HPE 1600W DC PSU Power Lug Option Kit (P36877-B21)"
Dimensions & Weight:
Dimensions
SFF Drives (Height x Width x Depth)
- 29 x 43.46 x 75.31 cm
- 69 x 17.11 x 29.65 in
EDSFF Drives (Height x Width x Depth)
- 29 x 43.46 x 77.31 cm
- 69 x 17.11 x 30.43 in
Weight (approximate)
- SFF minimum: One drive, one processor, one power supply, two heatsinks, one Smart Array controller, and five fans.
- 20.44 kg (45.07 lb) - SFF maximum: Ten drives, two processors, two power supplies, two heatsinks, one Smart Array controller, and seven fans.
- 14.75kg (32.51lb) - EDSFF minimum: One drive, two processors, one power supply, two heatsinks, one Smart Array controller, and seven fans.
- 21.19kg (46.71lb) -EDSFF maximum: Twenty drives, two processors, two power supplies, two heatsinks, one Smart Array controller, and seven fans.
Current Configuration
(List below serves as quick links to each section)
