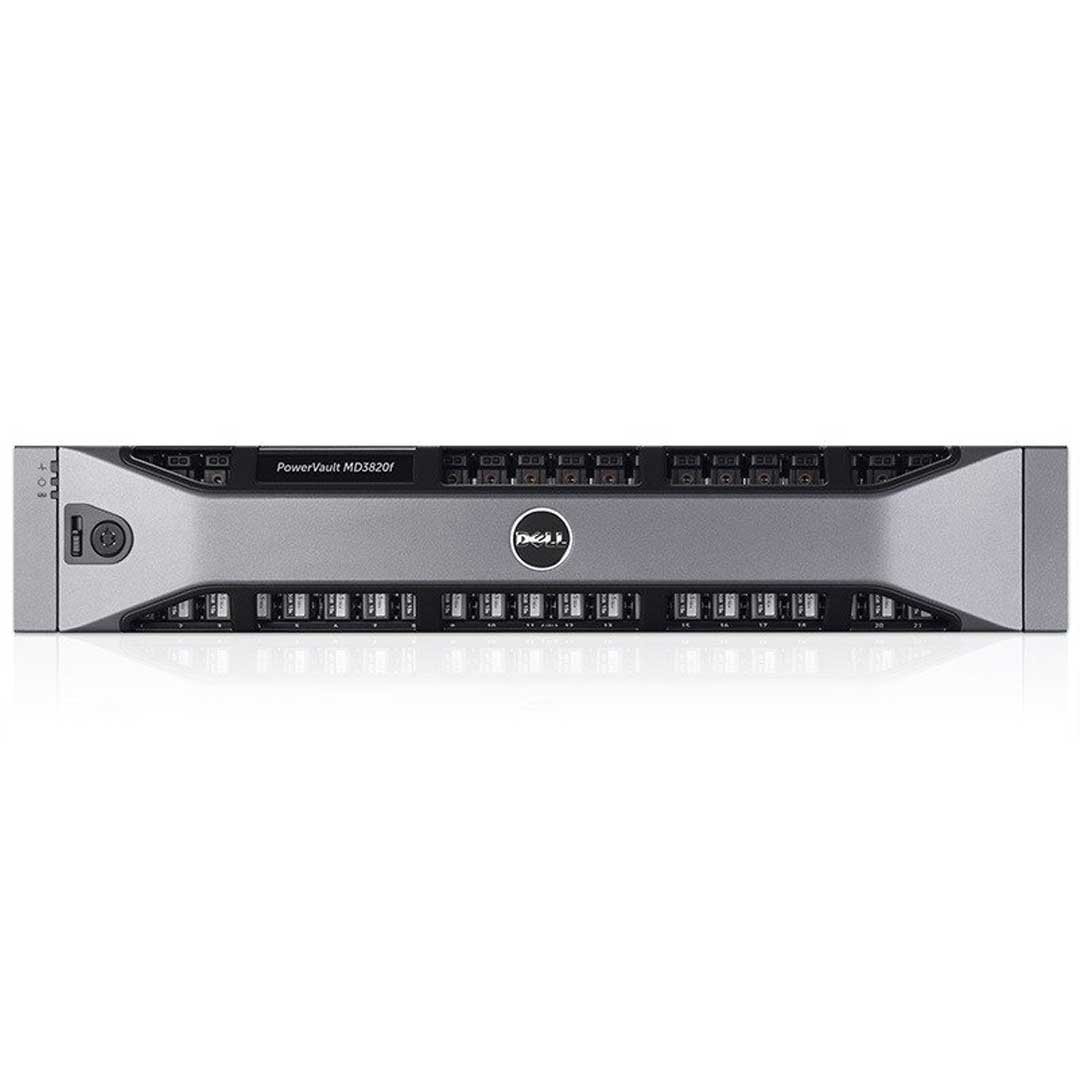

Dell PowerVault MD3820f 24x2.5" 16Gb (FC) SAN Storage Array CTO
Configure for Pricing
Quick Specs
Form Factor:
2U rack server
Storage | Max: 12024 SFF SAS (HDD/SSD)
Mix and match drives:Supported

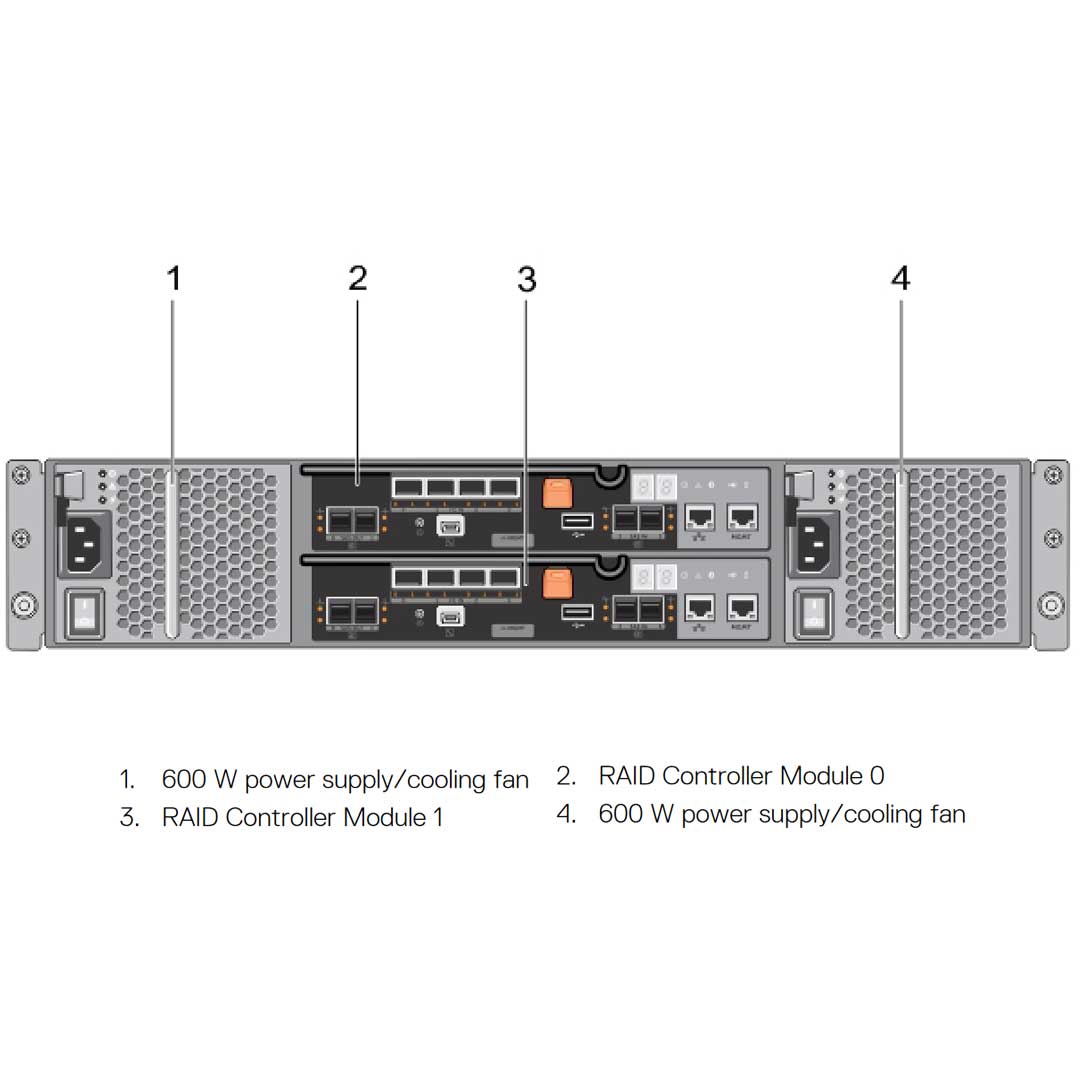

Controllers:Supports up to 2
Cache Per Controller:4GB or 8GB

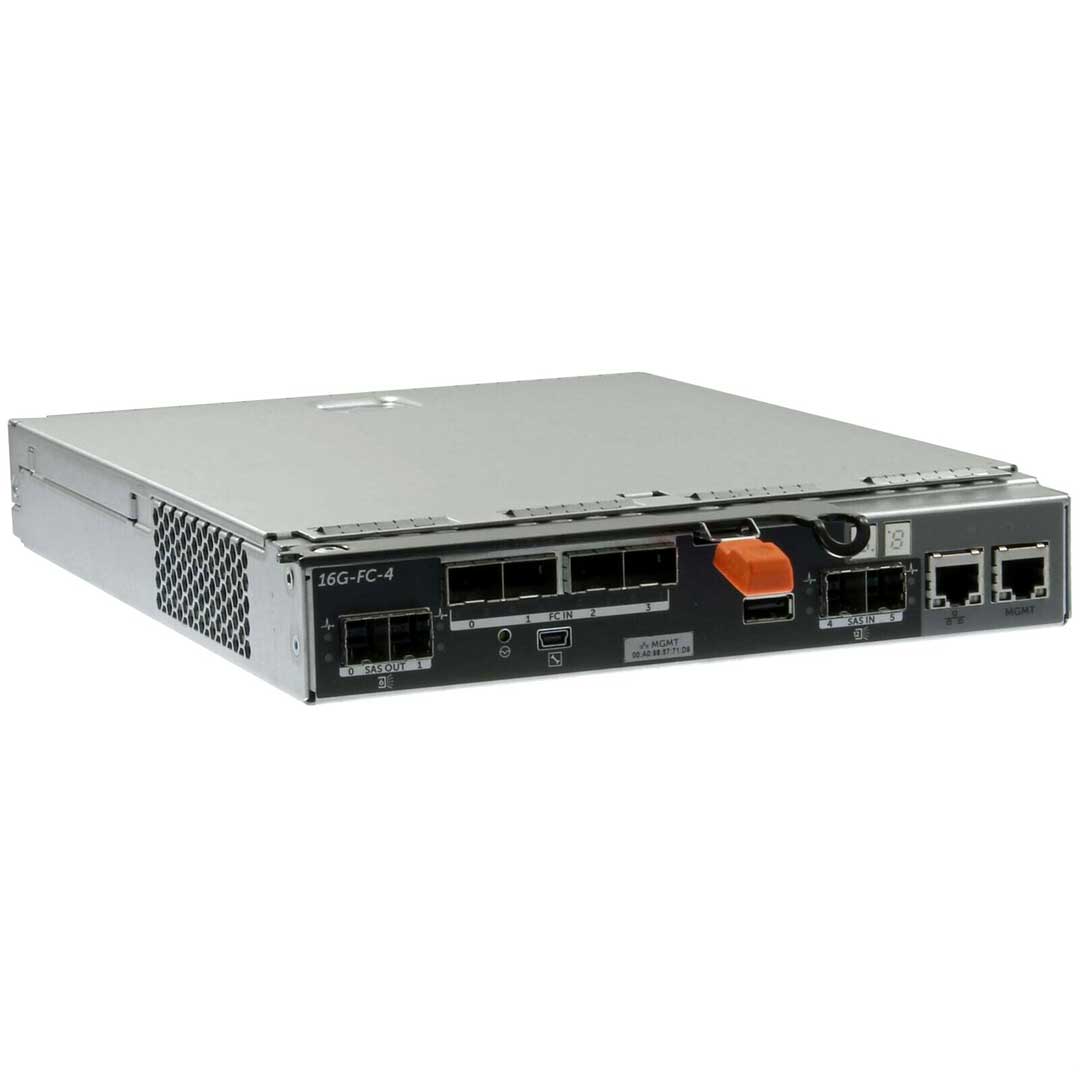

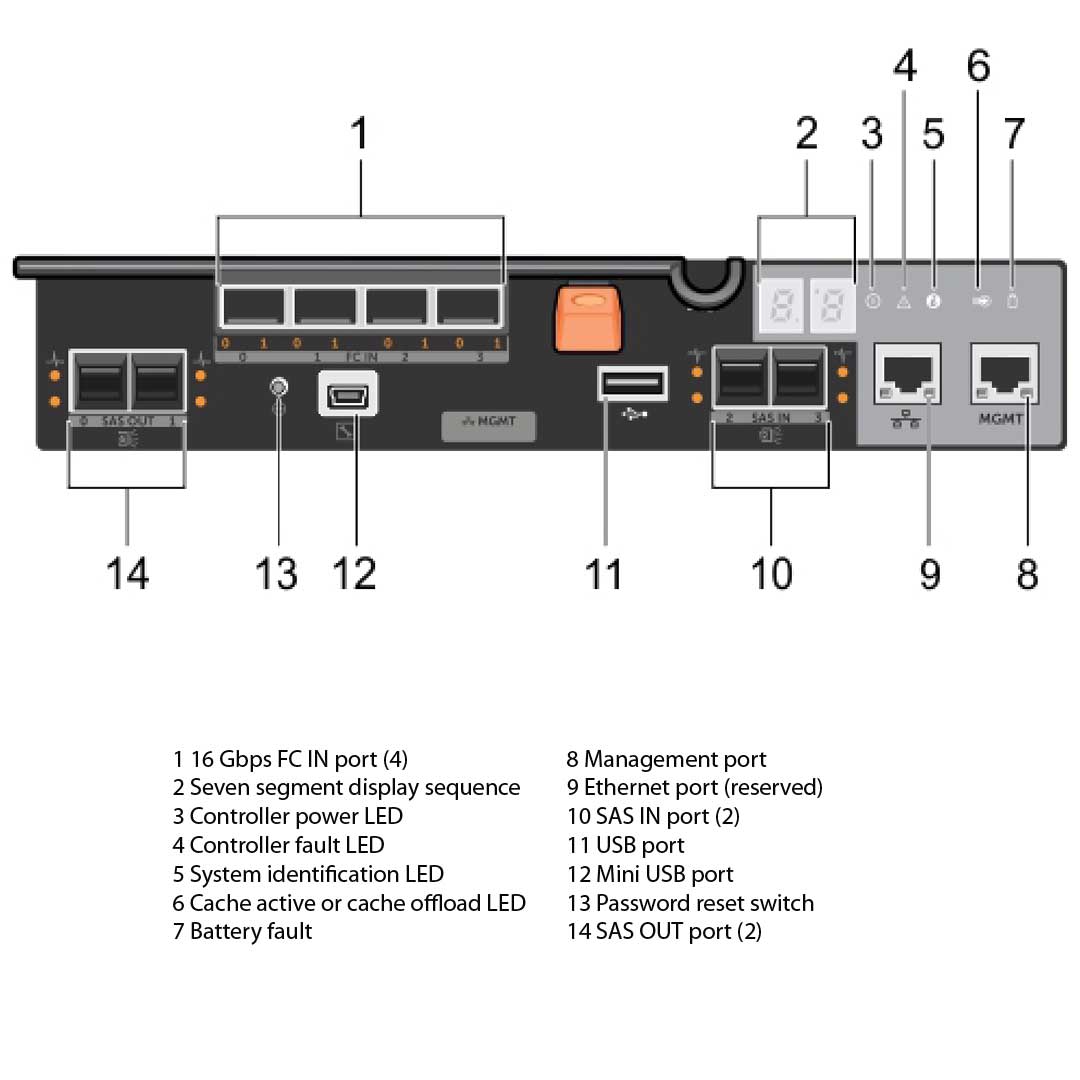

Ports Per Controller:- Four x4 16Gb FC SFP &
Two 12Gb SAS Host Connectivity - Two 12Gb SAS Expansion Connectivity
- One RJ-45 1Gb Ethernet Remote Management
- One PS/2 Serial Service Management
Host Connectivity:
Single or Dual Controller Models:
Single or Dual Controller Models:
Support up to 64 servers
Expansion Storage:Scale up to 120 (192 disks with premium feature kit) total drives using MD1200 and/or MD1220 expansion enclosures
The Dell PowerVault MD3820f is a powerful storage system that can support up to 24 2.5" HDD/SSD and up to 32 servers directly connected per controller (maximum 64 hosts). You can maximize performance with 16Gb Fibre Channel (FC), 4GB, or 8GB cache per controller, and SSD support. Single and dual controller models are available, with a maximum of 16GB (8GB per controller).
Keeping pace with the latest technology
With four 16Gb Fibre Channel ports per controller, you can enjoy high-speed connectivity and improved performance with double the existing bandwidth. The MD3 series also offers 8GB cache on dual controller options in Fibre Channel, providing up to 16GB total cache per array. You get high availability and high performance without sacrificing ease of use, which is synonymous with the PowerVault MD family.
The Dell PowerVault MD3 series lets you mix and match drives to create a tiered storage environment that meets your specific requirements. You can scale up to 120 drives with MD1200 and/or MD1220 expansion enclosures, ensuring that your storage needs are met as your business grows.
With dimensions of 68cm (3.42”) x 44.63cm (17.57”) x 56.1cm (22.09”) and a weight of 9.3kg (64.59 lb)), the Dell PowerVault MD3800f is compact and easy to manage. With the ability to reduce the effort required to store and manage your data, this storage solution is an excellent choice for businesses of all sizes. The 12-drive form factors can scale up to 120 drives when attached to the PowerVault MD1200 or MD1220 expansion enclosures, ensuring that your storage needs are met as your business grows.
