Current Configuration
(List below serves as quick links to each section)
Server Chassis
Processors
Memory
RAID Controllers
Boot Optimized Storage Subsystem (BOSS)
LFF (3.5") SAS Drives
LFF (3.5") SATA Drives
Optical Drive
TPM
iDRAC Remote Options
Power Supplies
ECS Warranty
Quick Specs
Form Factor:
Tower server
Processor | Max: N/A1x Intel E-2200, Core i3, or Celeron
Memory | Max: 64GB4 DDR4 UDIMM 2666Mhz
Storage | Max: 4TB4 LFF Cabled Drives
Boot OptionsBoot Optimized Server Storage (BOSS)
RAID Controller:S140 (SW RAID)
PERC H730P, H330, HBA330 (non-RAID), 12Gbps SAS HBA (non-RAID)
2 x 1GbE LOM
Remote Management:iDRAC9
PCIe Slots: 41x8 Gen3 (x16 connector) FH/HL
1x8 Gen3 (x8 connector) FH/HL
1x4 Gen3 (x8 connector) FH/HL
1x1 Gen3 (x1 connector) FH/HL
Not Supported
Other Versions
The PowerEdge T140 is the easy to use, safe, and practical entry-level one-socket server for your growing business
Make IT easyThe Dell EMC PowerEdge T140 is easy to set up and easy to use, allowing you to focus on your business. The PowerEdge T140 enables you to work on your everyday business applications efficiently. The PowerEdge T140 can also conveniently be used in various locations due to enhanced 14G thermal efficiency and quiet acoustics. The PowerEdge T140 enables you to work on your everyday business applications efficiently such as file and print, mail and messaging and point of sale.
- Work more efficiently with improved performance due to 50% more cores with Intel Xeon E-2200 processors, 11% increase in memory speed, and 20% more PCIe lanes.1
- Get set up as much as 66% faster with our ProDeploy suite of services.
- Work in wider operating temperature and humidity levels with Fresh Air 2.0 capable hardware.
Intuitive system management with intelligent automation
PowerEdge servers with embedded iDRAC with Lifecycle Controller offer agent-free management right out of the box, delivering smart automation of routine tasks. The T140 is easily managed which frees up time for work priorities.
- Simplify management with the New OpenManage Enterprise console, with customized reporting and automatic discovery.
- Resolve issues with less IT effort with ProSupport Plus and SupportAssist proactive and predictive technology.
Your practical, entry-level server
The Dell EMC PowerEdge T140 allows you to focus on your business, that’s why we offer the entry-level practical business server. Organize your data in one central data repository.
Cooling & Fans

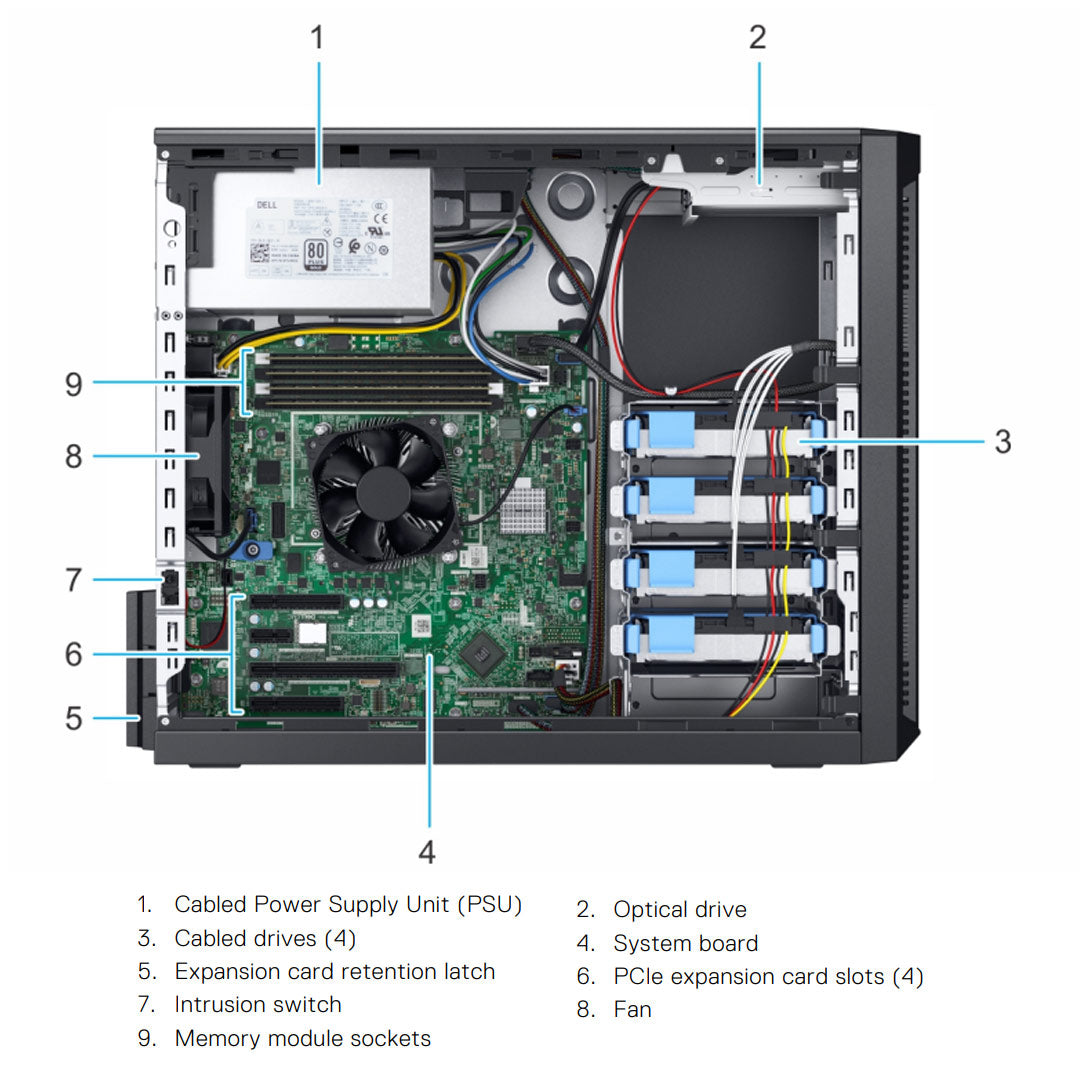

The Dell EMC PowerEdge T140 system supports the following:
- One system cooling fan located at the back of the system.
- One processor cooling fan located on the heat sink.
Memory Options
Supported memory speeds are:
- 2666 MT/s
- 2400 MT/s
- 2133 MT/s
| DIMM type | DIMM Rank | DIMM Capacity | Minimum RAM | Maximum RAM |
|---|---|---|---|---|
| UDIMM | Single rank | 8 GB | 8 GB | 32 GB |
| 16 GB | 16 GB | 64 GB | ||
| Dual rank | 8 GB | 8 GB | 32 GB | |
| 16 GB | 16 GB | 64 GB |
PCI Configurations
The Dell EMC PowerEdge T140 system supports up to four PCI express (PCIe) Generation 3.
| PCIe slot | Processor Connection | PCIe slot height | PCIe slot length | Slot width |
|---|---|---|---|---|
| Slot 1 (Gen3) | Processor | Full Height | Half Length | x8 link in x8 slot |
| Slot 2 (Gen3) | Processor | Full Height | Half Length | x8 link in x16 slot |
| Slot 3 (Gen3) | Platform Controller Hub | Full Height | Half Length | x1 |
| Slot 4 (Gen3) | Platform Controller Hub | Full Height | Half Length | x4 link in x8 slot |
Networking
The Dell PowerEdge T140 comes with a 2 Port 1GbE LOM card installed. You can access this lom card from the back of the Tower Server. You also have the ability to install up to 4 PCIe adapters in the slots discussed above.

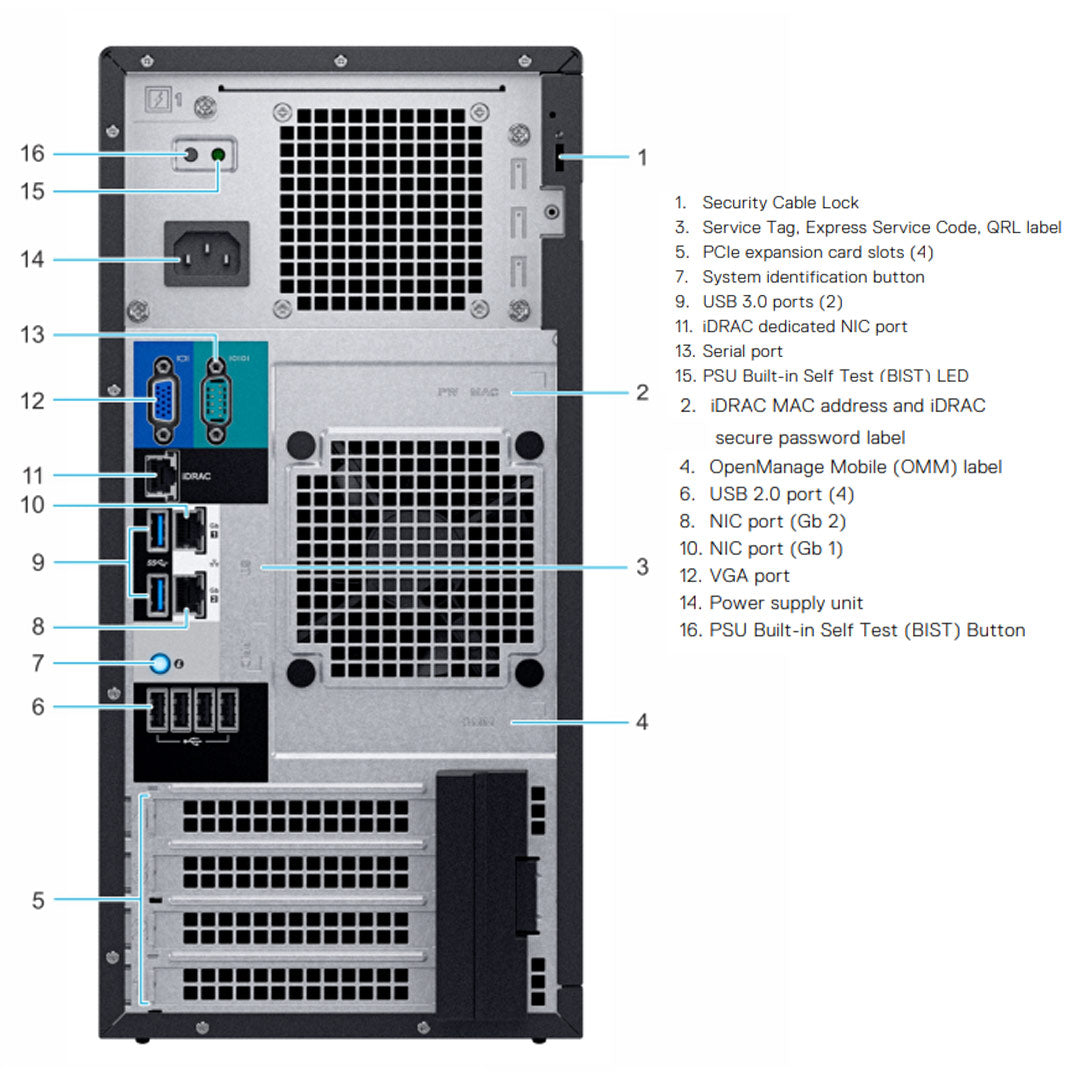

You can locate the LOM ports by looking at the Rear image of the server above.
Storage Controllers
The system comes with Software RAID: PERC S140. You also have the Boot Options of the (BOSS) Card. This boss card holds up to 2x M.2 240GB (RAID 1 or No RAID) or 1x M.2 240GB (No RAID only)
| Internal Controllers | External Controllers |
|---|---|
| ● PERC H730P ● PERC H330 ● HBA330 |
● 12 Gb/s Ext SAS HBA ● HBA355e |
Power & Dimensions
Power Supply Unit (PSU)
The Dell PowerEdge T140 only has 1 Cabled PSU in the back of the Tower Server. The only option for power is a Single cabled 365W PSU
Dimensions
- Chassis height: 360mm (14.17 in)
- Chassis width: 175mm (6.89 in)
- Chassis depth: 454 mm (17.9 in)
- Chassis weight: 11.84 kg (26.10 lb.)
