Quick Specs
Form Factor:
2U rack server
Processor | Max: 64 Cores1x 2nd or 3rd Gen AMD EPYC
Memory | Max: 1TB RDIMM | 2TB LRDIMM16 ECC DDR4 RDIMM/LRDIMM 3200Mhz
Storage | Max: N/AFront bays:
Up to 8 x3.5” Hot Plug SATA/SAS HDDs
Up to 12x 3.5” hot-plug SAS/SATA HDDs
Up to 24x 2.5” Hot Plug SATA/SAS/NVMe
Rear bays:
Up to 2x 3.5” hot-plug SAS/SATA HDDs
Boot Optimized Server Storage (BOSS)
IDSDM
S150 (SATA SW RAID 0, 1, 5 and 10.)
H330, H730P, H740P, H840, HBA330, 12Gb/s SAS HBA
2 x 1GbE
2 x 10GbE BT
2 x 10GbE SFP+
2 x 25GbE SFP28
iDRAC9 with Lifecycle Controller
PCIe Slots:Up to 4
2 x Gen3 slots 2 x16
2 x Gen4 slots 2 x16
Up to 4 Single-Wide GPU(T4, A16, V100S)
Up to 1 Full-Height FPGA
Other Versions
- Dell PowerEdge R710
- Dell PowerEdge R720
- Dell PowerEdge R720XD
- Dell PowerEdge R730
- Dell PowerEdge R730XD
- Dell PowerEdge R740
- Dell PowerEdge R740XD
- Dell PowerEdge R740XD2
- Dell PowerEdge R7415
- Dell PowerEdge R7425
- Dell PowerEdge R750
- Dell PowerEdge R750XA
- Dell PowerEdge R750XS
- Dell PowerEdge R7515
- Dell PowerEdge R7525
- Dell PowerEdge R760
- Dell PowerEdge R760XA
- Dell PowerEdge R760XS
- Dell PowerEdge R760XD2
- Dell PowerEdge R7615
- Dell PowerEdge R7625
(Click to View)
Ideal for:
- Data Analytics
- Virtualization

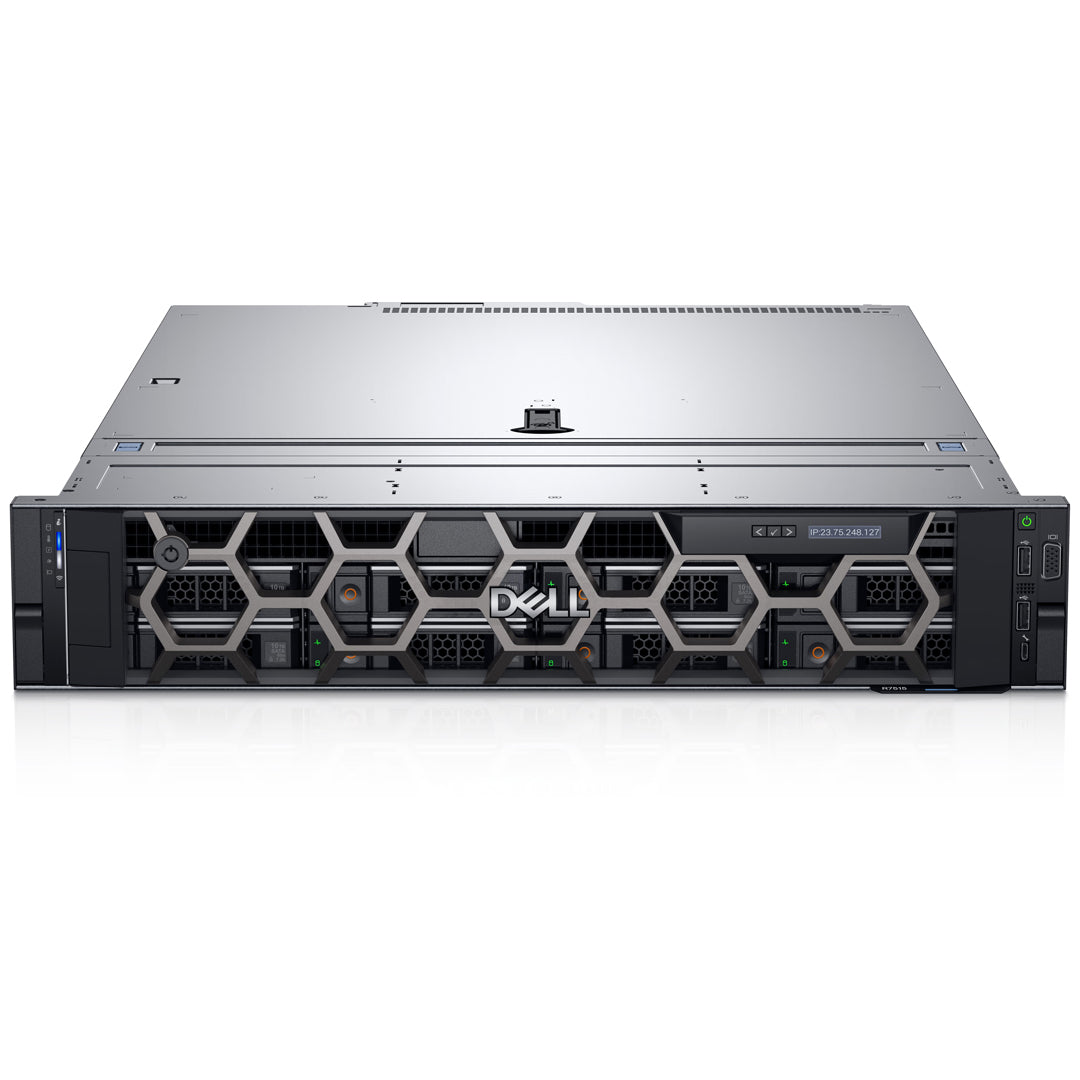

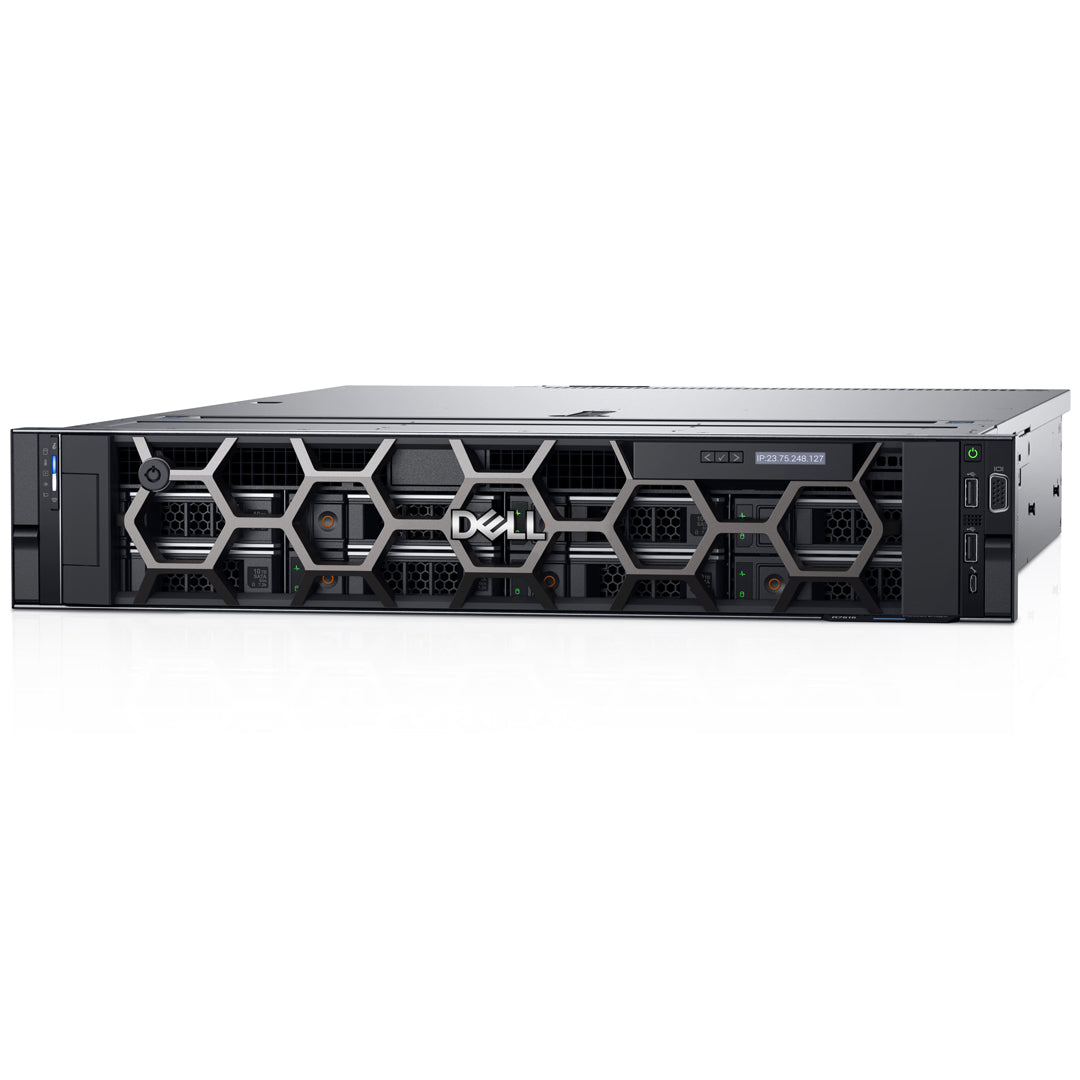

The Dell EMC PowerEdge R7515 (2U rack system) is a 1-socket, 2U server that is designed to run complex workloads using highly scalable memory, I/O ports, and network channels. The system is based on the 2nd and 3rd Generation AMD EPYC processors, which support several SKUs ranging from 16 cores and up to 64 cores, up to 16 DIMMs, PCI Express-4.0 enabled expansion slots, and a choice of LOM riser technologies.
Deliver breakthrough performance, innovation and density for traditional and emerging workloads
Data center evolution starts with modern platforms that scale easily and are optimized for application performance. The Dell EMC PowerEdge R7515 is built upon a scalable system architecture and provides choice and flexibility to meet performance demands. High-level specifications:
- 100% more processing cores and faster data transfer speeds with PCIe Gen 4
- 20% more memory performance for scale out environments
- Direct connect SAS/SATA/ NVMe for vSAN Ready Nodes
- High core count performance for highest VM density in a single-socket design
- Multi-die architecture offers low latency and floating-point performance for big data and containers
Increase efficiency and accelerate operations in the Dell EMC PowerEdge R7515
The Dell EMC OpenManage systems management portfolio delivers an efficient and comprehensive solution for PowerEdge servers through tailored, automated, and repeatable processes.
- Automate server life cycle management with scripting via the iDRAC Restful API with Redfish conformance.
- Simplify and centralize one to many management with the OpenManage Enterprise console.
- Utilize the OpenManage Mobile app and PowerEdge Quick Sync 2 to easily manage servers using a phone or tablet.
- Resolve issues with up to 72% less IT effort using automated proactive and predictive technology from ProSupport Plus and SupportAssist.
Fortify your data center with integrated security
Every PowerEdge server is designed with a cyber resilient architecture, integrating security deeply into every phase in the lifecycle, from design to retirement.
- Enhance security with platform enablement of AMD Secure Memory Encryption (SME) and Secure Encrypted Virtualization (SEV).
- Operate your workloads on a secure platform anchored by cryptographically trusted booting and silicon root of trust
- Maintain server firmware safety with digitally signed firmware packages.
- Detect and remediate unauthorized or malicious change with drift detection and system lockdown.
- Securely and quickly wipe all data from storage media including hard drives, SSDs and system memory with System Erase.
Memory Speed Options
The PowerEdge R7515 system supports up to 16 DIMMS, 2 TB of memory, and speeds up to 3200 MT/s
| DIMM type | DIMM ranking | Capacity | DIMM rated voltage, Speed | AMD | |
|---|---|---|---|---|---|
| 1DPC | 2DPC | ||||
| RDIMM | 1R | 8 GB | DDR4 (1.2 V), 3200 MT/s |
3200 MT/s | 2933 MT/s |
| 2R | 16 GB, 32 GB, 64 GB | DDR4 (1.2 V), 3200 MT/s |
3200 MT/s | 2933 MT/s | |
| LRDIMM | 8R | 128 GB | DDR4 (1.2 V), 3200 MT/s |
2666 MT/s | 2666 MT/s |
| 8R | 128 GB | DDR4 (1.2 V), 3200 MT/s |
3200 MT/s | 2933 MT/s | |
|
NOTE:
The older 32 GB capacity RDIMM memory with x4 data width and 8Gb DRAM density cannot be mixed with the newer 32 GB capacity RDIMM memory with x8 data width and 16Gb DRAM density in the same AMD EPYC™ processor unit. |
|||||
|
NOTE:
The older 128 GB capacity LRDIMM memory at 2666 MT/s speed cannot be mixed with the new 128 GB capacity LRDIMM memory at 3200 MT/s speed. |
|||||
Hard Drive Configurations

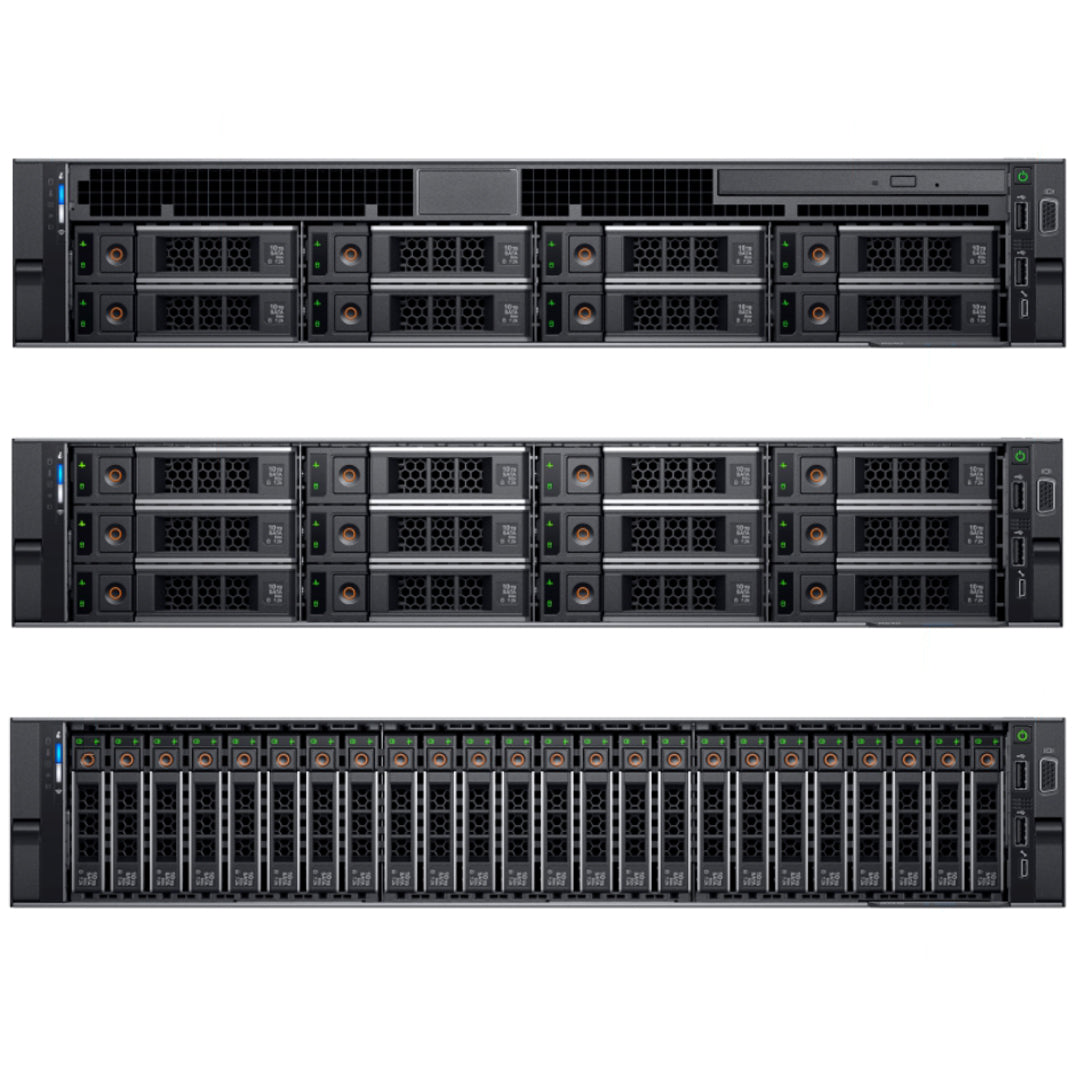

The PowerEdge R7515 supports the following drive configurations:
| R7515 configuration details | Storage module | Rear storage module | Controllers |
|---|---|---|---|
| 8 x 3.5 -inch, SAS or SATA only | 8 x 3.5-inch | None | CPU Direct SATA, SWRAID SATA, Mini PERC (H330, H730P, H740P, HBA330) |
| 24 x 2.5-inch, SAS | 24 x 2.5-inch | None | Mini PERC (H730P, H740P, HBA330) |
| 24 x 2.5-inch, 12 SAS + 12 Universal | 24 x 2.5-inch | None | CPU direct NVMe; SWRAID NVMe, Mini PERC (H740P, HBA330) |
| 12 x 3.5-inch, SAS | 12 x 3.5-inch | None | Mini PERC (H730P, H740P, HBA330) |

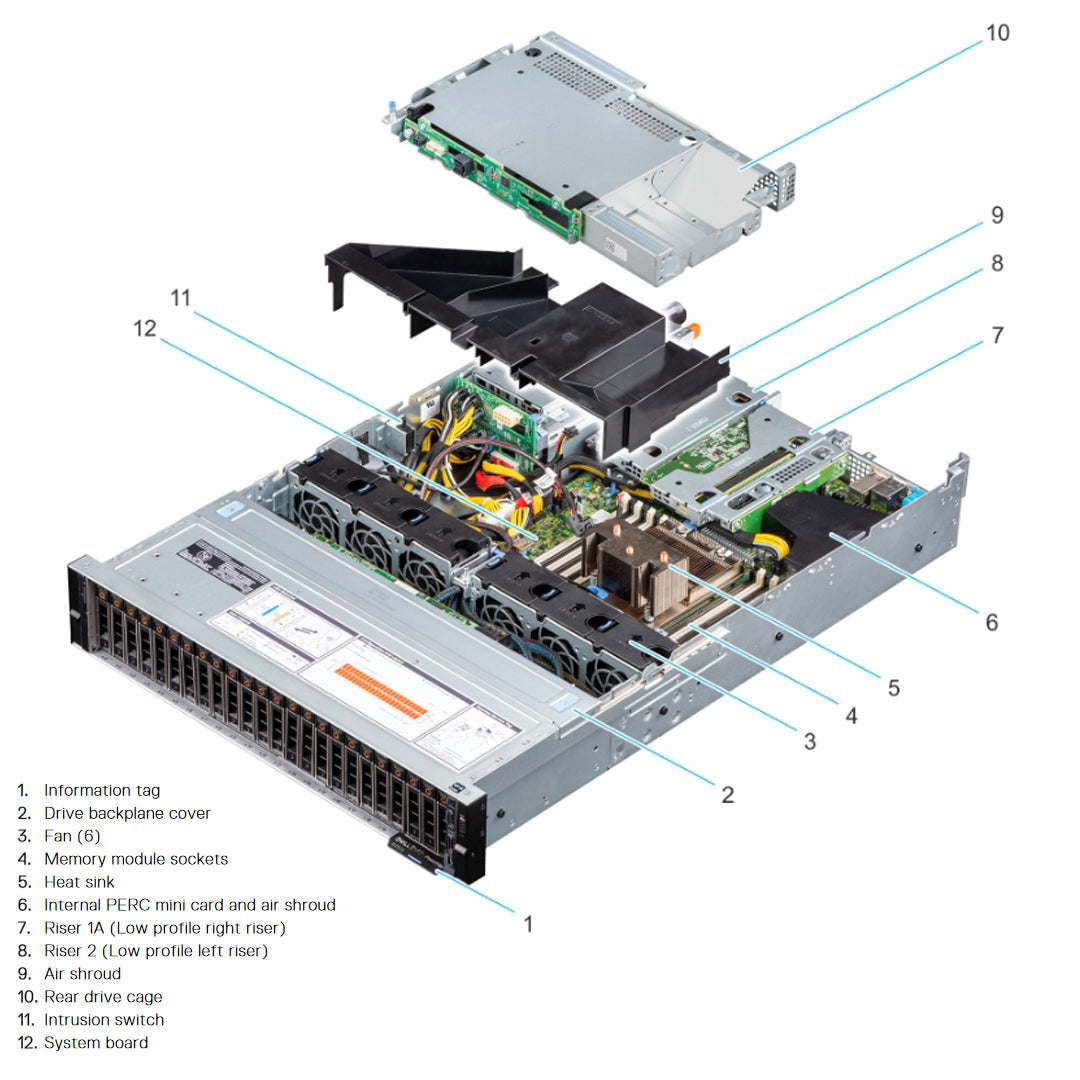

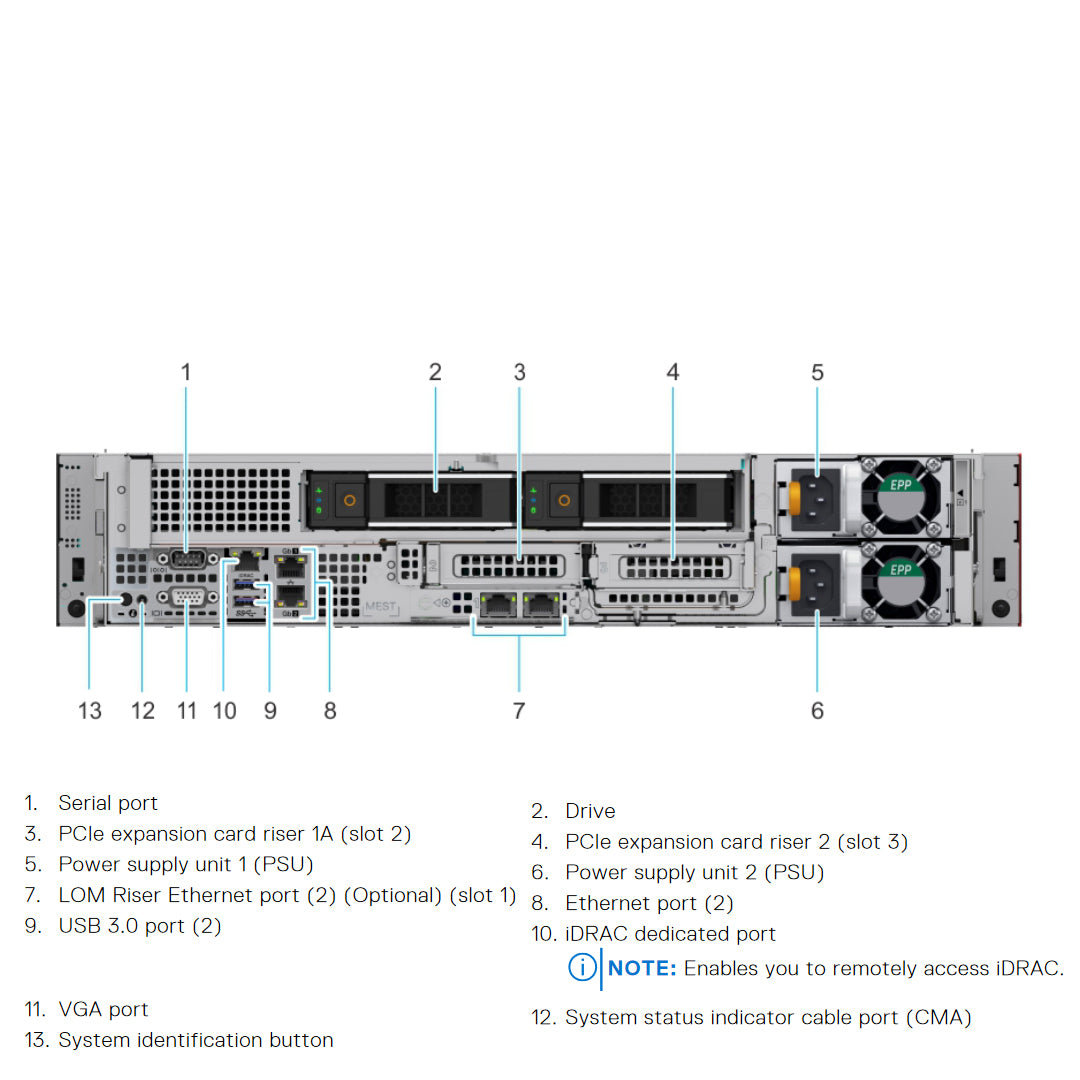

| 14 x 3.5-inch, 12 SAS (front) + 2 SAS (Back) | 12 x 3.5-inch | Rear 2 x 3.5-inch | Mini PERC (H730P, H740P, HBA330) |
| 24 x 2.5-inch, 8 Universal 16 NVMe only (2x16 PCIe uplinks) | 24 x 2.4-inch NVMe | None | CPU direct NVMe; SWRAID NVMe, Mini PERC (H740P, HBA330) |
| 24 x 2.5-inch, NVMe | 24 x 2.5-inch NVMe | None | Not applicable |
|
NOTE:
SAS represents SAS/SATA capable backplane. |
|||
|
NOTE:
Universal represents SAS/SATA/NVMe capable slots. |
|||
Storage Controllers
| Performance level | Controller description |
|---|---|
| Entry | S150 (SATA, NVMe) SW RAID SATA |
| Value | HBA330 (internal), 12 Gbps SAS HBA (external) H330, 12 Gbps SAS HBA (external) HBA355e (external) |
| Value performance | H730P |
| Premium performance | H740P H840(UI) |
Networking LOM
The PowerEdge R7515 system supports up to two 10/100/1000 Mbps Network Interface Controller (NIC) ports that are located on the back panel. The system also supports LAN on Motherboard (LOM) on an optional riser card.
You can install one LOM riser card. The supported LOM riser options are:
- 2x 1 Gb Base-T
- 2x 10 Gb Base-T
- 2x 10 Gb SFP+
- 2x 25 Gb SFP+
Boot Options
BOSS Card
IDSDM
Internal USBExpansion Card Riser Configurations

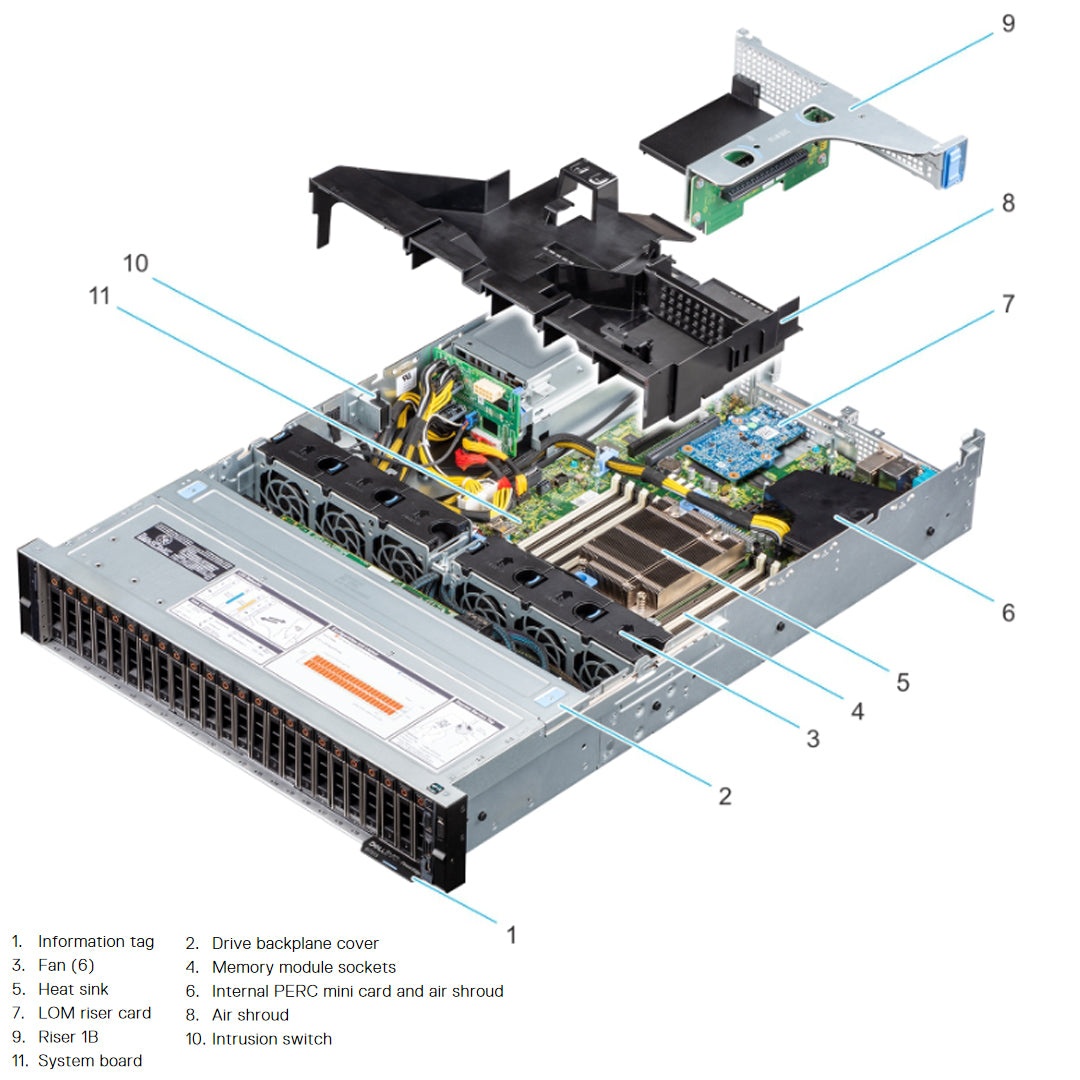

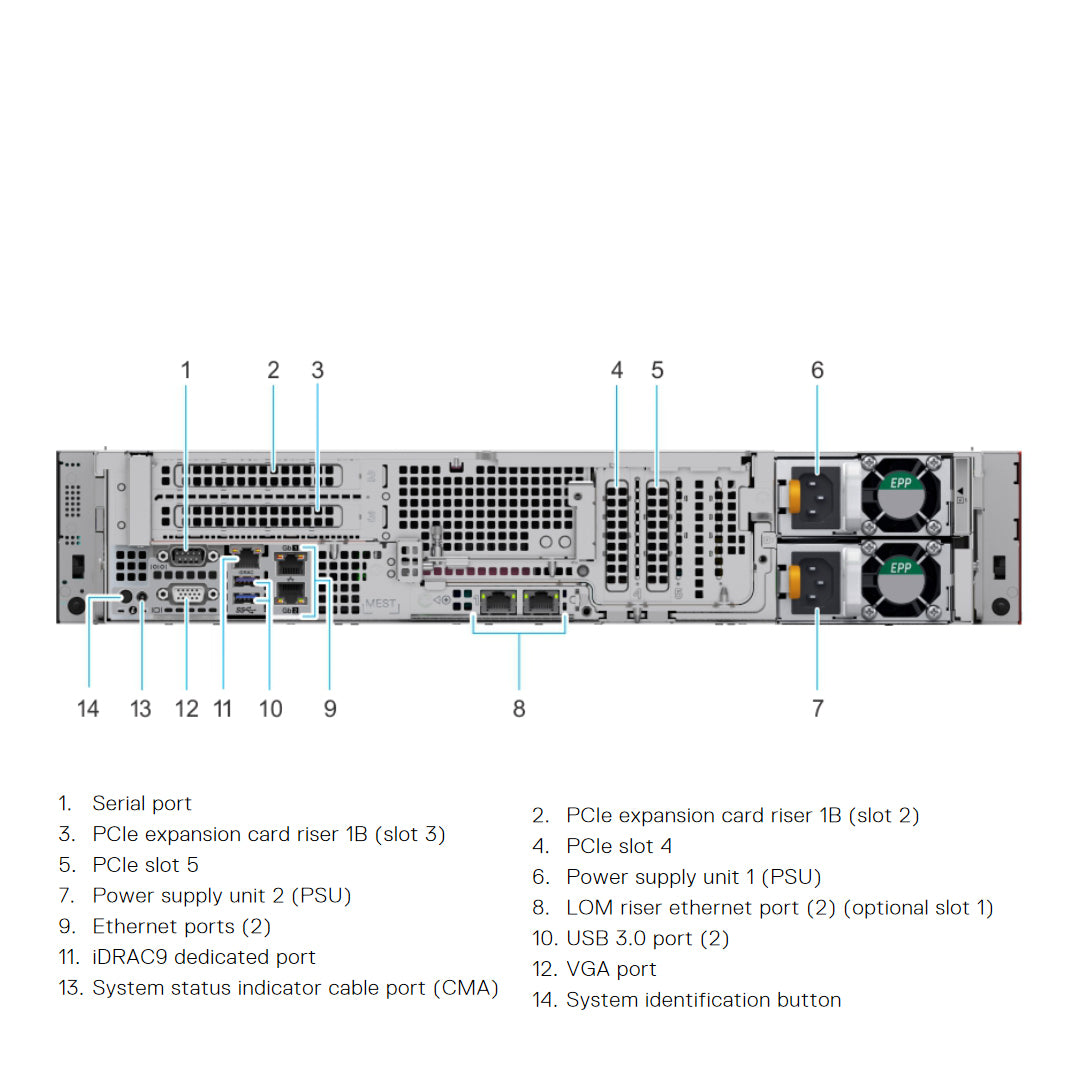

| Expansion card riser | PCIe slots on the riser | Processor connection | Height | Length | Slot width |
|---|---|---|---|---|---|
| Riser-1B (2U riser) | Slot 2 | Processor 1 | Full Height | Full Length | x16 |
| Slot 3 | Processor 1 | Full Height | Full Length | x16 | |
| Riser-1A (low profile riser right) | Slot 2 | Processor 1 | Low Profile | Half Length | x16 |
| Riser-2 (low profile riser left) | Slot 3 | Processor 1 | Low Profile | Half Length | x16 |
|
NOTE: The expansion-card slots are not hot-swappable. Up to 4 Single-Wide GPU(T4); Up to 1 Full-Height FPGA |
|||||
Riser 1A
Riser 1B
Riser 2Power & Dimensions
Power Supply Unit (PSU)
- 495 W AC Platinum
- 750 W Mix Mode Platinum
- 750 W AC Titanium
- 1100 W Mix Mode Platinum
- 1600 W AC Platinum
Dimensions & Weight
- Depth: 718.65 mm (28.25")
- Width: 482 mm (18.97")
- Height: 86.8 mm (3.41")
- Weight:
- 8x 2.5" 23.78 kg (52.42 lb)
- 12x 3.5" 25.68 kg (56.61 lb)
- 12x 3.5" + 2x 3.5" (rear) 27.3 kg (60.18 lb)
- 24x 2.5" 23.72 kg (52.29 lb)
