Quick Specs
Form Factor:
1U rack server
Processor | Max: 128 Cores1x 4th Gen AMD 9004 Series
Memory | Max: 3TB12 ECC DDR5 RDIMM 4800Mhz
Storage | Max: 153.6TB4 LFF SAS/SATA (HDD/SSD) | Max: 80TB
8, 10 SFF SAS/SATA/NVMe (HDD/SSD) | Max: 153.6TB
14, 16 EDSFF E3.S Gen 5 NVMe (SSD) | Max: 122.88TB
2 SFF SAS/SATA (HDD/SSD) NVMe | Max: 30.72TB
2 EDSFF E3.S Gen5 NVMe (SSD) | Max: 15.36TB
S160 (SW RAID)
H965i, H755, H755N, H355, HBA355i, HBA355e, HBA465e, H965e
BOSS-N1 (hot Swap), USB
Networking Options (NOC):1 x OCP card 3.0 + 2 x 1 GbE LOM card
Note: The system allows either LOM card or an OCP card or both to be installed in the system.
iDRAC9 with Lifecycle Controller
PCIe Slots:2x or 3x PCIe 4.0 & 5.0
GPU:Up to 2 x 75 W SW
Ideal for:
- Hyper-Converged infrastructure (HCI)
- Network Function Virtualization (NFV)
- Virtualization

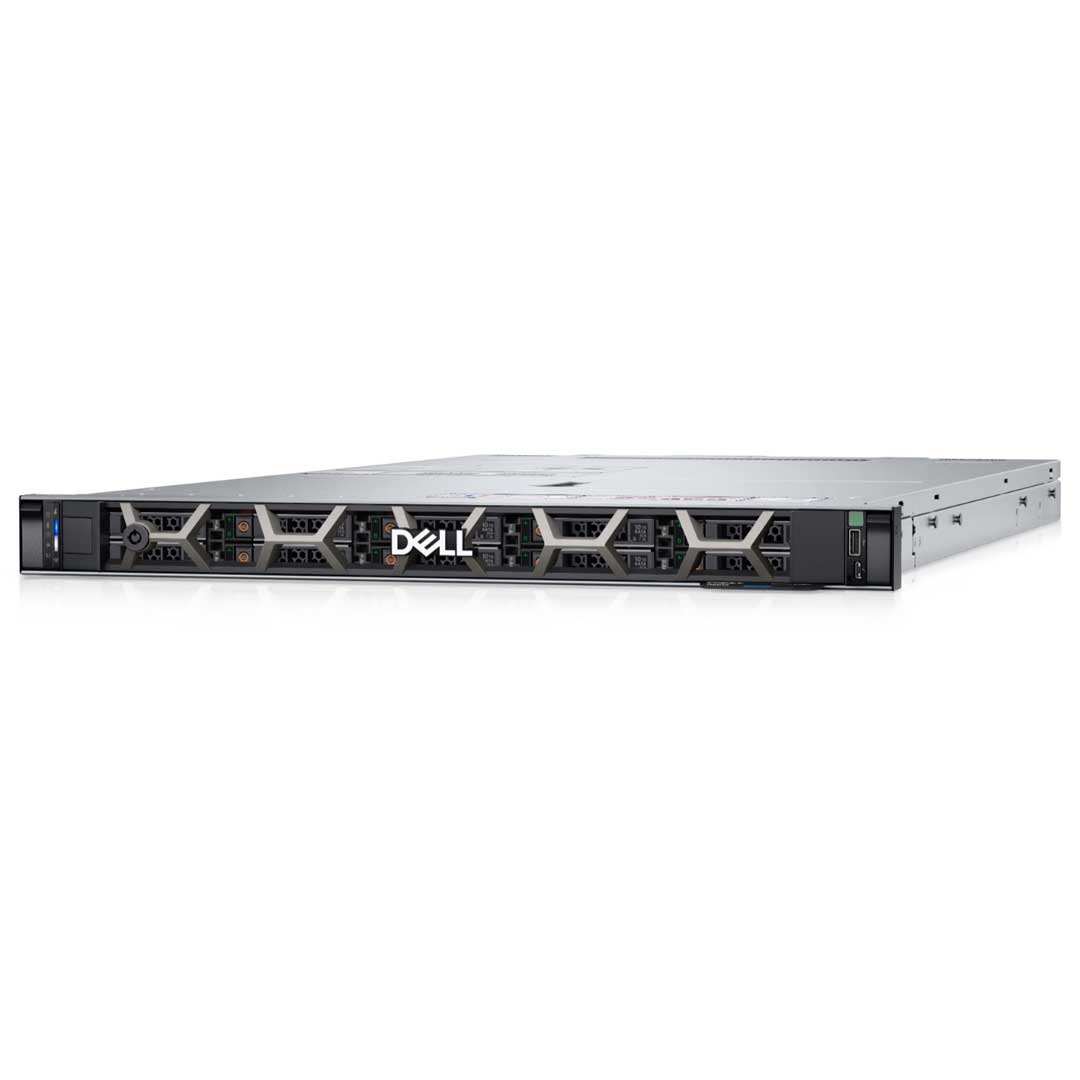

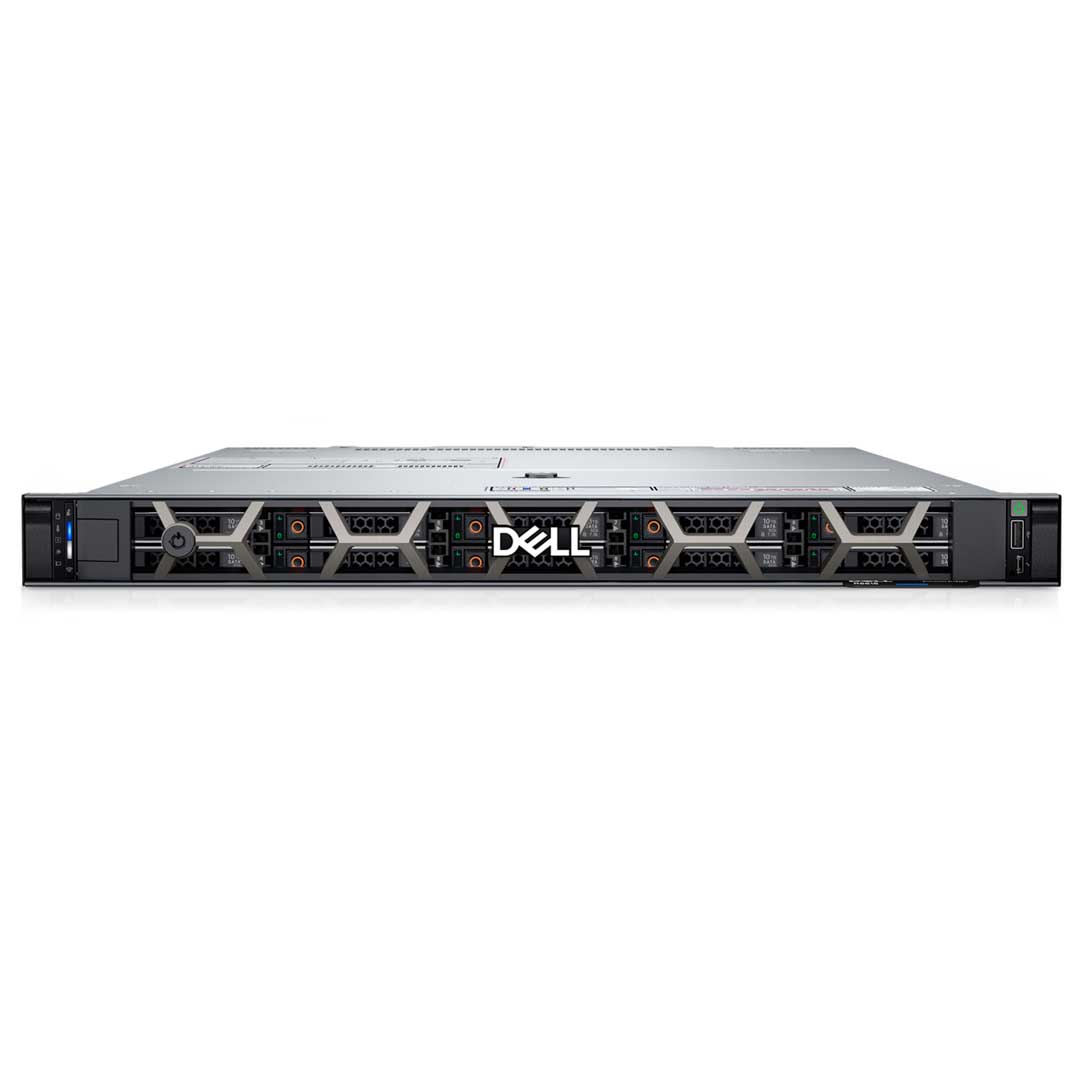

The new Dell PowerEdge R6615 is a 1U, single-socket rack server. Designed to be the best investment per dollar for your data center, this server provides performance and flexible, low-latency storage options in an air or Direct Liquid Cooling (DLC) configuration. Stay ahead of the curve Delivering breakthrough innovation for traditional and emerging workloads, including dense virtualization, hyper-converged infrastructure (HCI), and Network Function Virtualization (NFV) with OpenStack for Telco using the latest performance and density with optional acceleration
Invest wisely in a platform that grows with your business:
- Using AMD EPYC 4th generation processor to deliver up to 50% more core count per single socket platform in an innovative air-cooled blueprint.
- Enables DDR5 at 4800 MT/s memory and PCIe Gen5 with double the speed of previous Gen4 for faster access and transport of data optimizing application output.
- Optional DLC is available to more efficiently cool high-performance processors.
Experience more virtual machine density to support the most demanding applications
- Deliver more virtual machines per physical host using increased core count and higher memory footprint than previous generations.
- Improve responsiveness or reduce app load time for power users with up to 2 x single-wide half-length GPUs.
Expect increased expandability by storing more data in one server, saving space in your data center.
- Deliver more memory density with DDR5 (up to 3TB of RAM) providing greater memory capacity.
- Support lower latency higher performance NVMe SSD in a hardware RAID solution helps maximize compute performance
Cyber Resilient Architecture for Zero Trust IT environment & operations
Security is integrated into every phase of the PowerEdge lifecycle, including protected supply chain and factory-to-site integrity assurance. Silicon-based root of trust anchors end-to-end boot resilience while Multi-Factor Authentication (MFA) and role-based access controls ensure trusted operations

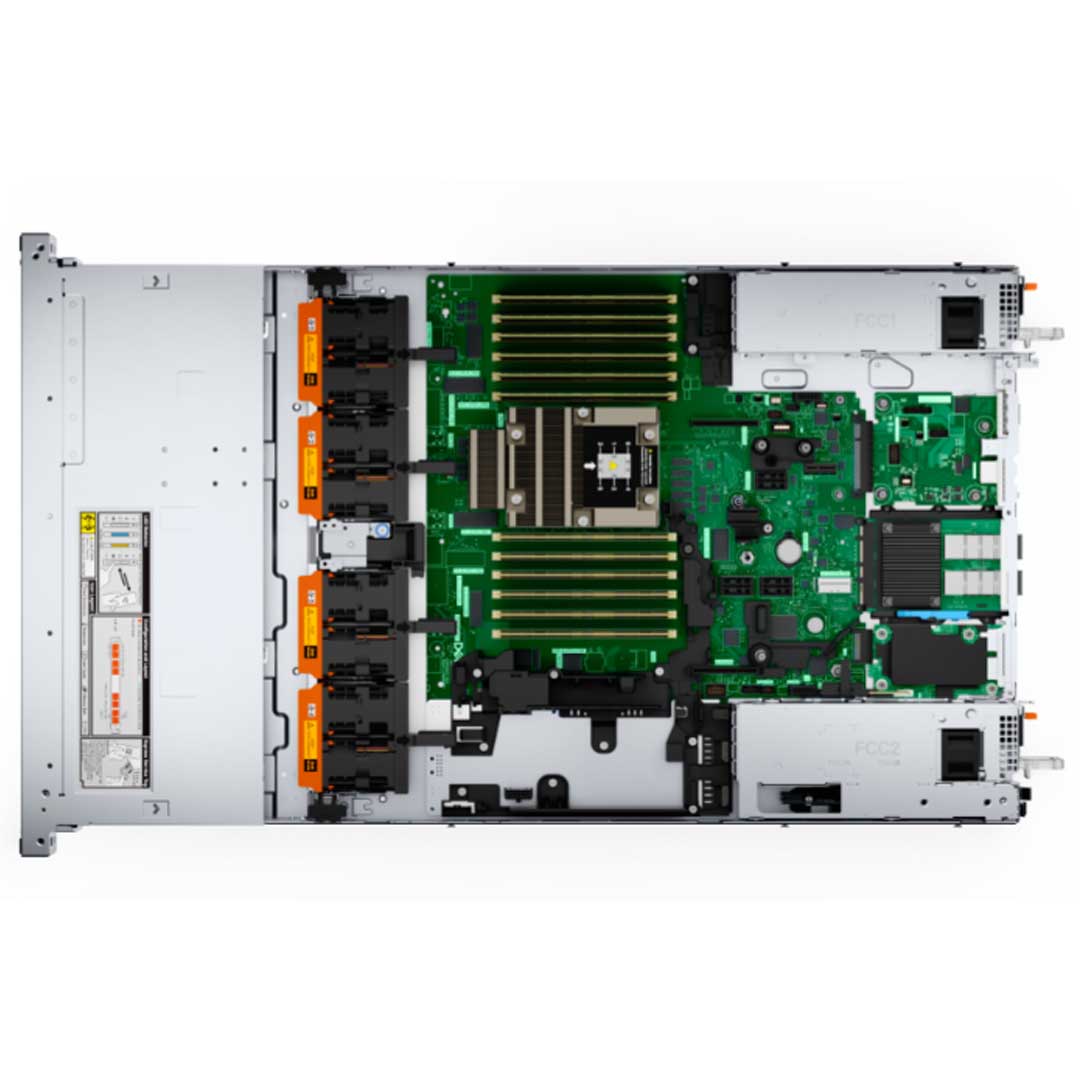

The R6615 is supported by One AMD EPYC 4th Generation 9004 Series with up to 128 cores processor and 12 DIMMS of DDR5 Memory. This system only supports registered ECC DDR5 DIMMs. The system also come with the option to install a Boot Device. The BOSS-N1 boot device supports HWRIAD for 2x M.2 NVMe SSDs.
Chassis Options
There are 5 chassis options in this R6615 server with 2 rear drive bay options.
Front bays:

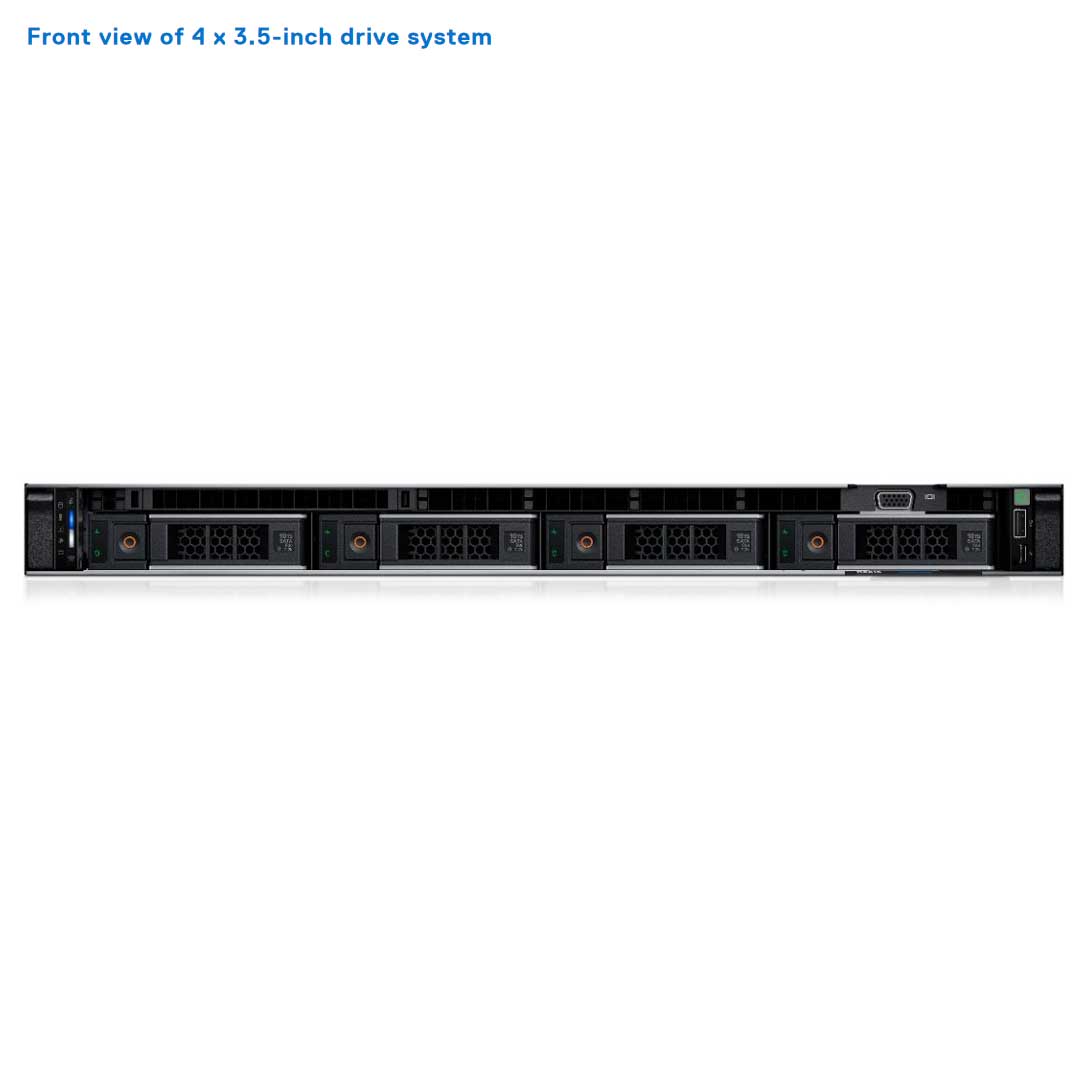

- Up to 4x 3.5" SAS/SATA (HDD/SSD) | Max: 80TB
- Up to 8x 2.5" NVMe (SSD) | Max: 122.88TB

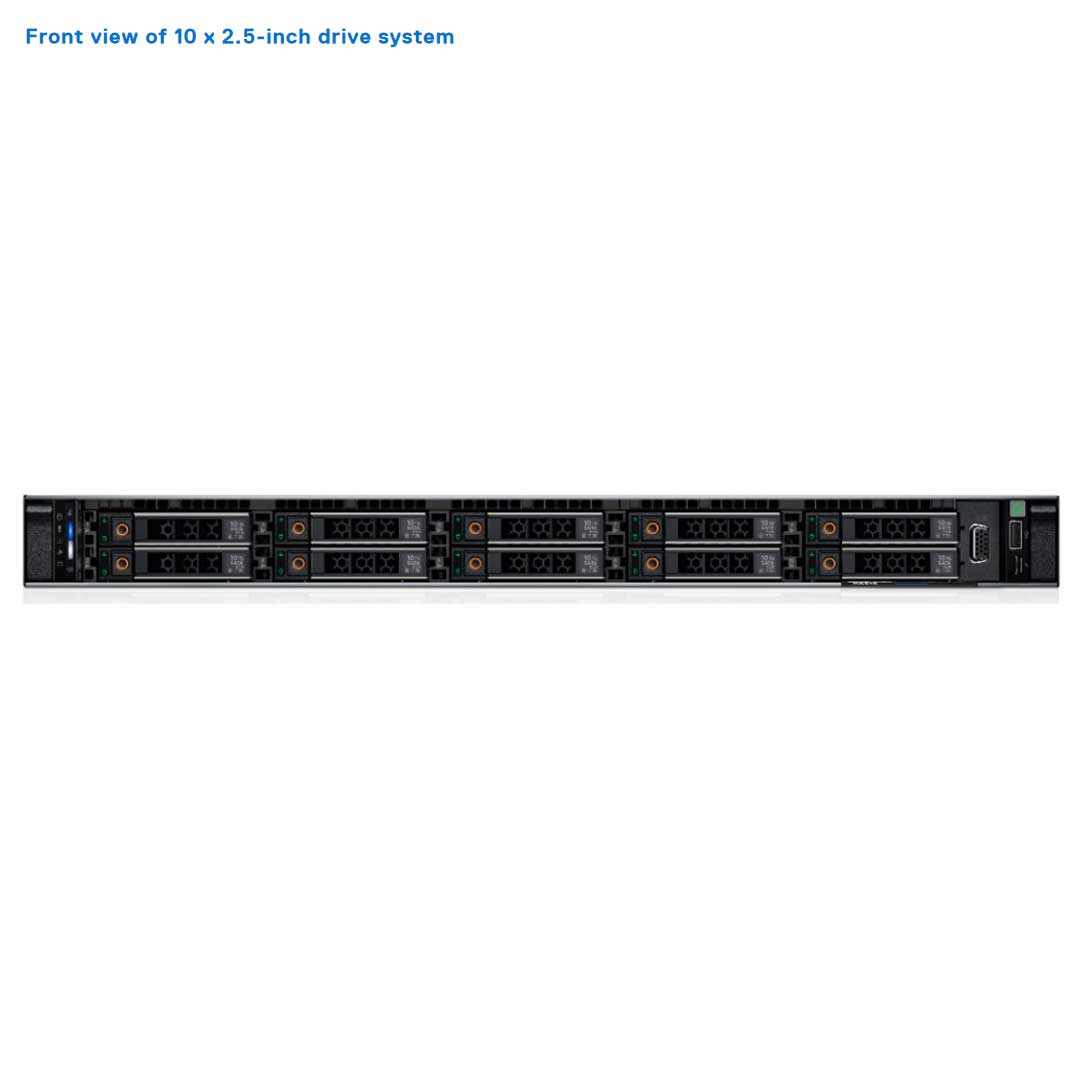

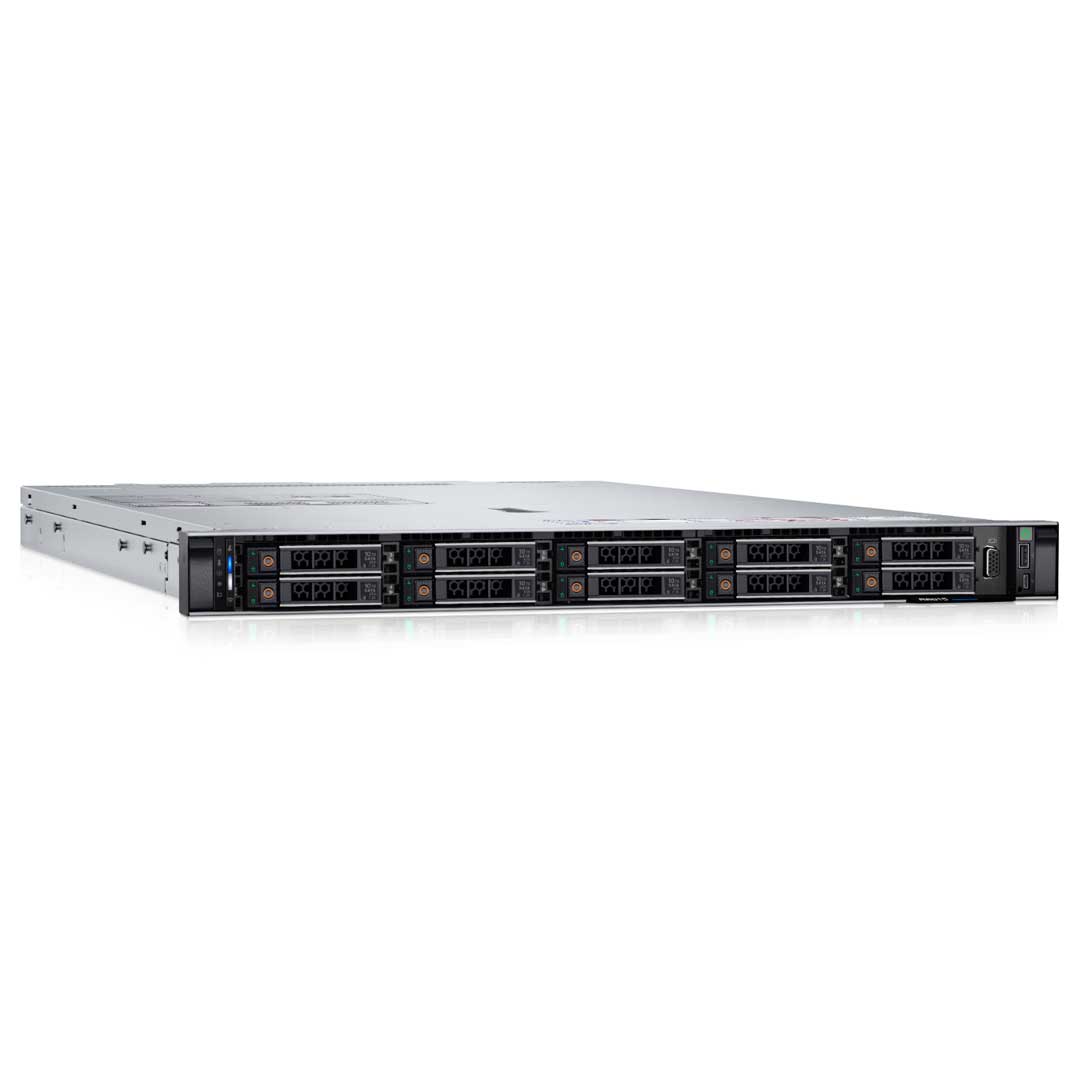

- Up to 10x 2.5" SAS/SATA/NVMe (HDD/SSD) | Max: 153.6TB

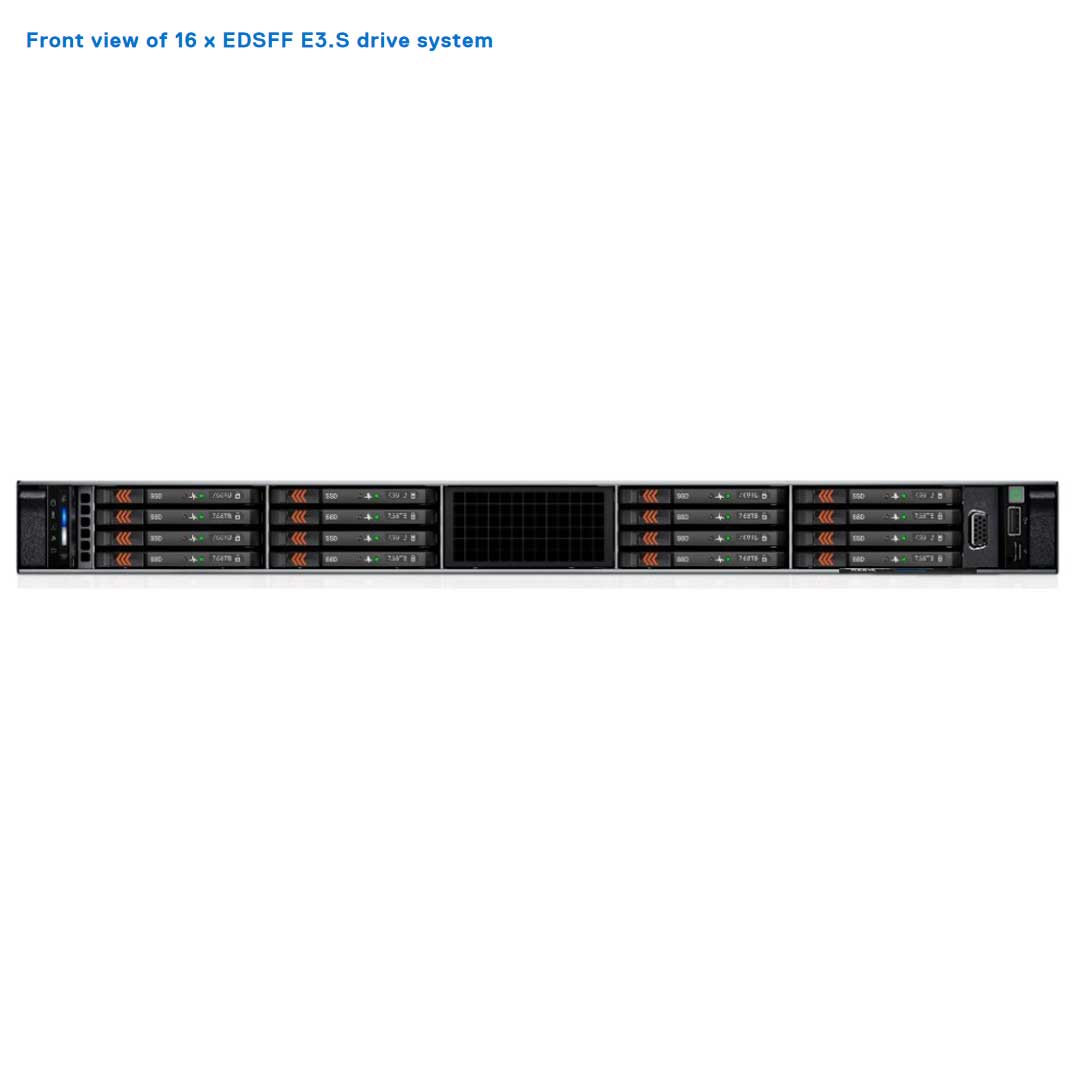

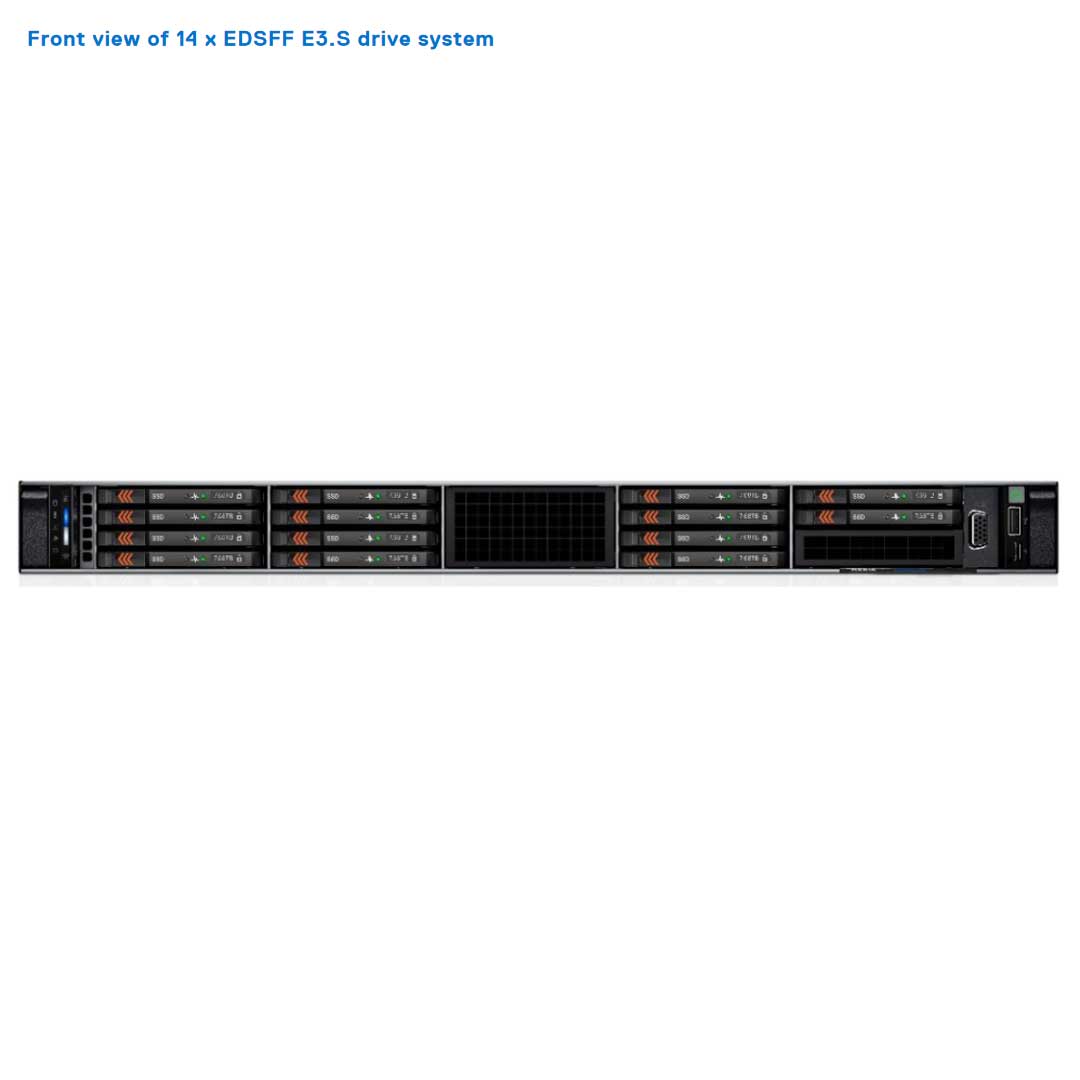

- Up to 14x EDSFF E3.S Gen5 NVMe (SSD) | Max: 107.52TB
- Up to 16x EDSFF E3.S Gen5 NVMe (SSD) | Max: 122.88TB

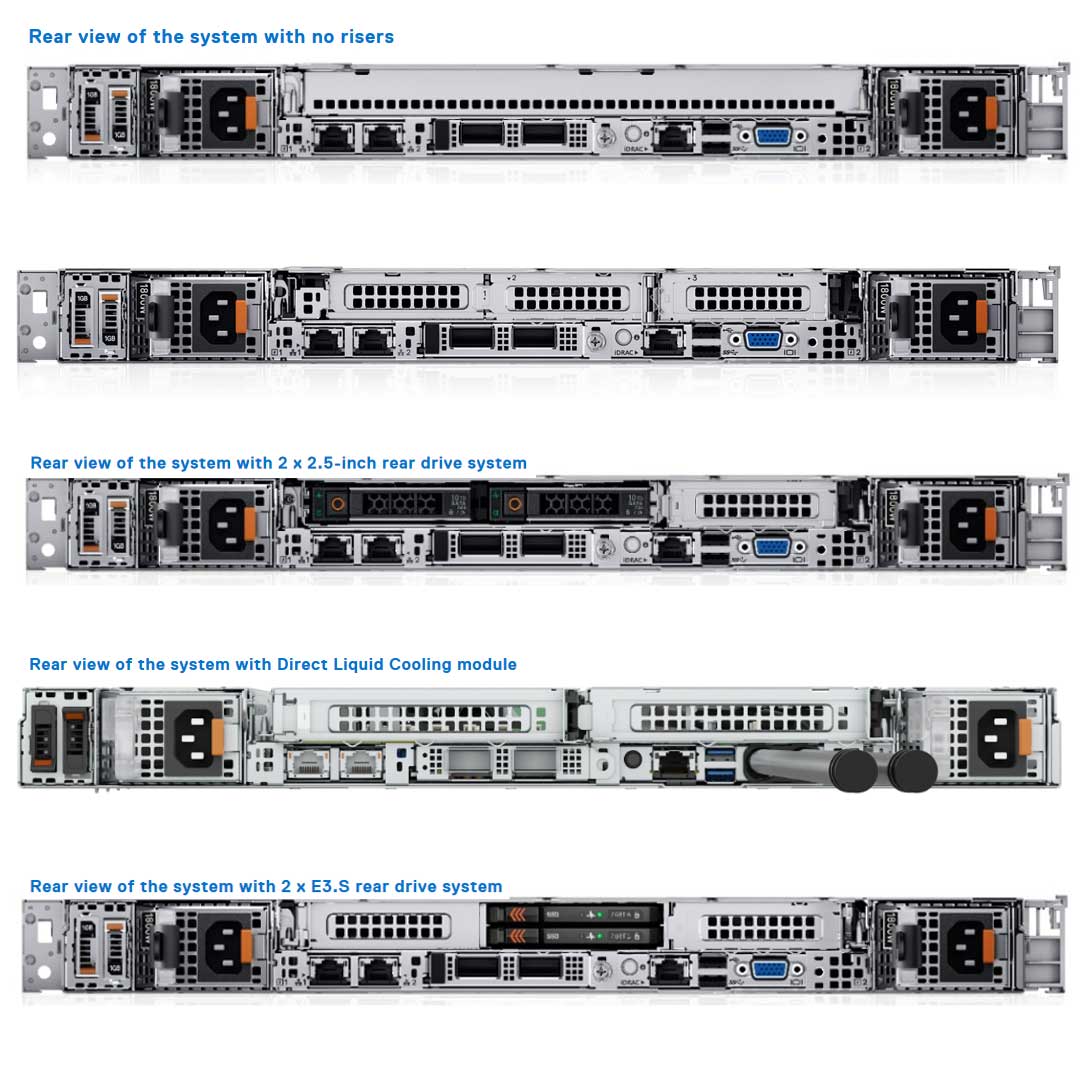

Rear bays:
- Up to 2x 2.5" SAS/SATA (HDD/SSD) | Max: 30.72 TB
- Up to 2x EDSFF E3.S Gen5 NVMe (SSD) | Max: 15.36 TB
Processor
One AMD® EPYC 4th Generation Genoa (SP5) processor 9004 Series with up to 128 cores processor.
Not all Processors are allowed in every system, the limitations come from the cooling supported for each chassis. Please read the spec manual Thermal Restriction Matrix for more details.
Cooling Options
Heatsink & Fans
Up to 4 sets (dual fan module) hot plug fans. This sytem supports Direct Liquid Cooling (DLC).
| Item | Type | Solution Strategy | |
|---|---|---|---|
| Fan | Standard Fan (STD) | All 3.5" HDD x 4 Configurations | |
| High Performance Gold Fan (HPR Gold) | for Air Cooling | for Liquid Cooling | |
| Either one matched in non 3.5-inch Chassis: 2.5-inch x 10 configuration 2.5-inch x 8 and No BP configurations DDR5 RDIMM >128 GB Rear Drives GPU |
3.5-inch HDD x 4 config. w/ LC part in QB DDR5 RDIMM >128 GB Rear Drives GPU |
||
| CPU HSK | 1U EXT. HSK. | All air cooling configurations. | |
| DLC Module | For all CPU operation at DLC configurations. | ||
| Shroud | Air Shroud | All air cooling configurations require an air shroud. | |
| Air Shroud for 1DPC | New air shroud be required at all air cooling config. w/ 1DPC MB. | ||
| OCP Shroud | System with OCP card but without riser 2 implemented. | ||
| Blank | DIMM Blank | When CPU > 240 W installed, except DLC configurations. | |
Memory Options
12 DDR5 DIMM slots, supports RDIMM 3 TB max, speed up to 4800 MT/s. Supports registered ECC DDR5 DIMMs only.
The R6615 support registered (RDIMMs), allowing for the maximum platform memory capacity. Unbuffered DIMMs (UDIMMs) are not supported.
| DIMM type | Rank | Capacity | DIMM rated voltage and speed | Operating Speed |
|---|---|---|---|---|
| 1 DIMM per channel (DPC) | ||||
| RDIMM | 1R | 16 GB | DDR5 (1.1 V), 4800 MT/s | 4800 MT/s |
| 2R | 32 GB | DDR5 (1.1 V), 4800 MT/s | 4800 MT/s | |
| 2R | 64 GB | DDR5 (1.1 V), 4800 MT/s | 4800 MT/s | |
| 4R | 128 GB | DDR5 (1.1 V), 4800 MT/s | 4800 MT/s | |
| 6R | 256 GB | DDR5 (1.1 V), 4800 MT/s | 4800 MT/s |
Expansion Slots Options
With a total of 3 PCIe slots, you have the ability to install many different adapters. This server has the ability to support up to 2x 75W GPU per server.
| Config No. | RSR Configuration | # of CPUs | PERC type supported | Rear Storage Possible |
|---|---|---|---|---|
| 0 | NO RSR | 1 | Front PERC | No |
| 1 | R2A + R3A | 1 | Front PERC | Yes |
| 2 | R2T + R3P | 1 | Front PERC | Yes |
| 3 | R1Q + R4p | 1 | Front PERC | No |
| 4 | R2T | 1 | Front PERC | Yes |
| 5 | R3P | 1 | Front PERC | Yes |
| 6 | R2A | 1 | Front PERC | No |
| 7 | R2U + R3S | 1 | Front PERC | Yes |
| 8 | R2T + R3A | 1 | Front PERC | Yes |
Riser 1Q
Riser 2A
Riser 2T
Riser 2U
Riser 3A
Riser 3P
Riser 3S
Riser 4P
Networking
Networking Adapters
2 x 1 GbE LOM card (optional) and 1 x OCP card 3.0 (optional). The system allows either LOM card or an OCP card or both to be installed in the system. Max port speed for the OCP is 25Gb/s. The OCP has 4 port while the LOM can only support 2 ports.
| Feature | Specifications |
|---|---|
| LOM card (optional) | 1 GB x 2 |
| OCP card (OCP 3.0) (optional) | 1 GbE x 4, 10 GbE x 2, 10 GbE x 4, 25 GbE x 2, 25 GbE x 4 |
| NOTE: The system allows either LOM card or an OCP card or both to be installed in the system. | |
| NOTE: On the system board, the supported OCP PCIe width is x8; when x16 PCIe width is installed, it is downgraded to x8. | |
Storage Controllers
Dell’s RAID controller options offer performance improvements, including the fPERC solution. fPERC provides a base RAID HW controller without consuming a PCIe slot by using a small form factor and high-density connector to the base planar. 16G PERC Controller offerings will be a heavy leverage of 15G PERC family. The Value and Value Performance levels will carry over to 16G from 15G. New to 16G, is the Harpoon-based Premium Performance tier offering. This high-end offering will drive IOPs performance and enhanced SSD performance.
Internal Controllers (RAID):
PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i,
Internal Boot:Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
External HBA (non-RAID):HBA355e, HBA465e, H965e
Software Raid:S160
| Performance Level | Controller and Description |
|---|---|
| Entry | S160 |
| Value | H355, HBA355 (Internal/External), HBA465 (External) |
| Premium Performance | H755, H755N, H965 (Internal/External) |
Power & Dimensions
Power
Two redundant AC or DC power supply units, 60 mm dimension is the same PSU form factor with 15G on 16G design. Do not mix PSUs.
Dimensions:
- Width 482 mm (18.97")
- Height 42.8 mm (1.685")
- Length w/ bezel 822.89 mm (32.39")
- Length w/o bezel 809.05 mm (31.85")
Weight:
With drives 20.2 kg (44.53 lbs)
Without drives and PSU installed 17.4 kg (38.36 lbs)
