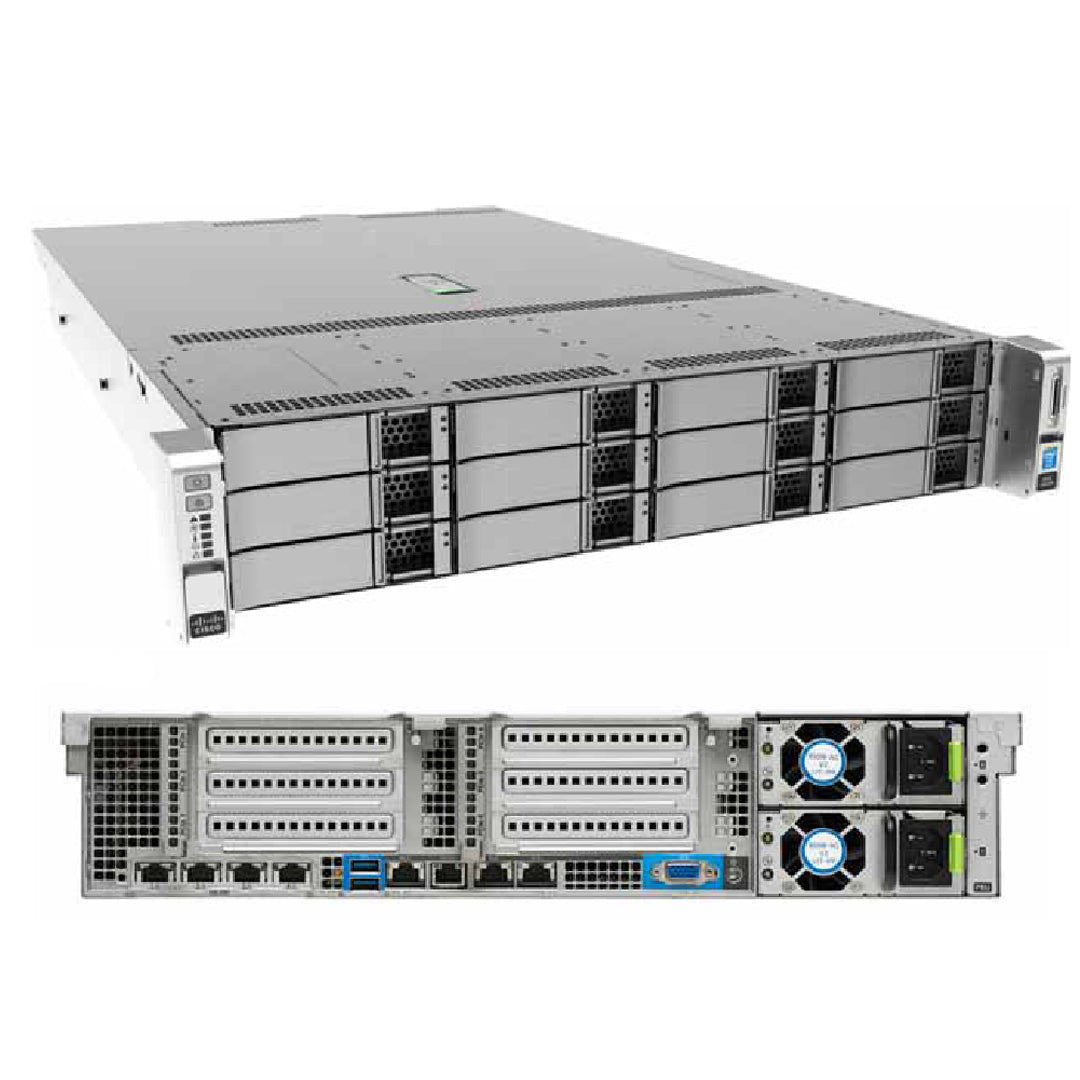

Cisco UCS C240 C-Series M4 12x 3.5" LFF Rack Servers CTO

Current Configuration

(List below serves as quick links to each section)

Select Chassis

Select Processor Series

Select Riser 1

Select Riser 2

Select Memory

Select Memory Mode

Select RAID Controller

Select HDD

Select SSD

Select Boot Device

Select PCIe Option Card(s)

Select Network Card Accessories

Select GPU Card(s)

Select Power Supplies

Select Power Cable(s)

Select Rail Kit

Select CMA

Select NIC Mode

Select Trusted Platform Module (TPM)

Select Flash SD Card Module

Select USB 3.0 Drive

Select Warranty

The request has been sent.
Thank you.

Price as Configured:
$0

Add to Cart

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Cisco UCS C240 M4 LFF Rack Servers CTO

Name: Cisco UCS C240 M4 LFF Rack Servers CTO
Brand: Cisco
SKU: UCSC-C240-M4-LFF
Availability: InStock

Cisco

| CTO Servers |

UCSC-C240-M4-LFF

.price-ui--loading { display: block !important; opacity: 1 !important; }

Configure for Pricing

Quick Specs

What's New for Cisco C240 M4 LFF Chassis

(2) Intel Xeon E5-2600 v3 or v4 Processors
(24) 2400MT/s DDR4 DIMMs
(12) LFF SATA/SAS Drives
(6) PCIe 3.0 Slots
(1) GPU Support
Dedicated mLOM Slot
Dedicated Cisco 12G SAS Modular RAID controller Slot
Embedded 2 x 1 GbE LAN-on-motherboard (LOM)
(6) Hot Swap Fans

The UCS C240 M4 Large form factor (LFF) server is a 2U rack server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from big data to collaboration.

The enterprise-class UCS C240 M4 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon E5-2600 v3 and v4 series processor family that delivers the best combination of performance, flexibility, and efficiency gains. In addition, the UCS C240 M4 LFF server provides 24 DIMM slots, up to 6 PCI Express (PCIe) 3.0 slots, up to 12 front-loading drives plus two (optional) internal SATA boot drives for a total of 14 internal drives.

Other Versions

Cisco C220 M4 | M5 | M6 | M7
Cisco C240 M4 | M5 | M6

Ideal for:

Artificial Intelligence (AI)
Big Data Analytics
Cloud Servers
Corporate IT
Data Analytics
Database
Deep Learning (DL)
Edge Servers
High-Performance Computing (HPC)
Machine Learning (ML)
Retail Servers
Video Analytics
Virtualization
Virtual Machines (VM)
Web Tech
Anything as a service (Xaas)

CTO Configuration Support

Need help with the configuration? Contact us today!

Chassis Options

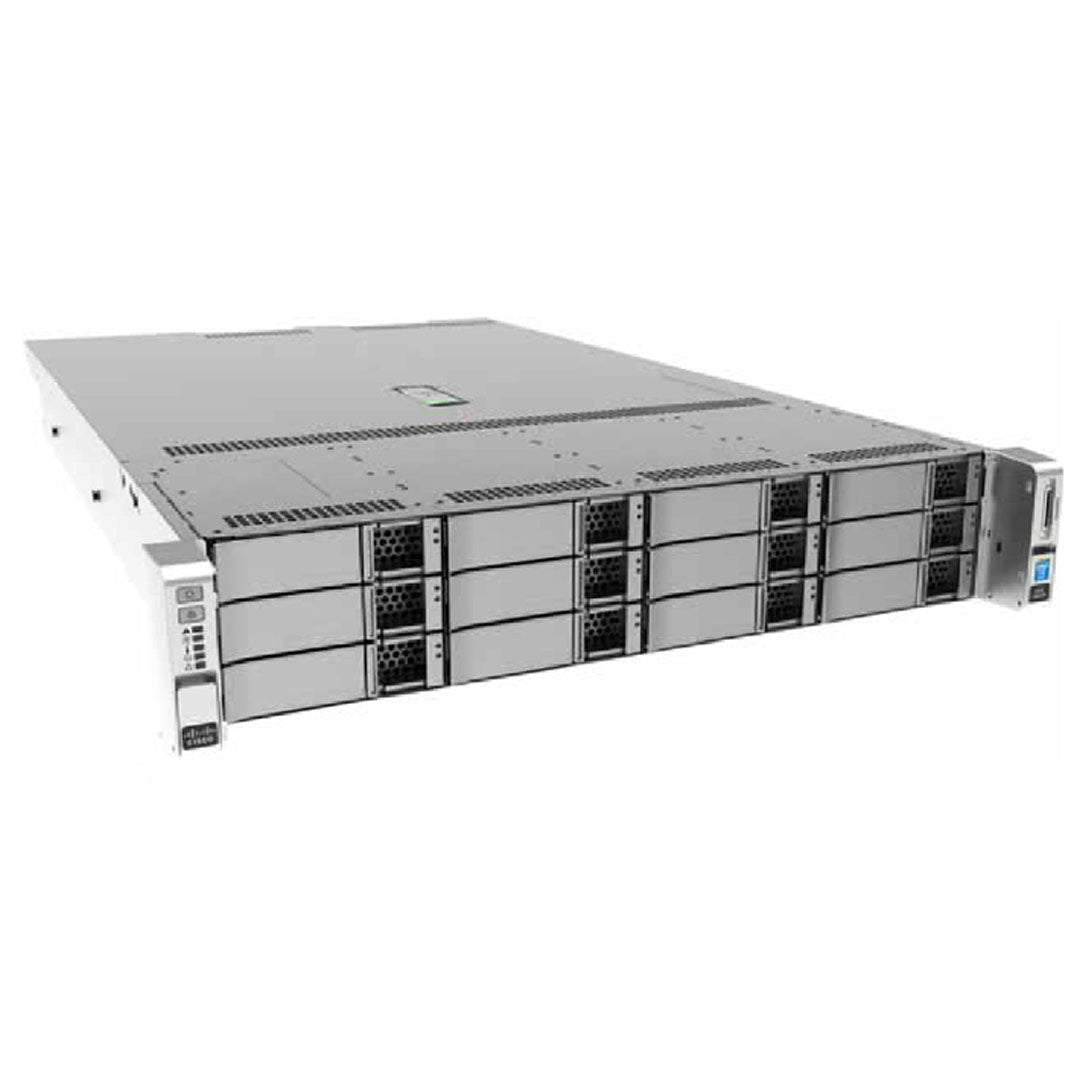

Cisco C-Series UCS C240 M4 12x3.5 Rack Servers UCSC-C240-M4-LFF

UCS C240 C-Series M4 12x 3.5" LFF
UCSC-C240-M4-LFF

(12) LFF SAS/SATA Drives
SAS expander technology
Cannot mix SATA HDDs with any SAS drive
(1) GPU Supported

C240 M4 8x2.5" Chassis
UCSC-C240-M4S

(8) SFF Drives
Supports two Embedded Controllers
Primary Controller (SATA) 1-4
Secondary Controller (sSATA) 5-9
(1) GPU Supported

Cisco C-Series C240 M4 16x2.5 Chassis
UCSC-C240-M4S2

(16) SFF Drives
SAS expander technology
Embedded software RAID not supported
Supports HW RAID and HBA
(2) GPU Supported

Cisco C-Series C240 M4 24x2.5 Chassis
UCSC-C240-M4SX

(24) SFF Drives
SAS expander technology
Embedded software RAID not supported
Supports HW RAID and HBA
(4) GPU Supported

The C240 M4 server includes a modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 1 GbE embedded (on the motherboard) LOM ports. These features combine to provide outstanding levels of internal memory and storage expandability along with exceptional performance.

The Cisco UCS C240 M4 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

PCIe Riser Options

Cisco C240 M4 Riser Card 1 A UCSC-PCI-1A-240M4

Riser Card 1 option A
UCSC-PCI-1A-240M4

Slot 1 FH-3/4 x8 NCSI-Yes

Slot 2 FH-FL x16 NCSI-Yes

Slot 3 No slot available

GPU capable slot 2
NCSI supported in only one slot at a time (default slot 2). If a GPU card is present in slot 2, NCSI support automatically moves to slot 1

Cisco C240 M4 Riser Card 1 B UCSC-PCI-1B-240M4

Riser Card 1 option B
UCSC-PCI-1B-240M4

Slot 1 FH-3/4 x8 NCSI-No

Slot 2 FH-FL x16 NCSI-Yes

Slot 3 FH-FL x8 NCSI-No

No GPUs are supported on this riser. There is no GPU power connector in this version. Use riser version 1A for GPU cards

Cisco C240 M4 Riser Card 1 C UCSC-PCI-1C-240M4

Riser Card 1 option C
UCSC-PCI-1C-240M4

Slot 1 FH3/4 x8 NCSI-Yes

Slot 2 FHFL x16 NCSI-Yes

Slot 3 2xSATA Boot Drives

There is no PCIe connector in slot 3; instead, there are two connectors available for connecting SATA boot drives.

Riser Card 2
UCSC-PCI-2-C240M4

Slot 1 FH3/4 x8 NCSI-Yes

Slot 2 FHFL x16 NCSI-Yes

Slot 3 No slot available

GPU capable slot 5
NCSI supported in only one slot at a time (default slot 5). If a GPU card is present in slot 5, NCSI support automatically moves to slot 4.

GPU Options

Rules & Requirements

All GPU cards require two CPUs and a minimum of two power supplies in the server.

If you order one or two boot drives, you can order a maximum of one GPU and it must be installed in Riser 2 slot 5.
(UCSC-PCI-2-C240M4)

NVIDIA GRID K1 and K2 GPUs can be mixed.
No other GPU mixing is allowed.

K1/K2/K40 Power Cable UCSC-GPUCBL-240M4

K80 or M60 GPU must select Power Cable UCS-300WKIT-240M4

K80 or M60 GPU must select two 1400 W power supplies

Slot 5 on riser card 2 is the required slot for the first GPU

Slot 2 on riser card 1 is the secondary slot for a second GPU.

Do not install more than fourteen 64-GB DIMMs when using an NVIDIA GPU card in this server.

Dimensions & Weight

Parameter	Value
Height	3.43 in. (8.70 cm)
Width (including slam latches)	17.65 in. (44.8 cm) Including handles: 18.96 in. (48.2 cm)
Depth	29.0 in. (73.8 cm) Including handles: 30.18 in. (76.6 cm)
Front Clearance	3 in. (76 mm)
Side Clearance	1 in. (25 mm)
Rear Clearance	6 in. (152 mm)
Weight¹	Maximum (12 HDDs, 2 CPUs, 24 DIMMs, 2 power supplies): 67.5 lbs (30.6 kg) Minimum (1 HDD, 1 CPU, 1 DIMM, 1 power supply): 39.2 lbs (17.8 kg) Bare (0 HDD, 0 CPU, 0 DIMM, 1 power supply): 35.9 lbs (16.3 kg)
