Specs
Quick Specs
What's New for Cisco C220 M4
- (2) Intel E5-2600 v3 or v4 Processors
- (24) 2400MT/s DDR4 DIMMs
- (4) LFF SATA/SAS Drives
- 12Gbps SAS Drives Supported
- (2) PCIe 3.0 Slots
- No GPUs Supported
- Dedicated mLOM Slot
- Embedded 2 x 1 GbE LAN-on-motherboard (LOM)
- (6) Hot Swap Fans

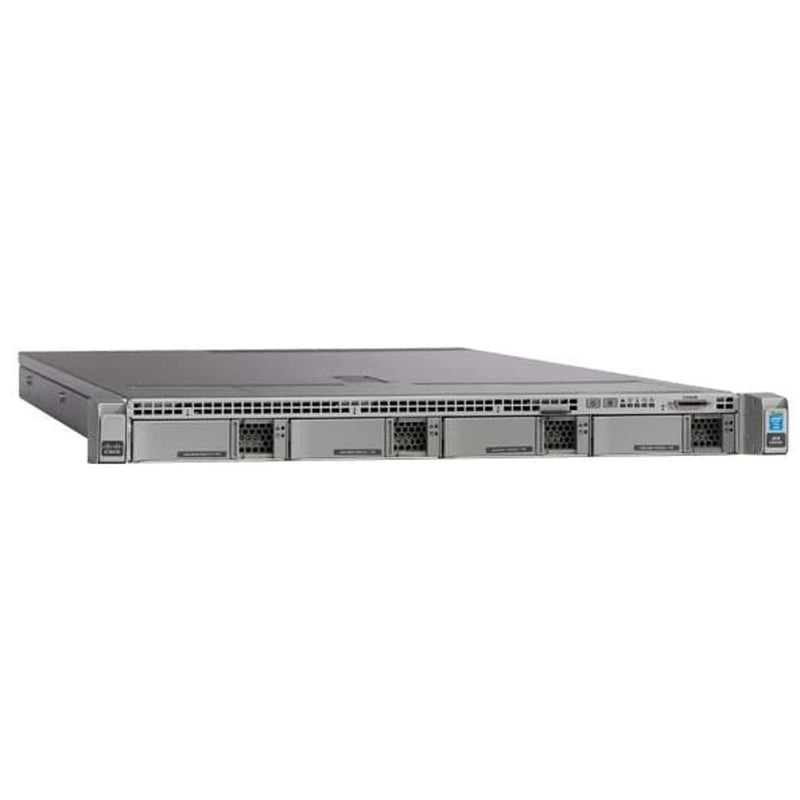

The enterprise-class UFCS C220 M4 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel Xeon E5-2600 v3 and v4 series processor family that deliver significant performance and efficiency gains. In addition, the UCS C220 M4 LFF server provides 24 DIMM slots, up to 4 drives and 2 x 1 GbE LAN-on-motherboard (LOM) ports delivering outstanding levels of density and performance in a compact 1U package.
Other Versions:
- Cisco C220 M4 | M5 | M6 | M7
- Cisco C240 M4 | M5 | M6
Ideal for:
- Cloud Servers
- Corporate IT
- Data Analytics
- Database
- High-Performance Computing (HPC)
- Virtual Desktop Interface (VDI)
- Virtualization
- Web Tech
