Cisco TOPO 5 Hyperflex NIC Connectivity Mode | HX-E-TOPO5
Thanks for the request. We'll get back to you with in 24 hours.

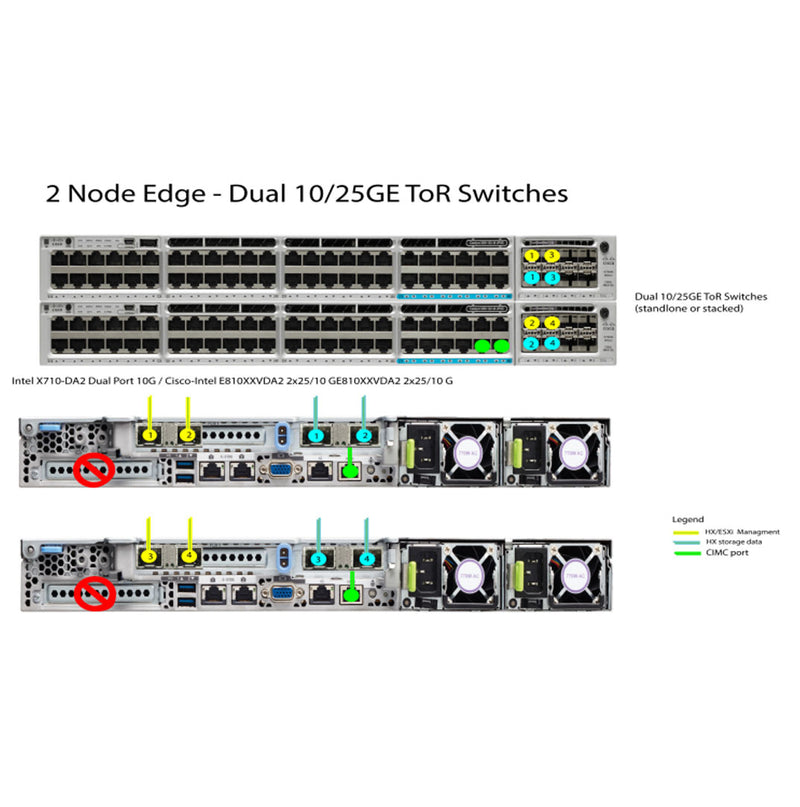

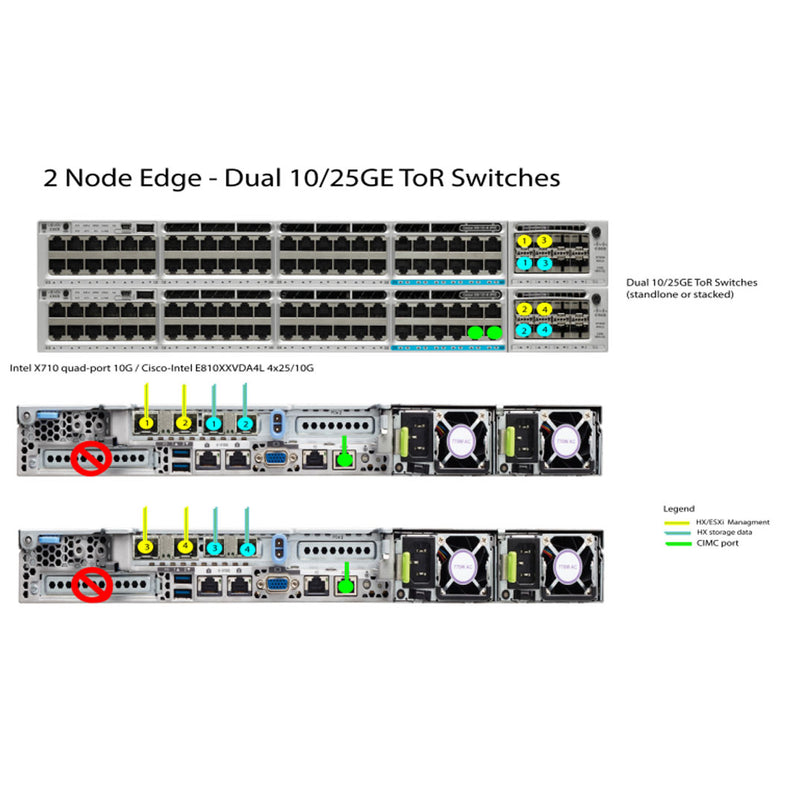

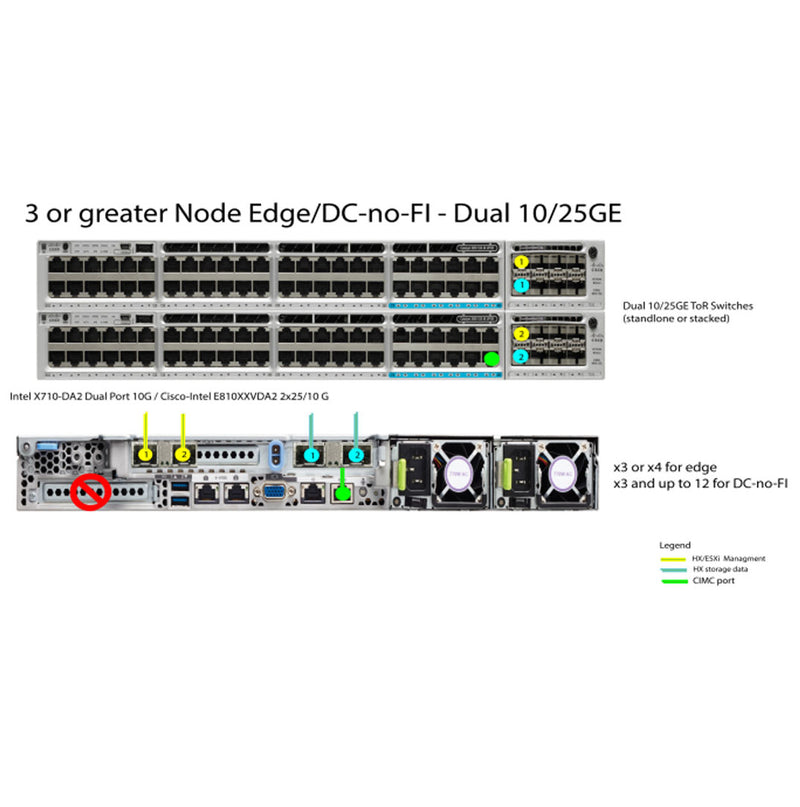

Starting with HyperFlex 5.0(2a), the Hyperflex NIC Connectivity Mode is supported
Minimum 4 NIC Ports required, If NIC connectivity mode is selected, cannot select Riser1 HH X16 Slot or Riser2 HH X8 Slot Options
Supported NICs| Product ID (PID) | Description |
|---|---|
| HyperFlex NIC Connectivity Mode | |
| R2 Slot 4 x8 PCIe NIC | |
| HX-PCIE-ID10GF | Intel X710 dual-port 10G SFP+ |
| HX-PCIE-IQ10GF | Intel X710 quad-port 10G SFP+ |
| HX-P-I8D25GF | Cisco-Intel E810XXVDA2 2x25/10 GbE SFP28 PCIe NIC |
| HX-P-I8Q25GF | Cisco-Intel E810XXVDA4L 4x25/10 GbE SFP28 PCIe NIC |
| R2 Slot 6 x8 PCIe NIC | |
| HX-PCIE-ID10GF | Intel X710 dual-port 10G SFP+ |
| HX-PCIE-IQ10GF | Intel X710 quad-port 10G SFP+ NIC |
| HX-P-I8D25GF | Cisco-Intel E810XXVDA2 2x25/10 GbE SFP28 PCIe NIC |
| HX-P-I8Q25GF | Cisco-Intel E810XXVDA4L 4x25/10 GbE SFP28 PCIe NIC |
What is a TOPO
HyperFlex Edge utilizes the existing top of rack (ToR) switches available in the customer
environment.
Many topologies are supported to ensure the right fit for many environments. HyperFlex Edge supports single and dual switch topologies, depending on the level of high availability required. A topology selection is required. Intel NIC adapters are used by guest
VMs/applications only. When selecting a topology, these adapters may not be substituted for those automatically included.
- Cisco Series HX240c
