Cisco UCS 5108 Enclosure CTO

Brand:
Type:
CTO Servers
Condition:
ECS Refurbished & Tested
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Submit for Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Select Fabric Extender (Optional)

Max: 2
Cant Mix Extenders
Fabric Extender Specs Below

Select Fabric Interconnect (Optional)

Max: 2
Cant Mix with Fabric Extenders in the same chassis.

Select Power Supply

Mixing AC, DC or HVDC PSUs within the same 5108 blade chassis is not supported.

Select Power Cable (Optional)

You may select up to 4 power cords.

ECS Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart". From the cart page you can submit a submit a quote request for best pricing

Quick Specs

  • Form Factory: 6U Enclosure
  • Blade Support: 8x Half -Width, or 4x Full-Wdith
  • Fabrics: 2x Extender or Interconnect
  • Fans: 8
  • Power Supply Unit: 4
  • Interconnect Speed:
    2x 40GbE Per Half-Width
    4x 40GbE Per Full-Width
  • Protocols: Ethernet, Fiber Over Ethernet (FCoE)

Other Versions:

  • Enclosure: UCS 5108
  • UCS B200 M4
  • UCS B200 M5
  • UCS B200 M6

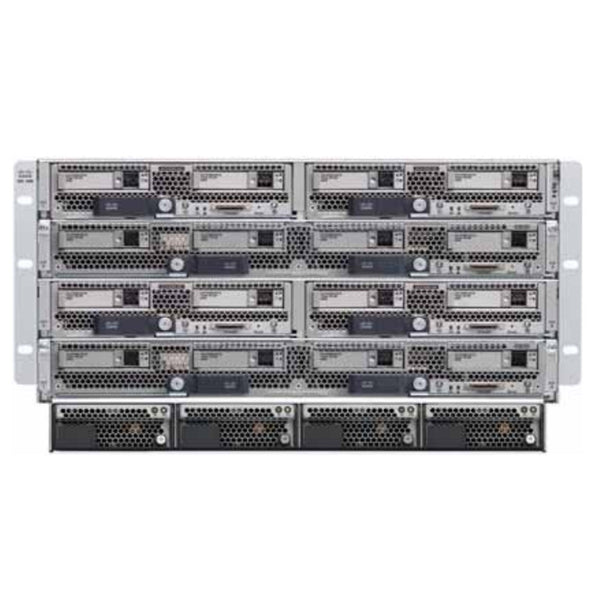

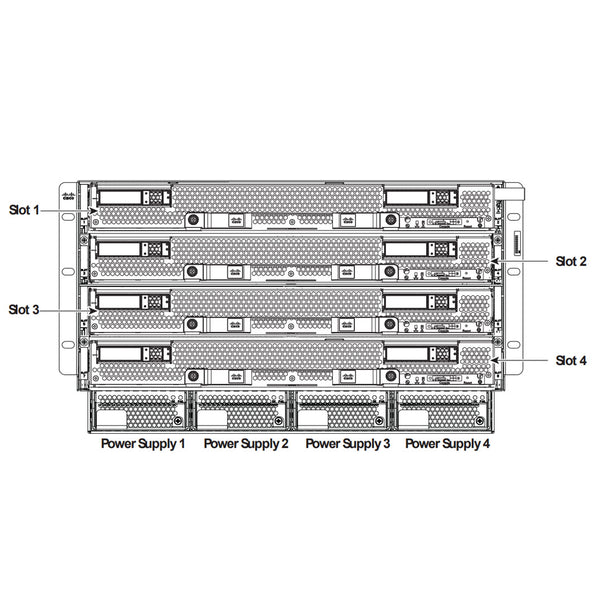

The Cisco UCS 5108 6U Enclosure houses the B-Series server blades, supporting up to 8 half-width or 4 full-width blades. Each blade is equipped with interconnect speeds of 2 x 40Gb for half-width nodes and 4 x 40Gb for full-width nodes. These blades connect directly to the two Fabric Extenders (FEX) or two Fabric Interconnects located at the rear of the Cisco 5108 Enclosure, ensuring high-performance network connectivity.

The Cisco UCS 5108 chassis offers various options and configurations for its Fabric Interconnects and Fabric Extenders, providing flexibility in how the system is set up. Each server node can be equipped with different types of adapters, which connect to the fabric for network communication. However, it's important to note that while you can mix different server nodes in the front of the 5108 chassis, you cannot mix different types of fabrics. This ensures consistency in connectivity and performance across all nodes. If you're unsure about the optimal node configurations or need assistance with understanding the setup options for this chassis, our team is ready to help. Contact us today!

Node Options
Cisco Half-Height Blade Options for the 5108 Enclosure Half-Height
Specs
  • Max Per 5108: 8
  • CPU Count: 2
  • Drive Count: 2
  • Adapter Counts: 2
  • Throughput I/O: Up to 80Gbps
Blade Options
  • B200 M4
  • B200 M5
  • B200 M6
Cisco Full-Height Blade Options for the 5108 Enclosure Full-Height
Specs
  • Max Per 5108: 4
  • CPU Count: 4
  • Drive Count: 4
  • Adapter Counts: 3 - 6
  • Throughput I/O: Up to 160Gbps
Blade Options
  • B260 M4
  • B420 M4
  • B460 M4
  • B480 M5

All Node Servers have their own CTO
You must configure each Server Nodes separately
Click here to configure the Nodes

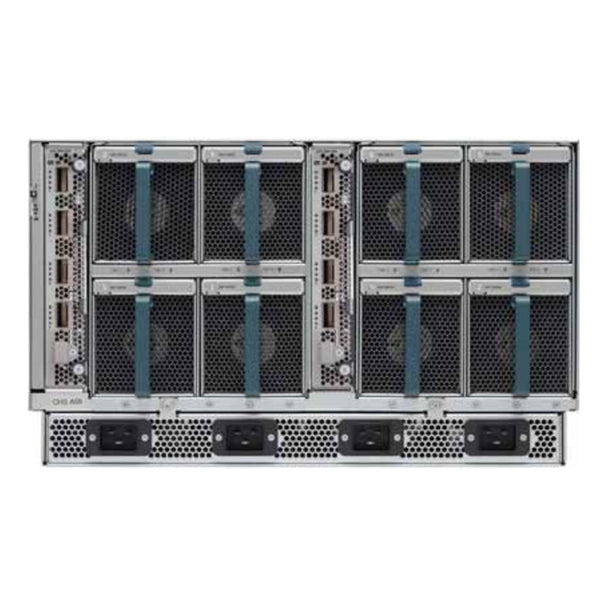

Fabric Modules

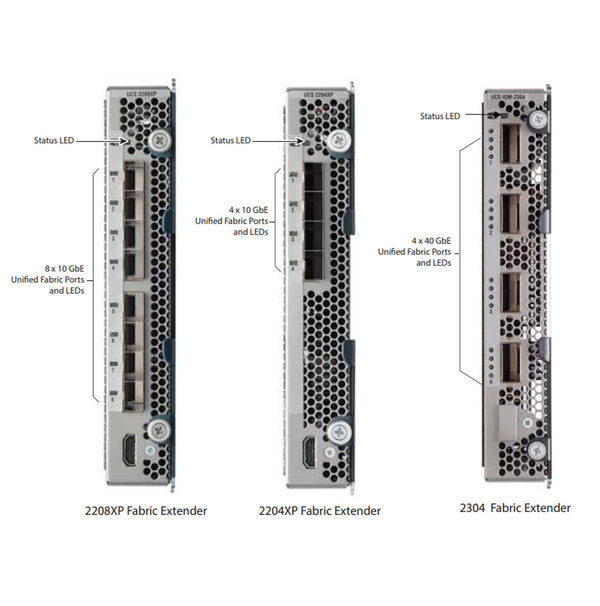

Fabric Extender (FEX)

The Fabric Extender (FEX) is used in the Cisco UCS 5108 when the network already has Fabric Interconnects (FIs) deployed in the rack. In this scenario, the FEX serves as a bridge between the server blades in the chassis and the existing FIs. Instead of adding additional FIs inside the 5108, the FEX allows the chassis to connect to the pre-existing FIs, reducing the need for extra devices and simplifying the network design. This setup maintains network consistency and scalability while avoiding the complexity of additional cabling and hardware, ensuring the system remains efficient and easy to manage.


  • Cisco UCS 2408 IOM (FEX)
  • Cisco UCS 2304 IOM (FEX)
  • Cisco UCS 2204XP (FEX)
  • Cisco UCS 2208XP (FEX)

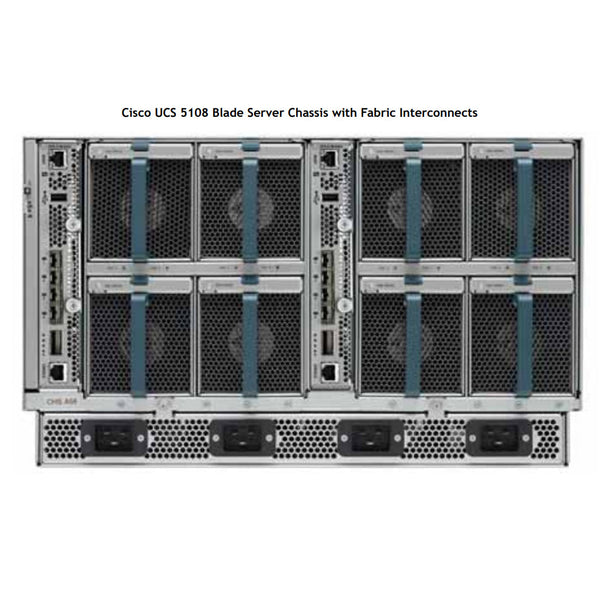

Fabric Interconnect (FI)

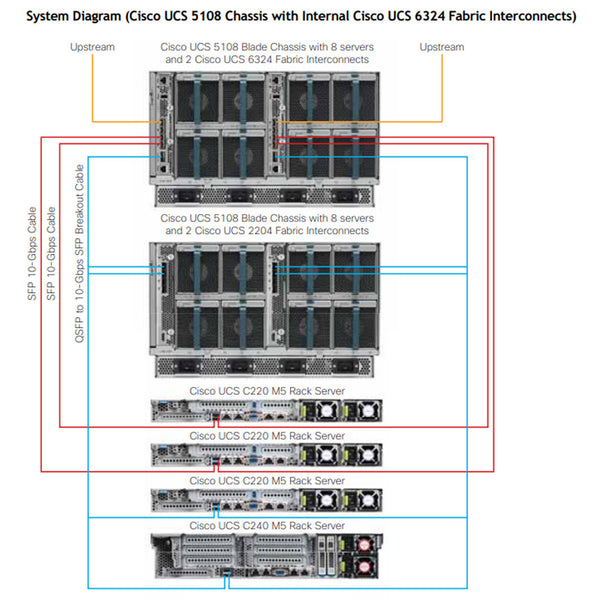

The Fabric Interconnect (FI) in the Cisco UCS 5108 provides a flexible and scalable solution by being integrated directly into the chassis, which eliminates the need for external FIs in the rack. This configuration simplifies the network architecture and reduces the overall footprint, as the interconnects are housed inside the 5108 chassis. This setup is ideal for environments where space is limited or where a more compact design is desired. By integrating the FIs inside the chassis, the system offers easier management, centralized control, and a more streamlined cabling design. This flexibility allows organizations to scale their infrastructure without the complexity of additional rack-mounted devices, making it a cost-effective and efficient solution.


  • Cisco UCS 6324 Fabric Interconnect (FI)

Cisco UCS 2408 I/O Module
Cisco UCS 2408 I/O Module Fabric Extender (FEX)
  • PN: UCS-IOM-2408
  • External Ports: 8 x 25Gbps SFP28
  • Internal Ports: 32 x 10Gbps
  • Max I/O: 200Gbps
  • Dimensions (HxWxD): 7.64 x 1.36 x 7.2in | (19.4 x 3.54 cm)
  • Maximum Power consumption: 160 W

Supported (FI)
  • Cisco UCS 6536 (FI)
  • Cisco UCS 64108 (FI)
  • Cisco UCS 6454 (FI)
>UCS 2408 (FEX) Data Sheet

Cisco UCS 2408 (FEX)
Data Sheet

Cisco UCS 2304 I/O Module
Cisco UCS 2304 I/O Module Fabric Extender (FEX)
  • PN: UCS-IOM-2304
  • External Ports: 4 x 40Gbps
  • Internal Ports: 32 x 10Gbps or 8 x 40Gbps
  • Max I/O: 160Gbps
  • Dimensions (HxWxD): 7.64 x 1.36 x 7.2 in. (19.4 x 3.54 cm)
  • Maximum Power consumption: 150 W

Supported (FI)
  • Cisco UCS 6200 Series (FI)
  • Cisco UCS 6300 Series (FI)
Cisco UCS 2304 I/O Module

Cisco UCS 2304 (FEX)
Data Sheet

Cisco UCS 2204XP I/O Module
Cisco UCS 2204XP I/O Module Fabric Extender (FEX)
  • PN: UCS-IOM-2204XP
  • External Ports: 4 x 10Gbps
  • Internal Ports: 16 x 10Gbps
  • Max I/O: 40Gbps
  • Dimensions (HxWxD): 7.64 x 1.36 x 7.2 in
  • Maximum Power consumption: 80 W

Supported (FI)
  • Cisco UCS 6100 Series (FI)
  • Cisco UCS 6200 Series (FI)
Cisco UCS 2204XP I/O Module

Cisco UCS 2204XP (FEX)
Data Sheet

Cisco UCS 2208XP I/O Module
Cisco UCS 2208XP I/O Module Fabric Extender (FEX)
  • PN: UCS-IOM-2204XP
  • External Ports: 8 x 10Gbps
  • Internal Ports: 32 x 10Gbps
  • Max I/O: 80Gbps
  • Dimensions (HxWxD): 7.64 x 1.36 x 7.2 in
  • Maximum Power consumption: 80 W

Supported (FI)
  • Cisco UCS 6100 Series (FI)
  • Cisco UCS 6200 Series (FI)
Cisco UCS 2208XP I/O Module

Cisco UCS 2208XP (FEX)
Data Sheet

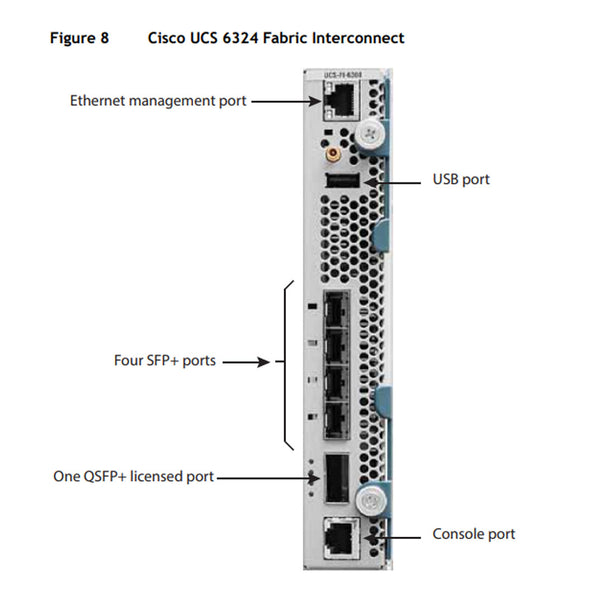

Cisco UCS 6324 Fabric Interconnect (FI)
Cisco UCS 6324 Fabric Interconnect (FI)
  • PN: UCS-FI-M-6324
  • External Ports: 1 x 40GbE/FCoE
  • Uplink Ports: 4 x 1/10Gb FCoE
  • Internal Ports: 16 x 10GbE/FCoE (10G-KR)
  • Max I/O: 40Gbps
  • Dimensions (HxWxD): 7.64 x 1.36 x 7.2 in
  • Maximum Power consumption: 80 W

In order to use the QSFP+ port on 6324 FI, a license must be added. Mini FI License for 40G Scalability Port | UCS-6324-40G

Cisco UCS 6324 Fabric Interconnect (FI)

Cisco UCS 6324 (FI)
Data Sheet



Current Configuration

Select Chassis

Select Fabric Extender (Optional)

Select Fabric Interconnect (Optional)

Select Power Supply

Select Power Cable (Optional)

ECS Warranty

*list also serves as quick links to each section

Welcome to the Request Express Quoting Form!

for: Cisco UCS 5108 Enclosure CTO


This streamlined form is designed to simplify the quoting process for you. Whether you're uncertain about specific parts or seeking a hassle-free experience, you're in the right place.

Provide us with the necessary details, and we'll generate a customized quote for your server. Even if you're unsure about the exact components you need, we've got you covered. Our team will tailor a solution based on the information you provide.

Let's get started!
Simply fill out the form, and we'll take care of the rest.


Name *
Email *
Message *
Preferred Brand
Form Factor
Rack Unit of Height (#U)
Processor(s)
Memory
Total Amount of Memory
Total Amount of Usable Storage

Storage Type


RAID

List Networking Connection needed:
Rack Space Restrictions
Which OS do you plan on using:


Price as Configured: 0

Add to Cart

Error Submitting Cart. Please get in touch with us for support.

Please select all the mandatory items in the configuration list before submitting the cart.

One or more items in your cart has no price. This will be submitted as a "Request for a Quote".

Product Specs

Base Standard Capabilities

FeatureBenefit
Management by Cisco UCS Manager
  • Reduces TCO by managing servers, networking, and storage from a single interface
Unified fabric
  • Reduces TCO by reducing the number of Network Interface Cards (NICs), Host Bus Adapters (HBAs), switches, and cables that need to be managed, cooled, and powered
Support for one or two Cisco UCS 2100, 2200, 2300 or 2400 Series Fabric Extenders
  • Eliminates switches from the chassis along with complex configuration and management of those switches, allowing a system to scale without adding complexity and cost
  • Allows use of two fabric extenders for both redundancy and aggregation of bandwidth
  • Enables bandwidth scaling based on application needs; blades can be configured from 1.25 Gbps to 40 Gbps or more
Support for Cisco UCS 6324 Fabric Interconnect
  • Allows the simplicity and consistency of a Cisco UCS managed solution to be economically achieved for single-chassis implementations
Autodiscovery
  • Requires no configuration; like all Cisco UCS components, chassis are automatically recognized and configured by Cisco UCS Manager
High-performance midplane
  • Provides investment protection for new fabric extenders, fabric interconnects, and future blade servers
  • Supports up to 2 x 40 Gigabit Ethernet for every half-width blade server slot when used in high-availability mode
  • Provides 8 blades with 1.2 terabits (Tb) of available Ethernet throughput to meet future I/O requirements
  • Provides reconfigurable chassis to accommodate a variety of current and future blade server form factors and functions

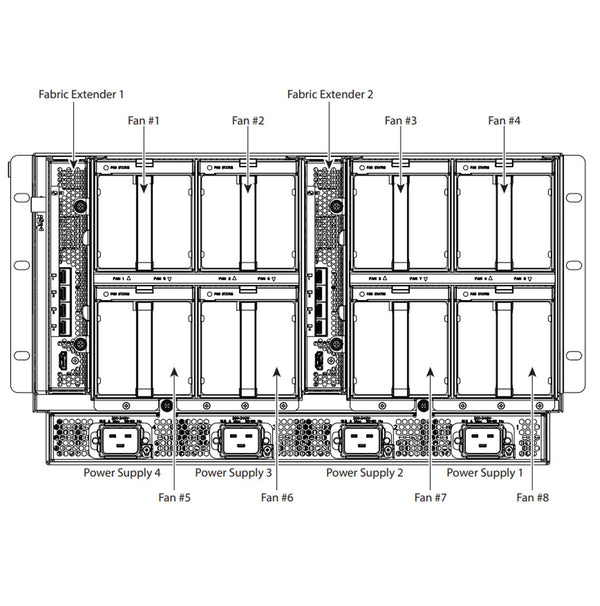

Redundant hot-swappable power supplies and fans
  • Provides high availability in multiple configurations
  • Increases serviceability
  • Provides uninterrupted service during maintenance
Hot-pluggable blade servers and fabric extenders
  • Provides uninterrupted service during maintenance and server deployment
Comprehensive monitoring
  • Provides extensive environmental monitoring on each chassis
  • Allows use of user thresholds to optimize environmental management of the chassis

Items included with the chassis:

Product ID (PID) PID Description
N01-UAC1AC power input module (AC blade chassis only)
N20-CDIVHHorizontal divider, where quantity is based on number and type of blade(s) selected.
N20-CDIVVVertical divider, where quantity is based on number and type of blade(s) selected.
N20-CBLKIFEX blanking panel, where quantity is based on unpopulated slots.
N20-CBLKB1Blade blanking panel, where quantity is based on unpopulated slots.
N20-CBLKPPSU blanking panel, where quantity is based on unpopulated slots.
N20-FAN5Fan modules.
N20-CAKChassis accessory kit, consisting of
-N20-CRMK2: Tool-less rail kit designed for racks with square mounting.
-N20-BKVM= : KVM local console connector cable that connects to the front of any UCS blade server, and documentation.
Items not included with the chassis (but may be ordered separately):
N20-CRMK2-RHA=Round hole adapter kit used to install tool-less rail kit in racks that have round mounting holes (supports threaded and non-threaded holes).
Footnote:
[1]The adapter kit only works with the N20-CRMK2 rail kit
[]The blade chassis input power module cannot be replaced in the field to convert the input power type, e.g. converting a DC input to an AC input blade chassis.

Available Fabric I/O Extenders

Product ID(PID) Fabric I/O Extender Number of GbE/FCoE Ports to Fabric Interconnect Number of Internal GbE/FCoE Ports Total Chassis I/O per Fabric Extender
UCS-IOM-2408 Cisco UCS 2408 I/O Module (8 external 25G ports, 32 internal 10G ports) 8x25G 32x10G 200 Gbps
UCS-IOM-2408-8SFP Cisco UCS 2408 I/O Module with 8xSFP-25G-SR-S 8x25G 32x10G 200 Gbps
UCS-IOM2408-16SFP Cisco UCS 2408 I/O Module with 16xSFP-25G-SR-S 8x25G 32x10G 200 Gbps
UCS-IOM-2304 Cisco UCS 2304 I/O Module 4x40G 32x10G or 8x40G 160 Gbps
UCS-IOM-2304-8FET Bundle that includes one 2304 plus 8 Fabric Extender Transceivers (FETs) [1] 4x40G 32x10G or 8x40G 160 Gbps
UCS-IOM-2208XP Cisco UCS 2208XP I/O Module 8x10G 32x10G 80 Gbps
UCS-IOM2208-16FET Bundle that includes one 2208XP plus 16 Fabric Extender Transceivers (FETs) [1] 8x10G 32x10G 80 Gbps
UCS-IOM-2204XP Cisco UCS 2204XP I/O Module 4x10G 16x10G 40 Gbps
UCS-IOM2204-8FET Bundle that includes one 2204XP plus 8 Fabric Extender Transceivers (FETs) [1] 4x10G 16x10G 40 Gbps
Footnote:
[1]Each Fabric I/O Extender connects to the Fabric Interconnect series 10GbE or 40GbE, Fibre Channel over Ethernet (FCoE) capable ports.
[1]Choose one or two identical Fabric I/O Extenders, or
[2]Choose one or two identical Fabric Extender bundles (includes one Fabric Extender plus transceivers)
[1]Do not use any Fabric Extender transceivers other than those that come in the bundles.
[2]You cannot combine a 6324 Fabric Interconnect and a Fabric Extender in the same chassis
[Notes]The Cisco UCS 2304 Fabric Extender is not compatible with the Cisco UCS 6200 Fabric Interconnect series

Available Fabric Interconnects

Product ID (PID) Fabric Interconnect Number of Internal GbE/FCoE Ports Number of FCoE Uplink Ports Number of 40GbE/FCoE Scalability Ports [1] Total Chassis I/O per Fabric Interconnect
UCS-FI-M-6324 UCS 6324 in-chassis FI with1 x 40G QSFP+ expansion port, and 16 10G-KR links to servers 4x1G or 10G 1 40 Gbs (one 40 GbE Port)
Footnote:
[1]Each Fabric Interconnect integrates the functions of a Fabric I/O Extender and Fabric Interconnect and connects directly to external Nexus switches by means of several ports of 10GbE and Fibre Channel over Ethernet (FCoE).
[2]The scalability port supports a QSFP+ breakout cable.
[]You must select either one or two identical Fabric Interconnects.
[]You cannot combine a 6324 Fabric Interconnect and a Fabric Extender in the same chassis

Available Power Cords

Product ID (PID) PID Description Comment
CAB-AC-16A-AUS 16A, 250 VAC 16A, 250 VAC
CAB-9K16A-BRZ 16A, 250 VAC 16A, 250 VAC
CAB-AC16A-CH 16A, 250 VAC 16A, 250 VAC
CAB-AC-2500W-EU 16A, 250 VAC 16A, 250 VAC
CAB-AC-2500W-INT 16A, 250 VAC 16A, 250 VAC
CAB-AC-2500W-ISRL 16A, 250 VAC 16A, 250 VAC
CAB-US620P-C19-US 16A, 250 VAC NEMA L6-20P to IEC C19 16A, 250 VAC NEMA L6-20P to IEC C19
CAB-AC-C6K-TWLK 20A, 250 VAC NEMA L6-20 (Twist Lock) to IEC C19 20A, 250 VAC NEMA L6-20 (Twist Lock) to IEC C19
CAB-ACS-16 16A, 250 VAC 16A, 250 VAC
CAB-C19-CBN 16A, 250 VAC 16A, 250 VAC
CAB-US515P-C19-US 15A, 125 VAC NEMA 44696 to IEC-C19 USA 15A, 125 VAC NEMA 44696 to IEC-C19 USA
CAB-US520-C19-US 20A, 125 VAC NEMA 44701 to IEC-C19 USA 20A, 125 VAC NEMA 44701 to IEC-C19 USA
CAB-BS1363-C19-UK 13A, 250 VAC BS1363 to IEC C19 13A, 250 VAC BS1363 to IEC C19
CAB-9K16A-KOR 16A, 250 VAC CEE 44749 to IEC C19 16A, 250 VAC CEE 44749 to IEC C19
CAB-C19-C20-3M-JP 16A, 250 VAC 16A, 250 VAC
CAB-IR2073-C19-AR 20A, 250 VAC IRSM 2073 to IEC C19 20A, 250 VAC IRSM 2073 to IEC C19
CAB-SABS-C19-IND 16A, 250 VAC SABS 164-1 to IEC C19 16A, 250 VAC SABS 164-1 to IEC C19
CAB-S132-C19-ISRL 16A, 250 VAC S132 to IEC C19 16A, 250 VAC S132 to IEC C19
CAB-C2316-C19-IT 16A, 250 VAC CEI 23-16 to IEC C19 16A, 250 VAC CEI 23-16 to IEC C19

Shipping Information

Express Computer Systems can ship to virtually any address in the world and provides you with the best shipping rates possible. Cost of shipping varies depending on what service you require, your destination and size of the shipment. Shipping costs will be calculated separately from your order and billed to you post purchase. In the notes section of your order please provide us with your preferred shipping method and we will get back to you.

Custom configured orders ship within 2 business days after all required products are in stock.

Please allow 3 business days for products that are not in stock to arrive to our facility in Irvine, California.

Domestic Shipments
  • Standard Ground
    • Shipping time: 2-7 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-10 business days
    • Excludes weekends, holidays or weather delays.
  • 3 Business Days
    • Shipping time: 3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 3-6 business days
    • Excludes weekends, holidays or weather delays.
  • 2 Business Days
    • Shipping time: 2 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-5 business days
    • Excludes weekends, holidays or weather delays.
  • Overnight / Next Business Day
    • Shipping time: 1 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 1-4 business days
    • Excludes weekends, holidays or weather delays.
International Shipments
  • International Economy
    • Shipping time: 4-6 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 5-9 business days
    • Excludes weekends, holidays or weather delays.
  • International Priority
    • Shipping time: 1-3 business days
    • Order processing time: 0-3 business days
    • Delivery time after order is placed: 2-6 business days
    • Excludes weekends, holidays or weather delays.

For more information on shipping view our Shipping Information page or send us a message

ECS Warranty Information

Express Computer Systems (ECS) provides a 1 year parts warranty against defects in material or workmanship that will affect the products functionality. All refurbished items are tested prior to shipping to guarantee up-time upon arrival. If you are having issues with an item we provided please Contact Us and we will do our best to assist you.

What does our ECS warranty cover?
We offer 1 year warranty as standard and additional years can be added to fit your needs. Please reach out to a sales associate via the Contact Us page or live chat for more information on extended coverage options. During the coverage period if your product fails we will offer a Next Business Day replacement. If we are unable to replace the product we will refund its original selling price. Shipping costs and tax are not refundable. Express Computer Systems retains the right to decide whether the goods will be replaced or refunded.

What is not covered by our warranty?
Our warranty does not cover any problem caused by the following conditions:

  1. accidents; misuse; carelessness; electrostatic discharge; shock; temperature or humidity beyond the specifications of the product; improper installation; operation; modification;
  2. any improper use that contravenes the instructions in the user manual;
  3. problems caused by other equipment. Our warranty is void if the product is returned with damaged, removed, counterfeit labels, or any modifications (including any component or external cover removal). Our warranties do not cover data loss or damages to any other equipment. In addition, our warranties do not cover incidental damages, consequential damages, or costs related to data recovery, removal, and installation.

Important notes:

  • Please ask for additional warranty/coverage that you may require in addition to the standard 1 ECS warranty prior to final purchase. Requesting additional warranty after your purchase can be denied.
  • FREE technical support is provided on purchased items via phone, email, or live chat.

About Express Computer Systems

Express Computer Systems is committed to transforming our customers’ IT infrastructure with high quality products at affordable costs. Our sales reps and customer support engineers understand our customers rely heavily on advanced technology to run their business but need to do so without breaking the bank.

We specialize in building custom server configurations, custom storage solutions, networking solutions, and components from top manufacturers including HPE, Dell, Cisco, NetApp, Dell EMC, HPE Nimble and many others.

Subscribe
