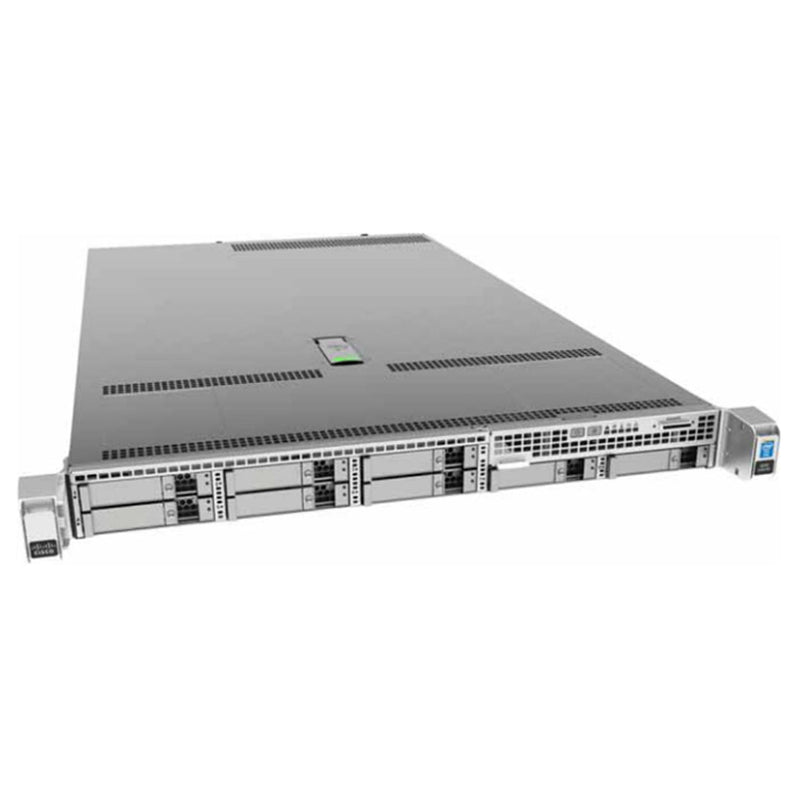

Cisco UCS C220 M4 SFF Rack Servers CTO

Cisco

| CTO Servers |

UCSC-C220-M4-SFF



Configure for Pricing

READ ME

  • Some options may not be displayed until the compatible parent option is chosen ie. Chassis – Drives, Processor – RAM etc.
  • “Quote” items can be added to your cart and sent to us via the cart page
  • Click the blue bar to close/open a section from view after choosing your options

Select Chassis

Processors

E5-2600 v4 Series Processor Family CPU

Select Security Bezel (Optional)

An optional locking bezel can be mounted to the front of the chassis to prevent unauthorized access to the drives.

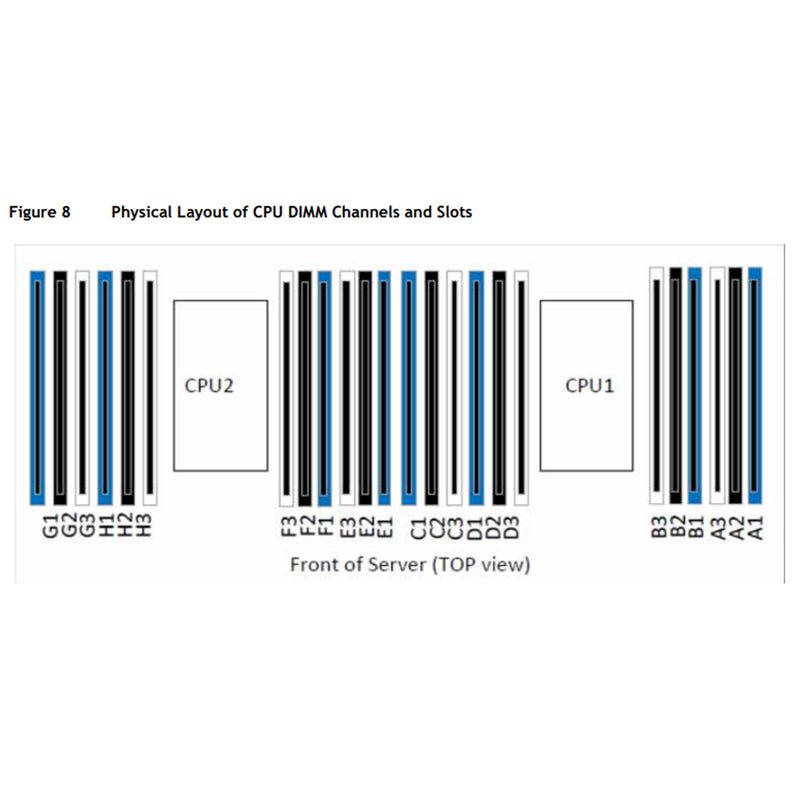

Select DIMM Memory

Do not mix RDIMMs with LRDIMMs
Do not mix 64GB DDR4-2133-MHz TSV-RDIMMs with any other DIMMs
Non-ECC DIMMs are not supported.
Cisco memory from previous generation servers (DDR3) is not compatible with this server

Select Memory Mode

Select RAID Controller

If nothing is selected Embedded software RAID is the default RAID Controller

Select HDD Drives (Optional)

more information below \"Available Drives\"

Select SATA SSD Drives (Optional)

More information below \"Available Drives\"

Select SAS SSD Drives (Optional)

More information below \"Available Drives\"

Select NVMe SSD Drives (Optional)

More information below \"Available Drives\"

Select PCIe Adapter

More information below \"Available PCIe Option Cards\"

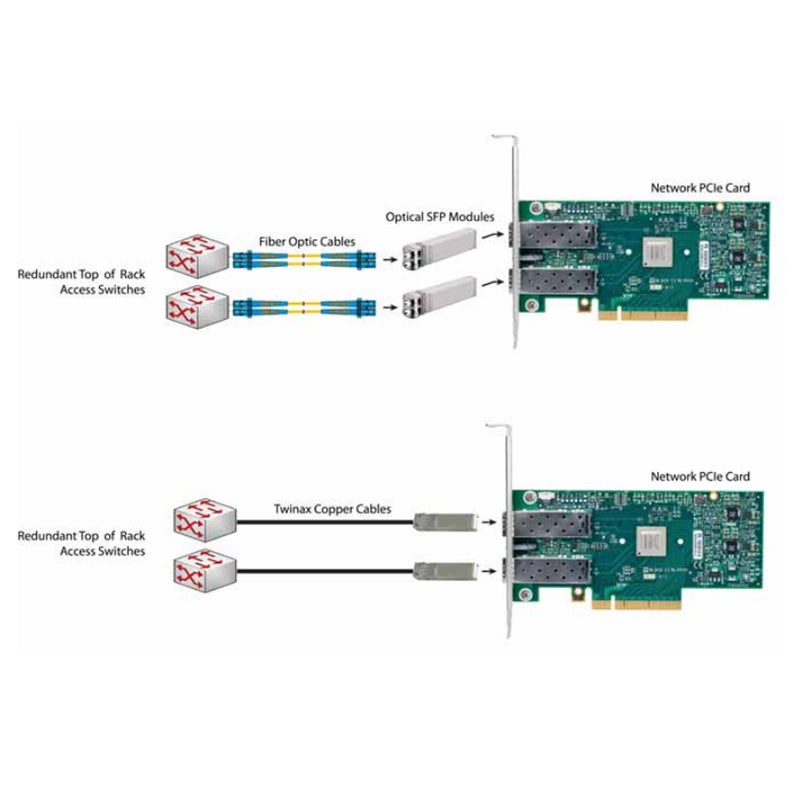

Select Network Card Accessories

Choose Up to Two Twinax Cables for Each Network Card Ordered
Choose Up to Two SFP+ Modules for Each Network Card Ordered

Select Power Supplies

The C220 M4 SFF server accommodates two power supplies.
In a two power supply server, both power supplies must be identical.

Select Power Cable

You can select a minimum of no power cords and a maximum of two.

Select Rail Kit

Select Cable Management Arm (CMA)

Select NIC Mode (Optional)

Select Trusted Platform Module (Optional)

Select SD Card (Optional)

Install either one or two 64 GB or 32 GB SD cards
Do not mix SD card sizes

Select USB (Optional)

Select Warranty

Helpful Tip: Once desired configuration is selected click "Add to Cart".
From the cart page you can submit a submit a quote request for best pricing

Quick Specs

What's New for Cisco C220 M4
  • (2) Intel E5-2600 v3 or v4 Processors
  • (24) 2400MT/s DDR4 DIMMs
  • (8) SFF SATA/SAS Drives
  • 12Gbps SAS Drives Supported
  • (2) PCIe 3.0 Slots
  • No GPUs Supported
  • Dedicated mLOM Slot
  • Embedded 2 x 1 GbE LAN-on-motherboard (LOM)
  • (6) Hot Swap Fans

The enterprise-class UFCS C220 M4 LFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel Xeon E5-2600 v3 and v4 series processor family that deliver significant performance and efficiency gains. In addition, the UCS C220 M4 LFF server provides 24 DIMM slots, up to 4 drives and 2 x 1 GbE LAN-on-motherboard (LOM) ports delivering outstanding levels of density and performance in a compact 1U package.

Other Versions

Ideal for:

  • Cloud Servers
  • Corporate IT
  • Data Analytics
  • Database
  • High-Performance Computing (HPC)
  • Virtual Desktop Interface (VDI)
  • Virtualization
  • Web Tech

CTO Configuration Support

Need help with the configuration? Contact us today!

Chassis Options

The Cisco® UCS C220 M4 rack server is the newest 2-socket, 1U rack server from Cisco, designed for both performance and expandability over a wide range of storage-intensive infrastructure workloads from web serving to distributed database.

The enterprise-class UFCS C220 M4 server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the addition of the Intel Xeon E5-2600 v3 and v4 series processor family that deliver significant performance and efficiency gains. In addition, the UCS C220 M4 SFF server provides 24 DIMM slots, up to 4 drives and 2 x 1 GbE LAN-on-motherboard (LOM) ports delivering outstanding levels of density and performance in a compact 1U package.

The C220 M4 server includes a modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC) without consuming a PCI slot in addition to 2 x 1 GbE embedded (on the motherboard) LOM ports. These features combine to provide outstanding levels of internal memory and storage expandability along with exceptional performance.

The Cisco UCS C240 M4 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.
