Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.
Quick Specs
- (1) Intel Xeon E-2100/2200, up to 8 cores 95W
- (4) 3200 MT/s HPE DDR4 UDIMM | Max 128GB
- (4) PCIe expansion slots
- PCIe Slot 1 is Gen 4.0 x16
- Embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter
- Embedded Intel Virtual RAID on CPU (Intel VROC)
- MegaRAID Support
- Onboard M.2 NVMe/SATA SSD support.
- Dedicated HPE iLO port and serial port kit
- NO GPU SUPPORT

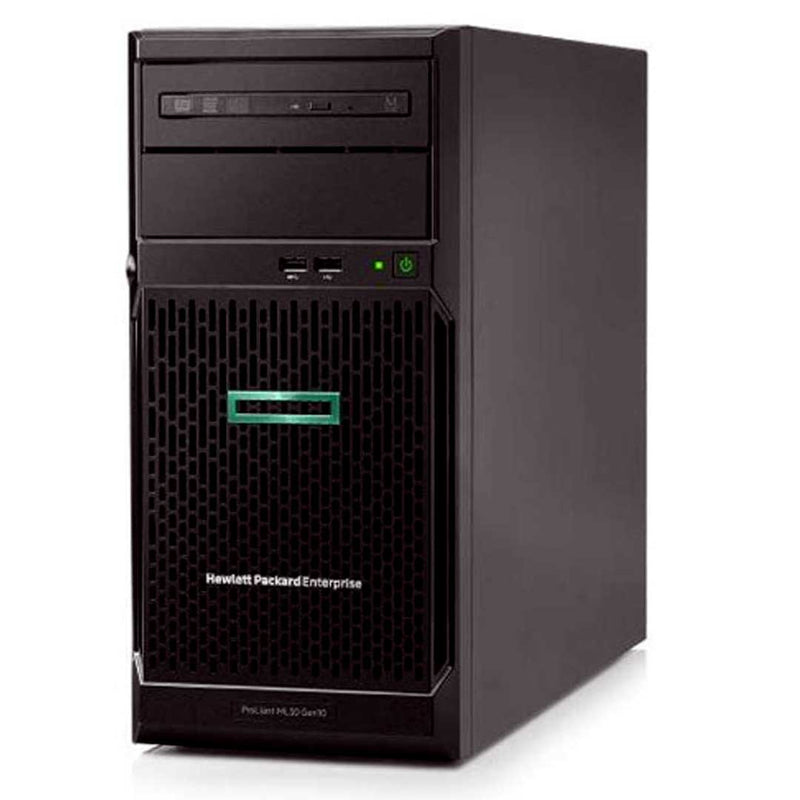

The HPE ProLiant ML30 Gen10 Plus server is a powerful yet affordable tower server designed for small offices, remote and branch offices to run on-premises and hybrid cloud solutions, delivering enterprise-class performance, security, reliability, and expandability at a low cost. A redundant power supply option and up to 4 LFF or 8 SFF hot-plug HDDs provide availability and flexibility. The enhanced expansion capability, now including PCIe Gen4, allows you to upgrade with serial attached SCSI (SAS) controllers or networking cards as your business grows.
Ideal for:
- Cloud Servers
- Corporate IT
- Database

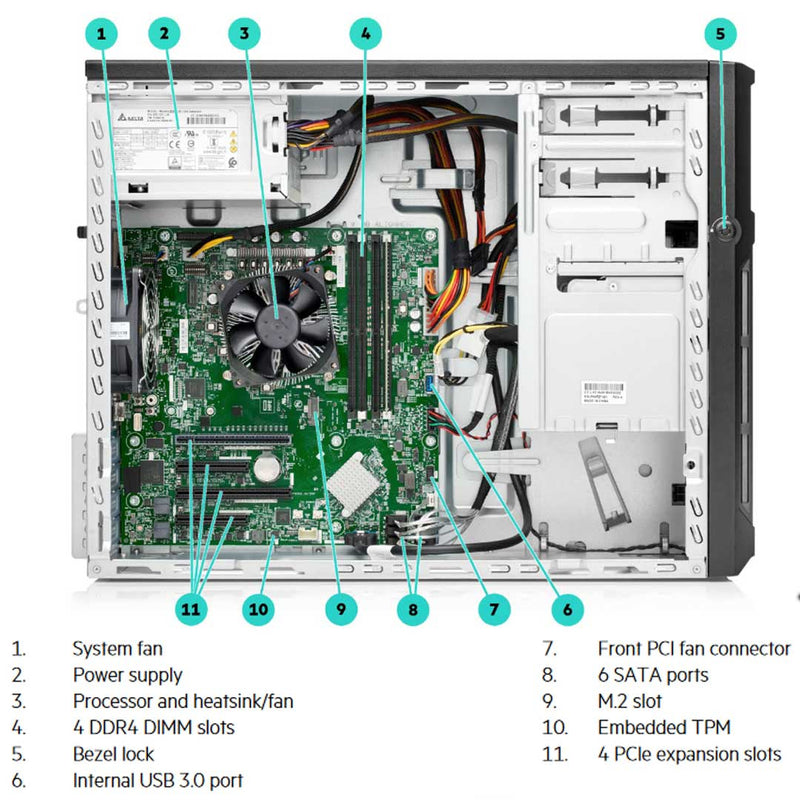

Each chassis comes with 4 PCIe Slots, and an embedded storage controller Intel VROC SATA (formerly known as Intel® RSTe). The VROC SATA comes with 4 SATA ports for drive bays, 2 SATA ports for media bays or HPE Universal SATA AIC HHHL M.2 SSD Kit (878783-B21), and an additional 1 SATA via onboard M.2 slot. All the models also feature an embedded Broadcom BCM5720 Ethernet 1Gb 2-port BASE-T Adapter. The HPE ProLiant ML30 Gen10 Plus server offers the customer a dual-port NIC as standard with the option to upgrade with a variety of networking options.

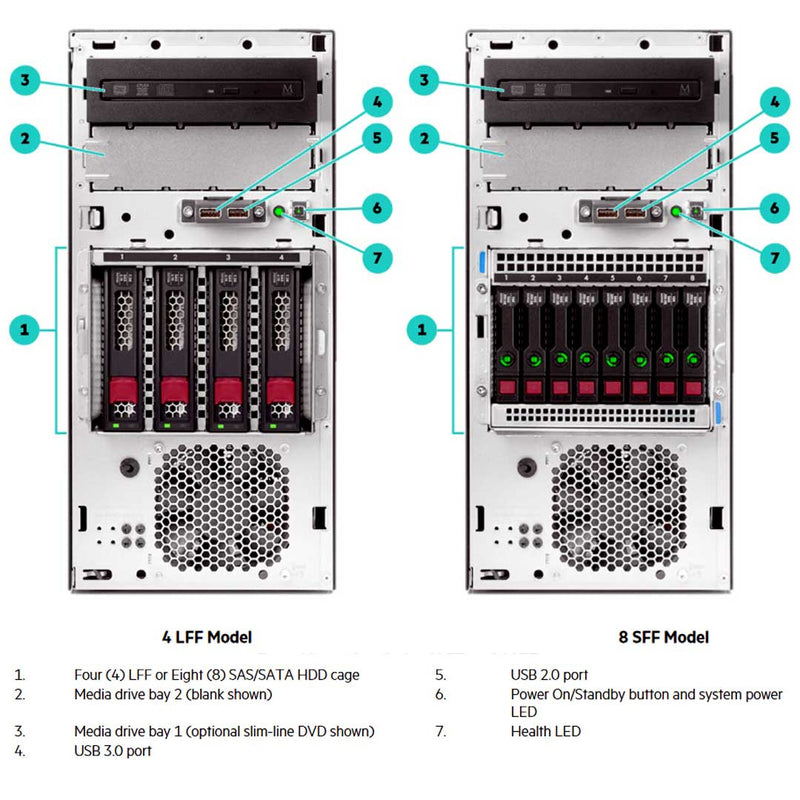

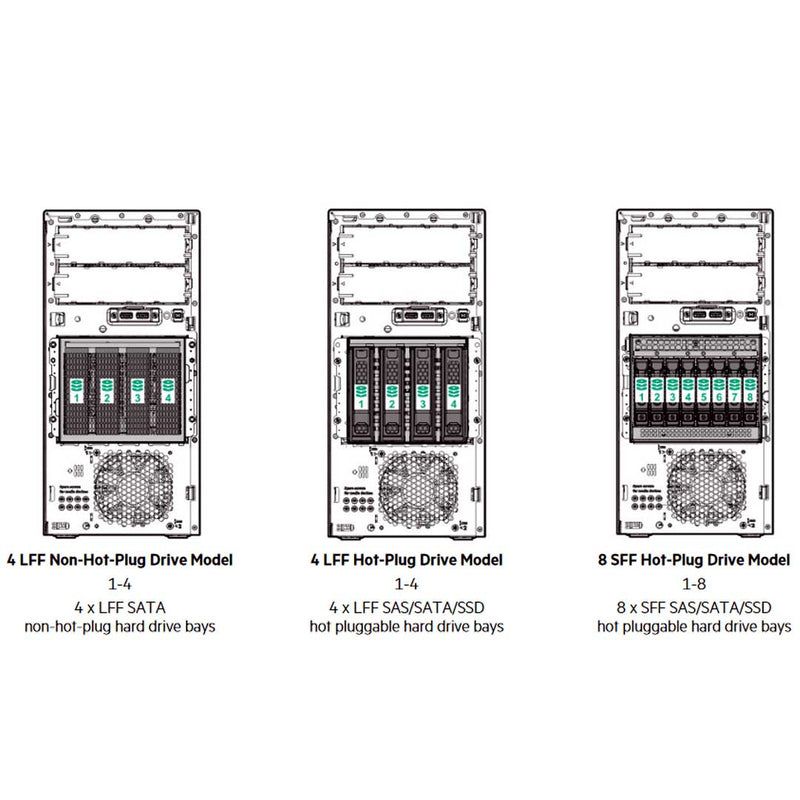

Chassis Options:

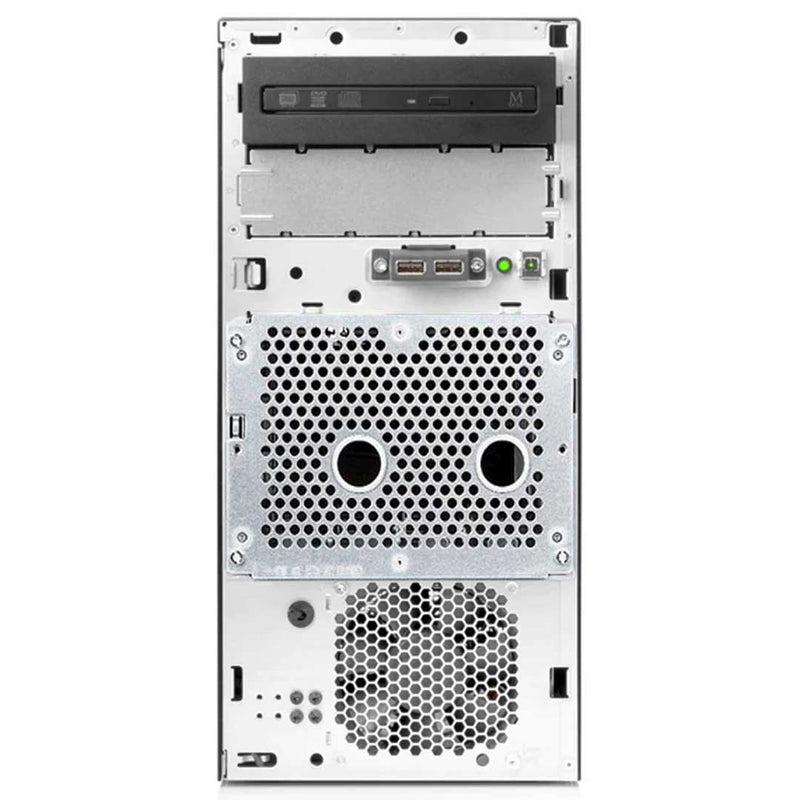

- 4 LFF Non-Hot-Plug SATA HDD
- 4 LFF Hot-Plug SAS/SATA HDD
- 8 SFF Hot-Plug SAS/SATA HDD
- *Notes: M.2 SSD is applicable to all models.
| CTO Server | HPE ProLiant ML30 Gen10 | ||
|---|---|---|---|
| Plus 4 LFF Non-Hot Plug Configure-to-order Server | Plus 4 LFF Hot Plug Configure-to-order Server | Plus 8 SFF Hot Plug Configure-to-order Server | |
| SKU Number | P44723-B21 | P44724-B21 | P44725-B21 |
| TAA SKU | P44723-B21#GTA | P44724-B21#GTA | P44725-B21#GTA |
| Processor Socket | 1 | ||
| Processor | Not included as standard | ||
| DIMM Slots | 4 DIMM slots for UDIMM DDR4 Memory | ||
| Storage Controller | Embedded Intel VROC SATA software RAID | Embedded Intel VROC SATA software RAID; choice of HPE Smart Array controller | |
| PCIe | 1 PCIe 4.0 slots, 3 PCIe 3.0 slots | ||
| Drive Cage | 4 LFF Non Hot Plug | 4 LFF Hot Plug | 8 SFF Hot Plug |
| M.2 Slot | 1 M.2 PCIe 3.0 x2/SATA slot | ||
| Network Controller | Embedded 1Gb 2-Port Ethernet Adapter, optional standup cards | ||
| Fans | 1 non-hot plug non-redundant system fan | ||
| Management | HPE ILO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download), HPE ILO Advanced, HPE ILO Advanced Premium Security Edition, and HPE OneView Advanced (require licenses) | ||
| USB | 2 front, 4 rear, 1 internal | ||
| Security | Embedded TPM | ||
*** Each server supports 1xM.2 NVMe SSD or 1xM.2 SSD Enablment Kit. ***
4 Non Hot-Plug LFF (P44723-B21)Software RAID (Intel VROC)
Smart Array E208e-p
Smart Array P408e-p
Max Capacity16TB = 4x 4TB
4 Hot-Plug LFF (P44724-B21)Software RAID (Intel VROC)
Smart Array E208i-p
Smart Array E208e-p
Smart Array P408i-p
Smart Array P408e-p
Tri-Mode MR216i-p
Tri-Mode MR416i-p
Max Capacity72TB = 4x 18TB
8 Hot-Plug SFF (P44725-B21)Software RAID (Intel VROC)
Smart Array E208i-p
Smart Array E208e-p
Smart Array P408i-p
Smart Array P408e-p
Tri-Mode MR216i-p
Tri-Mode MR416i-p
Max Capacity61.44TB = 8x 7.68TB
Performance RAID Controllers require the HPE Smart Storage Battery (P01366-B21) or the HPE Smart Hybrid Capacitor (P02377-B21) which is sold separately.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HPE ProLiant ML30 Plus Gen10 server |
|---|---|
| Processor family | Intel® Xeon® E-2300 Processor |
| Processor core available | 4 to 8 core |
| Processor cache | Up to 16 MB Intel® Smart Cache, depending on processor |
| Processor speed | 3.7 GHz, maximum depending on processor |
| Expansion slots | 4, for detailed descriptions reference the QuickSpecs |
| Maximum memory | 128 GB with 32 GB DDR4 |
| Memory slots | 4 DIMM slots, maximum |
| Memory type | HPE DDR4 Standard Memory |
| Memory protection features | Unbufferred ECC |
| Network controller | HPE embedded 1Gb 2-port BCM5720 Network Adapter and optional HPE network controllers |
| Storage controller | Intel® VROC SATA (formerly known as Intel® RSTe) |
| Product Dimensions (imperial) | 14.5 x 6.89 x 18.7 in |
| Weight | 22.1 lb minimum 38.7 lb maximum |
| Infrastructure management | Included - HPE iLO Standard with intelligent provisioning (embedded), HPE Systems Insight Manager (requires download), HPE OneView Standard (requires download) Optional - HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, HPE OneView Advanced (requires download) |
| Drive supported | 4 NHP LFF SATA HDD 4 LFF SAS/SATA HDD/SSD or 8 SFF SAS/SATA HDD/SSD, with 1 M.2 NVMe SSD, depending on model |
