Specs
-PLEASE CONTACT FOR CUSTOM CONFIGURATIONS. DISK SHELVES, COMPLETE CONFIGURATIONS & TURN KEY SYSTEMS AVAILABLE.
-SPARE PARTS AVAILABLE FOR EACH MODEL. PLEASE ASK FOR PRICING ON SPARE DISK, CONTROLLERS, POWER SUPPLIES, NICs, HBAs, SFPs, Cables, etc.

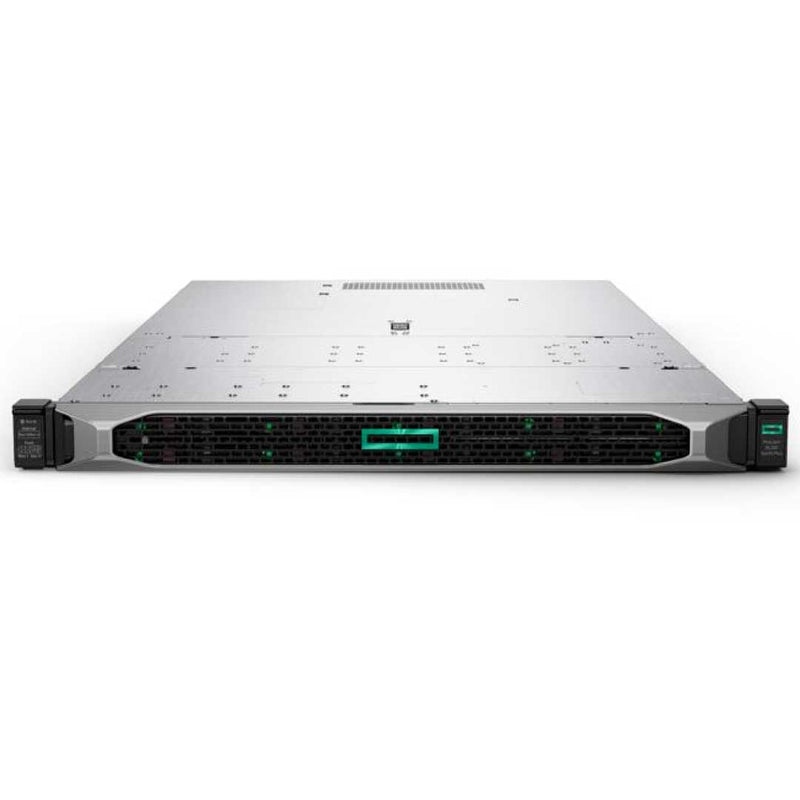

Building on HPE ProLiant as the intelligent foundation for hybrid cloud, the refurbished HPE ProLiant DL325 Gen10 Plus server offers the 2nd generation AMD EPYC 7000 Series processor delivering up to 2X [1] the performance of the prior generation. The HPE ProLiant DL325 delivers increased value to clients through intelligent automation, security, and optimization. With more cores, increased memory bandwidth, enhanced storage, and PCIe Gen4 capabilities, the HPE ProLiant DL325 offers two-socket performance in a one-socket 1U rack profile.
The HPE ProLiant DL325 Gen10 Plus, with the AMD EPYC single-socket architecture, enables businesses to acquire an enterprise-class processor, memory, I/O performance, and security without having to purchase a dual processor.
What’s New for DL325 Gen10 Plus
- Powered by the 2nd generation AMD EPYC 7000 Series Processor Family with double [2] the core density compared to the previous generation.
- Support for PCIe Gen4, resulting in faster networking speed and higher bandwidth for network intensive applications.
- Faster application performance with increased memory speeds up to 3200 MT/s.

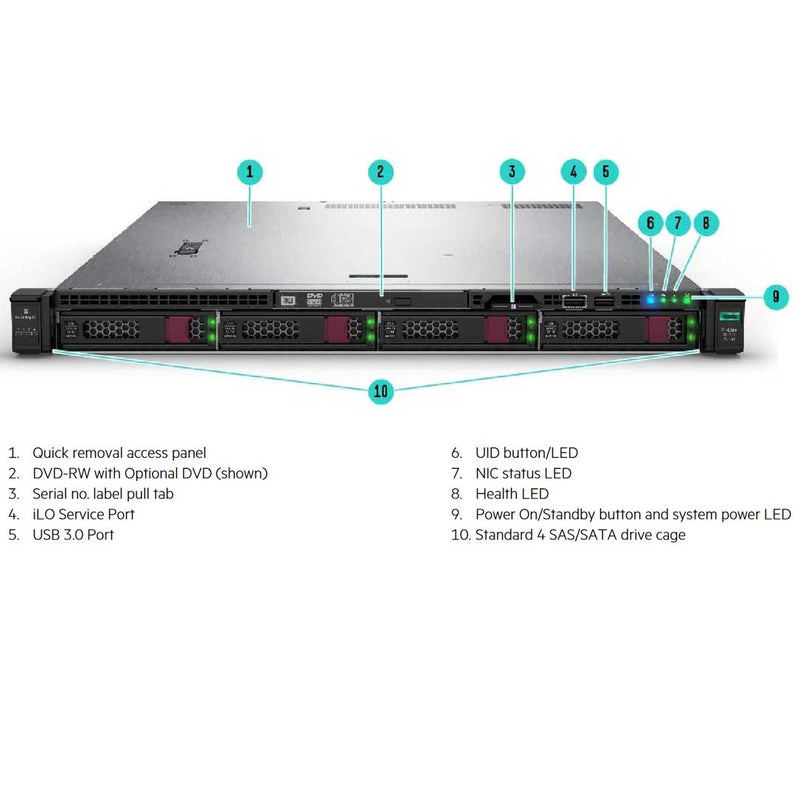

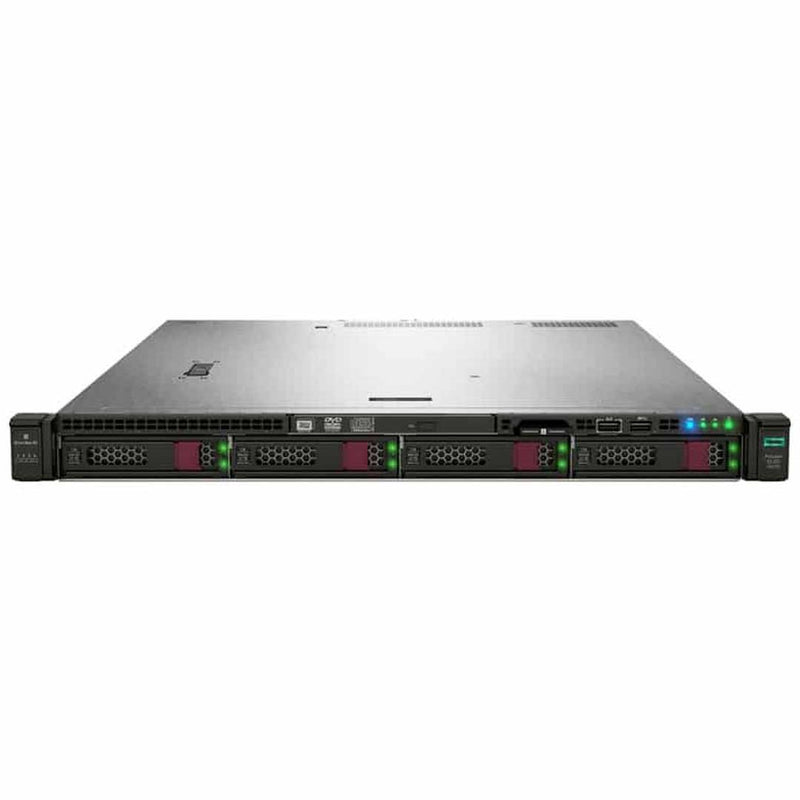

- Improved modularity and storage capabilities with ability to upgrade to 24 SFF/12 LFF drives in a 1U box.
Delivering 2P Performance at 1P Economics
HPE ProLiant DL325 Gen10 Plus server supports industry standard technology utilizing the 2nd generation AMD EPYC 7000 series processor family with up to 64 cores, PCIe Gen4 capabilities, and HPE SmartMemory up to 3200 MT/s DDR4 memory.

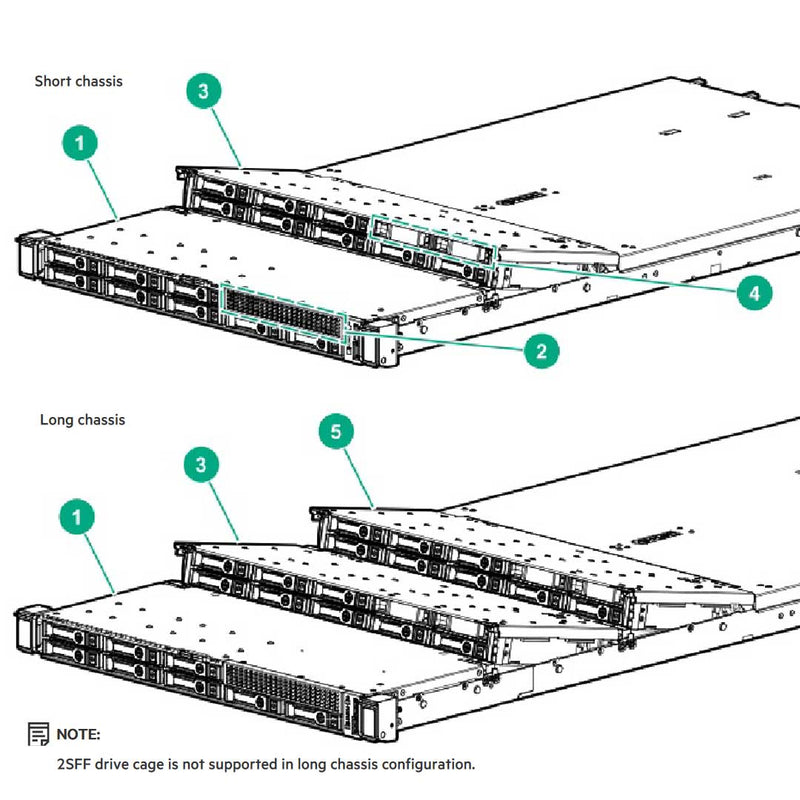

HPE ProLiant DL325 Gen10 Plus server has a dense, modular chassis that can accommodate up to 24 SFF SAS/SATA, up to 12 LFF SAS/SATA, or up to 24 NVMe drive options as well as up to 3 PCIe 4.0 slots.
The redesigned HPE Smart Array Essentials and Performance Controllers allow you the flexibility to choose the 12 Gbps controller to optimize your environment.

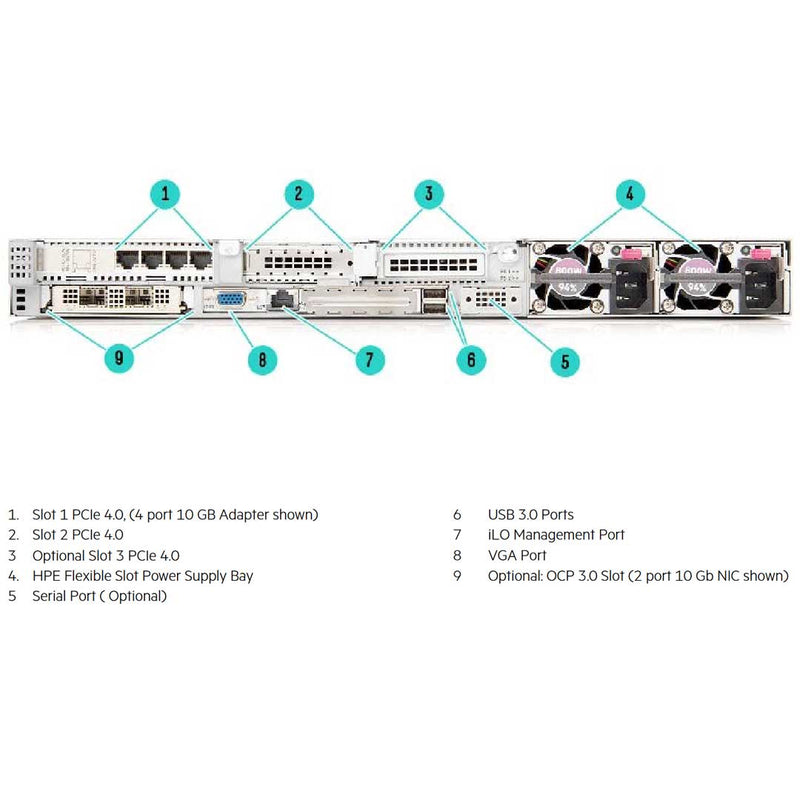

Options for OCP or PCIe standup adapters offer a choice of networking bandwidth and fabric, enabling you to scale to the changing needs of your business.
Know your Server - CTO Configuration Support
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| Technical specifications | HPE ProLiant DL325 Gen10 Plus server |
|---|---|
| Processor name | AMD® EPYC™ 7000 Series Processors |
| Processor family | 2nd Generation AMD EPYC™ 7000 Series |
| Processor core available | 64 or 48 or 32 or 24 or 16 or 8, depending on processor |
| Processor cache | 64 MB L3 or 128 MB L3 or 192 MB or 256 MB, depending on processor model |
| Processor speed | 3.4 GHz, maximum depending on processor |
| Expansion slots | 3, for detail descriptions reference the QuickSpecs |
| Maximum memory | 2 TB with 16 x 128 GB RDIMMs |
| Memory slots | 16 DIMM slots |
| Memory type | HPE DDR4 SmartMemory |
| Memory protection features | ECC |
| System fan features | Hot-plug redundant fans, standard |
| Network controller | Optional OCP and/or optional PCIe Network adapters, depending on model |
| Storage controller | HPE Smart Array P408i-a and/or HPE Smart Array P816i-a and/or HPE Smart Array E208i-a, and more, refer QuickSpecs for more details |

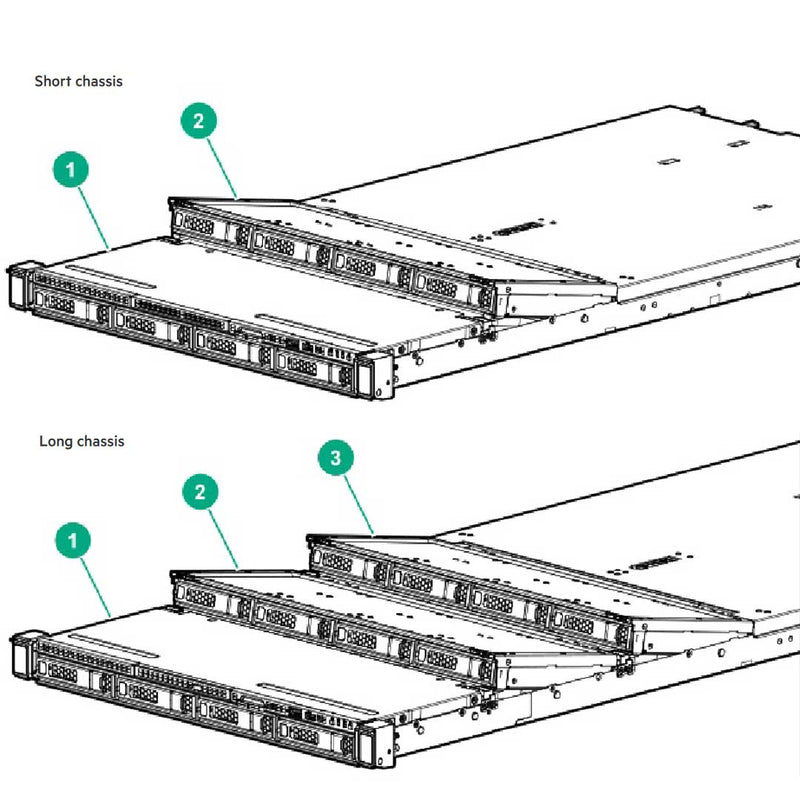

| Product Dimensions (imperial) | 4.28 X 43.46 X 82.62 cm (short chassis - 2 drive cages) |
| Weight | 17 kg minimum |
| Infrastructure management | HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires download) HPE iLO Advanced (require license) |
| Drive supported |
|
