Specs
The Dell PowerEdge M-Series blade servers are designed to help cut operating expenses through energy efficiency, scalability, product flexibility, and efficient use of data center space.

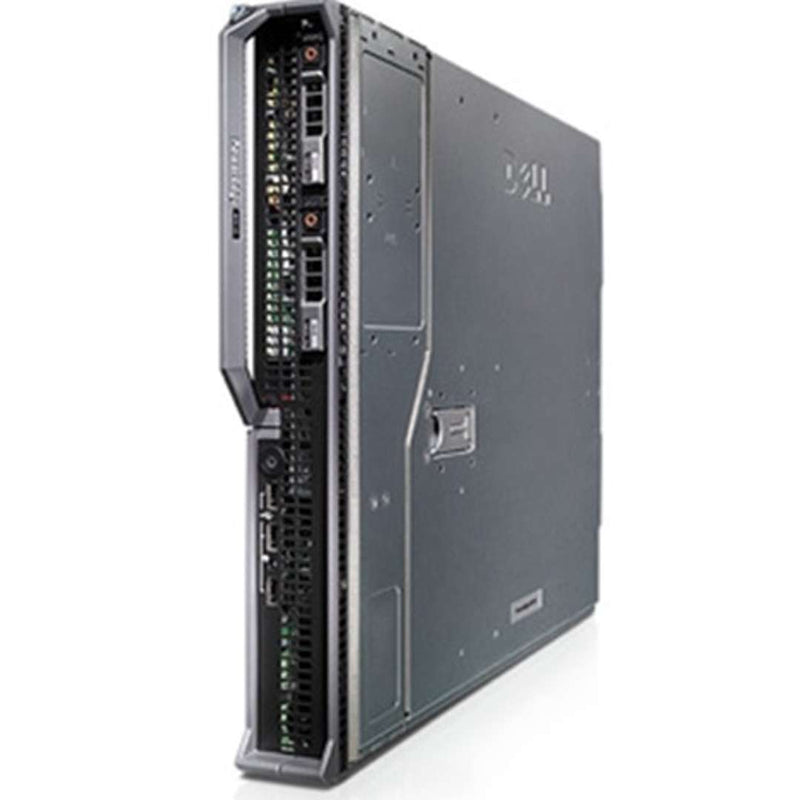

The PowerEdge M910 provides significant performance and reliability in a scalable, full-height, four-socket blade server, allowing the deployment of large Enterprise class applications as well as the ability to support heavy virtualization or workload consolidation in maximum density.
When combined with Dell's world-class storage, management, and support offerings, the result is a total enterprise solution that can help you optimize your IT environment and expenses.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Features | Dell PowerEdge M910 | |
|---|---|---|
| Processors | Up to Four Intel Xeon 7500 series Quad-, Six-, or Eight-Core processors; or, Up to Two Intel Xeon 6500 series Quad-, Six-, or Eight-Core processors | |
| Chipset | Intel 7500 | |
| Memory | 1GB/2GB/4GB/8GB/16GB ECC DDR3 Support for up to 512GBs using 32 x 16GB DIMMs | |
| Drive Bays | Two 2.5 SAS/Solid State hot-swappable drives | |
| Storage | Internal: 2.5" SAS (10K, 15K) HDD 2.5" SATA (7.2K) HDD 2.5" SAS SSD 2.5" SATA SSD External: Dell EqualLogic Dell PowerVault Dell/EMC fibre channel and/or iSCSI storage | |
| RAID Controller Options | PERC H200 Modular RAID Controller (6Gb/s) PERC H700 Modular RAID Controller (6Gb/s) with 512MB battery-backed cache | |
| I/O Mezzanine Card Options | Fully populated mezzanine card slots and switch modules will yield 3 highly available, redundant I/O fabrics per blade. 1Gb & 10Gb Ethernet: Broadcom Dual-Port Gb Ethernet w/ TOE (BCM-5709S) Intel Quad-Port Gb Ethernet Broadcom Quad-Port Gb Ethernet (BCM-5709S) Intel Dual-Port 10Gb Ethernet Broadcom Dual-Port 10Gb Ethernet (BCM-57711) 10Gb Enhanced Ethernet & Converged Network Adapters (CEE/DCB): Intel Dual-Port 10Gb Enhanced Ethernet (FcoE Ready for Future Enablement) Emulex Dual-Port Converged Network Adapter (OCM10102-F-M) Supports CEE/DCB 10GbE + FCoE Qlogic Dual-Port Converged Network Adapter (QME8142) Supports CEE/DCB 10GbE + FCoE Fibre Channel: QLogic Dual-Port FC8 Fibre Channel Host Bus Adapter (HBA) (QME2572) Emulex Dual-Port FC8 Fibre Channel Host Bus Adapter (HBA) (LPe1205-M) InfiniBand: Mellanox Dual-Port ConnectX Quad Data Rate (QDR) InfiniBand | |
| Operating Systems | Microsoft Windows Essential Business Server 2008 Microsoft Windows Server 2008 SP2, x86/x64 (x64 includes Hyper-V ) Microsoft Windows Server 2008 R2, x86/x64 (includes Hyper-V v2) Microsoft Windows HPC Server 2008 Novell SUSE Linux Enterprise Server Red Hat Enterprise Linux Sun Solaris For more information on the specific versions and additions, visit www.dell.com/OSsupport. Virtualization Options: Microsoft Windows Server 2008, with Hyper-V VMware vSphere Version 4.0 (including ESX v4.0/ ESXi v4.0) | |
| Power Supply | Supplied by Dell M1000e Blade Chassis | |
| Video | Matrox G200eW w/ 8MB memory | |
| Systems Management | BMC, IPMI2.0 compliant Dell OpenManage featuring Dell Management Console Unified Server Configurator Lifecycle Controller iDRAC6 Enterprise with optional vFlash Remote Management: iDRAC6 Enterprise with optional vFlash | |
| Embedded Hypervisor | Optional Dual-Media Redundant Hypervisor | |
