Specs
Quick Specs
2U rack server
Storage | Max: 9624 SFF SAS (HDD/SSD)
Mix and match drives:Supported
Controllers:Supports up to 2
Cache Per Controller:2GB or 4GB
Ports Per Controller:- Four 8Gb/s SFP Host Connectivity
- One x4 6Gb SAS Expansion Connectivity (8088 mini connector)
- One RJ-45 1Gb Ethernet Remote Management
- One PS/2 Serial Service Management
Single Controller Models:
Supports up to 4 servers directly connected or up to 64 servers when configured with a Fibre Channel switch
Dual Controller Models:Supports up to 8 servers directly connected or up to 64 servers when configured with a Fibre Channel switch
Expansion Storage:Expand up to 96 total drives using MD1200 and/or MD1220 expansion enclosures
Other Storage Arrays in the MD Series (JBOD)
MD3200 Series
Data Speeds1Gb iSCSI
6Gb SAS
Server Options
MD3060e
MD3200 12 Bay SAS
MD3200i 12 Drive iSCSI
MD3220 24 Drives SAS
MD3220i 24 Drives iSCSI
MD3400 Series
Speeds12Gb SAS
10GBase-T iSCSI
16Gb FC
Server OptionsMD3400 12 Drives
MD3420 24 Drives
MD3460 60 Drives
MD3600 Series
Speeds10GBase-T iSCSI
8Gb FC
Server Options
MD3600i 12 Drives iSCSI
MD3600f 12 Drives Fibre
MD3620i 24 Drives iSCSI
MD3620f 24 Drives Fibre
MD3660i 60 Drives iSCSI
MD3660f 60 Drives Fibre
MD3800 Series
Speeds10GBase-T iSCSI + 12Gb SAS
16 FC + 12Gb SAS
Server Options
MD3800i 12 Drives iSCSI
MD3800f 12 Drives Fibre
MD3820i 24 Drives iSCSI
MD3820f 24 Drives Fibre
MD3860i 60 Drives iSCSI
MD3860f 60 Drives Fibre
The Dell™PowerVault™MD3600f/MD3620f arrays is the introduction of 8Gb/s Fibre Channel in the MD series of arrays. The SAN solution is ideal for entry-level storage consolidation that requires high availability, high performance and business continuity without sacrificing ease of use and reliability. Designed for flexibility, the MD3600f arrays support a range of drive types, enclosures, and RAID levels all within a single array.
Proven Fibre Channel-based network storagePowerVault MD3620f arrays offer exceptional performance and flexibility and reliability for storage consolidation and scalability to meet unexpected business demands. Now it’s simple to improve storage utilization by combining storage resources, increasing availability with redundant hardware, and streamlining the backup process. By consolidating data and resources with a single array, backup strategies, and management complexities are minimized.
Reduce the effort required to store and manage your data.MD3620f Series arrays can support up to 64 physical servers when connected to one or more 4Gb/s or 8Gb/s Fibre Channel switches. Storage capacity, up to a maximum of 96 hard disk drives, can be expanded by attaching additional PowerVault MD1200 and/or MD1220 expansion enclosures.
Fibre Channel storage, ideal for data-intensive applicationsImplement your high-performance network storage solution forless with MD3620f Series arrays while protecting your existing FibreChannel investment proving business continuity and reliability. Now you can effectively consolidate storage to support the value of your Fibre Channel environment with the performance to meet both IOPs-intensive as well as high bandwidth applications. MD3620fstorage systems are also fully qualified for use in virtualized application environments with VMware® ESX and Microsoft® Hyper-V™ software.
To protect data and processes from major regional disasters like earthquakes, fires or large-scale power outages, your organization needs remote replication of data to a secondary site. Also used for testing and deploying new databases without any downtime.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Spec Sheet 4
| Feature | Dell™ PowerVault™ MD3600f Series |
|---|---|

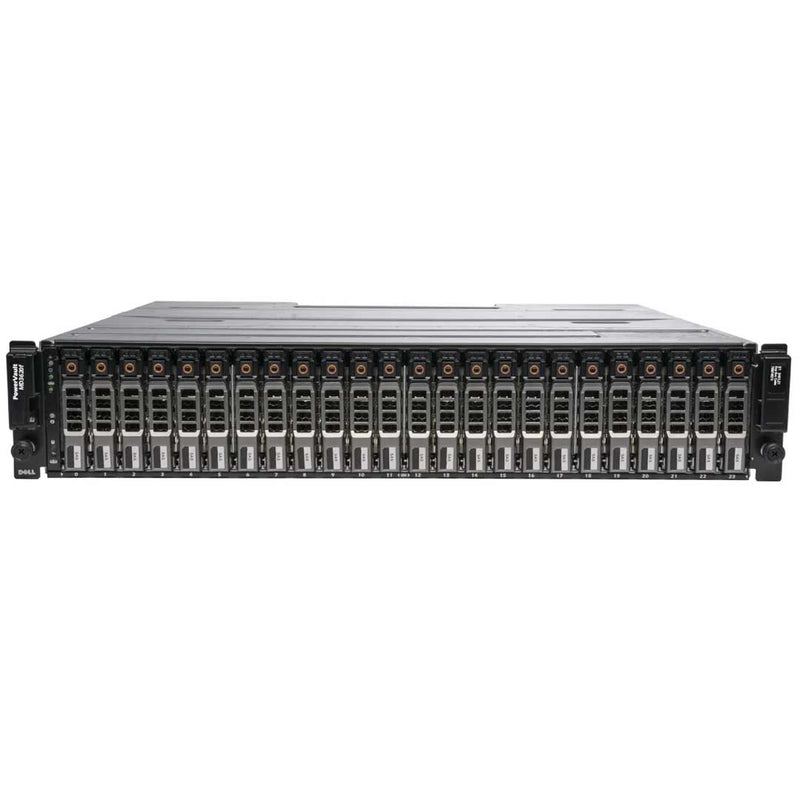

| Hard Disk Drives | MD3600f– Up to twelve (12) 3.5 inch SAS, Near-line SAS and SSD drives MD3620f – Up to twenty-four (24) 2.5 inch SAS, Near-line SAS and SSD drives |
| 3.5” Drive Performance and Capacities | 15,000 RPM SAS drives available in 300 GB, 450 GB and 600 GB 7,200 RPM Near-line SAS drives available in 500 GB, 1TB and 2TB |
| 2.5” Drive Performance and Capacities | 15,000 RPM SAS drives available in 73 GB and 146 GB 10,000 RPM SAS drives available in 600 GB and 900 GB 7,200 RPM Near-line SAS drives available in 1 TB Solid State Drive (SSD) available in 149 GB (available in 3.5” HDD carriers) |
| Expansion Capabilities | Expand up to 96 total drives using MD1200 and/or MD1220 expansion enclosures |
| Host Connectivity | |
| Single Controller Models | Supports up to 4 servers directly connected or up to 64 servers when configured with an Fibre Channel switch |
| Dual Controller Models | Supports up to 8 servers directly connected or up to 64 servers when configured with Fibre Channel switches |
| Storage Controllers and RAID Levels | |

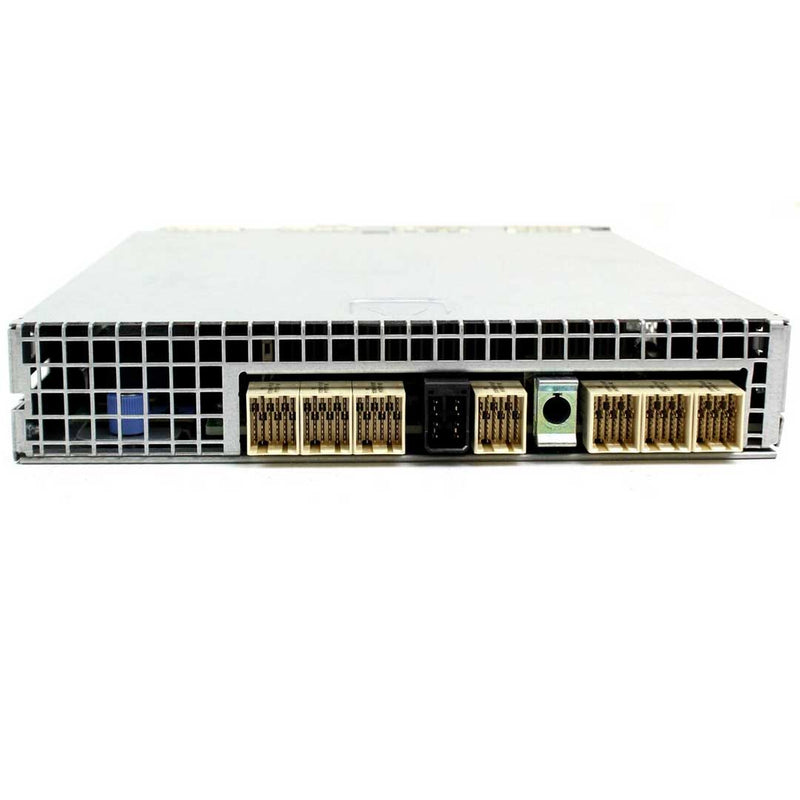

| Storage Controllers | Each controller contains 2GB of battery-backed cache Dual controllers operate in an active-active environment mirroring each other’s cache Cache protection is provided via flash memory for permanent data protection |
| RAID Levels | Support for RAID levers 0, 1, 10, 5, 6 Up to 96 physical disks per group in RAID 0, 1, 10 Up to 30 physical disks per group in RAID 5, 6 Up to 256 virtual disks |
| Array Management and Optional Premium Features | |
| Array Management | 2nd generation multi-protocol Modular Disk Storage Manager, Java based user interface Multi-path software provides failover management of redundant data paths between the server and storage array |
| Optional Premium Features | Snapshots: Up to 8 snapshots per virtual disk and 128 per system Snapshots Plus Virtual Disk Copy: Up to 8 simultaneous virtual disk copies High Performance Tier firmware upgrade increases array IO performance Remote Replication - providing business continuity and disaster recovery |

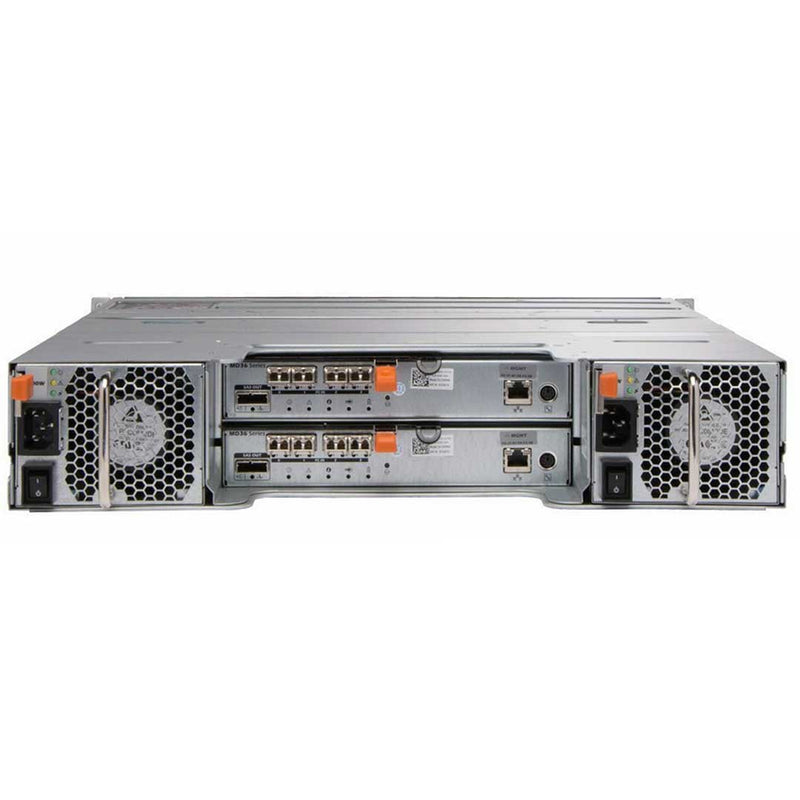

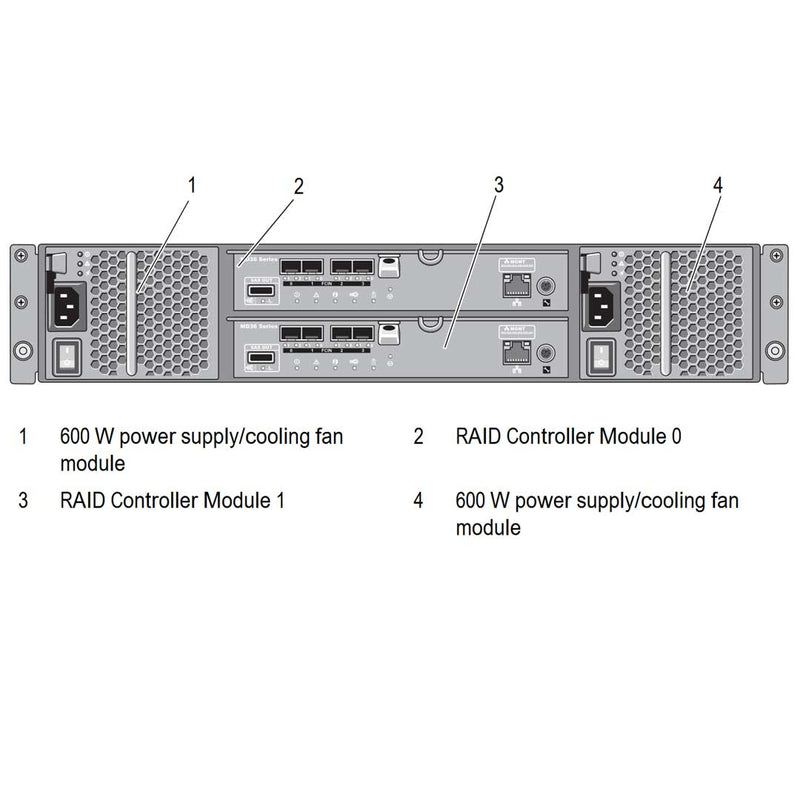

| Back-Panel Connectors (per controller) | |
| Host Connectivity | Four 8Gb/s SFP ports per controller |
| Expansion Connectivity | One x4 6Gb SAS (8088 mini connector) |
| Remote Management | One RJ-45 1Gb Ethernet |
| Service Management | One PS/2 Serial |
| LED Indicators | |
| Front Panel | 1 two-color LED indicator for system status, 1 single-color LED indicator for power, 1 LED unused in this system |
| Hard Drive Carrier | 1 single-color activity LED, 1 two-color LED status indicator per drive |

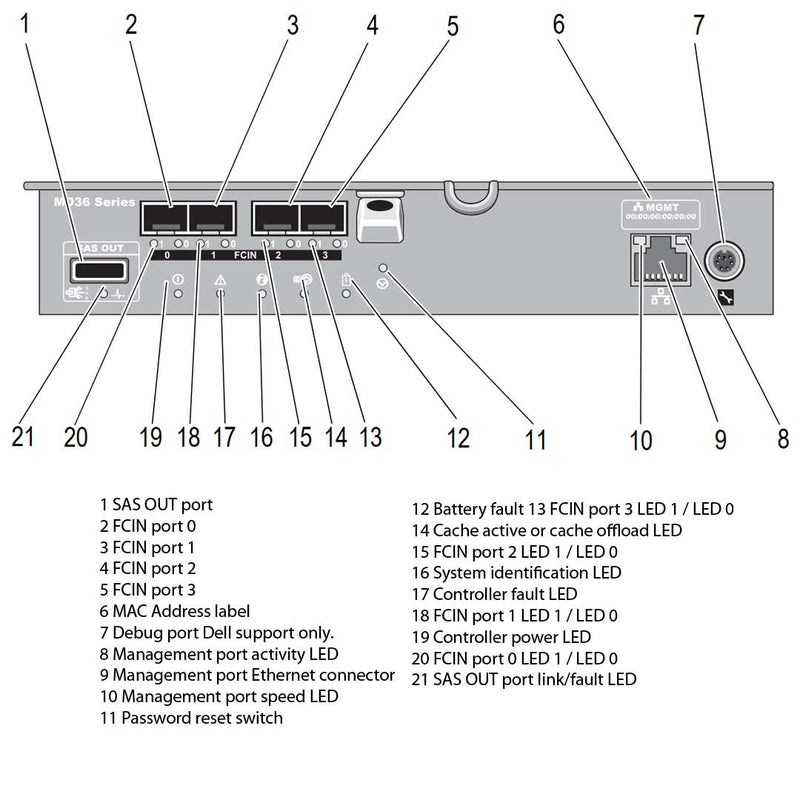

| Storage Controller | 1 one-color LED power indicator, 1 one-color LED controller fault indicator, 1 one-color LED controller identifier, 1 one-color LED cache activity indicator, 1 one-color LED battery fault indicator |
| Power Supply/Cooling Fan Module | 3 one-color LED status for AC status, DC status and power supply cooling fan fault |
| Power Supplies (per supply) | |
| Wattage | 600 W peak output |
| Maximum Heat Dissipation | 150 W |
| Input Voltage Range | 90 to 264 VAC |
| Frequency Range | 47 to 63 Hz |
| Maximum Input Current at Rated Power | 55 A for 10ms or less, 25 A for 10-150ms |
| Available Hard Drive Power (per slot) | |
| Supported Continuous Consumption | 3.5” drive: 25 Watts; 2.5” drive: 12 Watts |
| Physical | |
| Height x Width x Depth | MD3600f: 8.68cm (3.42”) x 44.63cm (17.57”) x 56.1cm (22.09”) MD3620f: 8.68cm (3.42”) x 44.63cm (17.57”) x 50.8 (20”) |
| Weight | MD3600f: 29.3kg (64.59 lbs.) (maximum configuration) MD3620f: 24.2kg (53.35 lbs.) (maximum configuration) |
| Environmental | |
| Temperature | Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour |
| Relative Humidity | Operating: 20% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour |
| Altitude | Operating: -16 to 3048 m (-50 to 10,000 ft) Note: For altitudes above 2950 feet, the maximum operating temperature is de-rated 1°F/550 ft. |
