Home / Chassis / Dell PowerVault MD3600f (12x3.5") Chassis
SKU: DPV-MD3600f-12LFF-Chassis

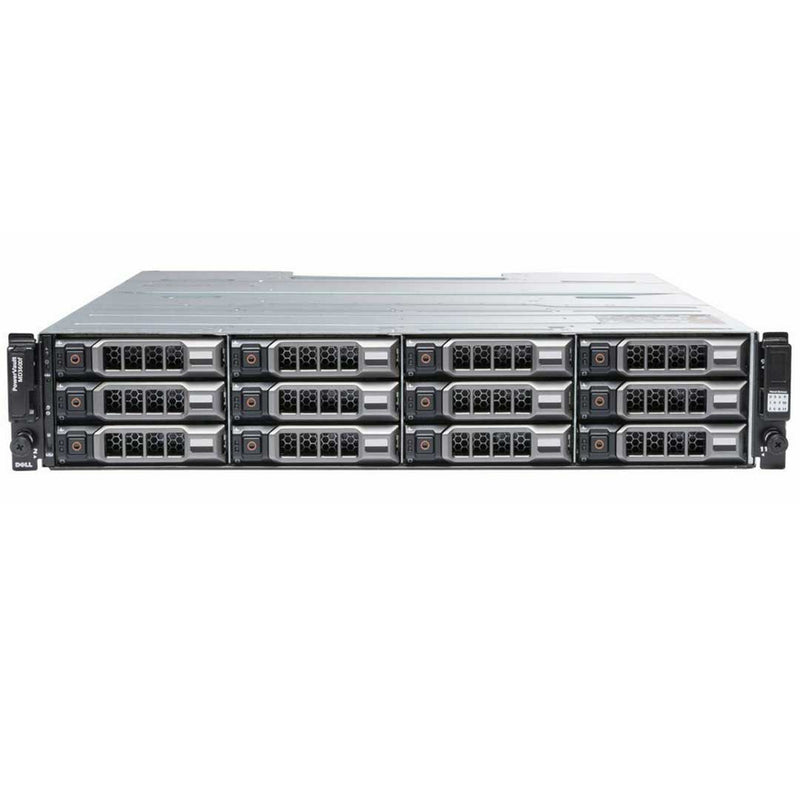

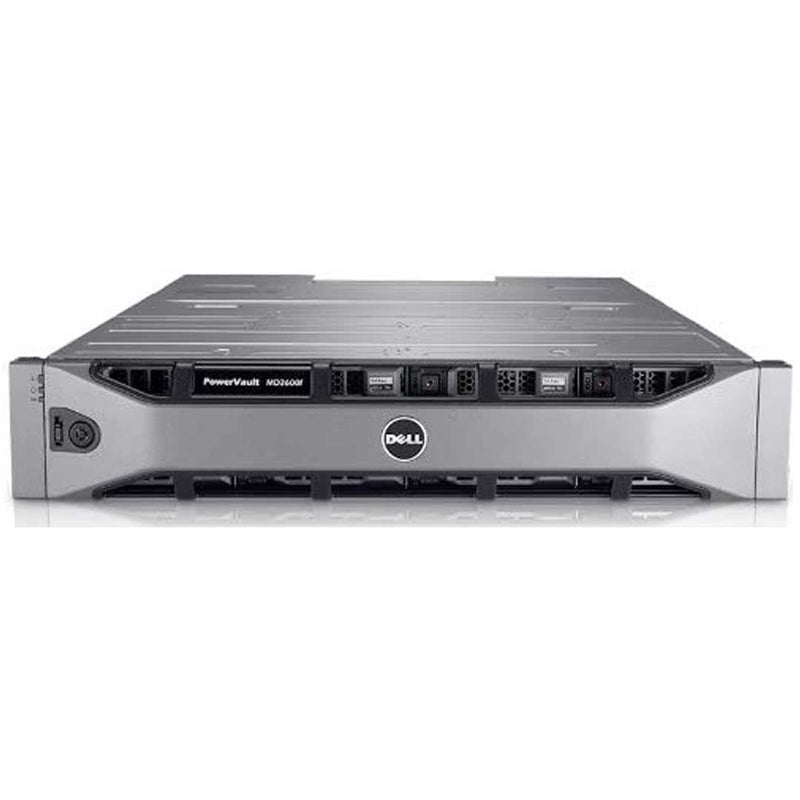

Dell PowerVault MD3600f (12x3.5") Chassis

Dell

| Chassis
Contact For Pricing

Thanks for the request. We'll get back to you with in 24 hours.

Quick Specs

Form Factor:

2U rack server

Storage | Max: 96

12 LFF SAS, NL-SAS, SED (HDD/SSD)

Mix and match drives:

Supported

Controllers:

Supports up to 2

Cache Per Controller:

2GB or 4GB

Ports Per Controller:
  • Four 8Gb/s SFP Fibre-Channel Host Connectivity
  • One 6Gb SAS Expansion Connectivity (8088 mini connector)
  • One RJ-45 1Gb Ethernet Remote Management
Host Connectivity:
Single Controller Models:

Supports up to 4 servers directly connected or up to 64 servers when configured with a Fibre Channel switches

Dual Controller Models:

Supports up to 8 servers directly connected or up to 64 servers when configured with Fibre Channel switches

Expansion Storage:

Expand up to 96 total drives using MD1200 and/or MD1220 expansion enclosures

Other Storage Arrays in the MD Series (JBOD)

MD3200 Series

Data Speeds

1Gb iSCSI

6Gb SAS

Server Options

MD3060e

MD3200 12 Bay SAS

MD3200i 12 Drive iSCSI

MD3220 24 Drives SAS

MD3220i 24 Drives iSCSI

MD3400 Series

Speeds

12Gb SAS

10GBase-T iSCSI

16Gb FC

Server Options

MD3400 12 Drives

MD3420 24 Drives

MD3460 60 Drives

MD3600 Series

Speeds

10GBase-T iSCSI

8Gb FC

Server Options

MD3600i 12 Drives iSCSI

MD3600f 12 Drives Fibre

MD3620i 24 Drives iSCSI

MD3620f 24 Drives Fibre

MD3660i 60 Drives iSCSI

MD3660f 60 Drives Fibre

MD3800 Series

Speeds

10GBase-T iSCSI + 12Gb SAS

16 FC + 12Gb SAS

Server Options

MD3800i 12 Drives iSCSI

MD3800f 12 Drives Fibre

MD3820i 24 Drives iSCSI

MD3820f 24 Drives Fibre

MD3860i 60 Drives iSCSI

MD3860f 60 Drives Fibre

The Dell™PowerVault™MD3600f/MD3620f arrays are the introduction of 8Gb/s Fibre Channel in the MD series of arrays. The SAN solution is ideal for entry-level storage consolidation that requires high availability, high performance, and business continuity without sacrificing ease of use and reliability. Designed for flexibility, the MD3600f arrays support a range of drive types, enclosures, and RAID levels all within a single array.

Proven Fibre Channel-based network storage

PowerVault MD3600f arrays offer exceptional performance and flexibility and reliability for storage consolidation and scalability to meet unexpected business demands. Now it’s simple to improve storage utilization by combining storage resources, increasing availability with redundant hardware, and streamlining the backup process. By consolidating data and resources with a single array, backup strategies, and management complexities are minimized.

Reduce the effort required to store and manage your data.MD3600f Series arrays can support up to 64 physical servers when connected to one or more 4Gb/s or 8Gb/s Fibre Channel switches. Storage capacity, up to a maximum of 96 hard disk drives, can be expanded by attaching additional PowerVault MD1200 and/or MD1220 expansion enclosures.

Fibre Channel storage, ideal for data-intensive applications

Implement your high-performance network storage solution for less with MD3600f Series arrays while protecting your existing Fibre Channel investment proving business continuity and reliability. Now you can effectively consolidate storage to support the value of your Fibre Channel environment with the performance to meet both IOPs-intensive as well as high bandwidth applications. MD3600f storage systems are also fully qualified for use in virtualized application environments with VMware® ESX and Microsoft® Hyper-V™ software.

To protect data and processes from major regional disasters like earthquakes, fires, or large-scale power outages, your organization needs remote replication of data to a secondary site. It is also used for testing and deploying new databases without any downtime.

Looking to Customize?

Need assistance with customization? Our sales experts are here to help you.

Start Customizing Today!

Spec Sheet 4

Feature Dell™ PowerVault™ MD3600f Series
Hard Disk Drives MD3600f– Up to twelve (12) 3.5 inch SAS, Near-line SAS and SSD drives
MD3620f – Up to twenty-four (24) 2.5 inch SAS, Near-line SAS and SSD drives
3.5” Drive Performance and Capacities 15,000 RPM SAS drives available in 300 GB, 450 GB and 600 GB
7,200 RPM Near-line SAS drives available in 500 GB, 1TB and 2TB
2.5” Drive Performance and Capacities 15,000 RPM SAS drives available in 73 GB and 146 GB
10,000 RPM SAS drives available in 600 GB and 900 GB
7,200 RPM Near-line SAS drives available in 1 TB
Solid State Drive (SSD) available in 149 GB (available in 3.5” HDD carriers)
Expansion Capabilities Expand up to 96 total drives using MD1200 and/or MD1220 expansion enclosures
Host Connectivity
Single Controller Models Supports up to 4 servers directly connected or up to 64 servers when configured with an Fibre Channel switch
Dual Controller Models Supports up to 8 servers directly connected or up to 64 servers when configured with Fibre Channel switches
Storage Controllers and RAID Levels
Storage Controllers Each controller contains 2GB of battery-backed cache
Dual controllers operate in an active-active environment mirroring each other’s cache
Cache protection is provided via flash memory for permanent data protection
RAID Levels Support for RAID levers 0, 1, 10, 5, 6
Up to 96 physical disks per group in RAID 0, 1, 10
Up to 30 physical disks per group in RAID 5, 6
Up to 256 virtual disks
Array Management and Optional Premium Features
Array Management 2nd generation multi-protocol Modular Disk Storage Manager, Java based user interface
Multi-path software provides failover management of redundant data paths between the server and storage array
Optional Premium Features Snapshots: Up to 8 snapshots per virtual disk and 128 per system
Snapshots Plus Virtual Disk Copy: Up to 8 simultaneous virtual disk copies
High Performance Tier firmware upgrade increases array IO performance
Remote Replication - providing business continuity and disaster recovery

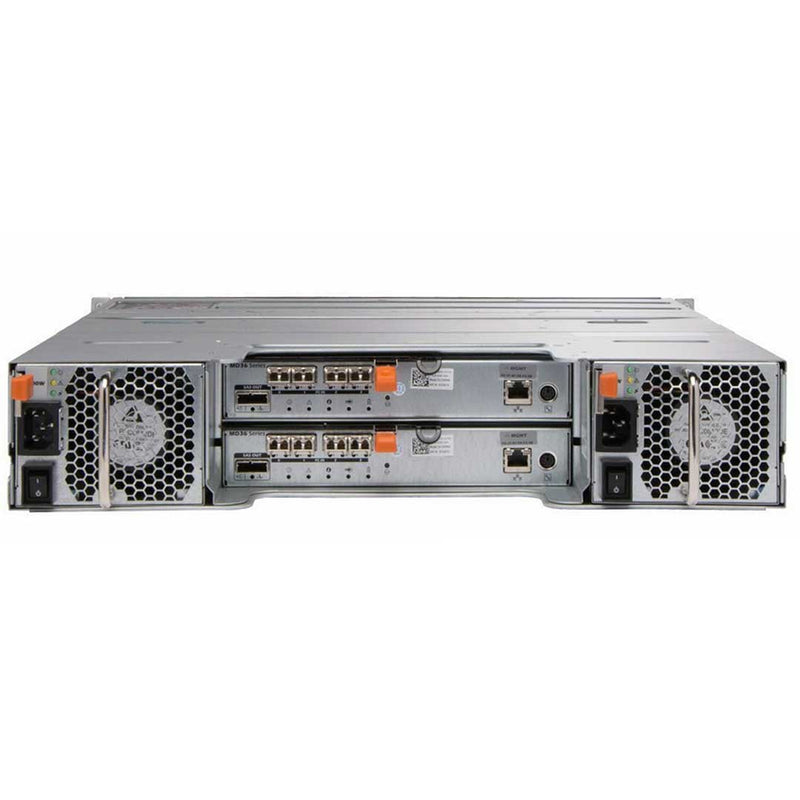

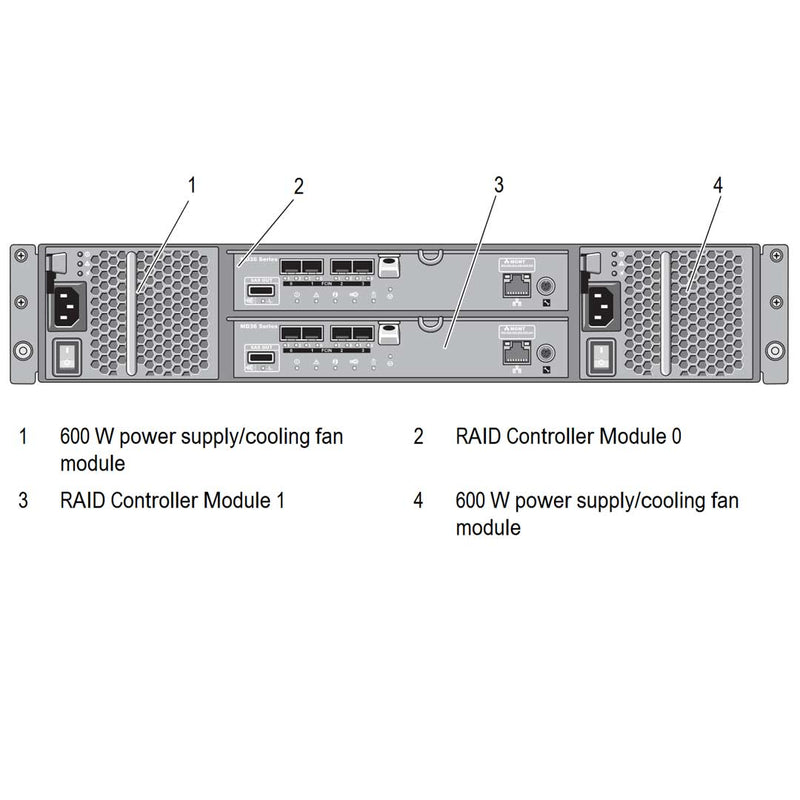

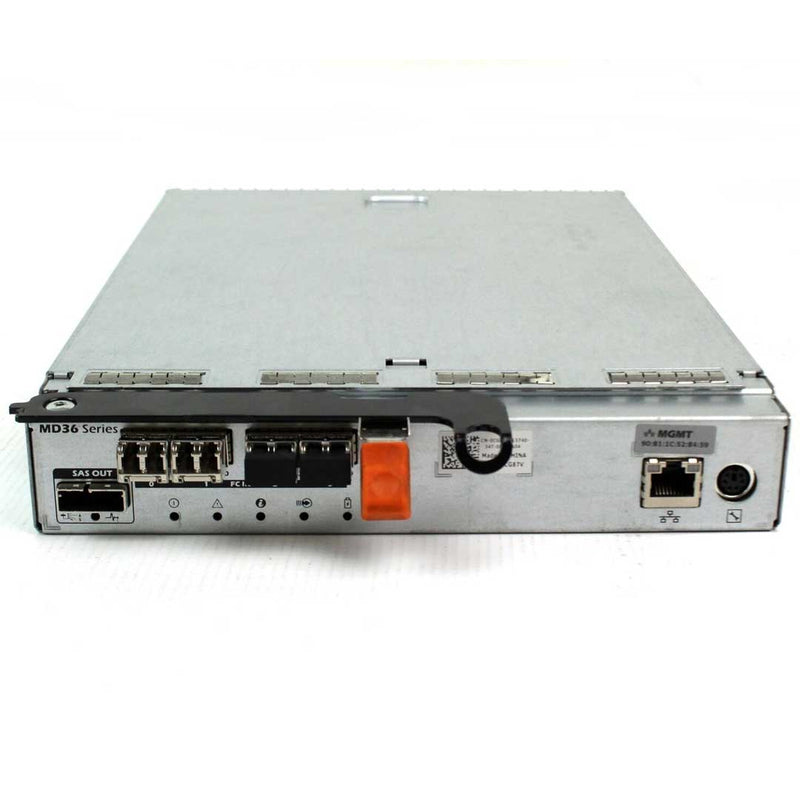

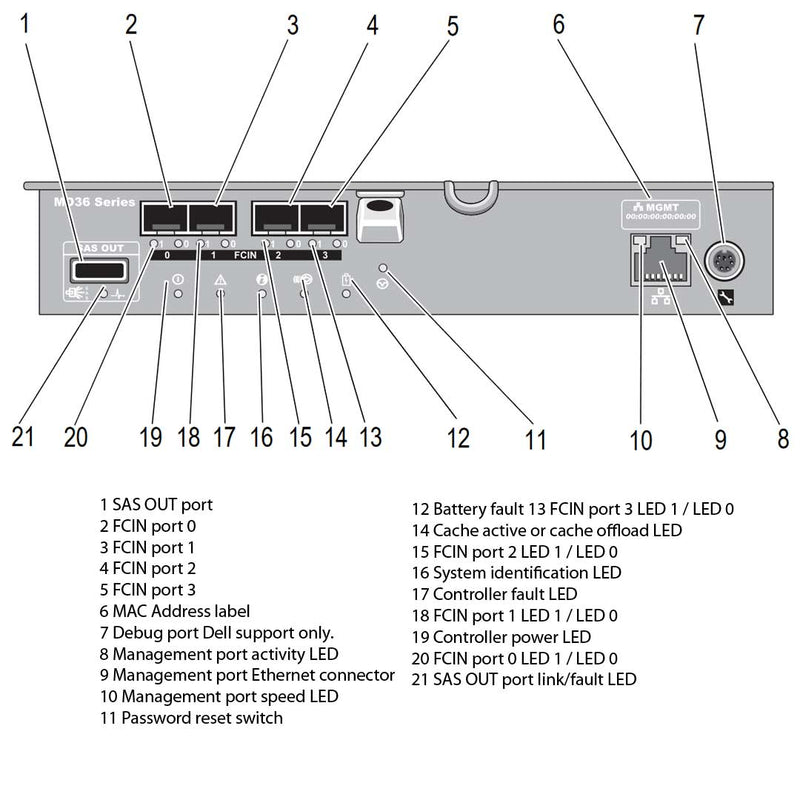

Back-Panel Connectors (per controller)
Host Connectivity Four 8Gb/s SFP ports per controller
Expansion Connectivity One x4 6Gb SAS (8088 mini connector)
Remote Management One RJ-45 1Gb Ethernet
Service Management One PS/2 Serial
LED Indicators
Front Panel 1 two-color LED indicator for system status, 1 single-color LED indicator for power, 1 LED unused in this system
Hard Drive Carrier 1 single-color activity LED, 1 two-color LED status indicator per drive
Storage Controller 1 one-color LED power indicator, 1 one-color LED controller fault indicator, 1 one-color LED controller identifier, 1 one-color LED cache activity indicator, 1 one-color LED battery fault indicator
Power Supply/Cooling Fan Module 3 one-color LED status for AC status, DC status and power supply cooling fan fault
Power Supplies (per supply)
Wattage 600 W peak output
Maximum Heat Dissipation 150 W
Input Voltage Range 90 to 264 VAC
Frequency Range 47 to 63 Hz
Maximum Input Current at Rated Power 55 A for 10ms or less, 25 A for 10-150ms
Available Hard Drive Power (per slot)
Supported Continuous Consumption 3.5” drive: 25 Watts;
2.5” drive: 12 Watts
Physical
Height x Width x Depth MD3600f: 8.68cm (3.42”) x 44.63cm (17.57”) x 56.1cm (22.09”)
MD3620f: 8.68cm (3.42”) x 44.63cm (17.57”) x 50.8 (20”)
Weight MD3600f: 29.3kg (64.59 lbs.) (maximum configuration)
MD3620f: 24.2kg (53.35 lbs.) (maximum configuration)
Environmental
Temperature Operating: 10° to 35°C (50° to 95°F) with a maximum temperature gradation of 10°C per hour
Relative Humidity Operating: 20% to 80% (non-condensing) with a maximum humidity gradation of 10% per hour
Altitude Operating: -16 to 3048 m (-50 to 10,000 ft)
Note: For altitudes above 2950 feet, the maximum operating temperature is de-rated 1°F/550 ft.
