Specs
Quick Specs
Tower or 5U rack server
Blade Configurations: 2 Full Height Blades
2 Half Width + 1 Full Height Blades
4 Half Width Blades
(PER BLADE)
Memory:(PER BLADE)
Storage:12 x 3.5” or 25 x 2.5” NLSAS, SAS or SAS SSD hot-plug drives
Expander Storage: Four MD1200 (12 x 3.5” drives) or
Four MD1220 (24 x 2.5” drives) disk arrays
3 full-height/full-length slots (150W) with DW support (225W)
5 low-profile/half-length slots (25W)
SW and DW GPU (NVIDIA Quadro P4000, K2)
- H: 48.4 cm (19.1 in) with system feet
- W: 31.0 cm (12.2 in) with system feet opened
- D: 73.0 cm (28.7in)
- Weight (empty) = 31.7 kg (69.7 lb)
- Weight (maximum) = 74.8 kg (164.9 lb)
Rack configuration:
- H: 21.9 cm (8.6 in)
- W: 48.2 cm (19.0 in)
- D: 73.0 cm (28.7 in)
- Weight (empty) = 24.7 kg (54.5 lb)
- Weight (maximum) = 68.7 kg (151.5 lb)
- Dell PowerEdge M520 CTO Blade Server (for PE M1000e or VRTX)
- Dell PowerEdge M620 CTO Blade Server (for PE M1000e or VRTX)
- Dell PowerEdge M630 CTO Blade Server (for PE M1000e or VRTX)
- Dell PowerEdge M640 CTO Blade Server (for PE M1000e or VRTX)
- Dell PowerEdge M820 CTO Blade Server (for PE M1000e or VRTX)
- Dell PowerEdge M830 CTO Blade Server (for PE M1000e or VRTX)

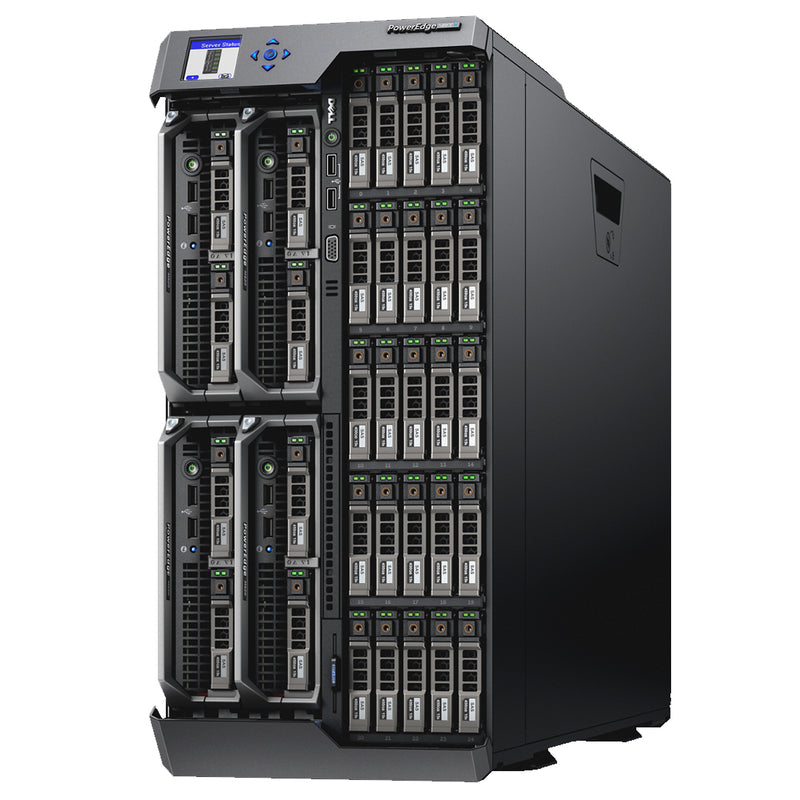

Dell EMC PowerEdge VRTX integrates servers, storage, networking and management into a single office-optimized chassis. Increase efficiency by eliminating disparate hardware and multiple management tools with the scalable and easy-to manage VRTX platform.
Adapt and scale with an expandable, versatile platform
The PowerEdge VRTX was designed for remote-office and small-office environments with ”under your desk” dimensions and quiet acoustics. The PowerEdge VRTX is built on a scalable business architecture so you can continually optimize your capacity and performance with future-proof compute, storage and networking options within a single chassis.
- Scale as you grow, with up to four PowerEdge blade servers and 12 x 3.5” or 25 x 2.5” HDD within its compact chassis.
- Mix and match the two-socket, half-height PowerEdge M630 and M640 server nodes and four-socket, full-height M830 based on your changing workload requirements.
- Easily add more storage by connecting to up to four MD1200 (12 x 3.5” drives) or MD1220 (24 x 2.5” drives) disk arrays in redundant or capacity-based configurations.

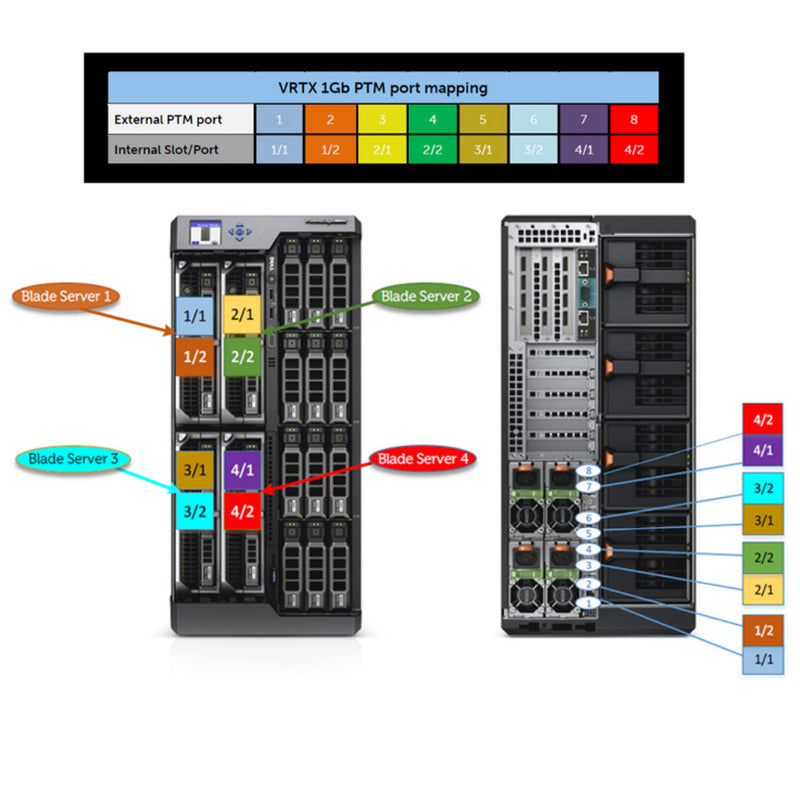

- Integrate networking through the 10GbE or 1GbE internal switch module or an optional 1Gb Ethernet pass-through module.
- Take advantage of flexible, expandable I/O with eight PCIe slots.
- Keep operating expenses in check with energy efficient Fresh Air validated configurations and standard power requirements.
Every PowerEdge server is made with a cyber-resilient architecture, delivering security into all parts of a server’s life cycle. Dell EMC considers each part of system security, from design to end of life, to ensure trust and deliver worry-free systems.
- Maintain data safety with cryptographically signed firmware packages and Secure Boot.
- Prevent unauthorized or malicious change with Server Lockdown.
- Wipe all data from storage media including hard drives, SSDs and system memory quickly and securely with System Erase.
- Add another layer of protection with optional FIPS-certified self-encrypting drives (SED).
Dell EMC Chassis Management Controller (CMC) lets you manage server nodes, shared storage, networking and power in a single console. Access CMC through an easy-to-use web interface that works with a variety of Dell EMC OpenManage tools including iDRAC with Lifecycle Controller. Choose to manage your VRTX with embedded agent-free management or inband.
- Use the OpenManage Mobile app to receive and take action on hardware alerts at the server or from anywhere, at any time.
- Streamline management in virtualized environments with OpenManage Integrations for VMware vCenter or Microsoft System Center.
- Get rapid, at-a-glance identification of remote system locations and health status with Geoview.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | PowerEdge VRTX Technical Specifications |
|---|---|
| Chassis enclosure | Form factors:
Rack configuration:
|
| Server node options | PowerEdge M640, M630 and M830 server nodes |
| Power supplies | Redundant power supply units support 2+2 (AC redundancy) and 3+1 (power supply redundancy) modes
|

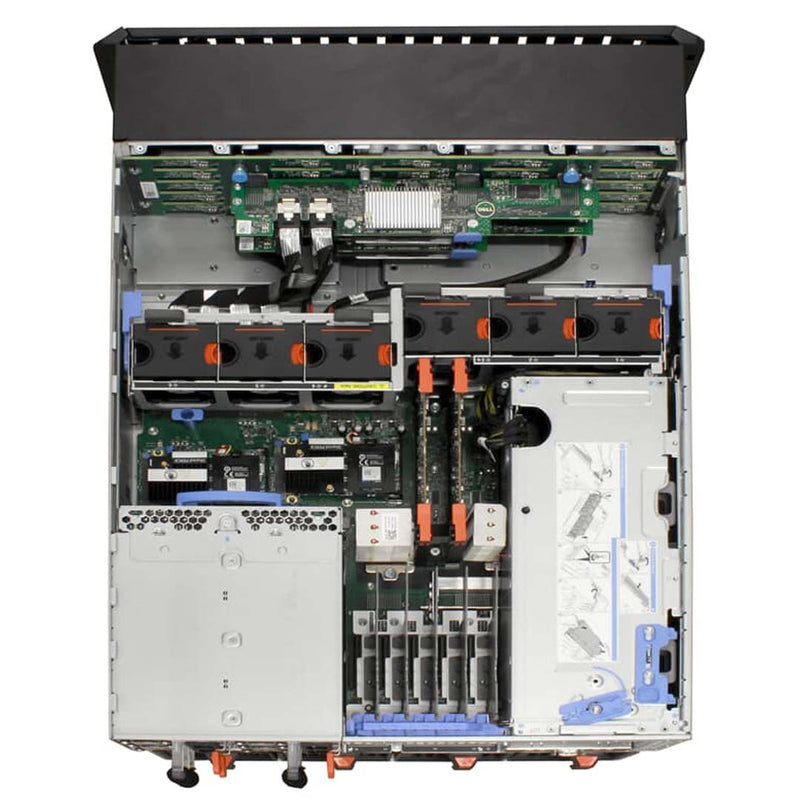

| Cooling | PowerEdge VRTX comes standard with 6 hot-pluggable, redundant fan modules and 4 blower modules based on Dell Energy Smart Technologies. The fans and blowers deliver low-power consumption, but also use next-generation fan technologies to ensure the lowest possible amount of fresh air is consumed to cool the enclosure. |
| Input devices | Front control panel with interactive graphical LCD that supports initial configuration wizard. It also supports local server blade, enclosure and module information and troubleshooting. Two USB keyboard/mouse connections and one video connection for local front “crash cart” console connections, optional DVD RW available. |
| RAID controller | Single shared PERC8 Optional second redundant shared PERC8 available |
| Drive bays and hard drives | Up to 12 x 3.5” NLSAS, SAS or SAS SSD hot-plug drives Up to 25 x 2.5” NLSAS, SAS or SAS SSD hot-plug drives Optional FIPS 140-2 certified self-encrypting drives (SED), up to 25 x 2.5 NLSAS, SAS or SAS SSD |
| JBOD expansion options | Chassis storage can be expanded even further by connecting up to four MD1200 (12 x 3.5” drives) or MD1220 (24 x 2.5” drives) disk arrays |
| GPU | Up to 2 single-wide actively cooled GPU accelerators (NVIDIA Quadro P4000) |
| Integrated networking – ethernet |
|
| I/O slots | 8 flexible PCIe slots:
|
| Systems management |
|
| Rack support | ReadyRails™ II sliding rails for 4-post racks with square, round or threaded holes |
