Specs
Quick Specs
Quarter Width - 8 sleds per FX2 Enclosure
Processor | Max: 18 Cores2 x Intel Xeon E5-2600v4
Memory | Max: 256GB8 DDR4 RDIMM 2400Mhz
Storage | Max: N/A1 SFF (1.8") SAS/SATA (HDD/SSD)
Storage Controllers:PERC S130 (SW RAID)
PCIe Slots:1x PCIe 3.0 (x8) expansion slots
iDRAC:iDRAC8 with Lifecycle Controller
GPU:None
Ideal for:
- Database
- Virtualization

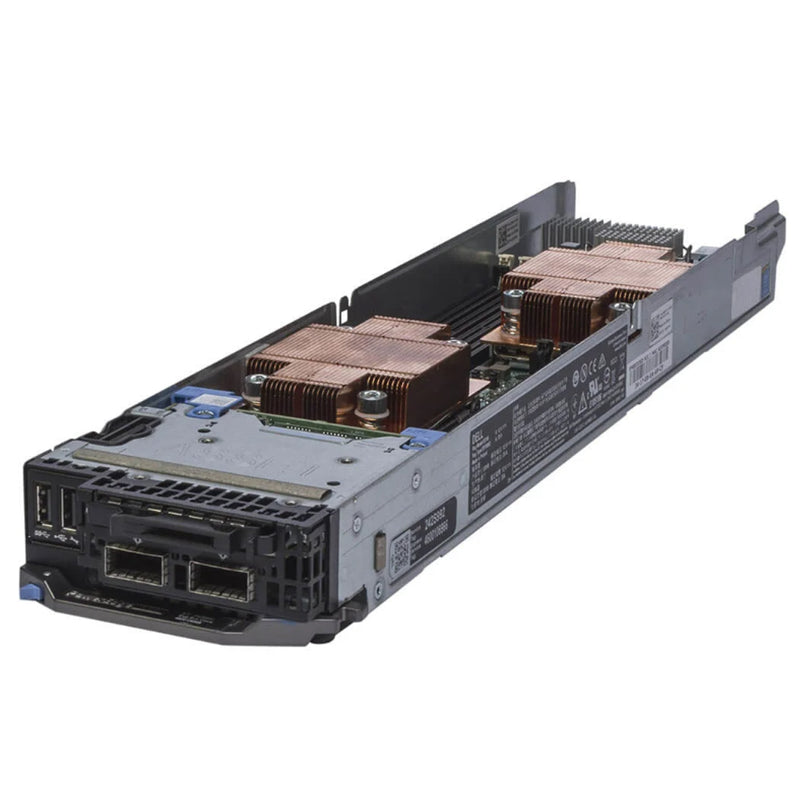

A quarter-width, two-socket FX architecture server, the Dell PowerEdge FC430 offers the ultimate in shared infrastructure density with the option for smaller, physically discrete servers.
The FC430 offers Choices:
- Two 18-core Intel® Xeon® E5-2600 v4 processors, or a single socket Intel Xeon E5-1600 v3 alternative
- Two 1.8-inch drives or one 1.8-inch drive with a front-access mezzanine port Mellanox® InfiniBand® connection.
All configurations have up to 8 DIMMs of memory and a dual port 10Gb LOM for networking. Each FC430 has access to one PCIe 3.0 expansion slot.
Implement higher reliability
One of the FC430’s distinguishing features is its quarter-width size. It can run multiple applications as a virtualized environment, or house the operations of different clients as a dedicated host. Either way, it offers the benefit of higher reliability through physical separation; one server failing does not disrupt the operation of virtual machines or clients running on other servers.
Need assistance with customization? Our sales experts are here to help you.
Start Customizing Today!
Base Standard Capabilities
| Feature | Technical specification |
|---|---|
| Form factor | Quarter-width – supports up to 8 sleds per PowerEdge FX2 enclosure |
| Dimensions | H: 4.25 cm (1.67 in) W: 10.27 cm (4.04 in) D: 45 cm (18.89 in) |
| Processor | Intel® Xeon® processor E5-2600 v4 product family Processor sockets: 2 Cache: 2.5MB per core; core options: 4, 6, 8, 10, 12, 14, 18 Chipset: Intel C610 series |
| Memory | Up to 256GB (8 DIMM slots): 4GB/8GB/16GB/32GB DDR4 up to 2400MT/s |
| I/O mezzanine cards | Access to 1 x PCIe 3.0 (x8) expansion slots |
| RAID controllers | Internal controllers: PERC S130 (SW RAID) |
| Primary storage | Hot-plug hard drive options: Up to 2 x 1.8" uSATA SSDs |
| Optional adapters | Optional NICs and HBAs |
| Powere Supplies | Chassis level – PowerEdge FX2 hot-plug PSU: 2000W, 1600W AC in 1+1 redundant or 2+0 non-redundant configurations |
| Video card | Video type Matrox® G200 (integrated with iDRAC8) Video memory: 16MB shared with iDRAC8 application memory |
| Systems management | • FX uses Chassis Management Controller (CMC) to manage all resources (server nodes and shared infrastructure) in a single web console • OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products • CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs • Server nodes each contain proven iDRAC8 with Lifecycle Controller for agent-free, automated systems management |
| Operating systems | Microsoft® Windows Server® 2008 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2012 R2 Novell® SUSE® Linux Enterprise Server Red Hat® Enterprise Linux VMware® ESX® |
Spec Sheet 4
| Feature | FX2 | FM120x4 | FC430 | FC630 | FD332 |
|---|---|---|---|---|---|
| Form Factor | 2U chassis in height | Half-width: up to 4 FM120 per FX2 chassis | Quarter-width: up to 8 FC430 per FX2 chassis | Half-width: up to 4 FC630 per FX2 chassis | Half-width: up to 16 x SFF 2.5” storage devices; Up to 3 FD332 per FX2 chassis |
| Processors | N/A | 4 x Intel® Atom™ processor C2000 product family | Intel Xeon processor E5-2600 v3 product family | Intel Xeon processor E5-2600 v3 product family | N/A |
| Processor sockets | N/A | 1 | 2 | 2 | N/A |
| Cache | N/A | - | 2.5MB per core;
core options: 4, 6, 8, 10, 12, 14 |
2.5MB per core;
core options: 4, 6, 8, 10, 12, 16, 18 |
N/A |
| Chipset | N/A | SoC | Intel C610 series | Intel C610 series | N/A |
| Memory (1) | N/A | 2 x DIMMs DDR3 memory per SOC, UDIMM only, 8 per sled | Up to 256GB (8 DIMM slots):
4GB/8GB/16GB/32G B DDR4 up to 2133MT/s |
Up to 768GB (24 DIMM slots):
4GB/8GB/16GB/32G B DDR4 up to 2133MT/s |
N/A |
| PCIe slots | FX2s:
Up to 8 PCIe 3.0 slots |
N/A | Access to 1 x PCIe 3.0 slot | Access to 2 x PCIe 3.0 slots | N/A |
| RAID controller | N/A | PERC S110 (SW RAID) | Internal controllers: PERC S130 (SW RAID) | PERC S130 (SW RAID),
PERC H330 PERC H730 PERC H730P |
FD33xS (Single PERC),
FD33xD (Dual PERC) |
| Storage | N/A | 1 x 2.5" SATA HDD/SSD or
2 x 1.8" uSATA SSD per Intel Atom processor |
Up to 2 x 1.8” uSATA SSDs | PowerEdge Express Flash NVMe PCIe SSD, SATA HDD/SSD or
SAS HDD/SSD; Up to 8 x 1.8” SSD or 2 x 2.5” |
SATA HDD/SSD or SAS HDD/SSD;
Up to 16 x SFF storage devices per FD332 |
| Power supply | 2000W AC, 1600W or 1100W AC power supplies in 1+1 redundant, redundancy alerting only, 2+0 non-redundant configurations. | ||||
| Systems management | • FX uses CMC to manage all resources (server nodes and shared infrastructure) in a single web console
• OpenManage portfolio for FX supports local and remote management, consistent with other PowerEdge products • CMC and iDRAC are available with either Enterprise or Express licensing to best suit specific management needs • Server nodes each contain proven iDRAC with Lifecycle Controller for agent-free, automated systems management |
||||
| Operating systems | N/A | • Microsoft® Windows Server® 2008 R2 SP1 (includes Hyper-V®)
• Microsoft Windows Server 2012 • Microsoft Windows Server 2012 R2 (includes Hyper-V) • Novell® SUSE® Linux Enterprise Server • Red Hat® Enterprise Linux® |
N/A | ||
